Lollipop3 5.8GHz 3dBi RHCP FPV Antenna (Straight MMCX)

₹809Incl. GST

SKU LOLLIPOP3-58G-3DBI-MMCX-163

Length: 163mm

Polarization: RHCPAntenna Connector: MMCXFrequency: 5.8GHzMade in India: No

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

5.8GHz lollipop-style omni antenna with RHCP polarisation, 3dBi gain and a straight MMCX plug on a coax lead. It fits video transmitters and air units with an MMCX socket, so it connects without an adapter, and the two lead lengths (163mm and 180mm) let you reach a rear antenna mount on different frame sizes.

Key features

  • RHCP polarisation: match it with RHCP antennas on your goggles or video receiver.
  • Covers 5325–5945MHz, which spans the common 5.8GHz FPV bands.
  • 50Ω impedance with a VSWR of 1.5 or lower, so little power is reflected back into the VTX.

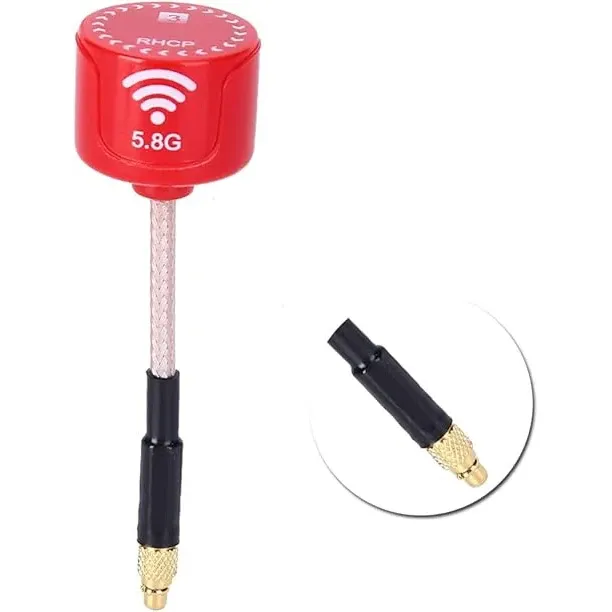

  • Straight MMCX plug for VTXs with an MMCX socket.
  • ABS shell around the radiating element.

Specifications

  • Frequency range: 5325–5945MHz
  • Gain: 3dBi
  • Polarisation: RHCP
  • Impedance: 50Ω
  • VSWR: ≤1.5
  • Connector: Straight MMCX
  • Lead length: 163mm or 180mm
  • Shell: ABS

MMCX plugs snap on rather than screw in, so secure the lead with a TPU antenna mount or a zip tie to stop a crash from pulling it out of the VTX.
