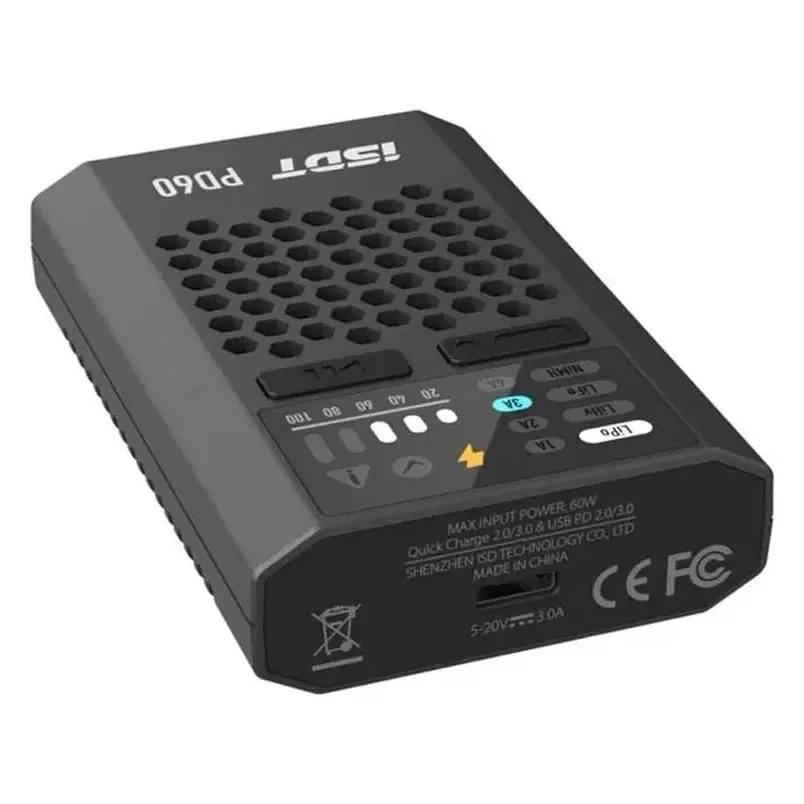

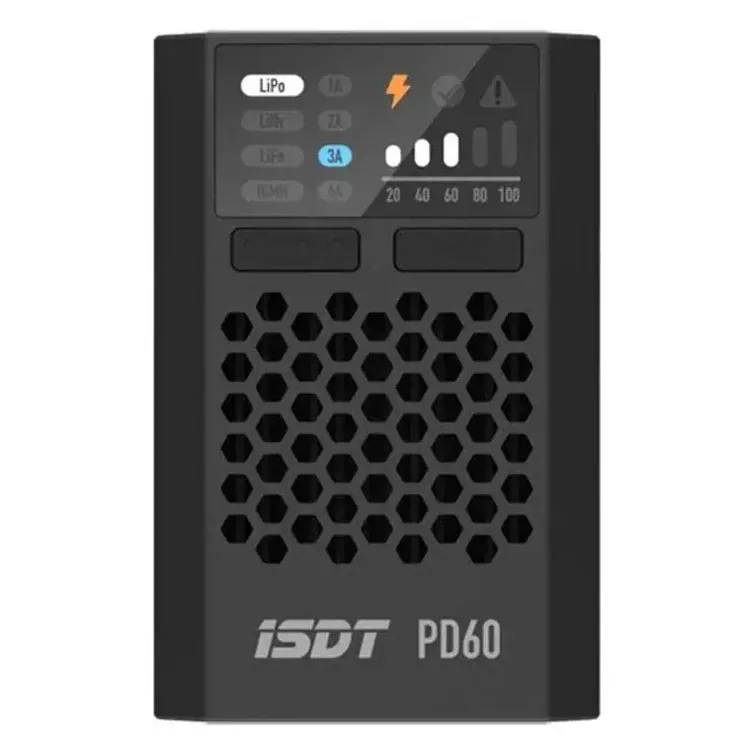

ISDT PD60 60W 6A 1-4S USB-C Balance Charger (XT60)

The ISDT PD60 is a pocket-sized balance charger that runs from a USB-C power bank or PD wall adapter, so 1–4S packs can be charged at the field without a mains supply. The XT60 output plugs straight into XT60 packs or a parallel charging board.

Key features

• USB-C input accepts USB PD 2.0/3.0 and QC 2.0/3.0 sources from 5 to 20 V (5 V/1 A sources are not supported)

• Charges LiPo, LiHV and LiFe packs from 1 to 4S, plus NiMH/NiCd from 1 to 12 cells

• Selectable 1, 2, 3 or 6 A charge current with up to 0.5 A balancing per cell

• Alarms for an incorrect cell-count setting and abnormal voltage

• Upgradeable firmware in an 87 g case that fits a field bag

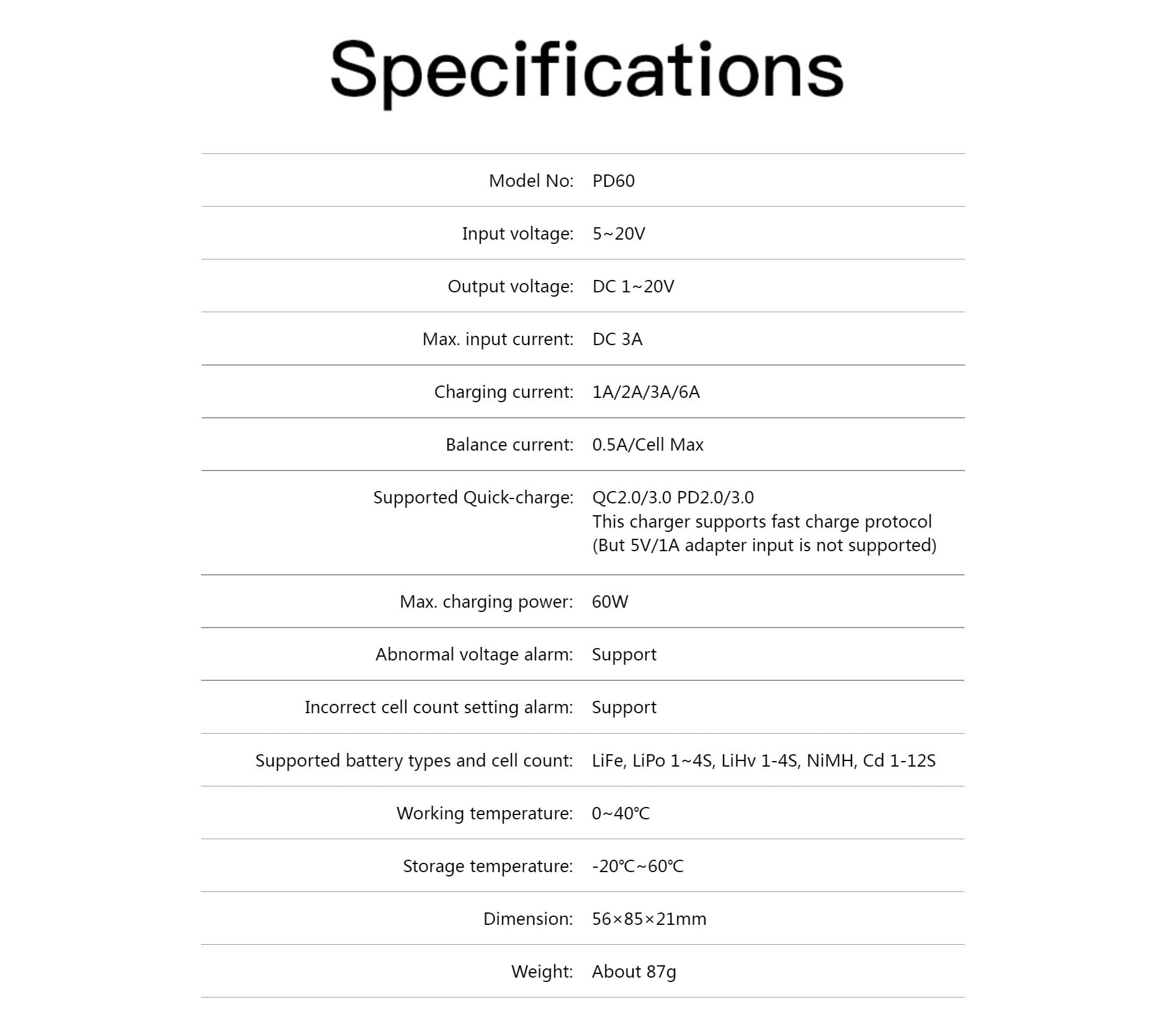

Specifications

• Input: USB-C, 5–20 V DC, 3 A max

• Max charge power: 60 W

• Output voltage: 1.0–20 V DC

• Charge current: 1 / 2 / 3 / 6 A

• Balance current: 0.5 A per cell max

• Lithium packs: 1–4S (LiPo, LiHV, LiFe)

• NiMH/NiCd: 1–12 cells

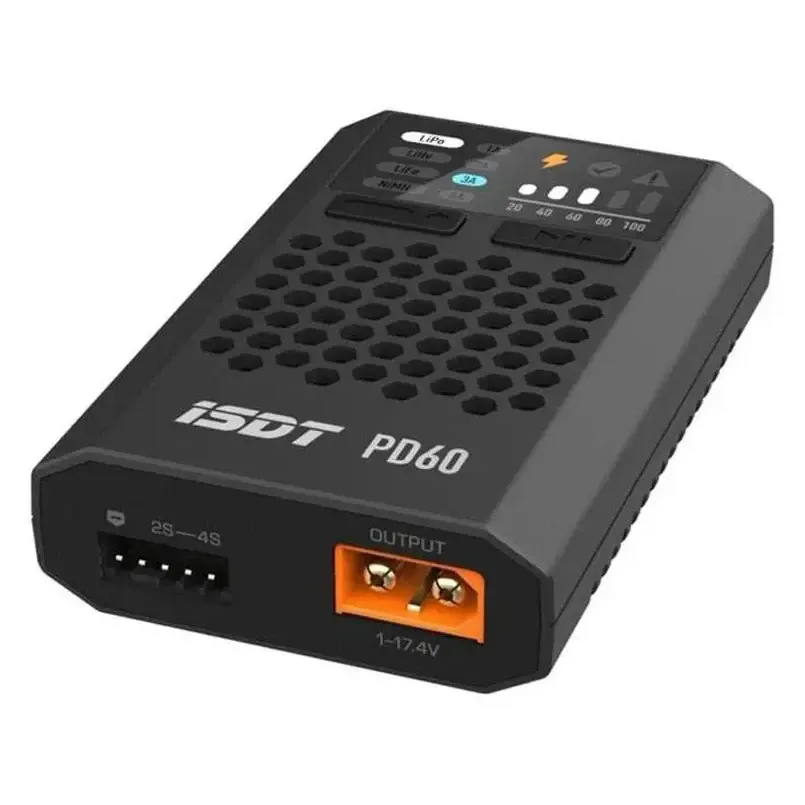

• Output connector: XT60

• Operating temperature: 0–40 °C

• Dimensions: 56 × 85 × 21 mm

• Weight: 87 g

Charge power depends on the source: the full 60 W needs a 20 V/3 A PD supply, while a 9 V source tops out near 27 W. On a 4S pack at 16.8 V, 60 W works out to about 3.6 A, so the 6 A setting is reachable only on 1–2S packs.
