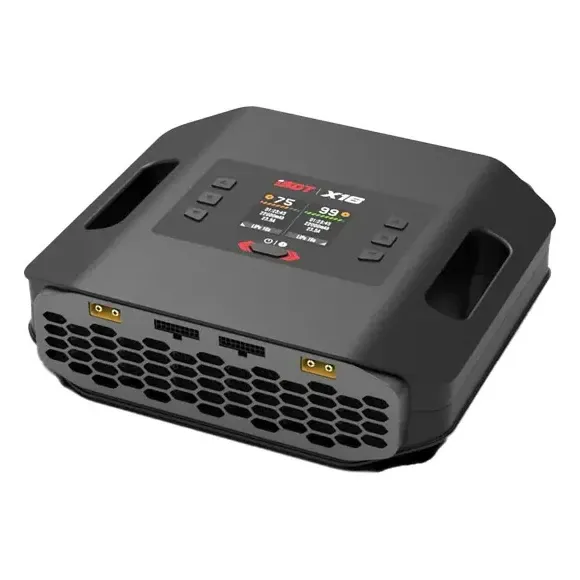

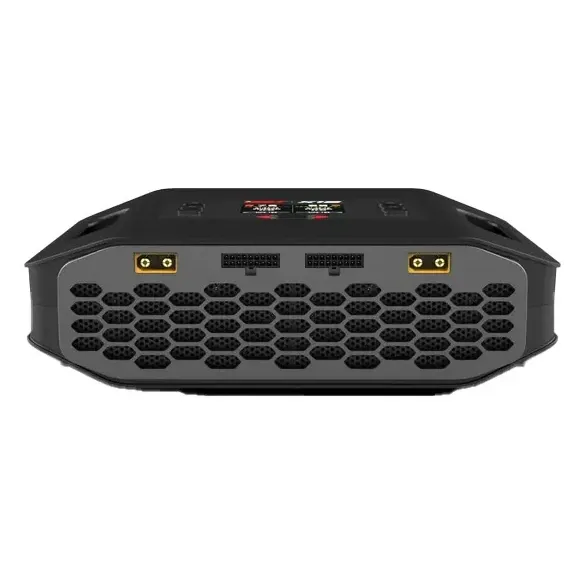

ISDT X16 Dual-Channel AC 2x1100W 2-16S 20A Smart Charger

The ISDT X16 is a dual-channel AC balance charger for 2S–16S packs, with two independent 1100 W, 20 A outputs that charge two large packs at the same time. It is aimed at agriculture spray drones, industrial UAVs and big fixed-wing or helicopter packs where field crews need fast turnaround.

Key features

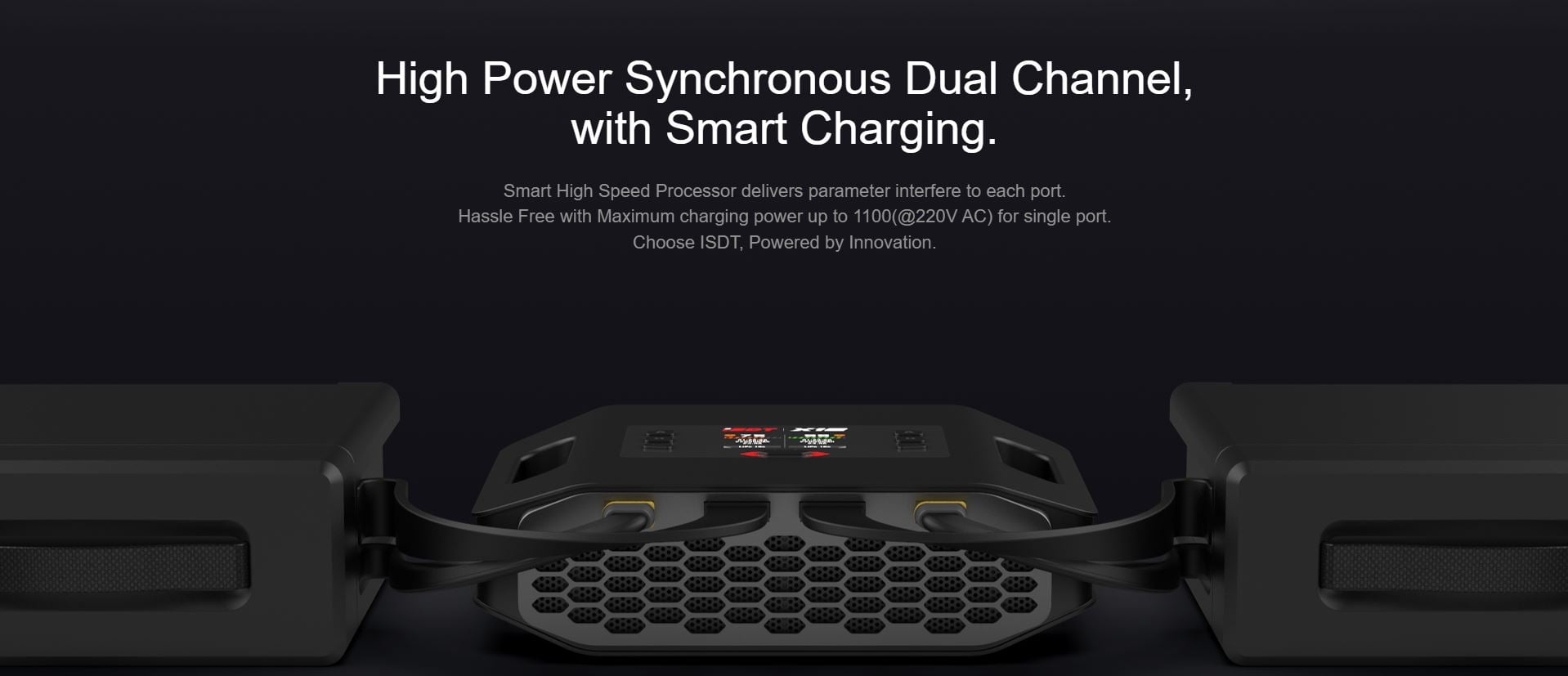

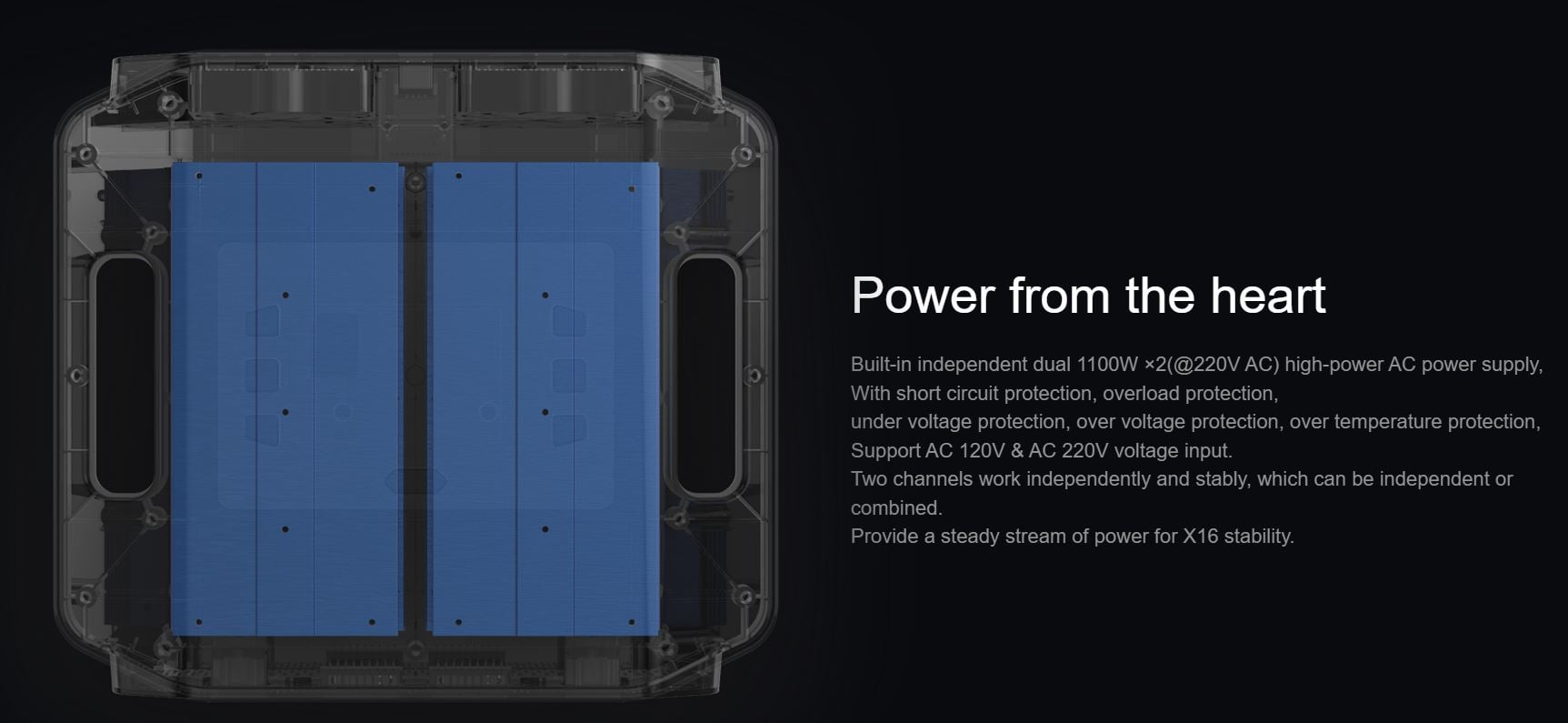

• Two independent channels, each with its own power supply: up to 1100 W and 1–20 A per channel (2200 W total at 220 V AC)

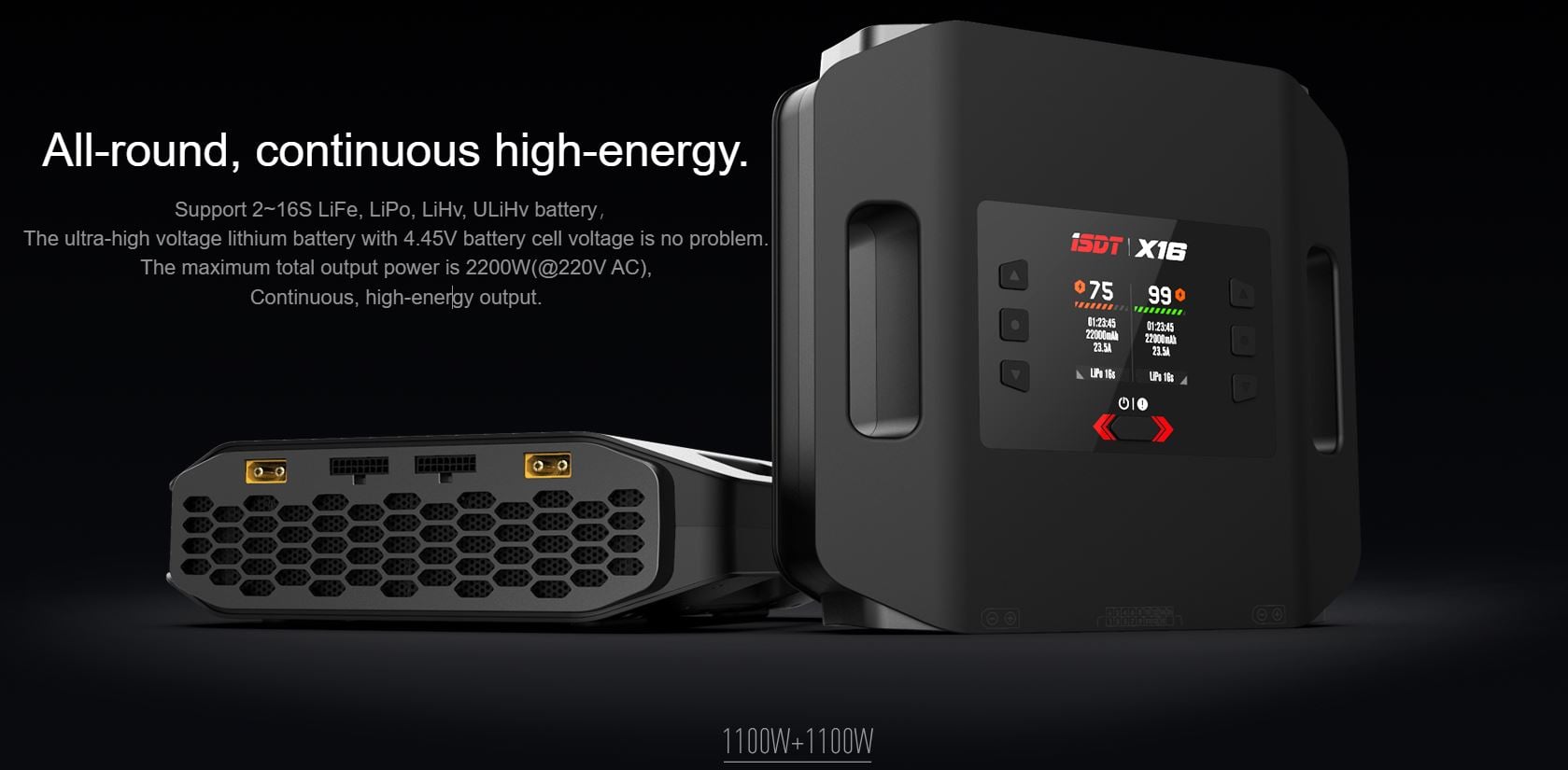

• Charges LiFe, LiPo, LiHV and ULiHV packs from 2S to 16S

• 1.5 A per-cell balancing through dual 18-pin balance ports

• Charge, Balance, Storage, Discharge and Cycle modes, with 50 W / 3 A discharge per channel

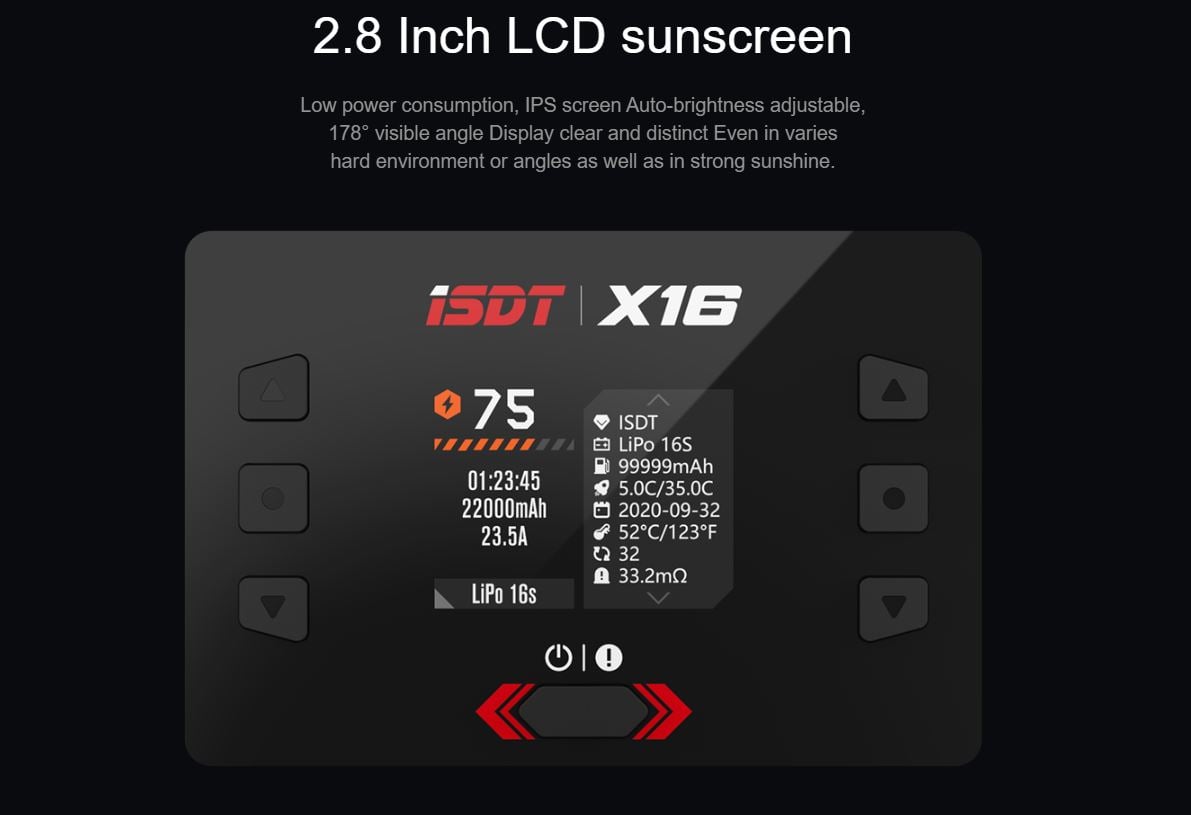

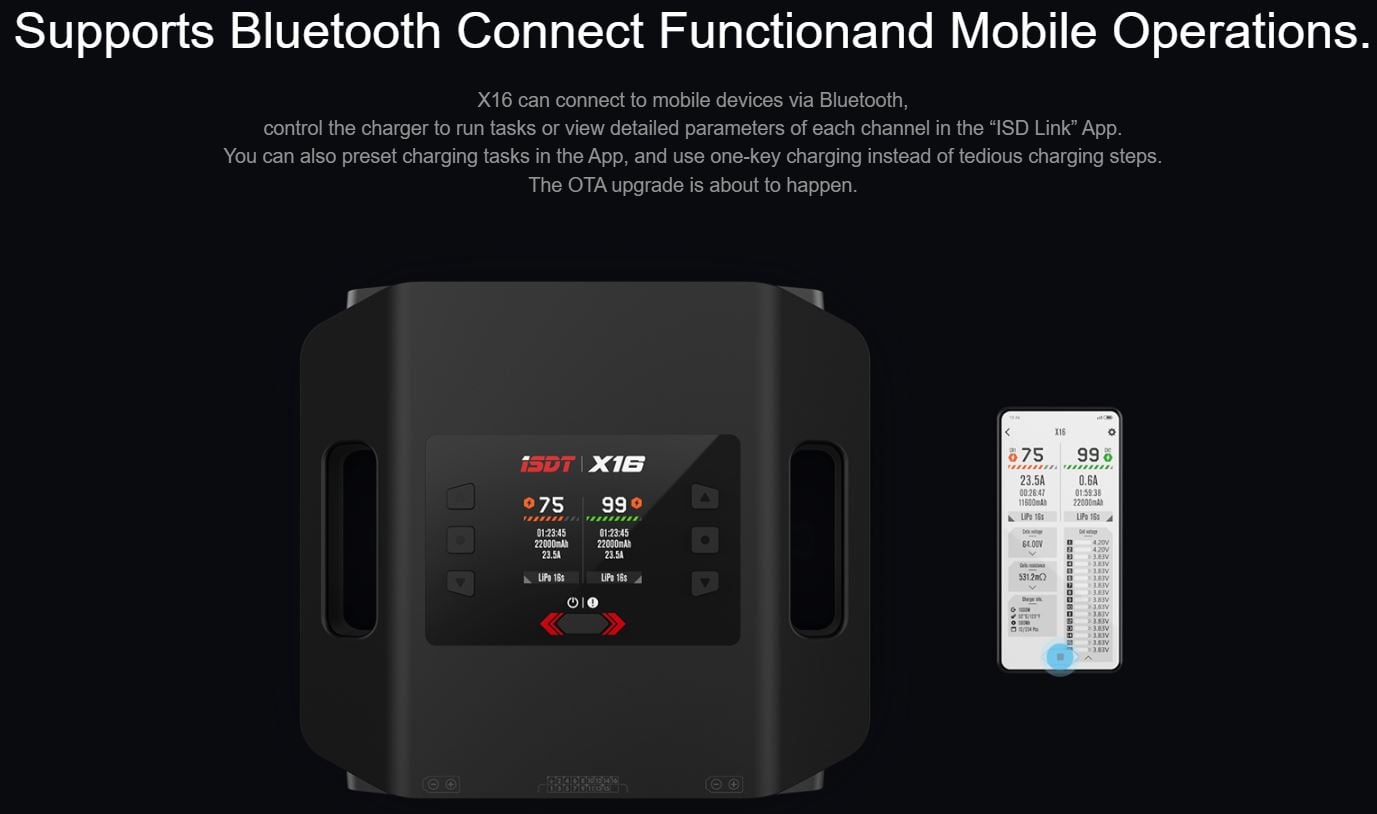

• 2.8-inch IPS colour display plus Bluetooth control through the ISD Link app, with OTA firmware updates

• Temperature-controlled cooling and reverse-polarity, over-temperature, overload and short-circuit protection

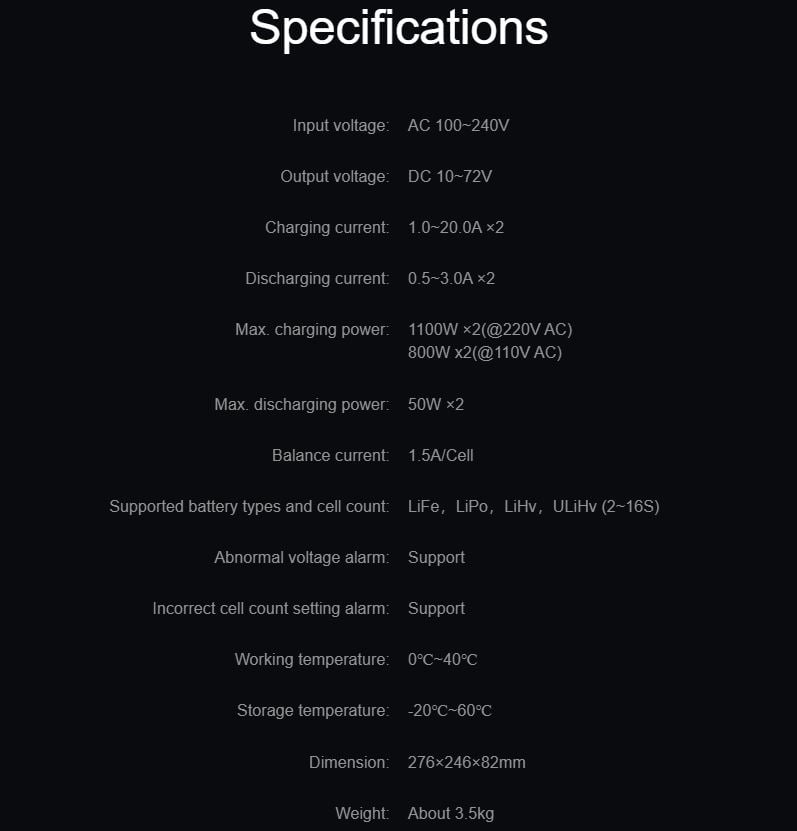

Specifications

• Input: AC 100–240 V

• Output voltage: DC 10–72 V

• Charge power: 1100 W × 2 (2200 W total at 220 V AC)

• Charge current: 1–20 A × 2

• Discharge: 50 W × 2, 0.5–3 A

• Balance current: 1.5 A per cell

• Battery types: LiFe, LiPo, LiHV, ULiHV

• Cell count: 2–16S

• Display: 2.8-inch IPS colour

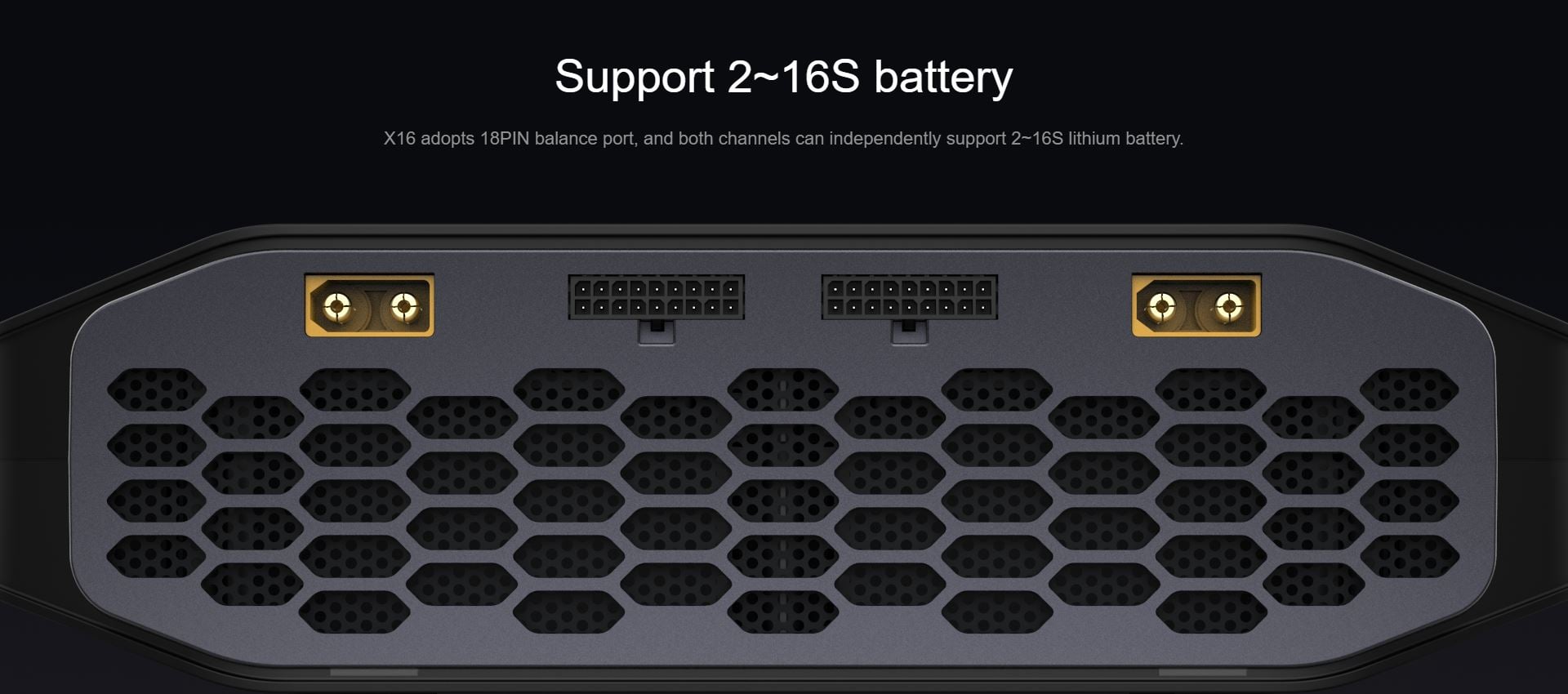

• Balance ports: dual 18-pin

• In the box: charger, AC power cable, user manual

Each channel runs at its full 20 A on a 12S pack (about 1008 W at 50.4 V). On a 14S LiPo pack (58.8 V when full) the 1100 W per-channel limit works out to about 18.7 A at the top of the charge.
