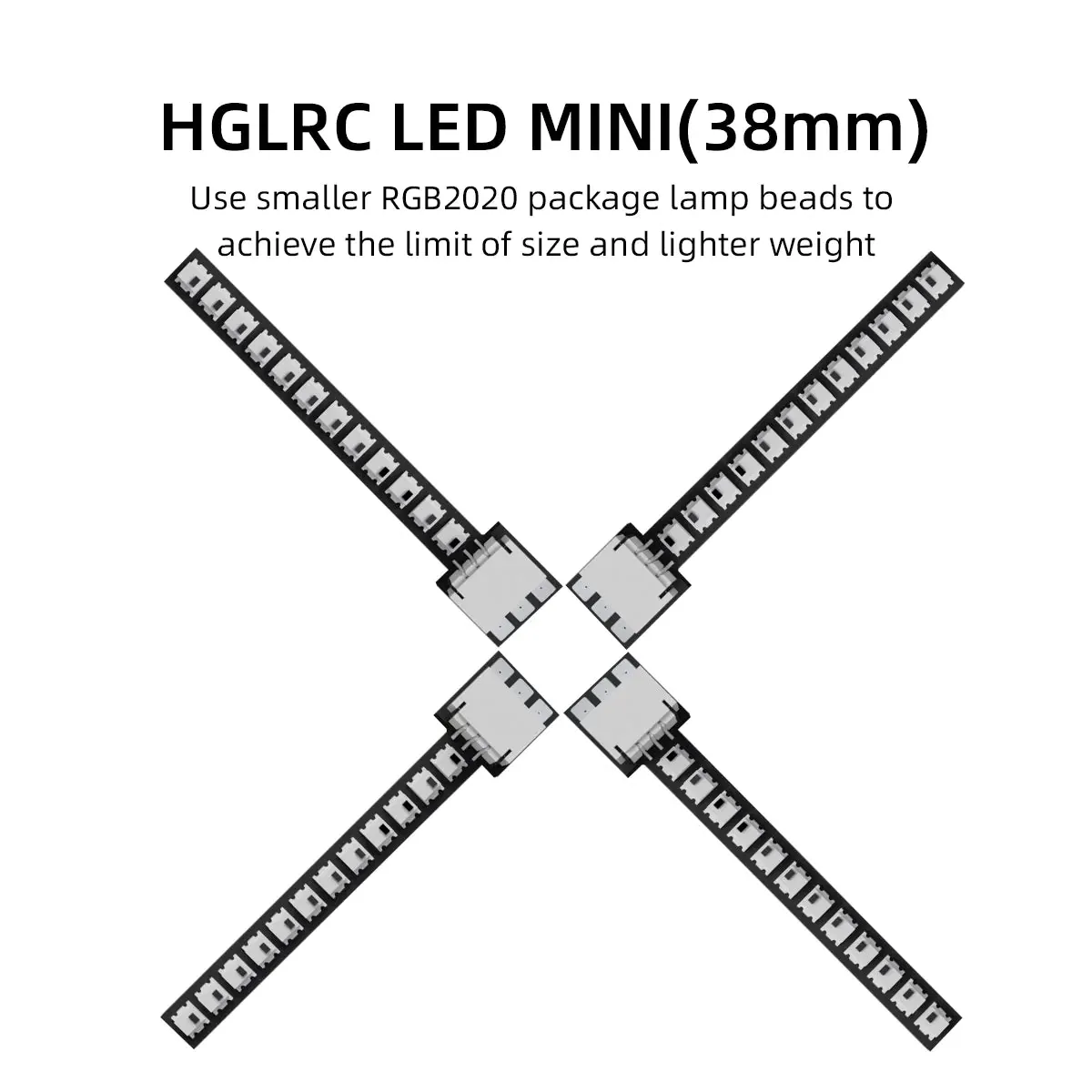

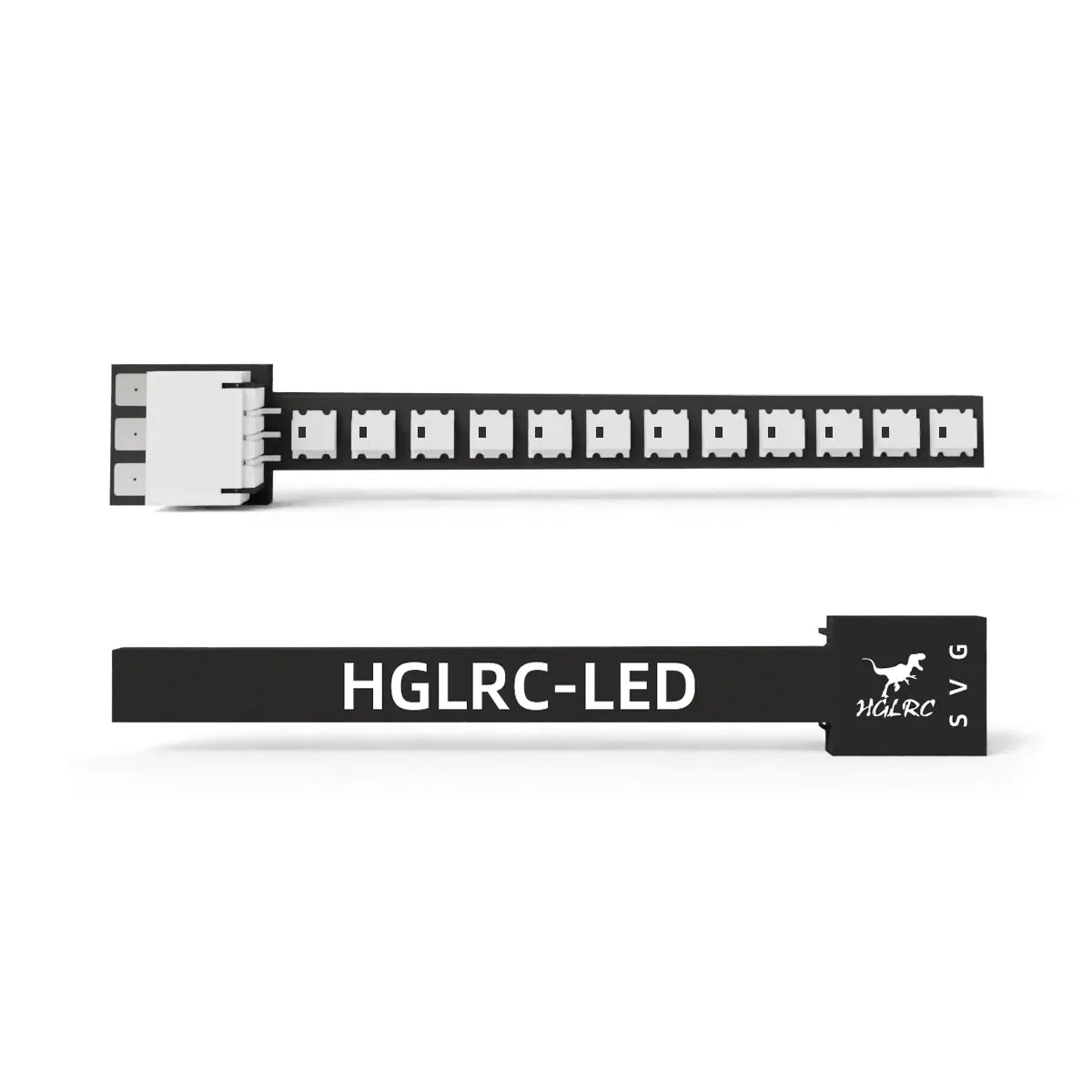

HGLRC LED Mini (38mm)

The HGLRC LED Mini (38mm) is a compact, programmable WS2812B LED strip tailored for FPV freestyle and racing drones. Running on a standard 5V input, it integrates directly with Betaflight or INAV to provide vivid visual feedback. Whether you need low-battery warnings, arming status, or high-visibility tracking for night flying and drone racing, this board delivers bright, customisable illumination without adding unnecessary bulk to your build.

Key features

• Programmable WS2812B RGB protocol for full colour and function mapping via flight controller software.

• Compact 38mm length fits neatly along standard carbon fibre drone arms or rear standoffs.

• Equipped with both direct solder pads and a plug-and-play port for rapid connection to compatible HGLRC flight controllers.

• Data-out (DO) pads allow multiple LED strips to be daisy-chained in series across the quadcopter.

Specifications

• LED type: WS2812B (RGB)

• Input voltage: 5V

• Dimensions: 38mm (length)

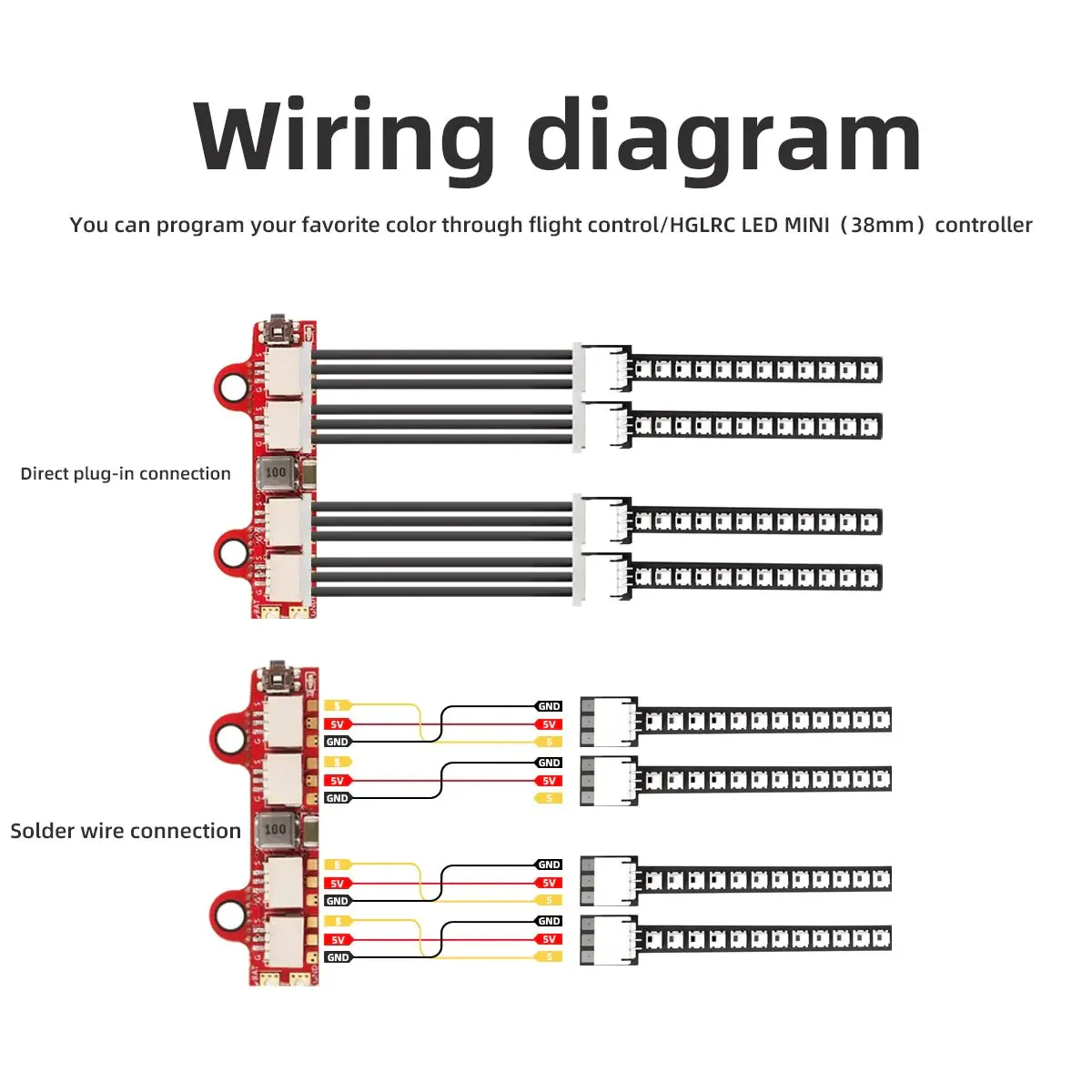

To configure, wire the strip to your flight controller's 5V, GND, and LED signal pads. Remember to enable the LED_STRIP feature in your firmware configurator to begin assigning colours to your stick inputs, alarms, or flight modes.
