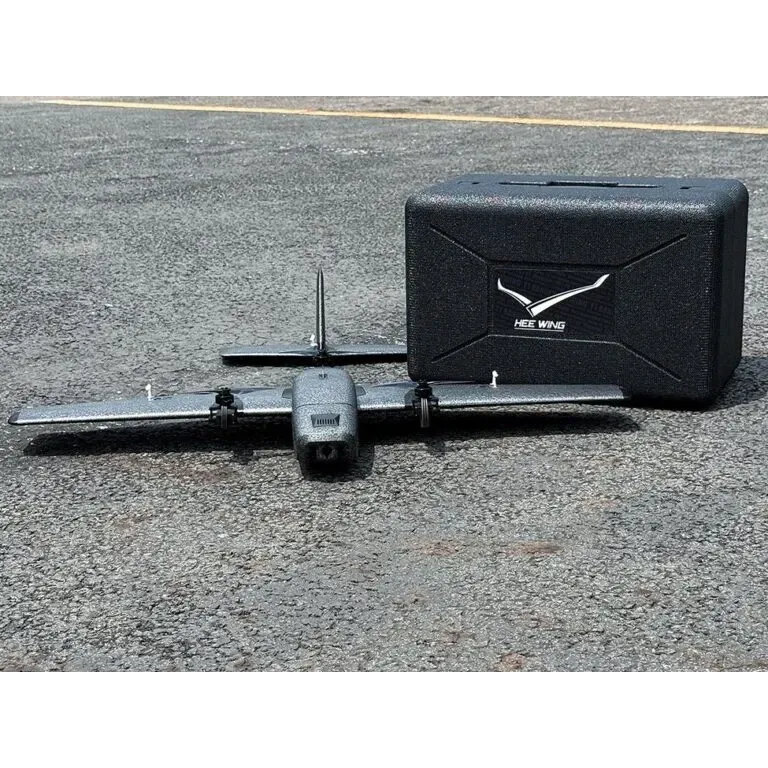

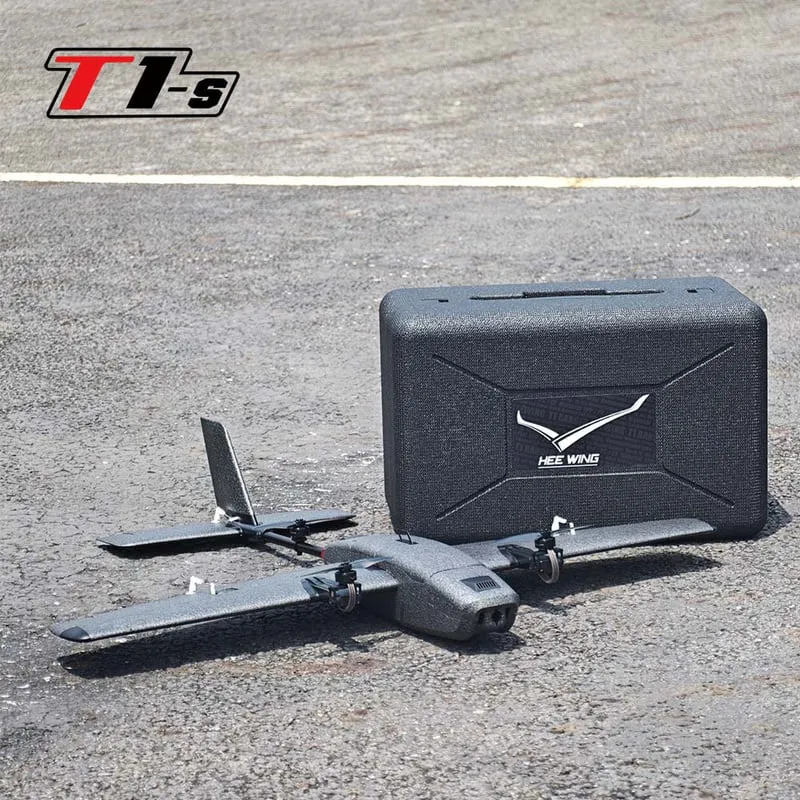

HEEWING T1-S Ranger S VTOL PNP with Carry Case

The HEEWING T1-S Ranger VTOL is a 790 mm-wingspan fixed wing with tilting front motors, supplied PNP with a carrying case, either without a flight controller or with a pre-installed, pre-configured F405 VTOL flight controller. It suits pilots who want vertical take-off and landing on a compact FPV or mapping plane and will fit their own GPS, receiver and 4S battery, plus a VTOL-capable flight controller on the without-FC version.

Key features

• Front motors tilt on V39 servos for vertical take-off and landing, then transition to forward flight

• Factory-fitted 1806 VTOL motors, HEEWING 20A BLS ESCs and 4.3 g control-surface servos

• Larger 790 mm wing than the original T1 Ranger, with raised aileron servo arms and improved hatch locking

• Enlarged fuselage bay for your electronics, with a raised nose that protects the fuselage on landing

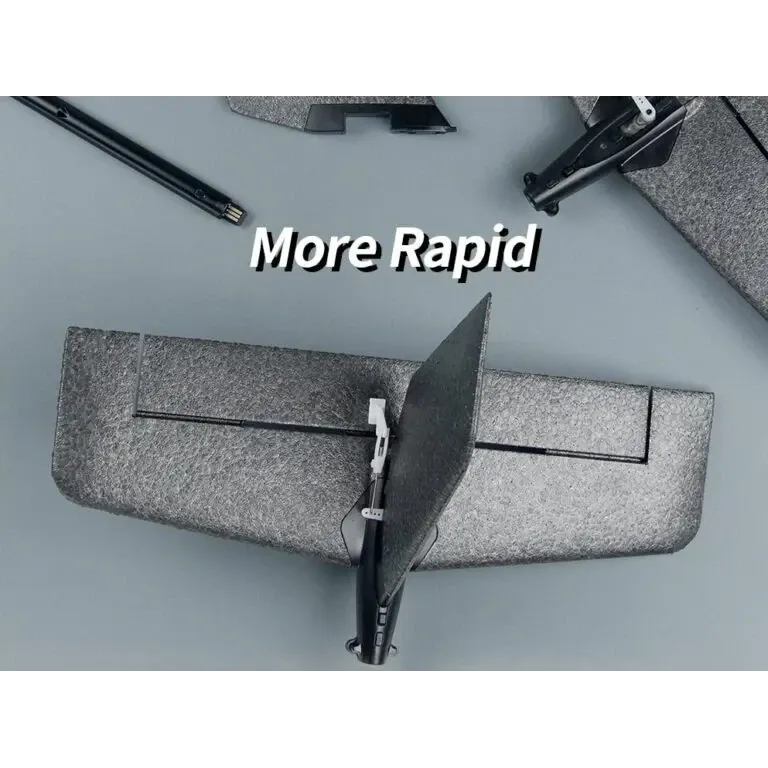

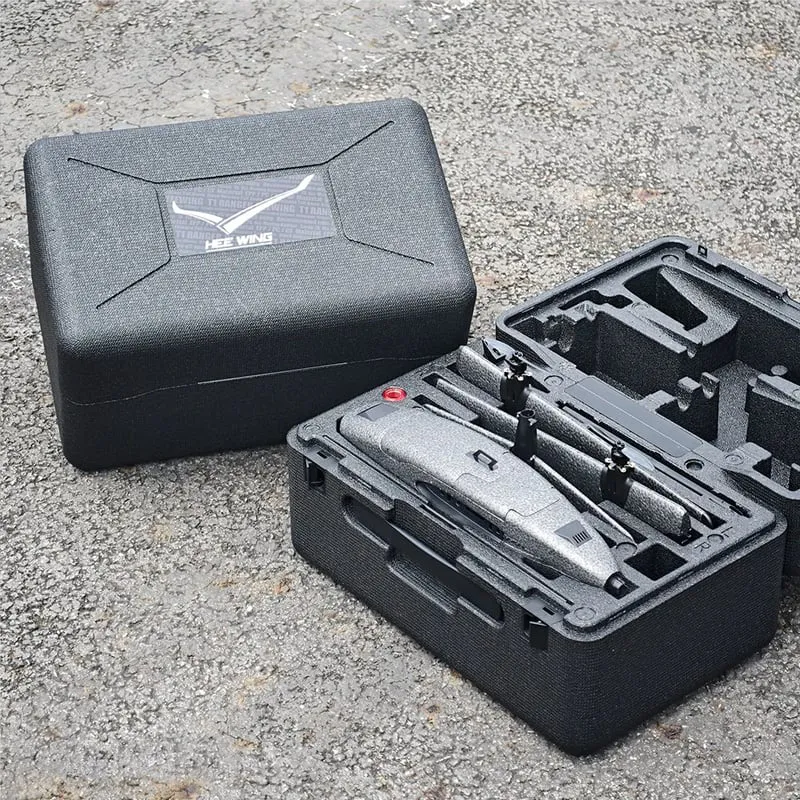

• Quick-release tail fin and detachable sections, carried in the included foam case

Specifications

• Wingspan: 790 mm

• Length: 715 mm

• Motors: 1806 (VTOL)

• ESC: HEEWING 20A BLS

• Servos: 4.3 g; V39 tilt servos

• Propellers: 5126 (VTOL)

• Take-off weight: 600-950 g depending on setup

• Recommended battery: 4S

• Version: PNP, without flight controller, or with a pre-installed F405 VTOL flight controller

Not included: GPS, radio receiver, flight battery and FPV gear, plus the flight controller on the without-FC version. ArduPilot QuadPlane is the usual firmware for tilt-rotor setups like this; keep the finished aircraft inside the 950 g take-off ceiling when choosing the 4S pack and camera payload.
