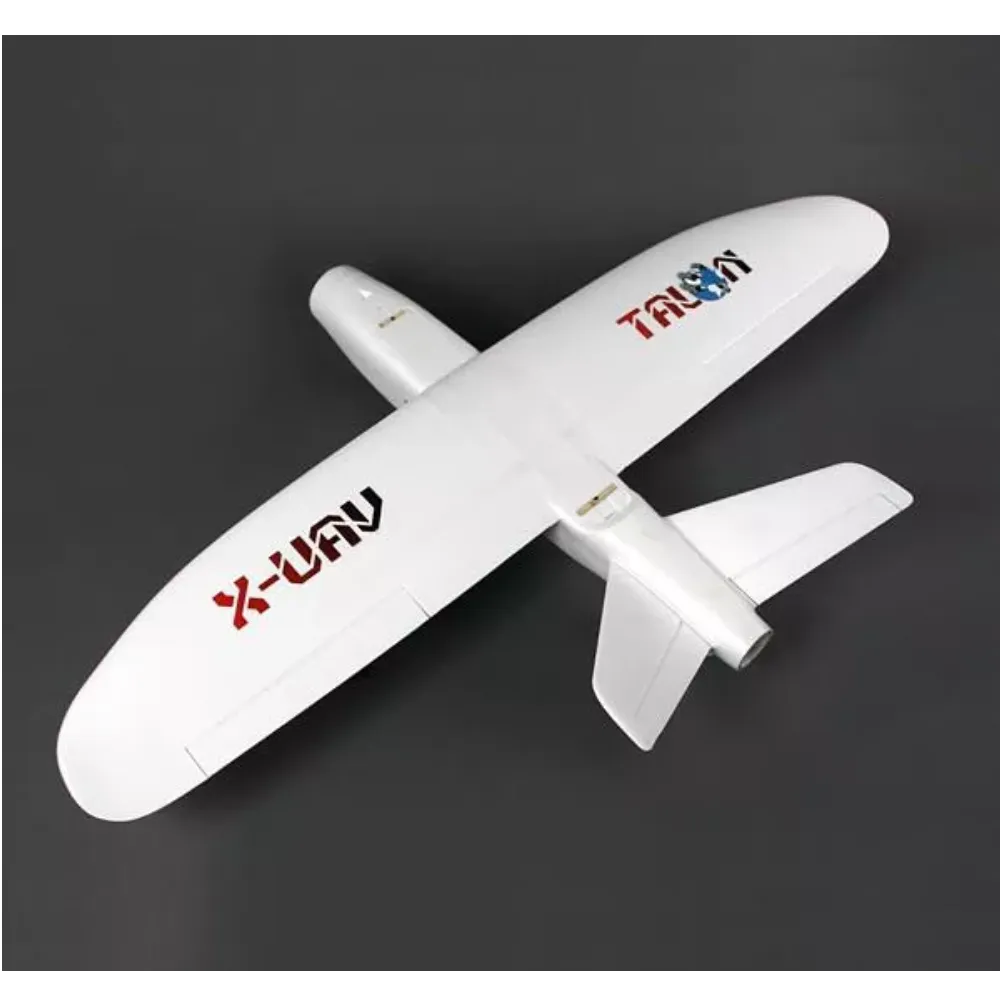

X-UAV Talon EPO 1718mm V-Tail FPV Plane Kit V3

The X-UAV Talon V3 is a 1718mm wingspan EPO foam fixed-wing aircraft designed for long-range FPV and aerial photography missions. Its V-tail configuration reduces drag and weight compared to conventional tail layouts, while the durable EPO foam construction balances crash resistance with flight performance. Supplied as a kit, it requires a motor, ESC, servos, flight controller and FPV gear to complete—suited to intermediate builders comfortable integrating electronics into a fixed-wing platform.

Key features

• 1718mm wingspan EPO airframe with V-tail layout for efficient cruise and reduced component count

• Large fuselage bay accommodates flight controllers, video transmitters, camera gimbals and battery packs

• Modular construction with removable wings for transport and field repairs

• Compatible with ArduPilot and INAV firmware for autonomous waypoint missions and return-to-home

Specifications

• Wingspan: 1718 mm

• Length: 1100 mm

• Wing area: 60 dm2

• Flying weight: 2500-3000 g

• Configuration: V-tail pusher

• Material: EPO foam with laser-cut plywood motor mount and wing saddle

• Wings: two-piece plug-in, carbon wing tube

• Recommended power: 3720 1200KV motor, 70A ESC, propeller up to 12 inch

• Recommended servos: 2 x 9 g + 2 x 17 g

• Recommended battery: 4S 14.8V LiPo (10,000 mAh suggested)

• Not included: motor, ESC, servos, propeller, landing gear

The Talon V3's long wingspan and pusher motor layout favour extended flight times—typically 40–60 minutes depending on payload and battery capacity—making it well-suited to mapping, survey work and long-range FPV exploration. The kit arrives unassembled, so all assembly and equipment installation is done by the builder.
