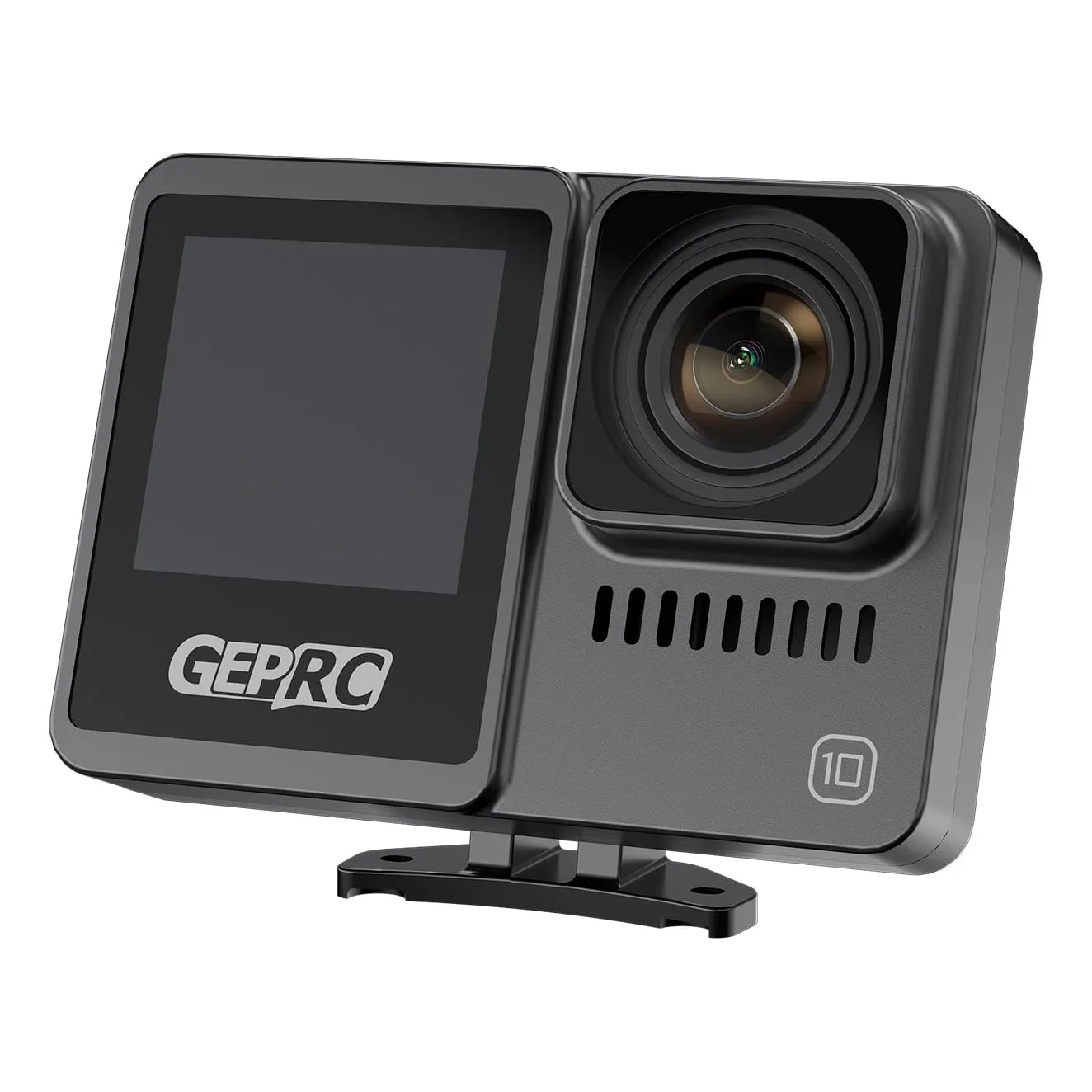

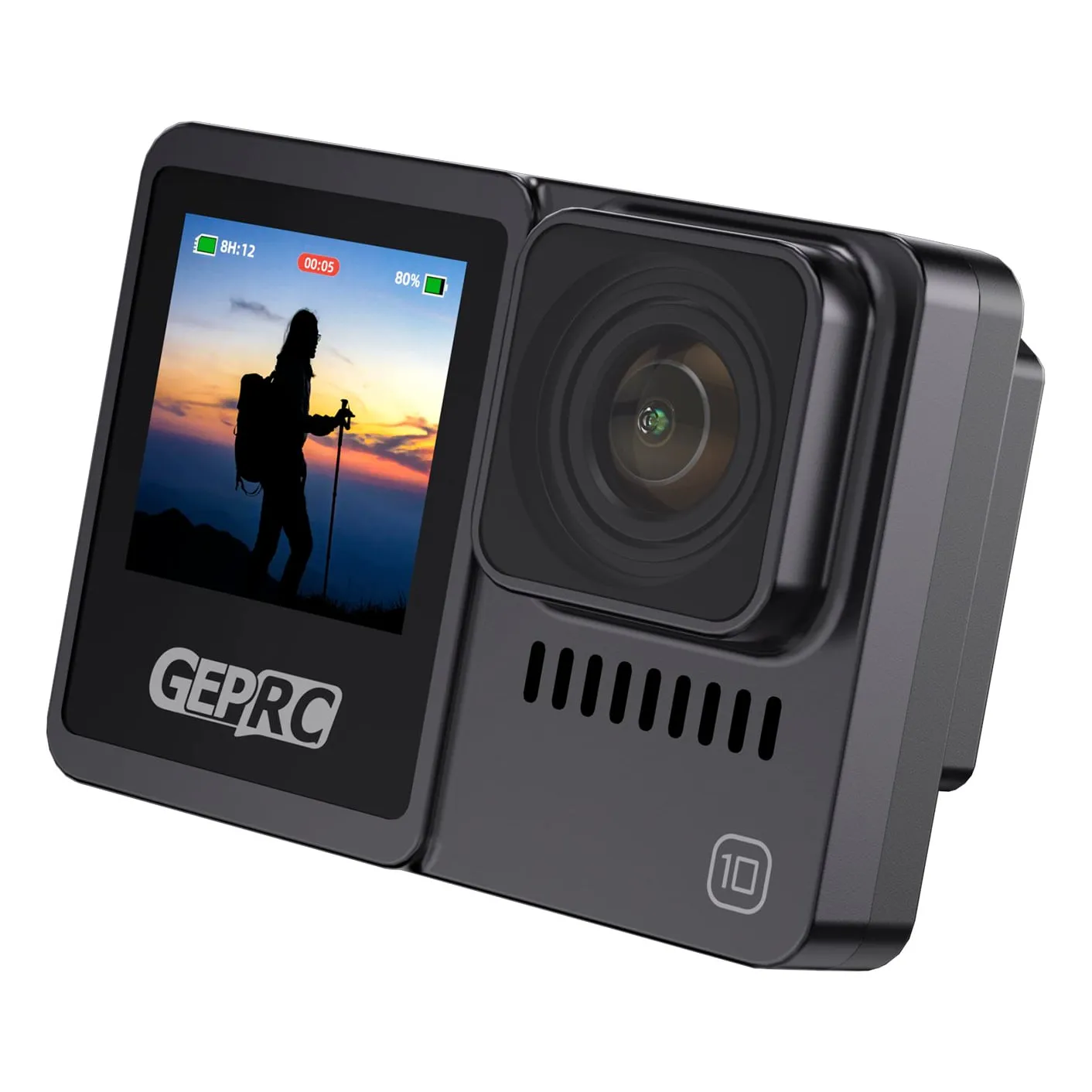

GEPRC Naked Camera GP10 Kit

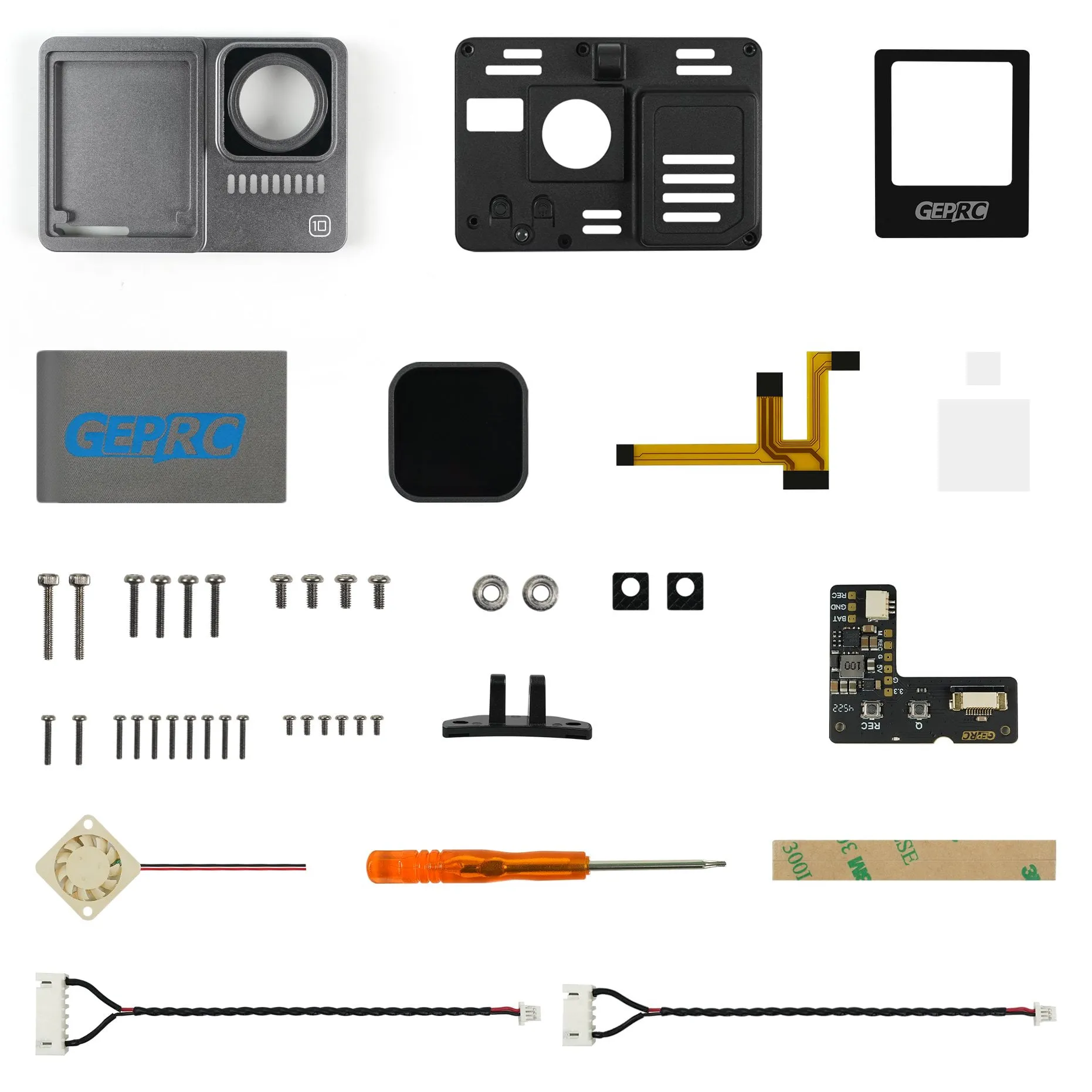

The GEPRC Naked Camera GP10 Kit provides the housing, power management, and cooling hardware required to convert a standard GoPro Hero 10 Black into a sub-50g action camera. Stripping down a heavy GoPro is essential for cinewhoops, sub-250g micro builds, and long-range drones where every gram impacts flight times and agility. This DIY kit replaces the factory battery and chassis with a lightweight injection-moulded shell and a dedicated BEC.

Key features

• Injection-moulded outer casing protects the exposed GoPro motherboard and image sensor from dust and moderate crash damage.

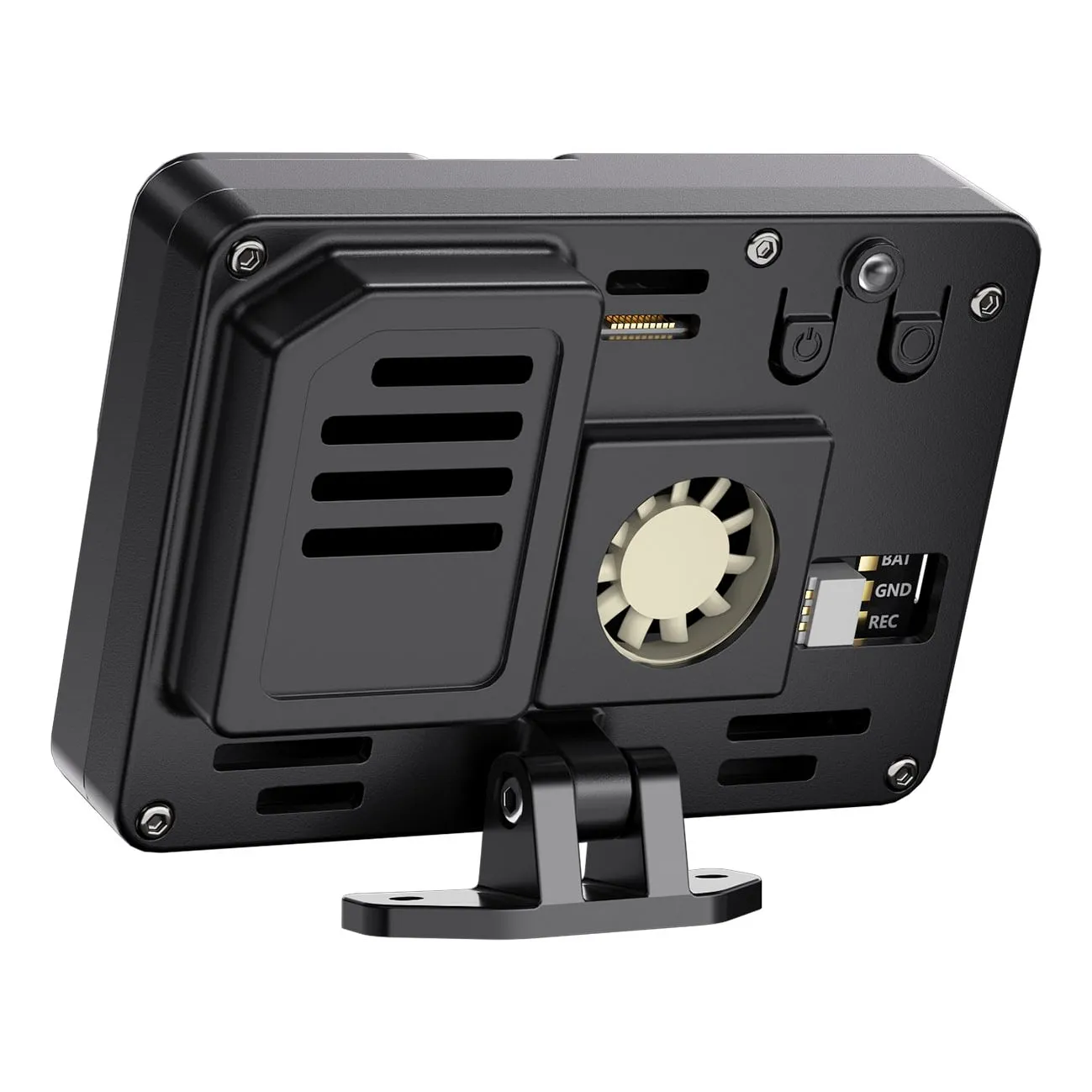

• Integrated micro cooling fan prevents thermal throttling and overheating while powered on the bench or flying at low speeds.

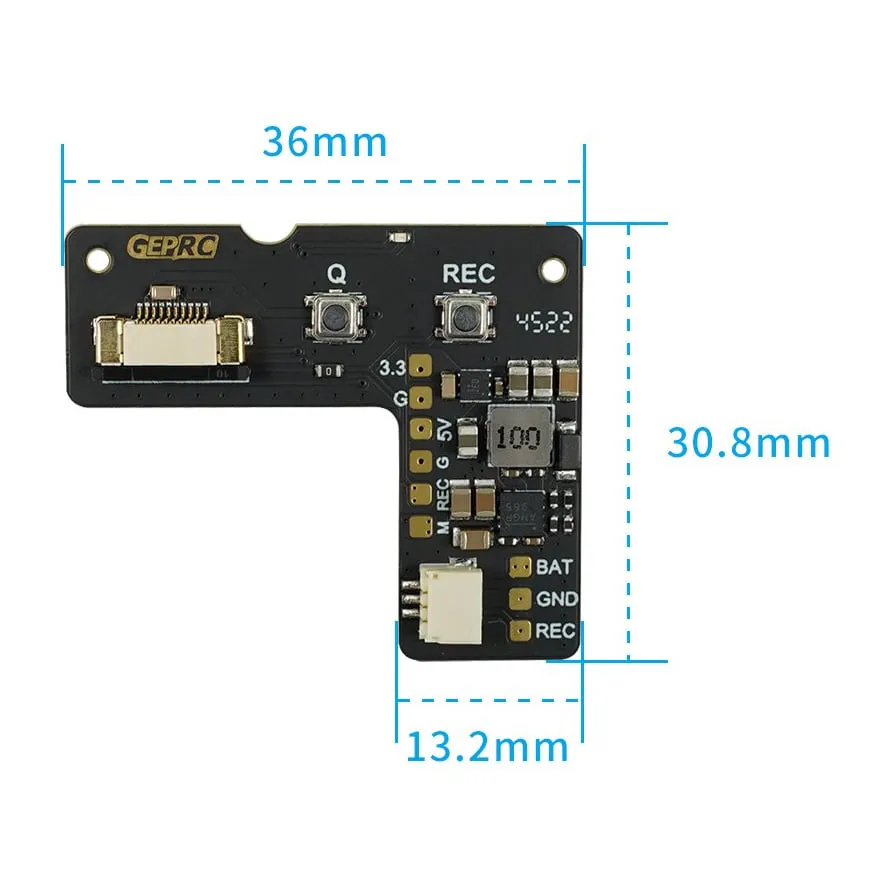

• Custom BEC board accepts direct battery voltage and steps it down to a safe, regulated 5V for the camera logic board.

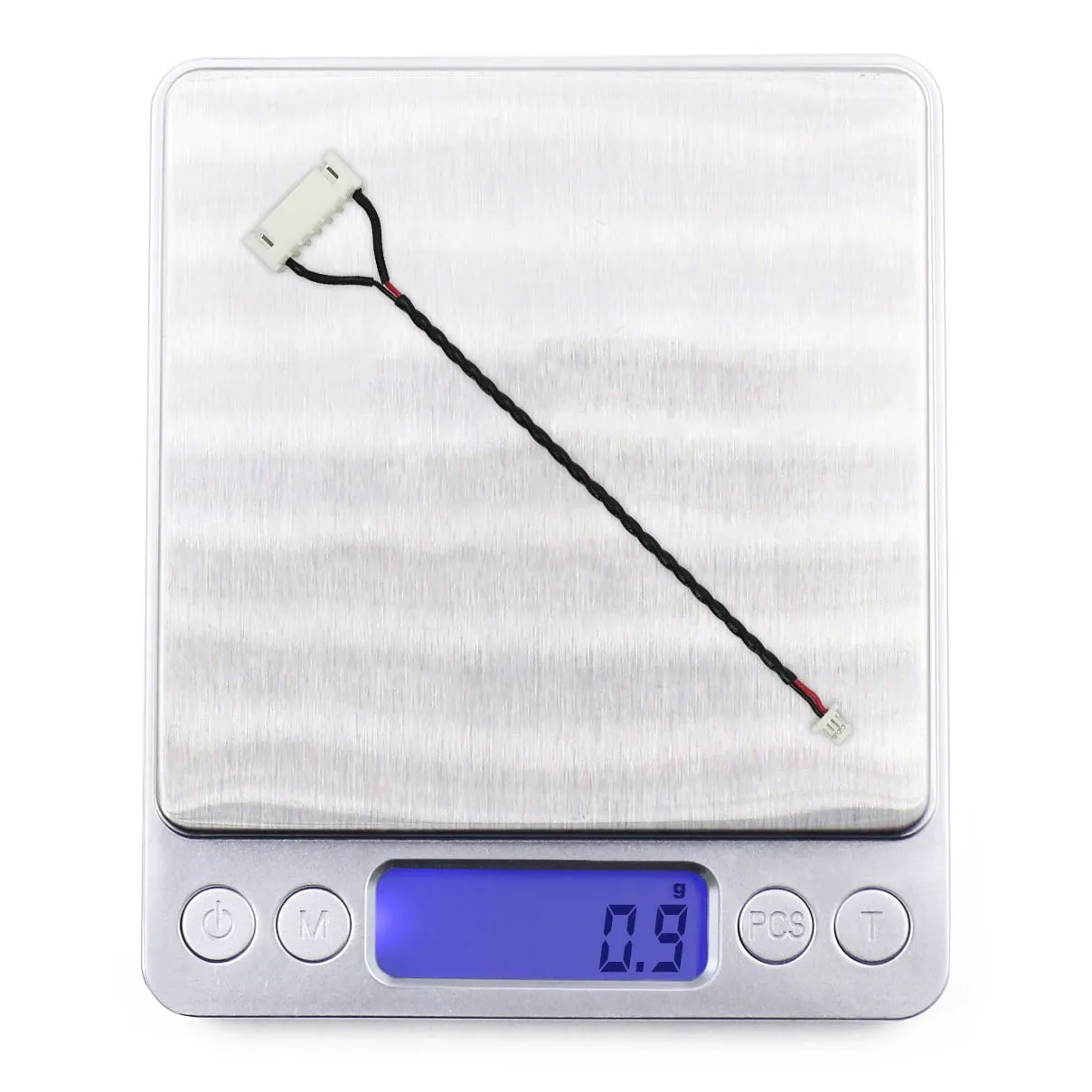

• Included control wire allows you to trigger start/stop recording remotely via an auxiliary switch on your radio transmitter.

Specifications

• Compatibility: GoPro Hero 10 Black
• Input voltage: 2-6S
• BEC output: 5V/2A
• Control connector: SH1.0 3-Pin
• Estimated assembled weight: 46.7g (including donor GoPro internal hardware)

Note: This is a conversion kit only. A donor GoPro Hero 10 is required and must be carefully decased by the user. Exercise caution when handling the fragile internal ribbon cables during installation.
