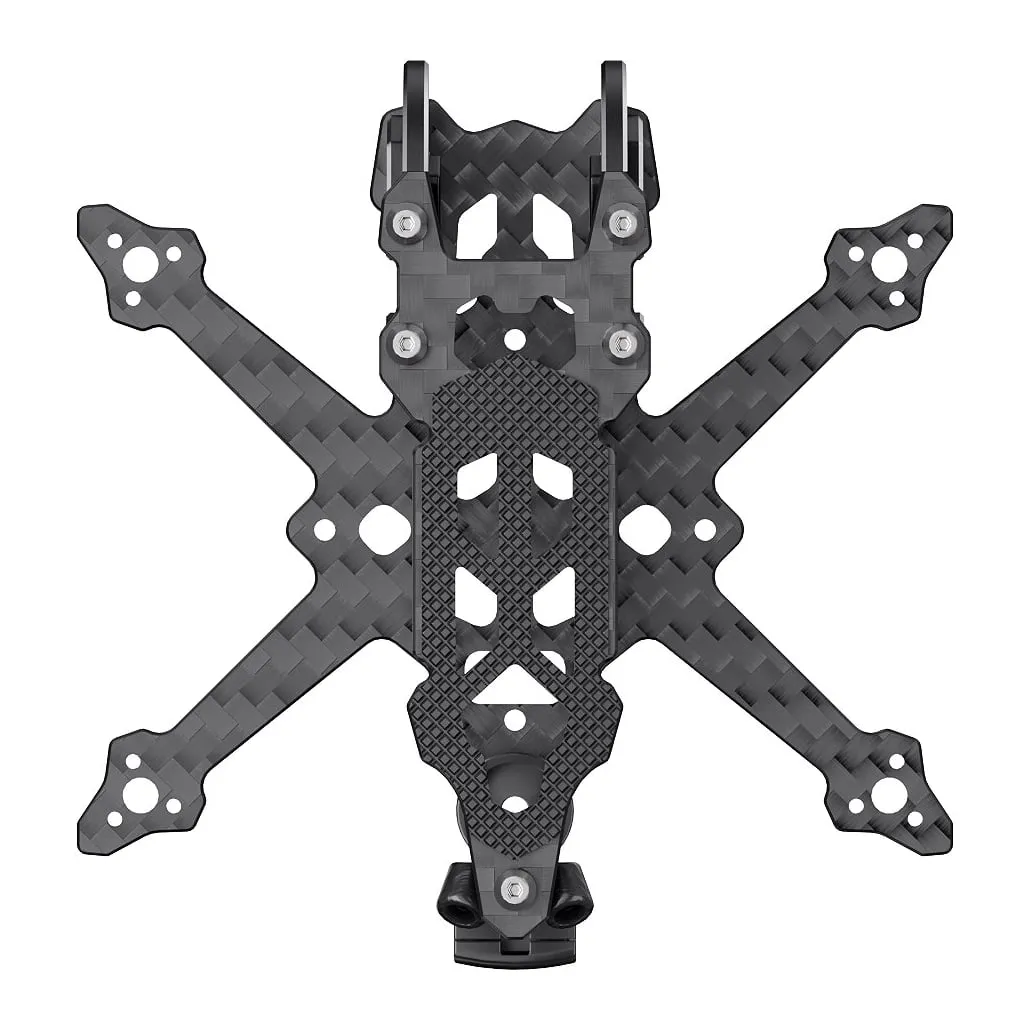

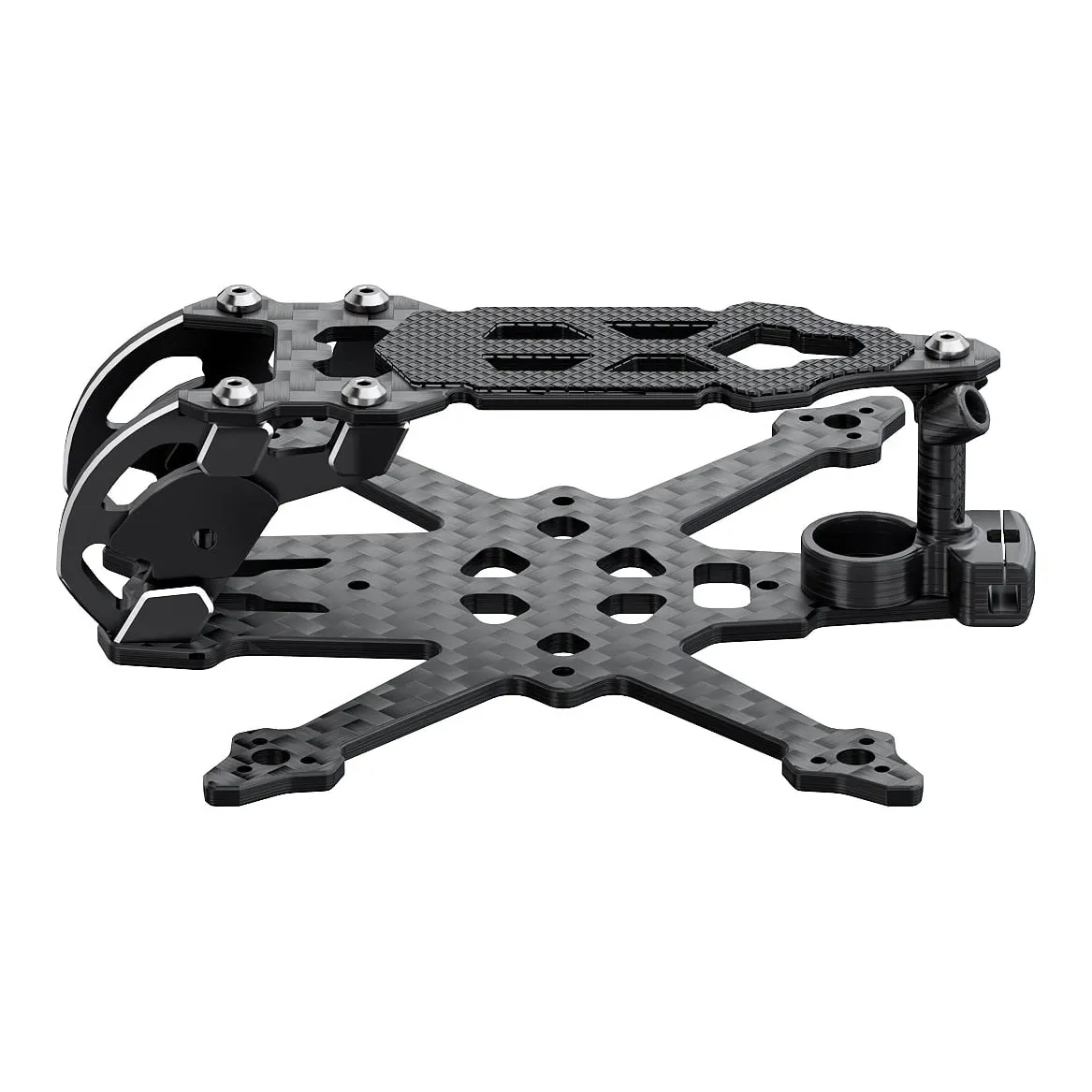

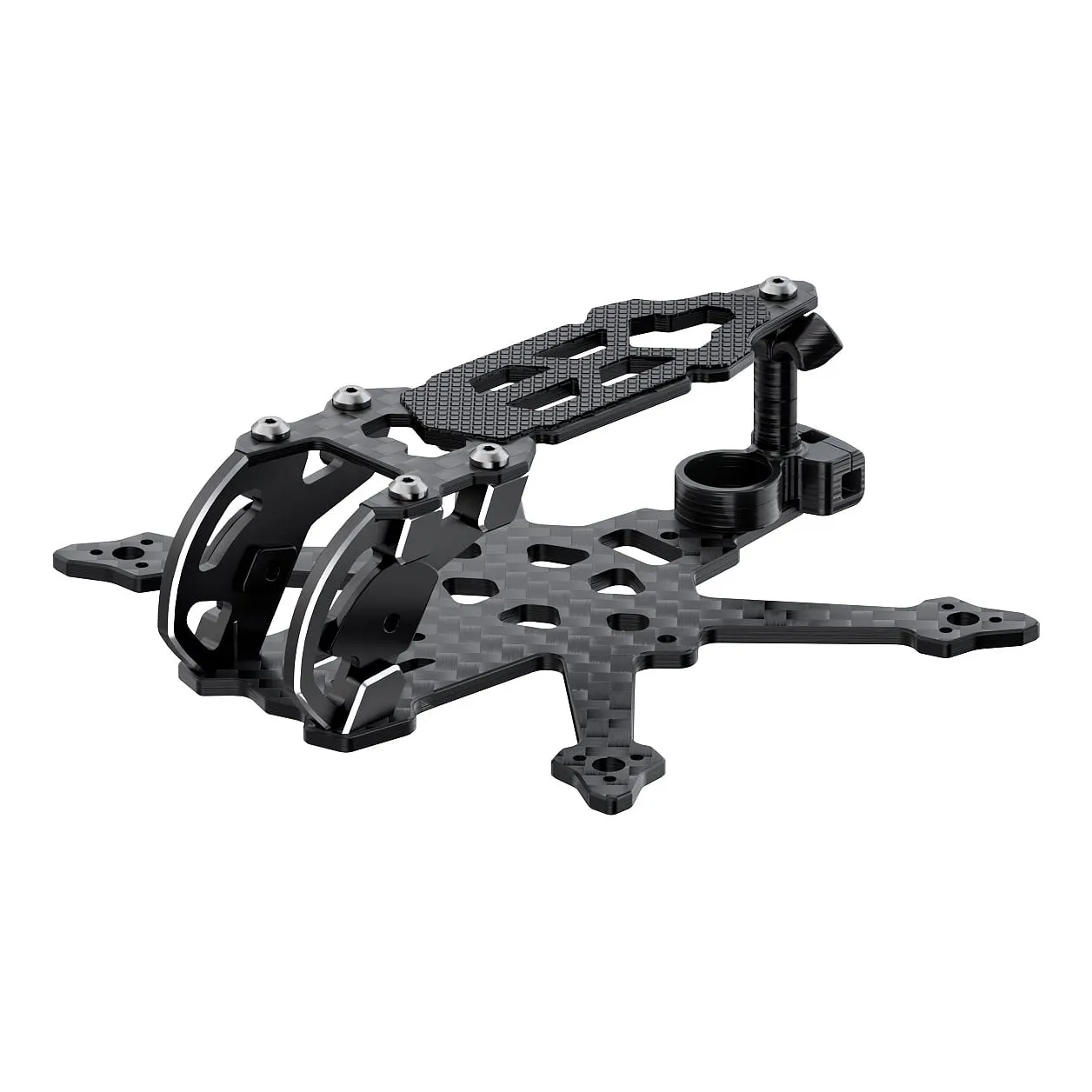

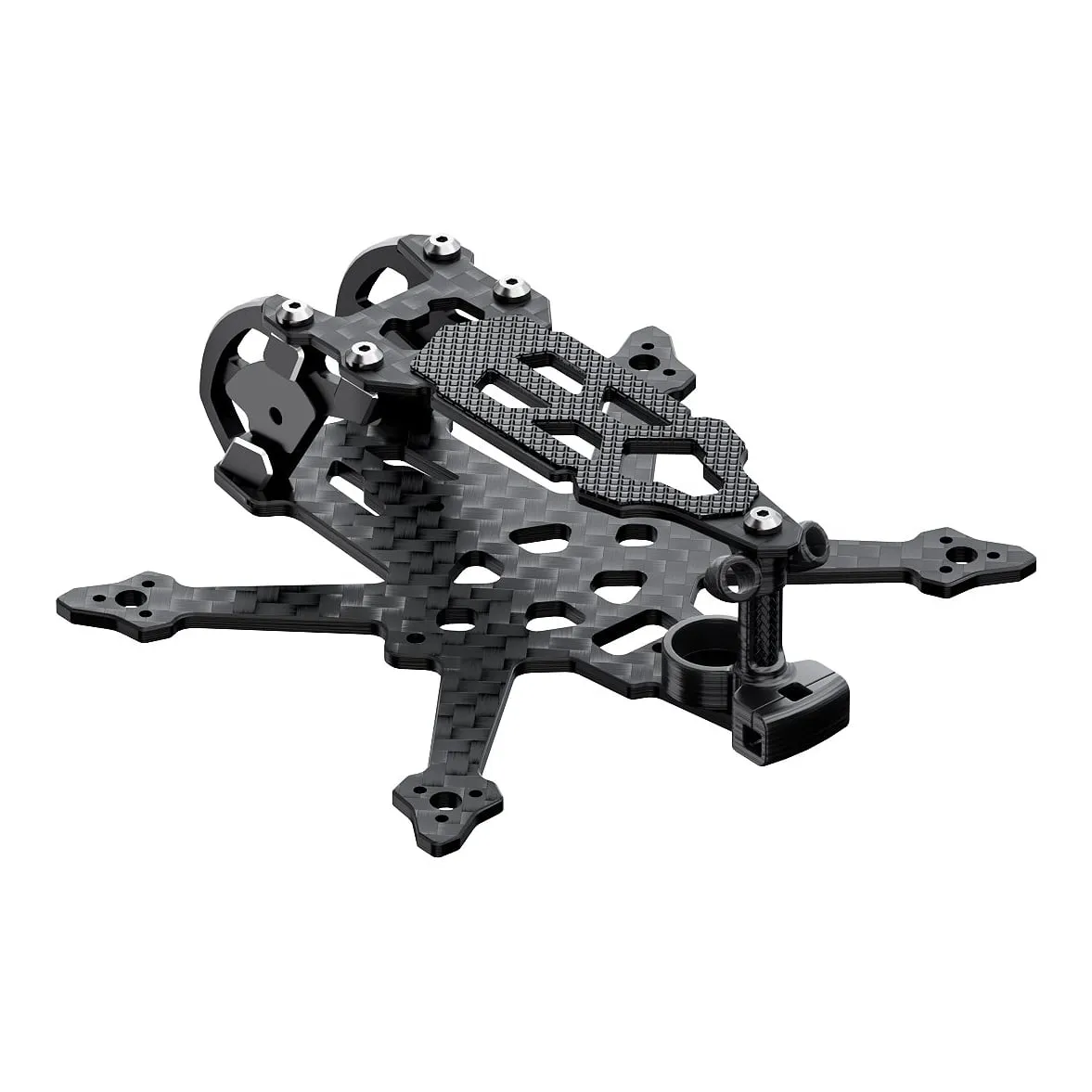

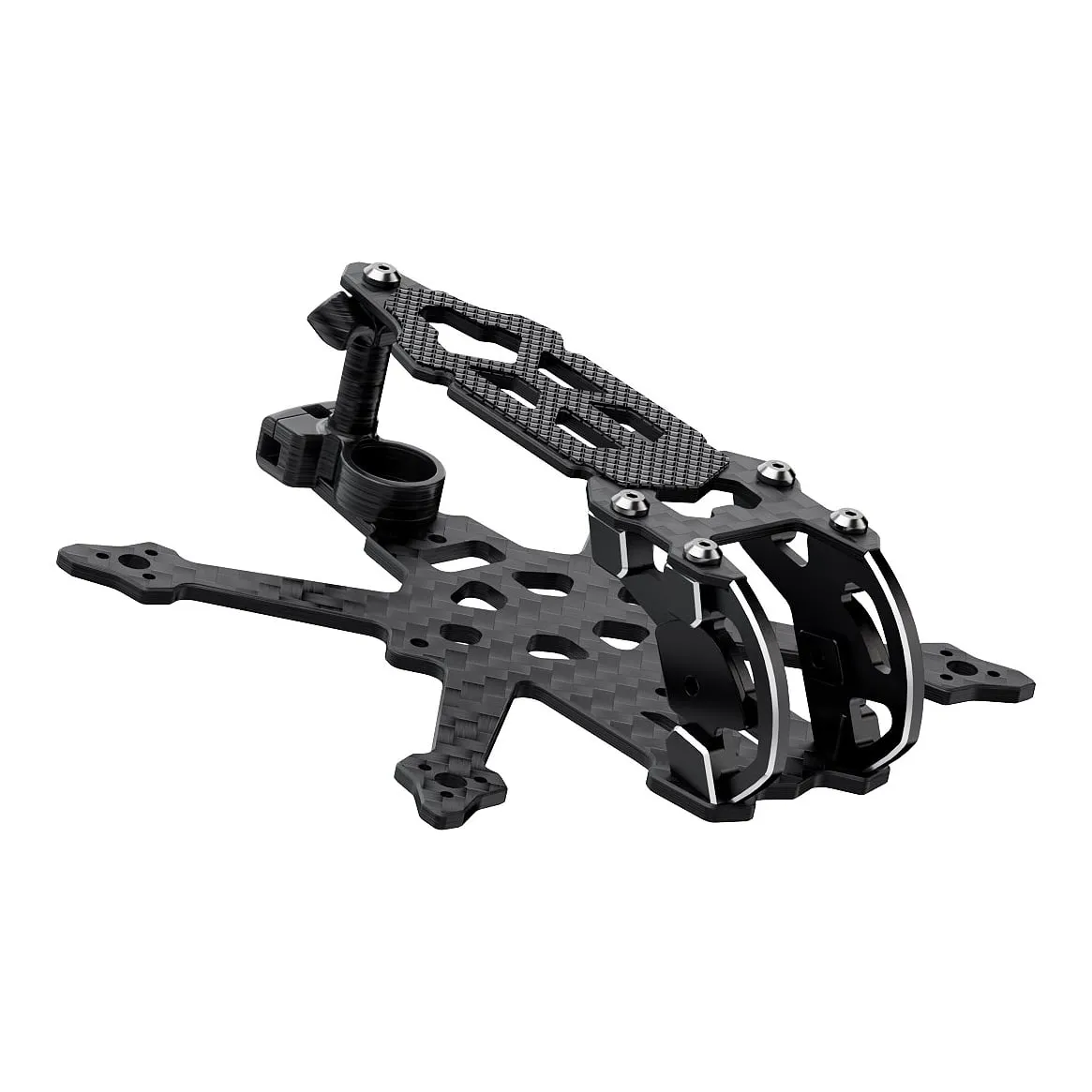

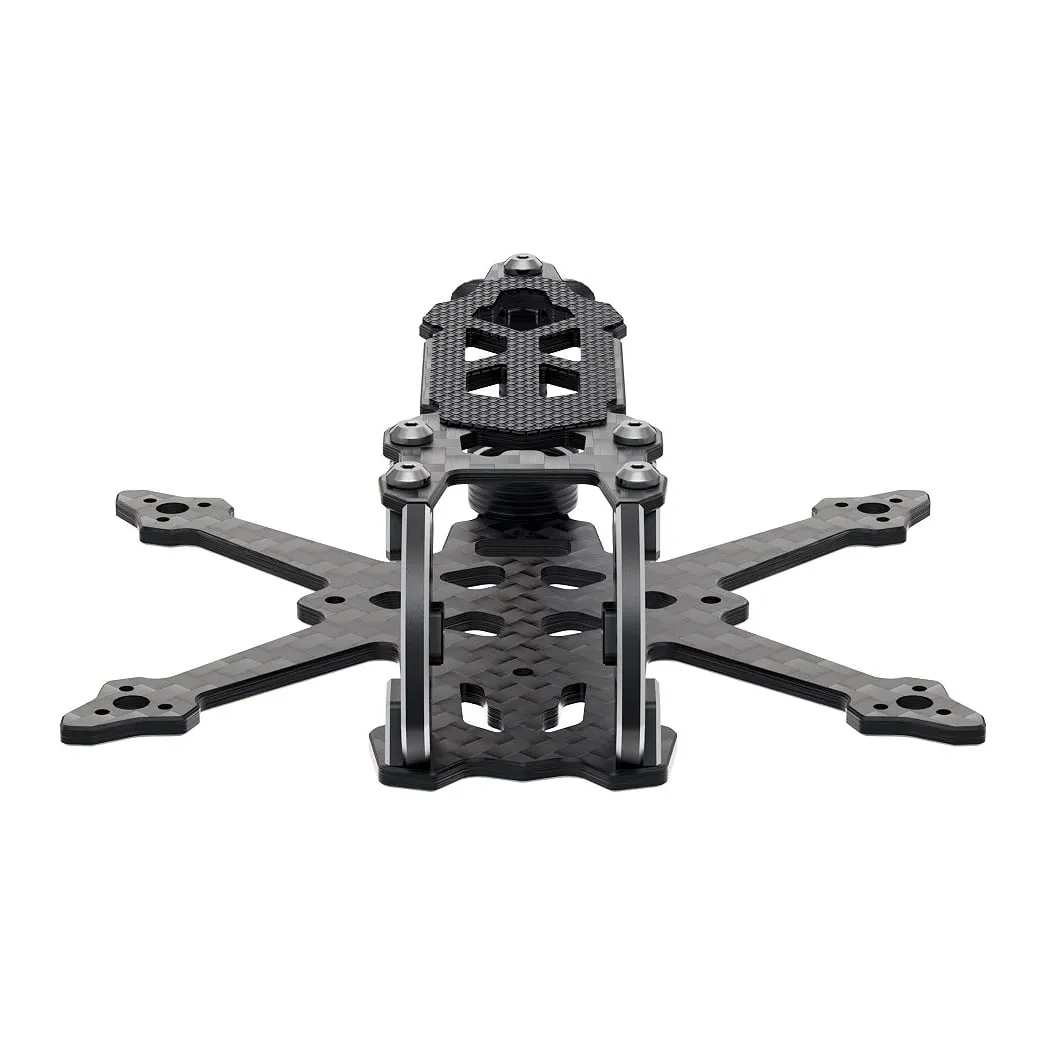

GEPRC GEP-TC18 O4 HD Frame
₹2,199Incl. GST
SKU GEPRC-TC18-O4HD-FRAME
Prop Size: 1.8"Wheelbase: 87 mmCamera Size: 14mm, 12.36mmMade in India: No
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The GEPRC GEP-TC18 is an ultra-compact cinewhoop frame built specifically to house the DJI O4 digital FPV system. Its micro geometry lets you carry HD video into indoor spaces and narrow gaps a standard 2-inch whoop can't clear.
Key features
- Native mounting cutouts sized for the O4 camera and air unit, with room reserved for a buzzer and dual antennas at the rear.
- Dampening silicone at the camera mount keeps O4 footage steady and jello-free.
- 7075 aluminium camera mount for durability in a small package.
- 2mm-thick arms on a wide-X layout for sturdiness in tight-space flying.
- Sized around 1.8-inch (45mm) propellers, keeping the whole build genuinely pocket-sized.
Specifications
- Wheelbase: 87mm
- Overall dimensions: 100 x 90mm
- Frame type: Wide X
- Top plate: 1.5mm / Bottom plate: 2mm
- FC / VTX mounting: 25.5 x 25.5mm (M2)
- Motor mounting: 6.6 x 6.6mm (M1.4)
- Camera side-plate gap: 14 x 14mm
- Stack mounting height: 12mm
- Weight: 15g
Pairs naturally with 0802-1002 sized motors, HQProp 45mm propellers and a compact 1-2S AIO flight controller for a true micro O4 build.
| Prop Size | 1.8" |
|---|---|
| Wheelbase | 87 mm |
| Camera Size | 14mm, 12.36mm |
| Made in India | No |
| Brand | GEPRC |
| Weight | 15 g |
| Material | Carbon Fiber |
| Mounting Size | 25.5x25.5 |
| Motor Mount | 6.6mm 3-hole |
