Generic A2212 1000KV Motor + 30A SimonK ESC + 1045 Prop Quadcopter Combo

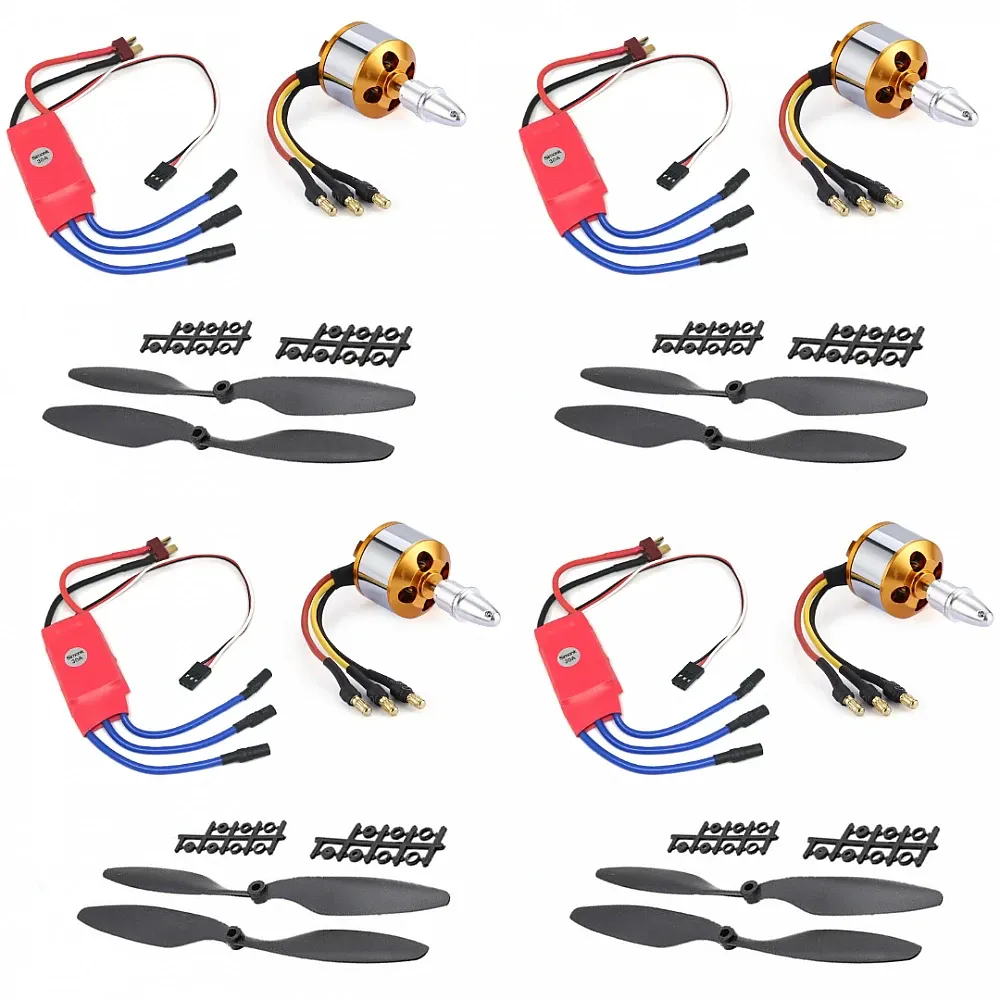

This comprehensive propulsion bundle provides the core power components for DIY multirotor builds. Tailored for 450-class quadcopters and fixed-wing projects, the set includes four A2212 1000KV brushless motors, four matched 30A SimonK ESCs, and 10x4.5 inch propellers. The system runs efficiently on 2S or 3S LiPo power and simplifies assembly with pre-soldered 3.5 mm bullet connectors between the motors and speed controllers.

Key features

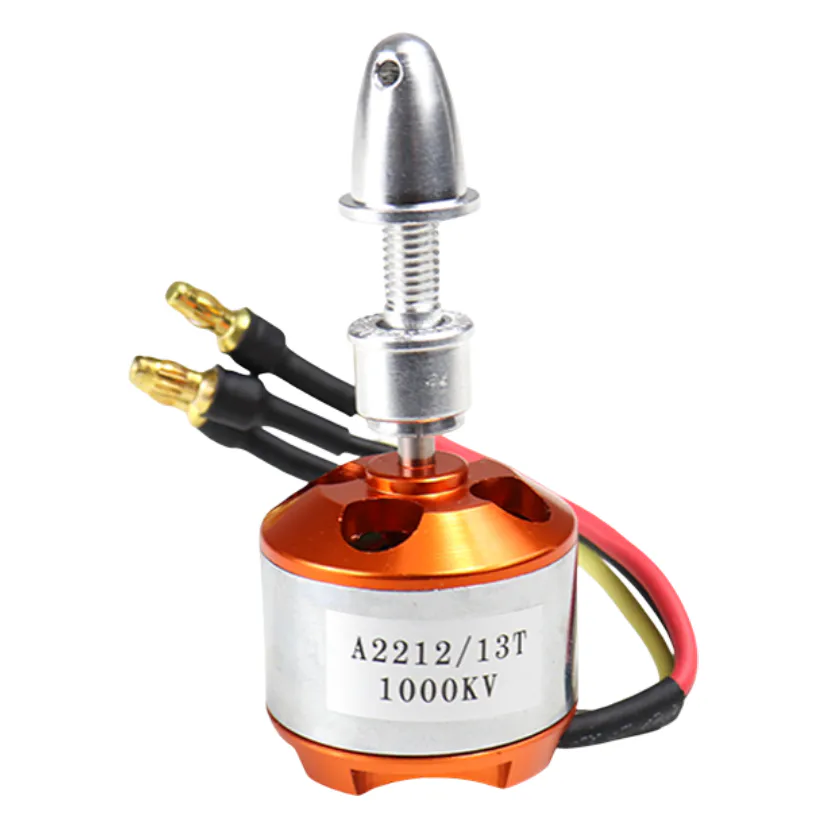

• Four A2212 1000KV motors supplied with X-type mounting crosses and prop adapters

• Four 30A electronic speed controllers running SimonK firmware for rapid throttle response

• Integrated 5V/2A BECs on the ESCs eliminate the need for an external step-down voltage regulator

• Plug-and-play motor connections via factory-soldered 3.5 mm bullet terminals

• Complete set of 1045 ABS propellers in both CW and CCW configurations for a full quadcopter layout

Specifications

• Motor Model: A2212

• Motor KV: 1000 KV

• Input Voltage: 2-3S LiPo (5.6-16.8 V)

• ESC Continuous Current: 30 A

• ESC Burst Current: 40 A (under 10s)

• ESC Firmware: SimonK

• BEC Output: 5V / 2A

• Motor Dimensions: 27.8x27 mm

• Shaft Diameter: 3.17 mm

• Propeller Size: 10x4.5"

• Connectors: 3.5 mm bullet (female on motors, male on ESCs)

This kit pairs directly with Q450, F450, or S500 quadcopter frames. Because each ESC features an active 5V linear BEC, you must leave the red 5V wire intact on only one ESC's signal cable to power your flight controller; the red wires on the remaining three ESC signal cables must be removed or isolated to prevent voltage interference. Ensure your frame provides adequate clearance for 10-inch propellers.
