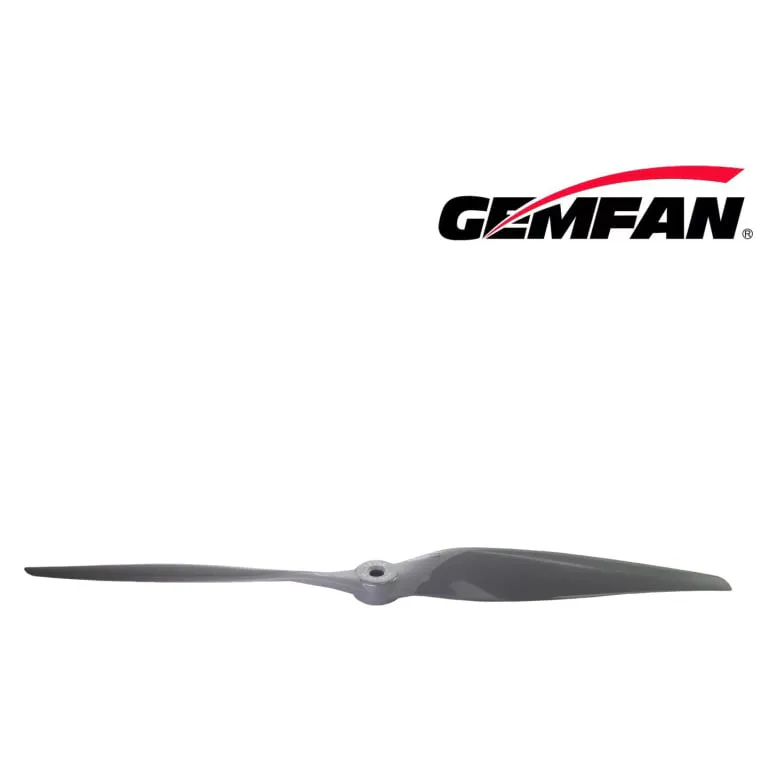

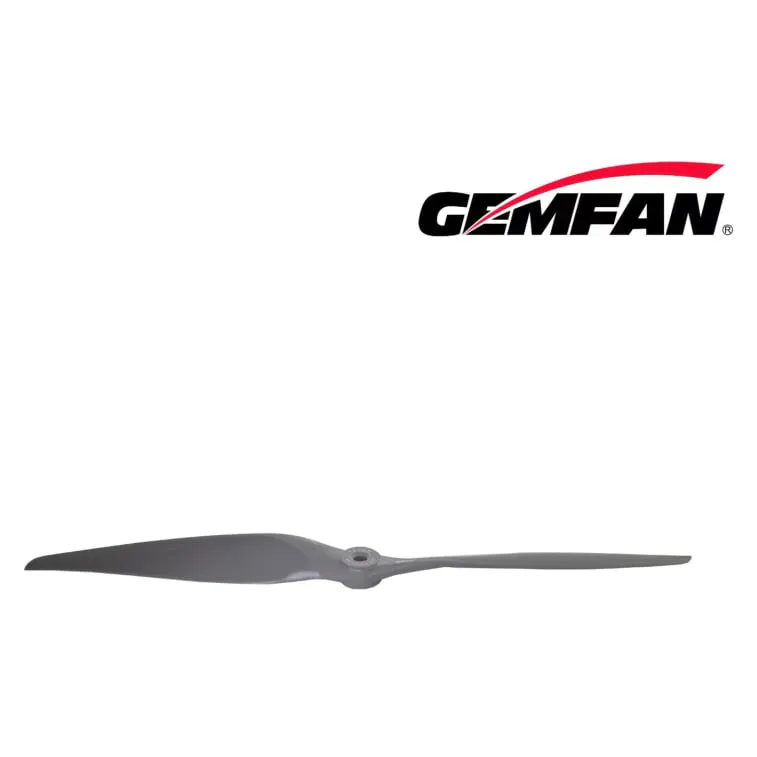

Gemfan Vortex 12x6 Glass Fiber Nylon Electric Propeller (CW+CCW Pair)

The Gemfan Vortex 12x6 is a low-pitch, two-blade electric propeller for fixed-wing aircraft: 12 inches across, 6 inches of pitch, in glass-fibre-reinforced nylon. The pack holds one 12x6E (CW) and one 12x6R (CCW), so it suits twin-motor planes with counter-rotating props as well as single-motor models that need a spare.

Key features

• Low pitch for the diameter favours static thrust and low-speed pull over top speed, and loads the motor less than a 12x8 or 12x12

• CFD-optimised Vortex airfoil with an optimised leading edge for high-RPM efficiency

• Slim blade tips reduce noise and vortex loss

• Textured hub surface for secure installation on the prop adapter

• Factory tested and dynamically balanced; reducer rings for 3, 3.17, 4, 5, 6 and 8 mm shafts included

Specifications

• Model: Vortex 12x6E (CW) / 12x6R (CCW)

• Diameter: 12 in (304.8 mm)

• Pitch: 6 in (152.4 mm)

• Blades: 2

• Hub diameter: 20.2 mm

• Hub thickness: 10.8 mm

• Centre bore: 6.35 mm (1/4 in)

• Weight: 30.4 g per prop

• Material: Glass-fibre-reinforced nylon

• In the box: 1 × 12x6E, 1 × 12x6R, reducer ring set

Use the reducer ring that matches your motor shaft on a collet or bolt-on prop adapter, and check the 12x6 against your motor maker's prop chart for your cell count before the first run.
