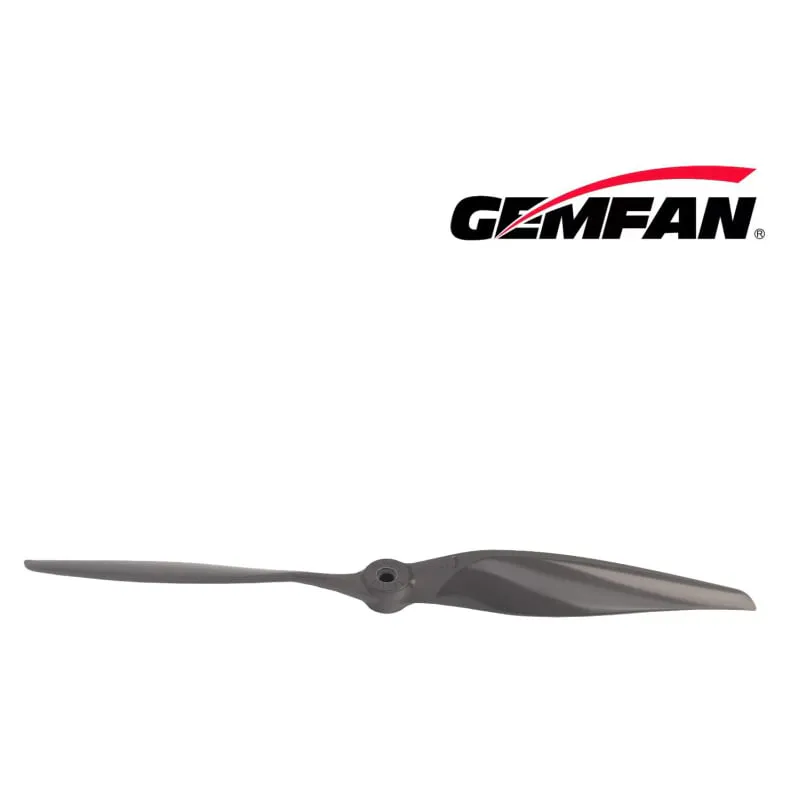

Gemfan Vortex 12x10E Glass Fiber Nylon Electric Propeller

The Gemfan Vortex 12x10E is a two-blade electric propeller for fixed-wing aircraft, 12 inches across with a 10-inch pitch and moulded in glass-fibre-reinforced nylon. With its pitch close to its diameter, it trades some static thrust for airspeed compared with a 12x6 or 12x8 of the same size.

Key features

• Vortex blade with a CFD-optimised airfoil developed for electric propulsion

• Textured leading edge for efficiency at high RPM; slim tips reduce noise and tip vortices

• Anti-slip hub surface holds firmly against the prop adapter

• Factory tested with dynamic balance control for smooth running

• Reducer rings for 3, 3.17, 4, 5, 6 and 8 mm shafts included

Specifications

• Model: Vortex 12x10E

• Diameter: 12 in (304.8 mm)

• Pitch: 10 in (254 mm)

• Blades: 2

• Hub diameter: 20.2 mm

• Hub thickness: 13 mm

• Centre bore: 6.35 mm (1/4 in)

• Weight: 31.9 g

• Material: Glass-fibre-reinforced nylon

• In the box: 1 × 12x10E propeller, reducer ring set

Fit it on a collet or bolt-on prop adapter using the ring that matches your motor shaft, check your motor maker's chart for 12-inch props on your cell count, and confirm current draw with a watt meter before flying.
