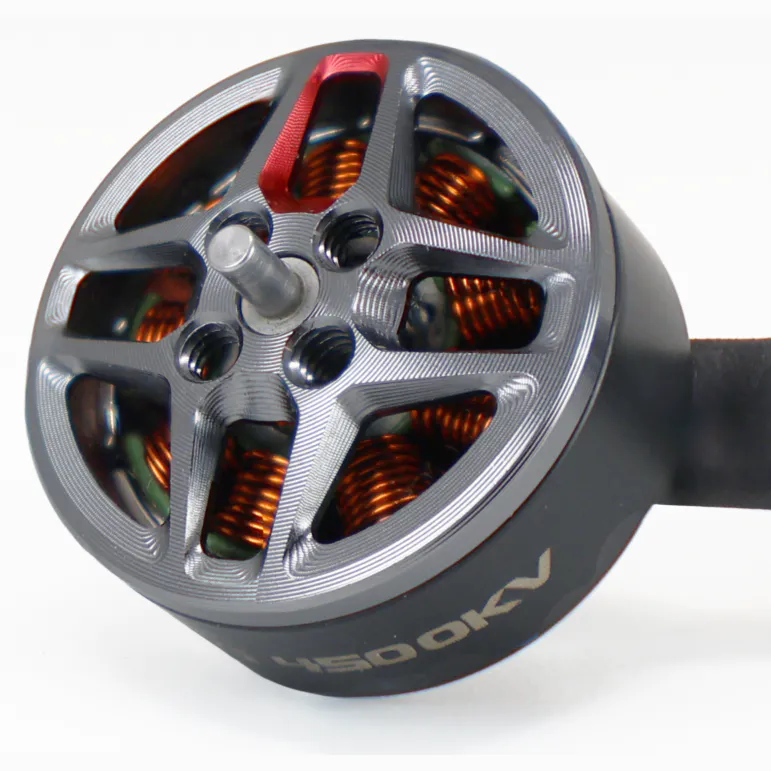

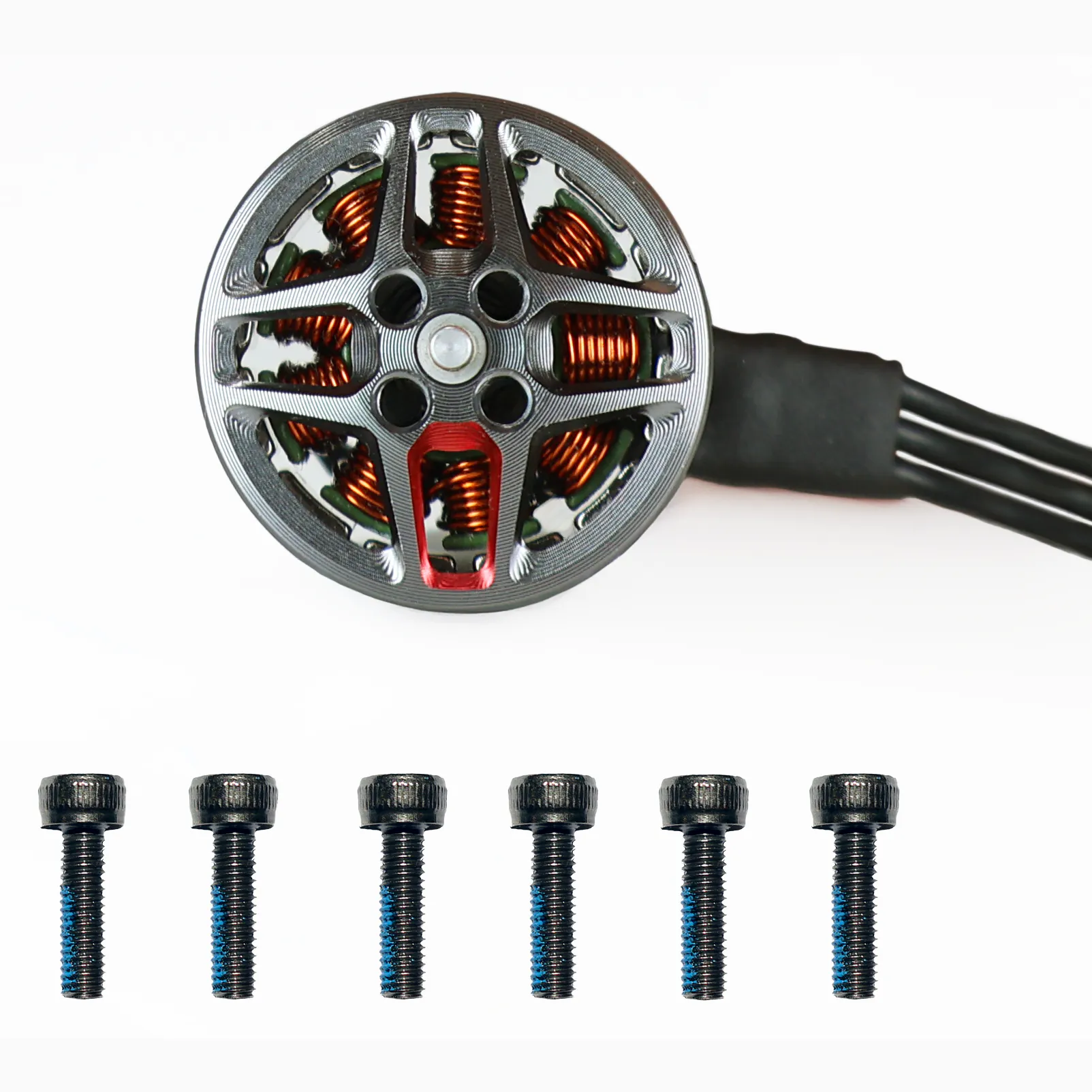

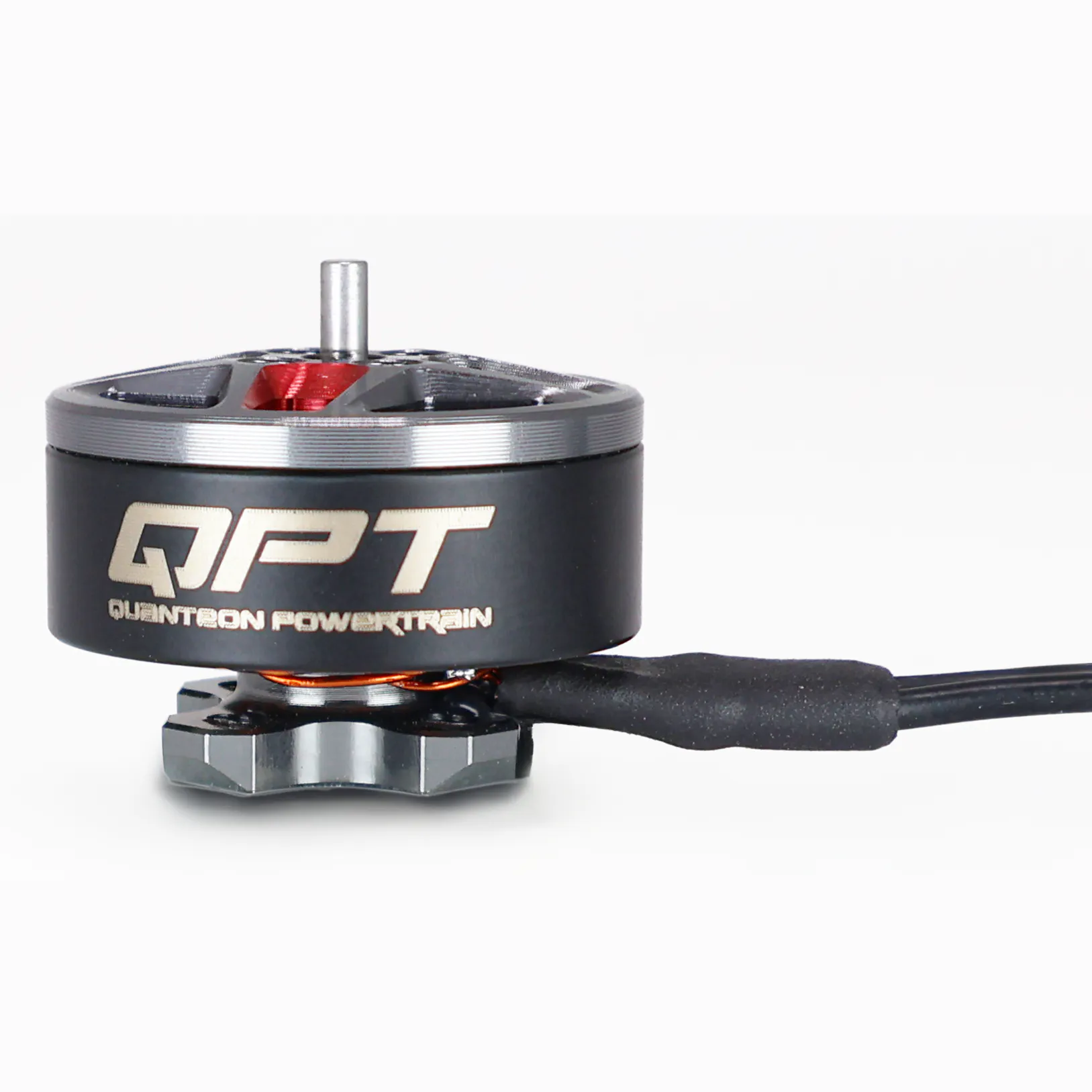

Quanteon QPT 1404 4500KV Brushless Motor
SKU QPT-1404-4500KV
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The QPT 1404 4500KV brushless motor is built for lightweight micro drones, including 2.5-inch to 4-inch sub-250g freestyle quads and 3-inch cinewhoops. At 4500KV, this motor delivers aggressive throttle response and high torque when paired with a 3S or 4S LiPo, providing the necessary thrust to carry a lightweight HD action camera or quickly recover from acro manoeuvres.
Key features
- 1404 stator volume optimised for efficient flight times on sub-250g platforms.
- High 4500KV rating tuned for 3S to 4S toothpick and micro freestyle power systems.
- Standard 1.5mm shaft accepts widely available T-mount micro propellers.
- Lightweight titanium shaft and 0.15 mm silicon-steel laminations for strength and efficiency.
Specifications
- Stator size: 1404
- KV: 4500
- Supported voltage: 3-4S LiPo
- Shaft diameter: 1.5mm
- Mounting pattern: 9x9mm (M2)
- Max thrust: 400 g
- Max power: 240 W
- Max current: 14.5 A
- Motor size: 18 x 16 mm
- Weight: 10 g (including cable)

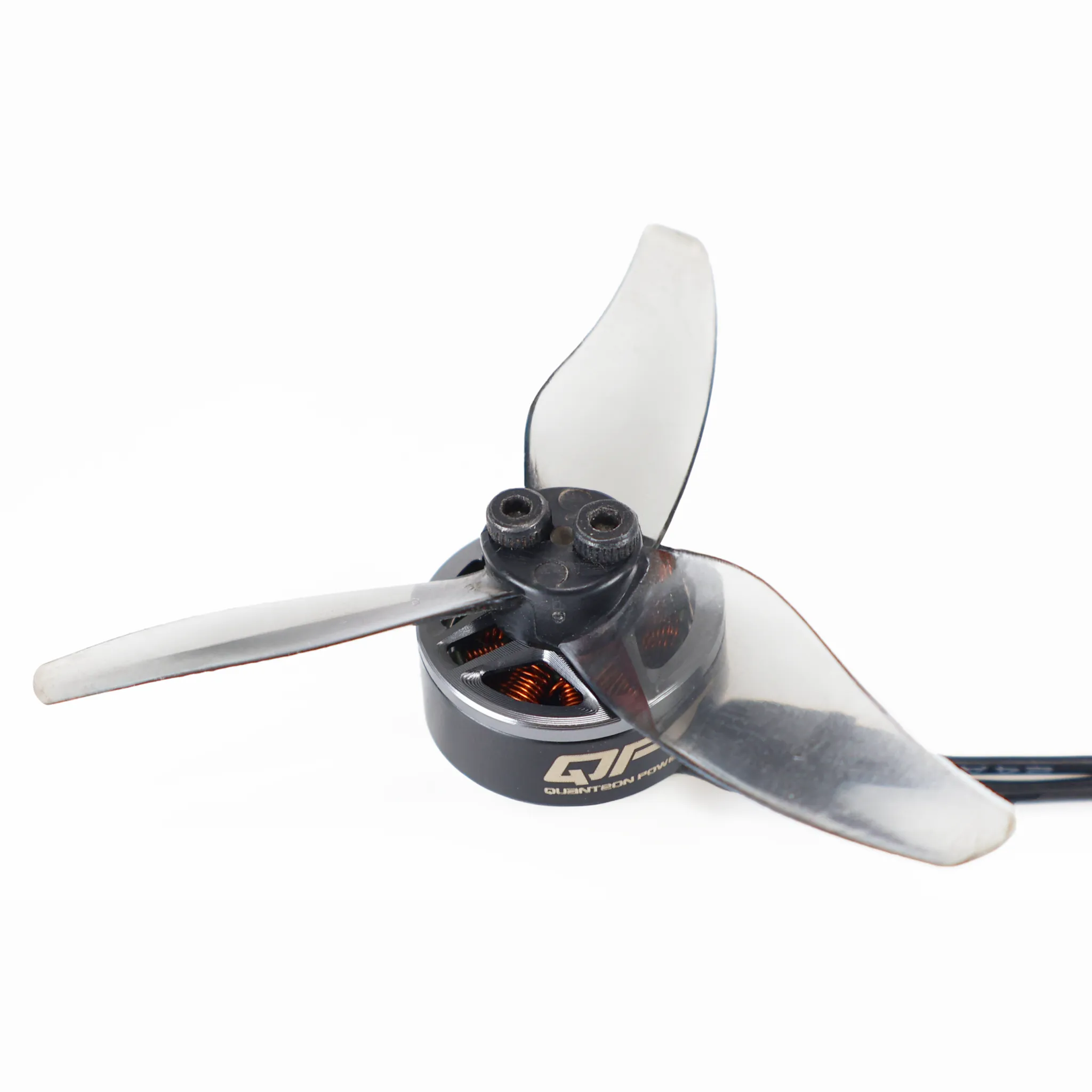

Pair these motors with lightweight 3-inch or 4-inch bi-blade or tri-blade propellers on a 12A to 20A AIO flight controller for optimal efficiency and control.
| Stator Size | 1404 |
|---|---|
| Stator Diameter | 14mm |
| Stator Height | 4mm |
| KV | 4500 KV |
| Prop Mount | T-Mount, 1.5mm |
| Shaft | 1.5mm |
| Motor Mount | 9x9mm |
| Input Voltage | 3–4S |
| Weight | 10 g |
| Brand | Quanteon |
| Made in India | Yes |
