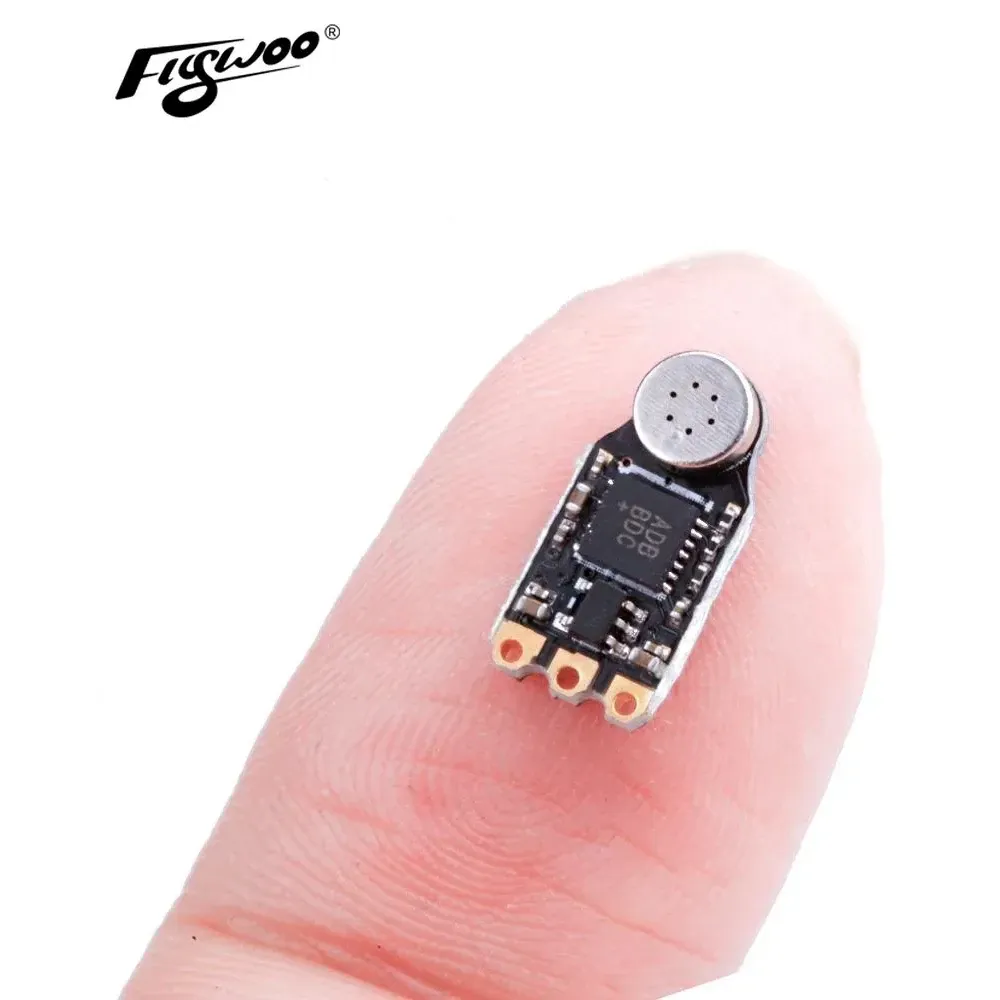

Flywoo AGC-MIC Nano Automatic Gain Control VTX Microphone

The Flywoo AGC-MIC Nano is an ultra-compact external microphone module designed to capture clear, distortion-free audio for FPV builds. Geared towards analog VTX setups lacking a built-in mic, it features a dedicated Automatic Gain Control (AGC) circuit. This chip dynamically adjusts volume levels in real-time, amplifying quiet ambient sounds on the ground while actively suppressing harsh wind noise and preventing audio clipping during heavy throttle inputs in the air.

Key features

• Integrated Automatic Gain Control (AGC) prevents audio clipping and normalises fluctuating sound levels.
• Ultra-lightweight footprint easily tucks into dense whoops, micro drones, and packed freestyle frames without affecting centre of gravity.
• Simple three-wire solder installation compatible with any standard video transmitter accepting external audio.
• Delivers crucial motor RPM feedback to improve throttle management and situational awareness.

Specifications

• Input voltage: 5V
• Weight: 0.26 g
• Dimensions: 9.4 x 5.2 mm

Wiring the AGC-MIC Nano requires simply routing the 5V and Ground to a stable pad on your flight controller or VTX, and sending the Audio signal wire directly to the VTX audio input pad.
