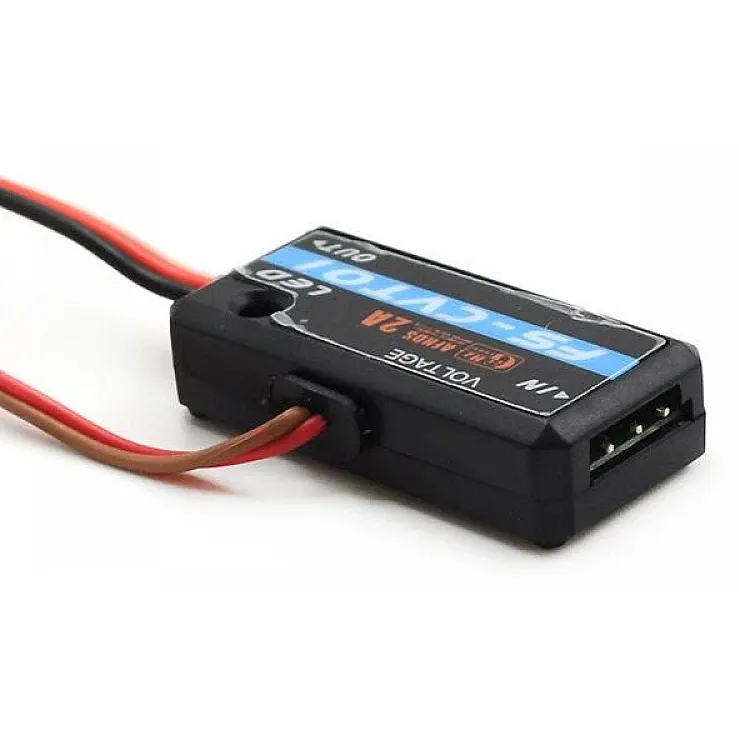

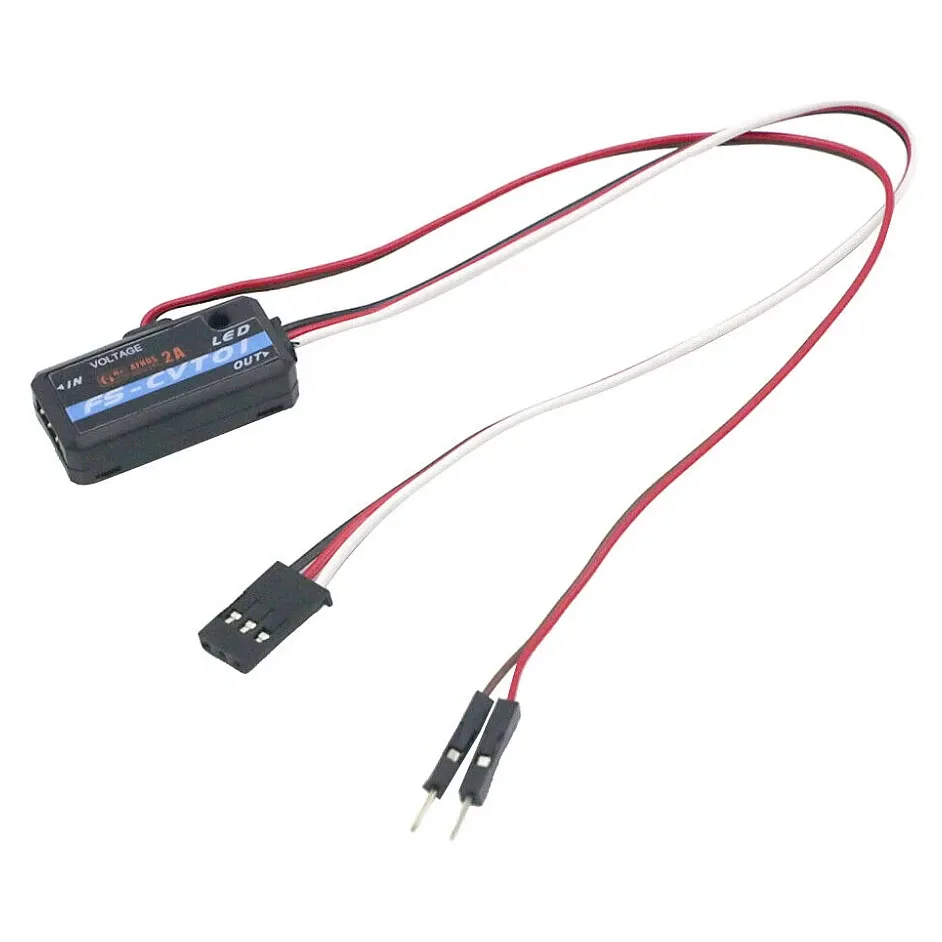

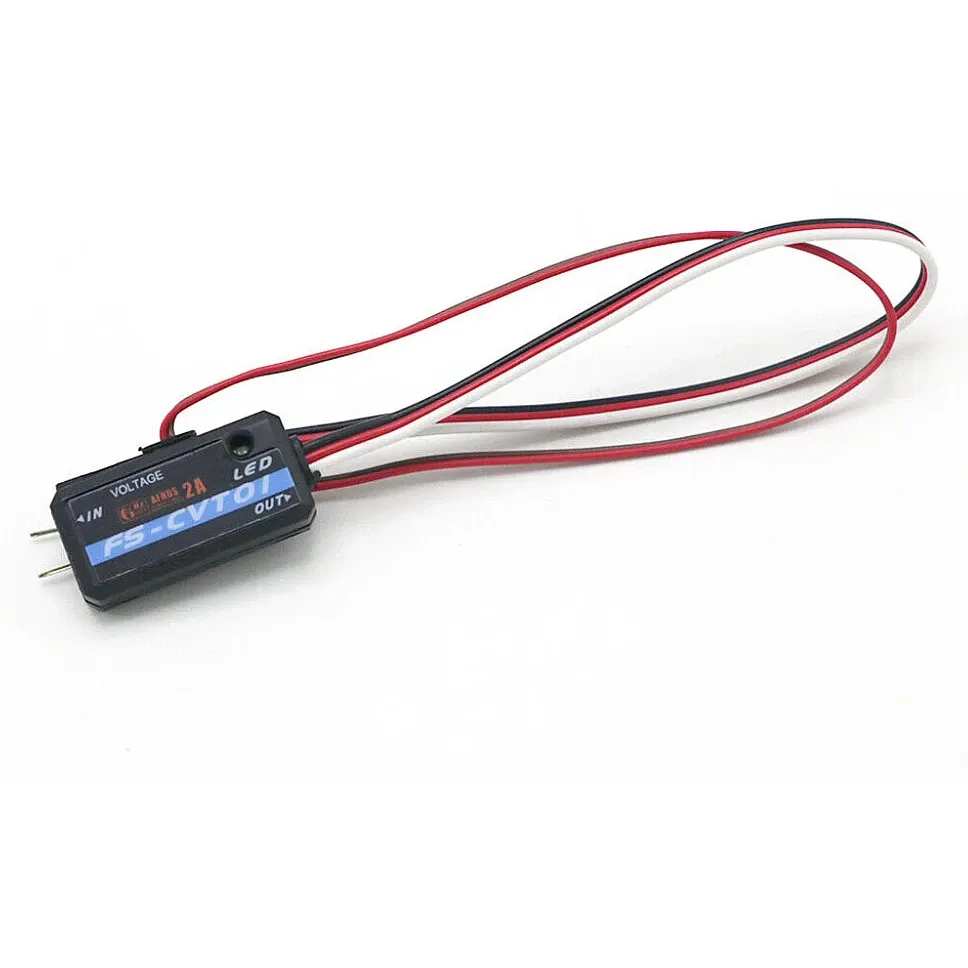

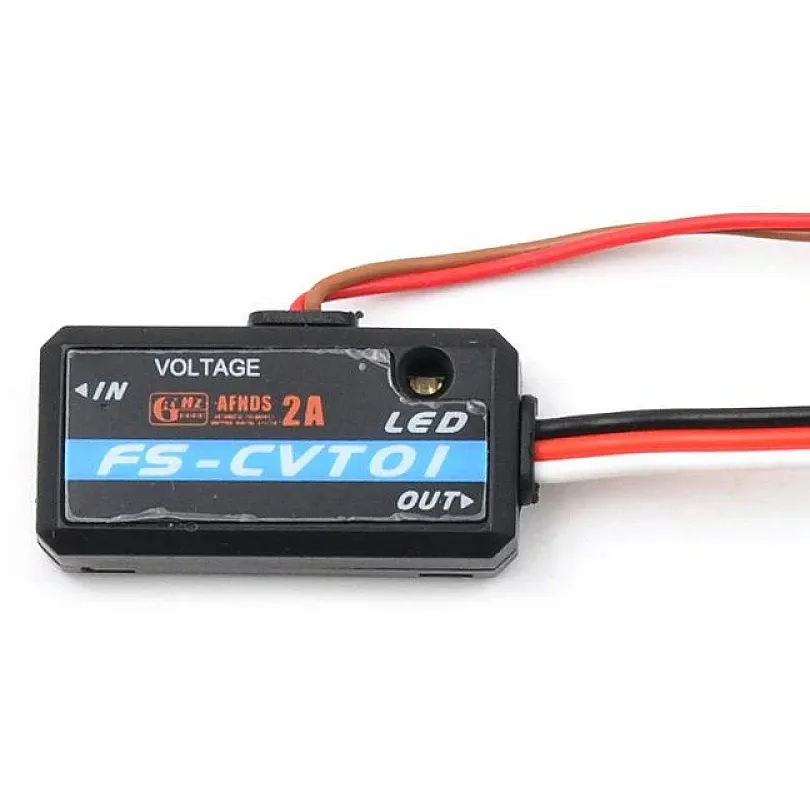

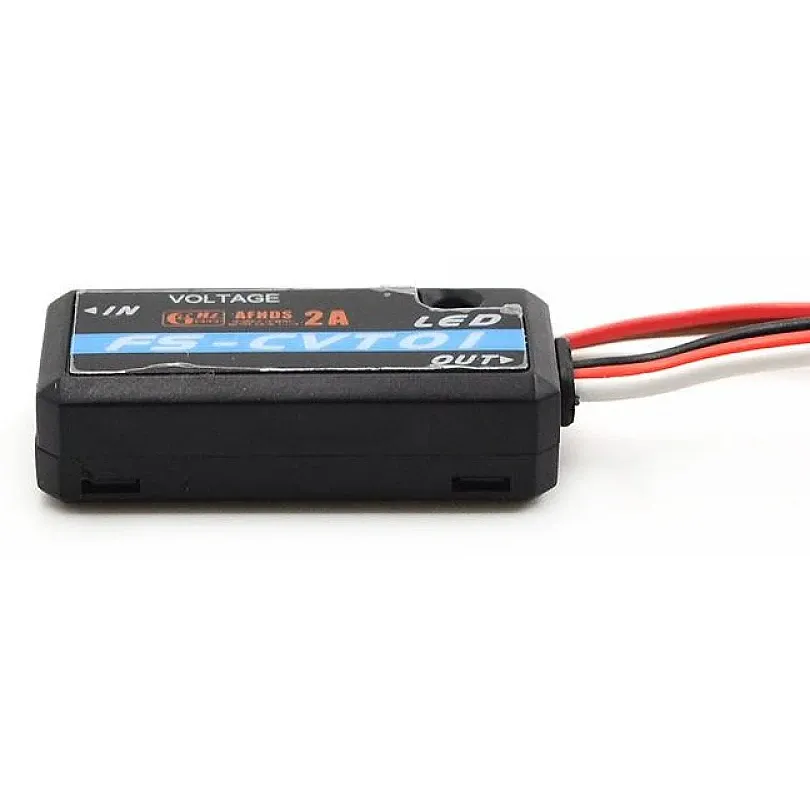

FlySky FS-CVT01 Voltage Telemetry Sensor Module

The FlySky FS-CVT01 is a voltage sensor module that reports a measured DC voltage to a FlySky radio as live telemetry. Plugged into the sensor port of a FlySky telemetry receiver, it lets you watch flight-pack voltage on the transmitter screen instead of guessing when to land.

Key features

• Real-time voltage telemetry shown on FlySky telemetry-capable radios
• Measuring range up to 100 V DC
• Low current draw of 9 mA (typical)
• Up to 15 sensors can be connected in series on one sensor bus
• Compact 31 x 15 x 8.5 mm body tucks into small frames

Specifications

• Model: FS-CVT01
• Type: Voltage telemetry sensor
• Voltage range: -100 to 100 V DC
• Current draw: 9 mA (typical)
• Sensors in series: 15 max
• Dimensions: 31 x 15 x 8.5 mm

Use it with FlySky receivers that have an i-BUS sensor port, such as the FS-iA6B and FS-iA10B, paired with a telemetry-capable FlySky radio like the FS-i6X. Check that your receiver has a sensor port before ordering.
