FlyFishRC Osprey 60mm 5.8GHz Antenna
₹899Incl. GST
SKU OSPREY-60MM-LHCP-BLK
Polarization: LHCP
Polarization: RHCP, LHCPAntenna Connector: SMA, RP-SMAFrequency: 5.8GHzMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

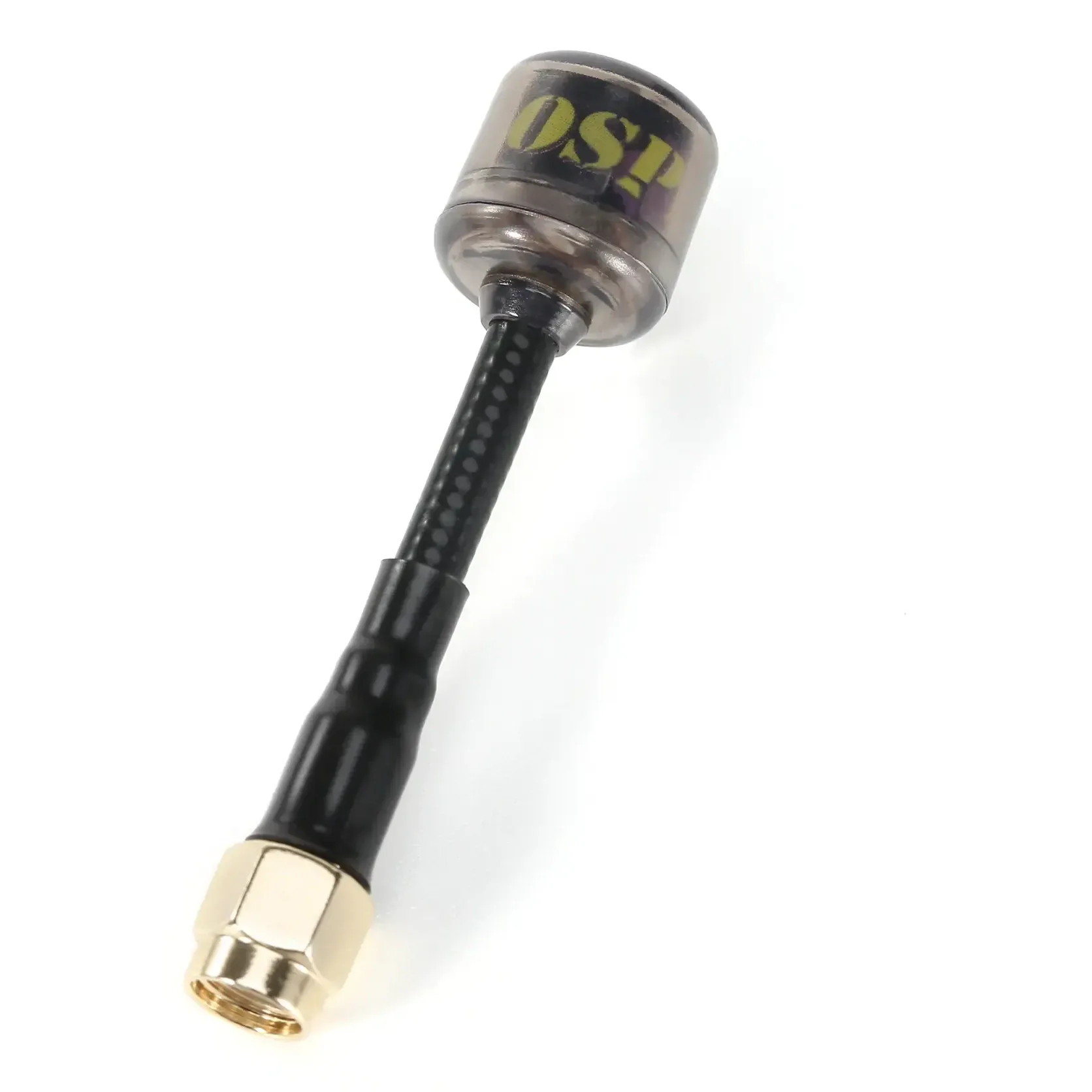

The FlyFishRC Osprey 60mm is a 5.8GHz circularly polarised FPV antenna, available in RHCP and LHCP versions, built for compact video systems where every gram and millimetre of clearance counts.
Key features
- 4-leaf circularly polarised element gives up to 2.82dBi gain and 99% radiation efficiency.

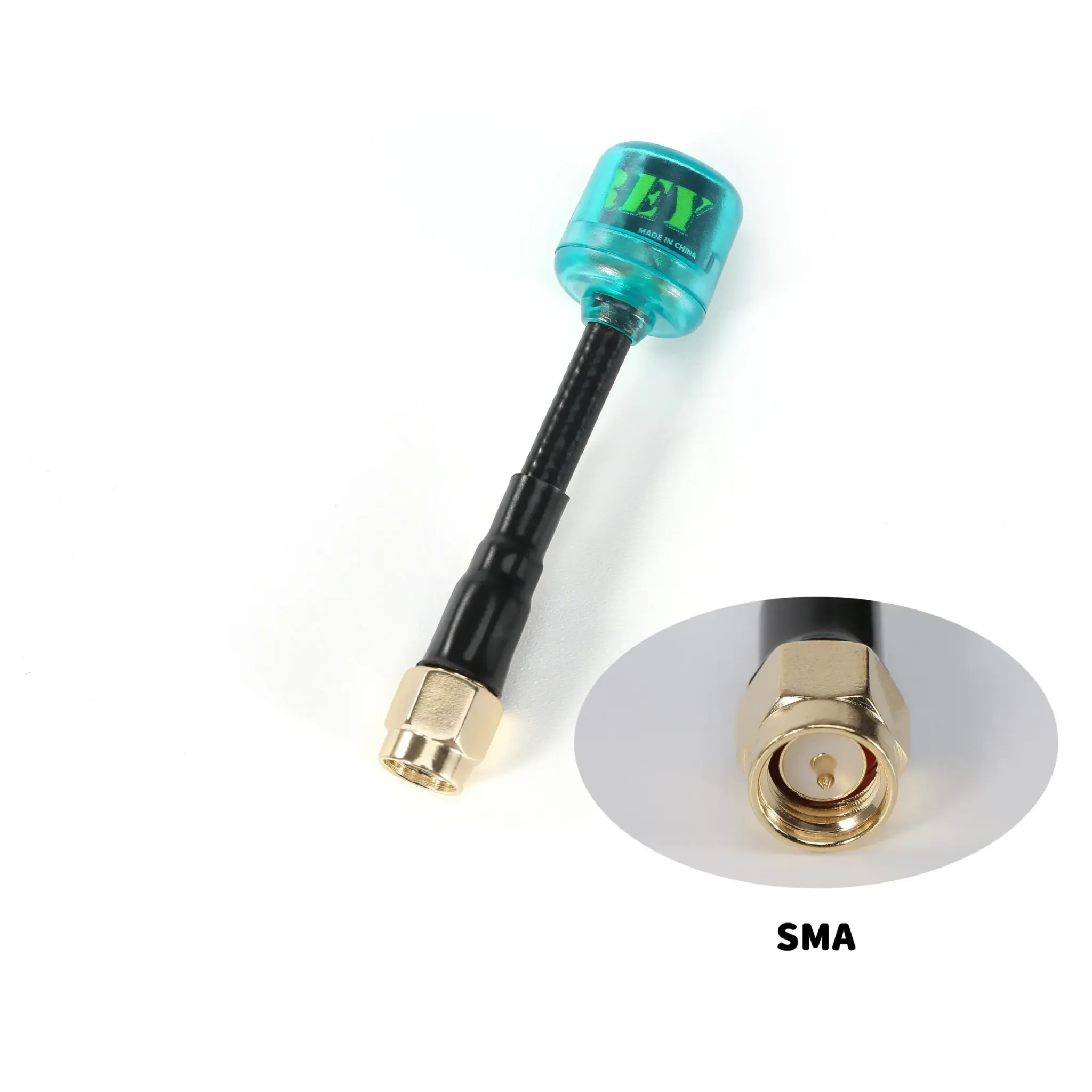

- Gold-plated connector (SMA on the RHCP version, RP-SMA on the LHCP version) on a flexible RG141 coaxial cable.
- Transparent polycarbonate casing is hermetically sealed to protect the antenna element.
- 60mm length and a 14.1mm diameter head suit space-limited frames and canopies.
- Choose RHCP or LHCP to match the other circularly polarised video antennas on the same link.
Specifications
- Frequency: 5.8 GHz (5.6-6.0 GHz)

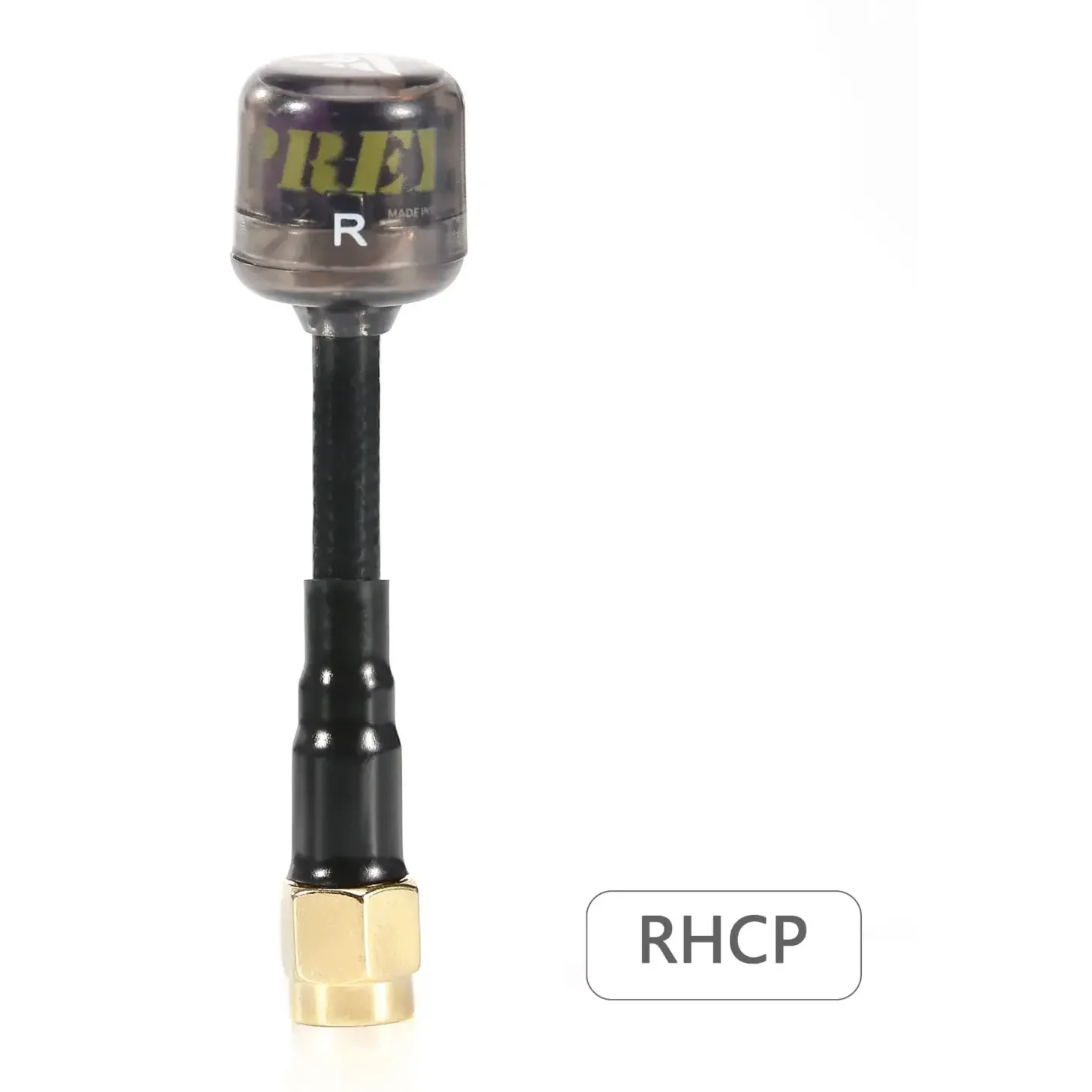

- Polarisation: RHCP or LHCP (select variant)
- Gain: 2.82 dBi
- VSWR: 1.2:1 or better
- Connector: SMA (RHCP version), RP-SMA (LHCP version)
- Cable: RG141 coax
- Head dimensions: 14.1 mm diameter x 14 mm height

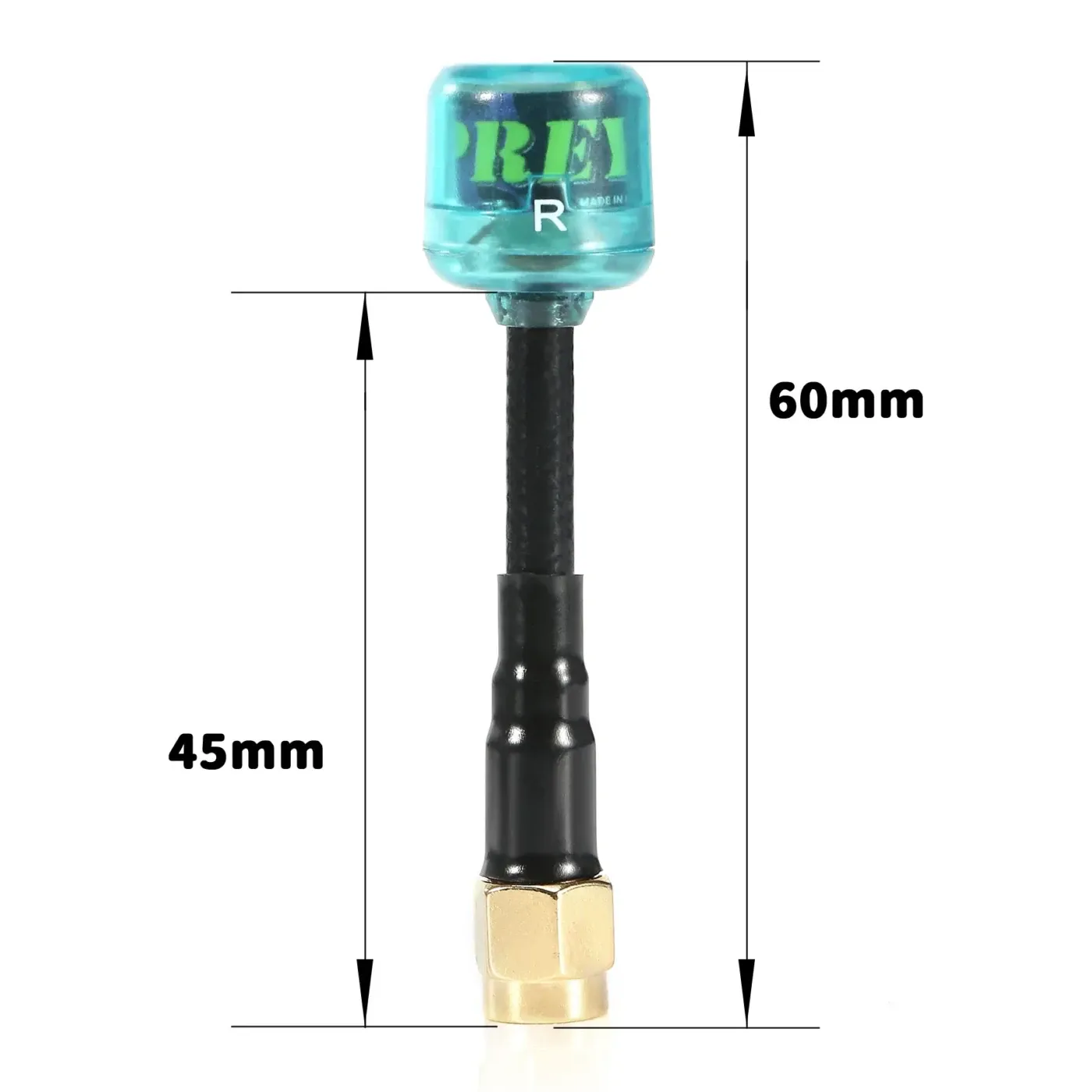

- Length: 60 mm

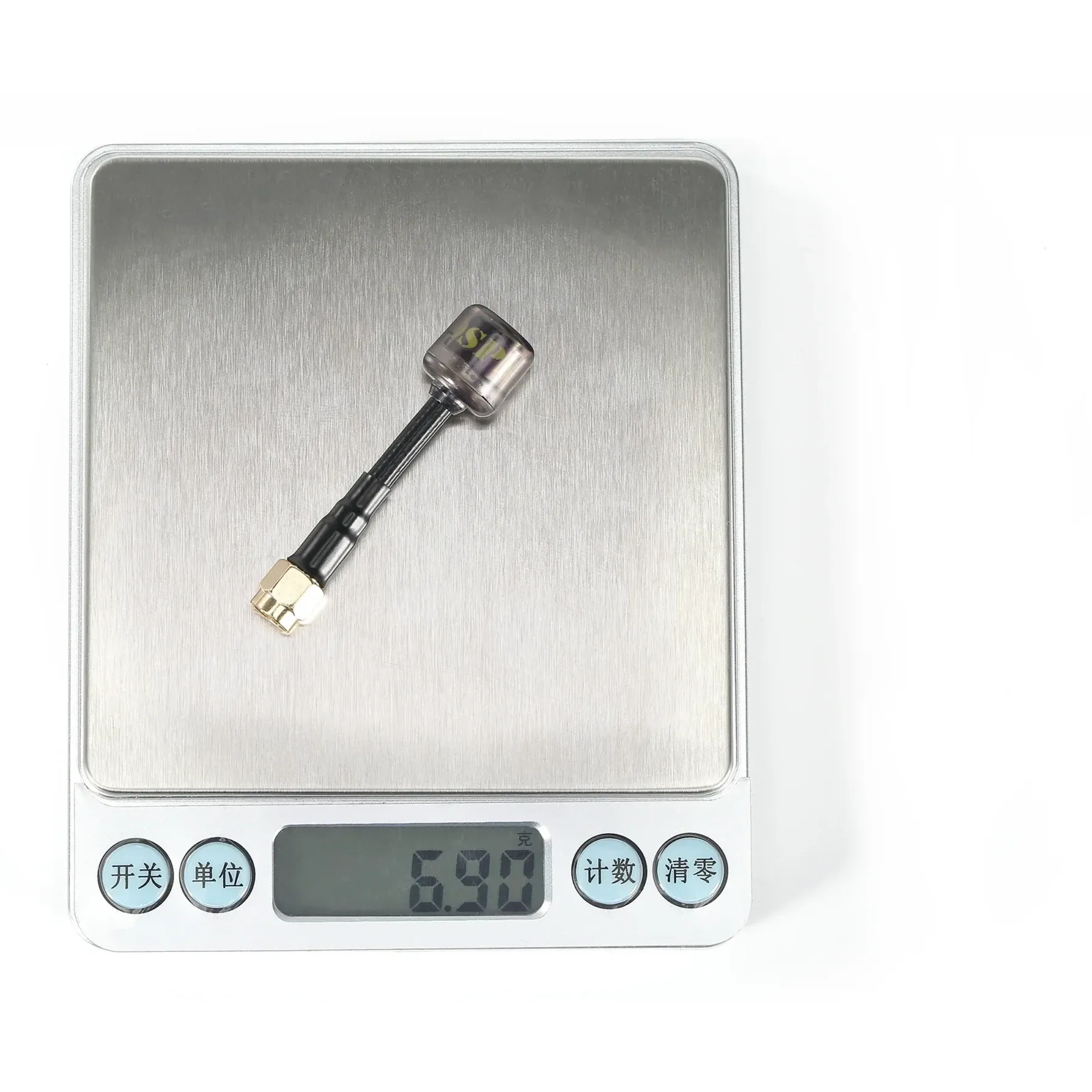

- Weight: 6.9 g
Fit antennas of the same polarisation at both the video transmitter and receiver or goggles end of the link, and confirm the connector matches your equipment.
| Polarization | RHCP, LHCP |
|---|---|
| Antenna Connector | SMA, RP-SMA |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | FlyFishRC |
