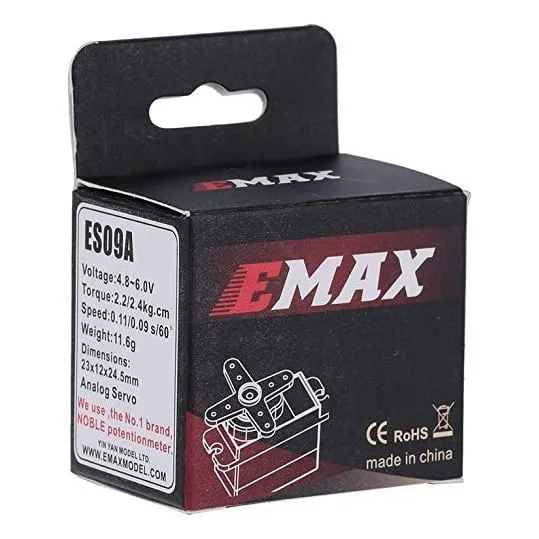

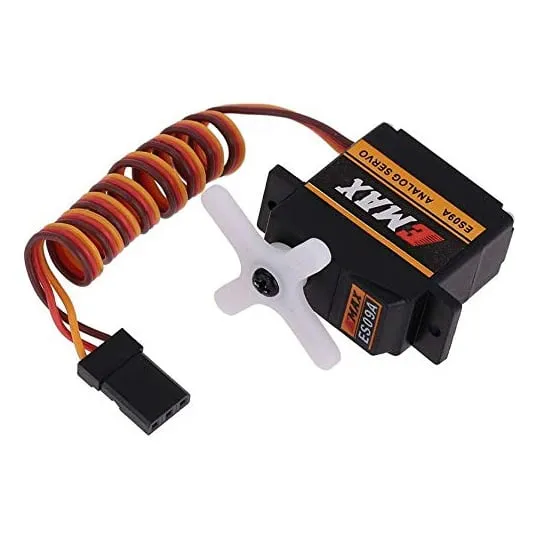

EMAX ES09A Dual-Bearing Swash Servo for 450 Helicopters

The EMAX ES09A is a dedicated analog swashplate servo engineered specifically for 450-class RC helicopters. Built with a dual-bearing output shaft, it delivers precise control and smooth operation for cyclic linkages, minimising mechanical slop to ensure stable hovering and accurate forward flight response.

Key features

• Tailored control response and travel range designed directly for 450-size helicopter swashplates.
• Dual-bearing output shaft maintains gear alignment and reduces long-term wear.
• Fast transit speeds of 0.08 sec/60° at 6.0V provide crisp cyclic pitch control.
• Lightweight plastic gear train keeps the overall servo weight below 15 grams.

Specifications

• Operating Voltage: 4.8V - 6.0V
• Stall Torque: 2.3 kg·cm (4.8V) / 2.6 kg·cm (6.0V)
• Operating Speed: 0.10 sec/60° (4.8V) / 0.08 sec/60° (6.0V)
• Dimensions: 23 x 12 x 24.5 mm
• Weight: 14.8g
• Type: Analog
• Gear Material: Plastic

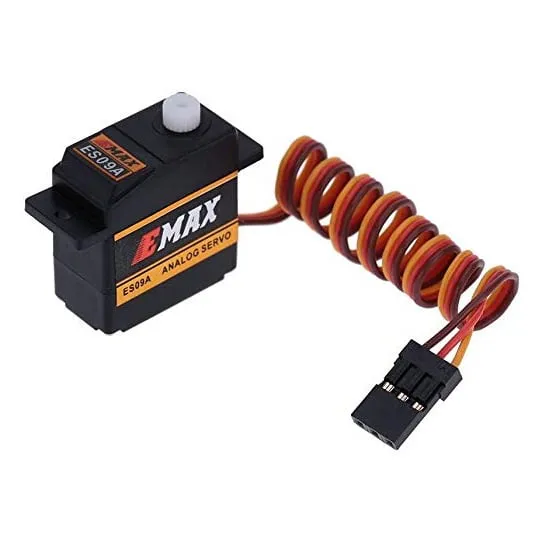

• Connector: JR (Standard)

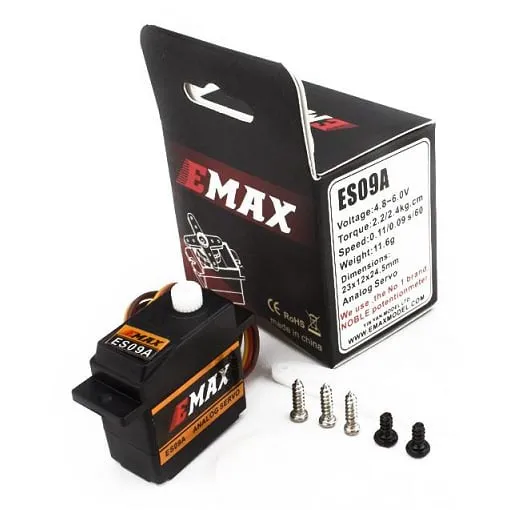

With a standard JR connector and a compact 12mm width, the ES09A is a direct drop-in fit for standard 450 helicopter frames and includes the necessary mounting hardware and servo horns to match your rotor head geometry.
