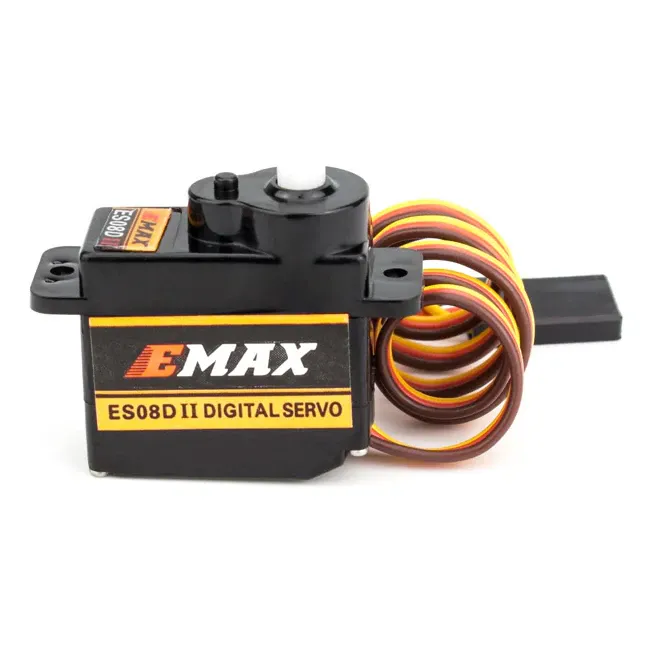

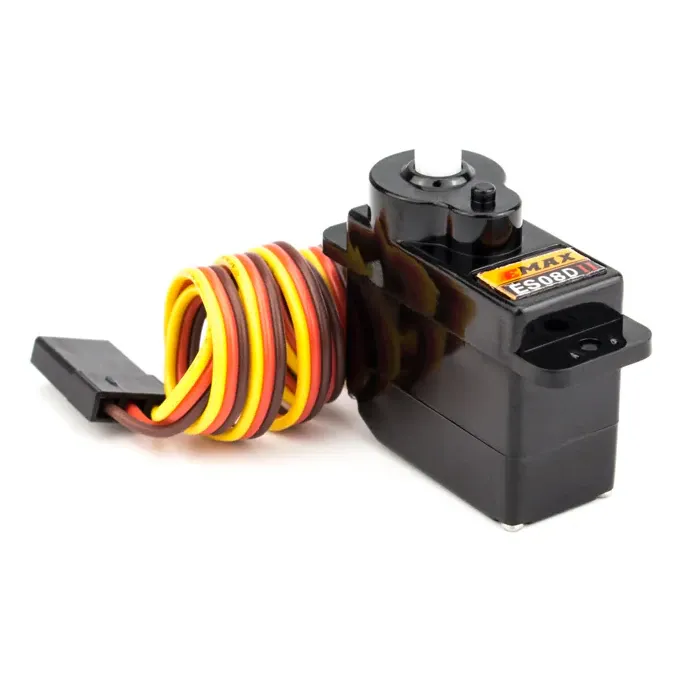

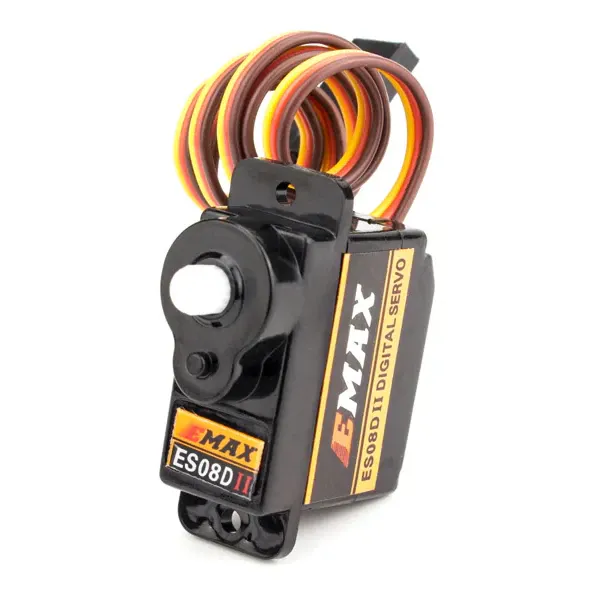

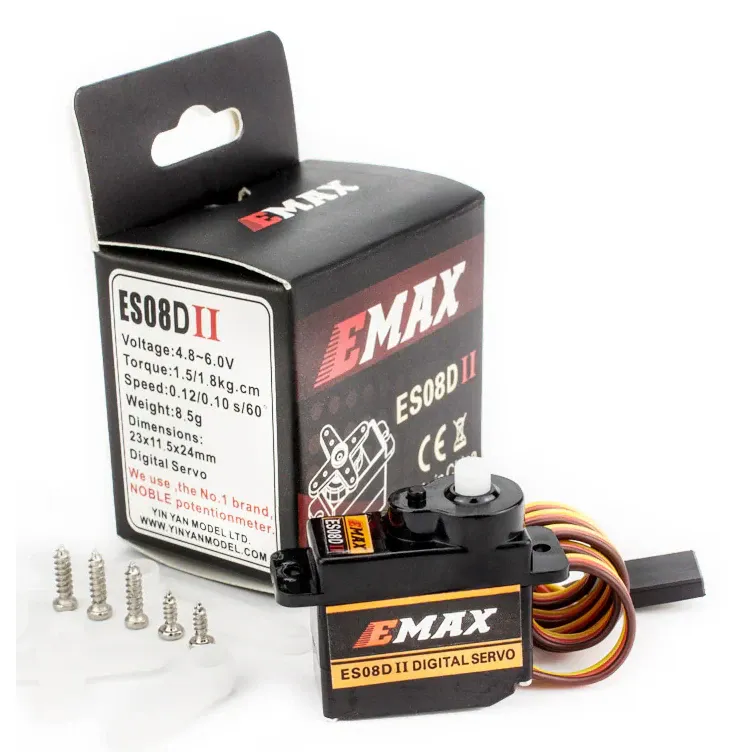

EMAX ES08D Digital Servo

The EMAX ES08D is a lightweight digital micro servo tailored for camera gimbals, pan-and-tilt mechanisms, and small RC fixed-wing aircraft. Featuring a precise digital control circuit and a nylon gear train, it delivers fast response times and stable centering for builds where space and weight are strictly constrained.

Key features

• Digital control board provides improved holding power and centering accuracy over standard analog servos.
• Nylon gears keep the operating weight to a minimum while maintaining smooth, consistent movement.
• Universal JR-style connector ensures drop-in compatibility with most standard RC receivers and flight controllers.
• Compact 9g-class footprint fits easily into custom gimbal brackets and tight micro airframes.

Specifications

• Operating voltage: 4.8V - 6.0V
• Stall torque: 1.6 kg-cm (at 4.8V) / 2.0 kg-cm (at 6.0V)
• Operating speed: 0.12 sec/60° (at 4.8V) / 0.10 sec/60° (at 6.0V)
• Gear material: Nylon
• Dimensions: 24 x 11.5 x 24 mm
• Weight: 12g

This servo requires a standard 5V BEC for optimal performance and serves as an excellent actuator for custom FPV head-trackers or lightweight payload release mechanisms.
