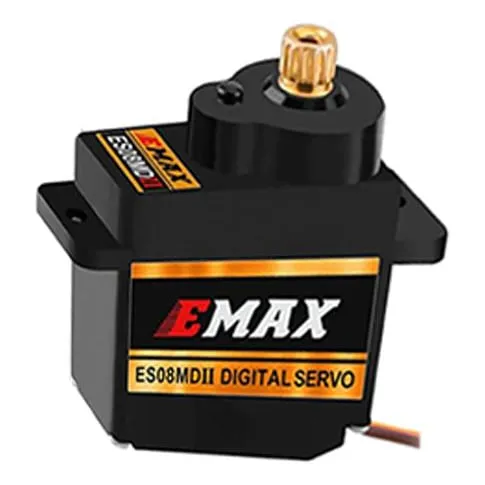

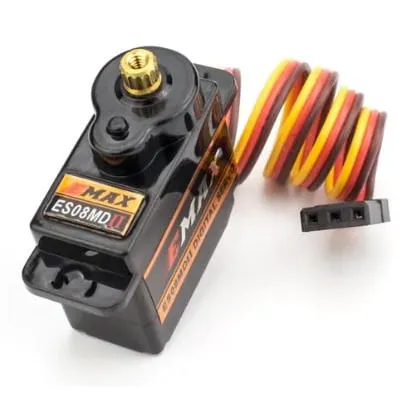

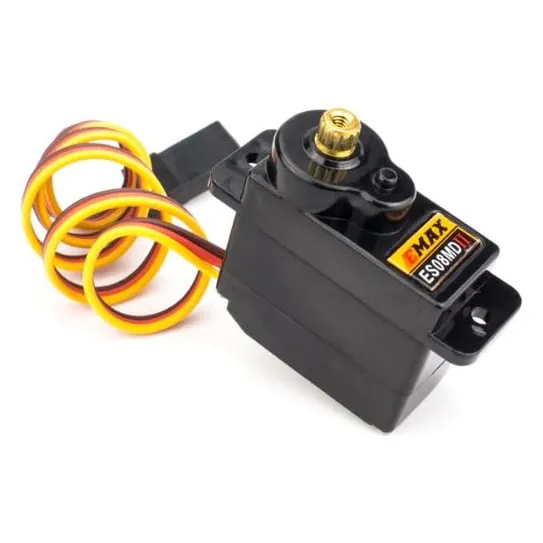

EMAX ES08MD II 12g Digital Metal Gear Servo

The EMAX ES08MD II is a 12-gram digital micro servo built with a durable metal gear train. Offering superior holding power and centring accuracy over analog equivalents, this servo is an excellent choice for fixed-wing control surfaces, custom FPV camera pan/tilt mechanisms, and payload drop releases on larger multirotors.

Key features

• Digital circuitry provides rapid response and superior holding torque under aerodynamic loads.
• Metal gears withstand crash impacts and heavy-duty actuation jobs far better than standard nylon trains.
• Dual bearings on the output shaft ensure smooth, slop-free travel over long-term use.
• Fitted with a standard JR-style connector for direct plug-and-play compatibility with RC receivers and flight controller PWM outputs.

Specifications

• Operating voltage: 4.8V – 6.0V
• Stall torque: 1.6 kg.cm @ 4.8V | 2.0 kg.cm @ 6.0V
• Operating speed: 0.12 sec/60° @ 4.8V | 0.10 sec/60° @ 6.0V
• Motor type: Coreless
• Gear material: Metal
• Dimensions: 23 x 11.5 x 24 mm
• Weight: 12g
• Connector: JR plug

Note: This servo operates on a standard PWM signal and draws 5V power; ensure your flight controller's BEC is rated to handle the peak amp draw if running multiple servos simultaneously on a fixed-wing build.
