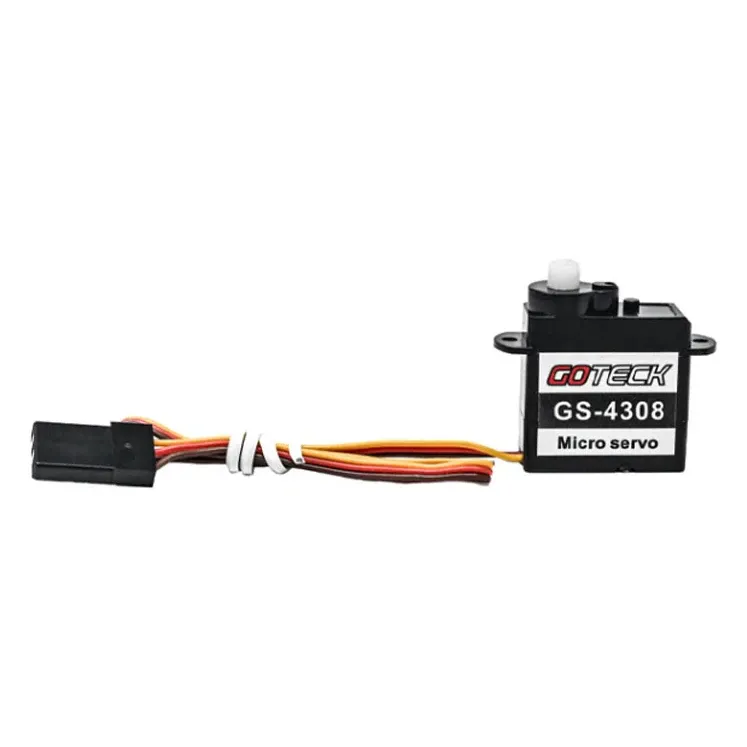

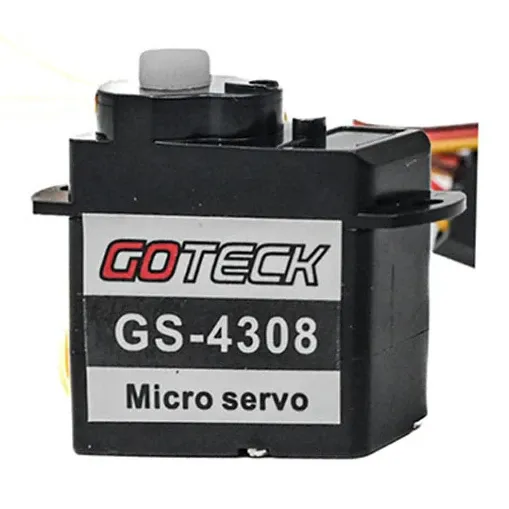

DYS GoTeck GS-4308 4.4g Micro Servo, Plastic Gear

The DYS GoTeck GS-4308 is a 4.4g micro servo for light RC aircraft, small helicopters, micro drones and compact robotics where a 9g servo is too big or too heavy. It runs from 4.5–6 V, so it plugs straight into a standard receiver servo rail.

Key features

• 0.8 kg·cm at 6 V (0.6 kg·cm at 4.8 V), strong for its size on park-flyer ailerons and elevators
• About 0.10 s/60° at 6 V for quick surface response
• 24T output spline takes standard micro servo arms
• Plastic gear train keeps the weight to 4.4 g
• Accessory kit included

Specifications

• Weight: 4.4 g
• Dimensions: 19.8 x 8.0 x 22.5 mm
• Operating voltage: 4.5–6 V
• Torque: 0.6 kg·cm at 4.8 V, 0.8 kg·cm at 6 V
• Speed: 0.10–0.12 s/60°
• Output spline: 24T
• Gears: Plastic

A 6 V rail gives the full 0.8 kg·cm; on a 5 V rail expect torque between the 4.8 V and 6 V figures.
