DYS F2204 Drone Power Combo Set

The DYS F2204 Power Combo Set bundles a matched motor, ESC and propeller set for building a 250-class micro FPV racer from scratch, saving the work of pairing components individually.

Key features

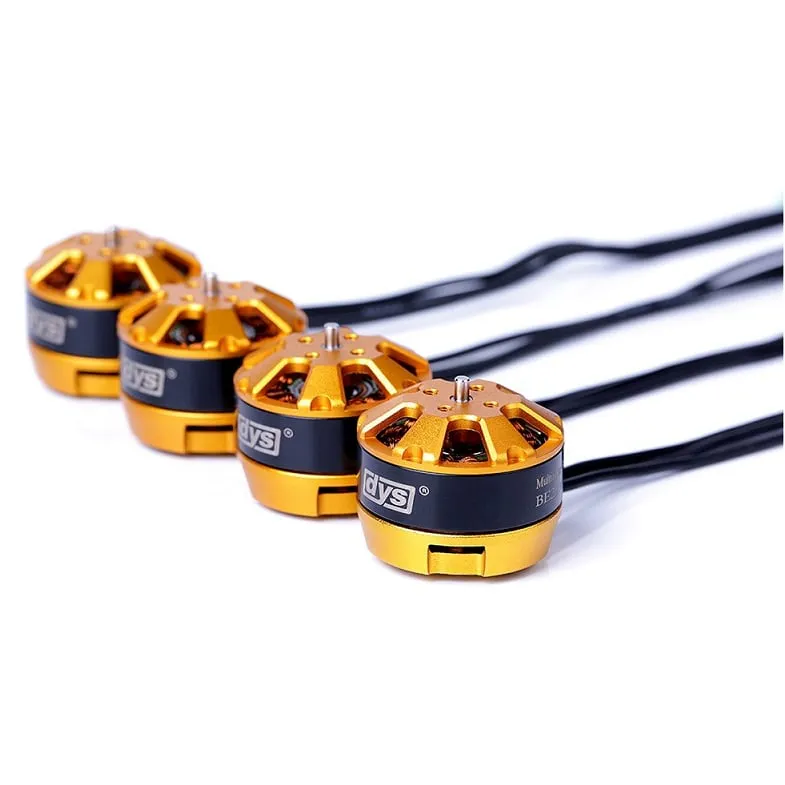

• Four DYS BE2204 2400KV brushless motors, one per arm of a standard quad.

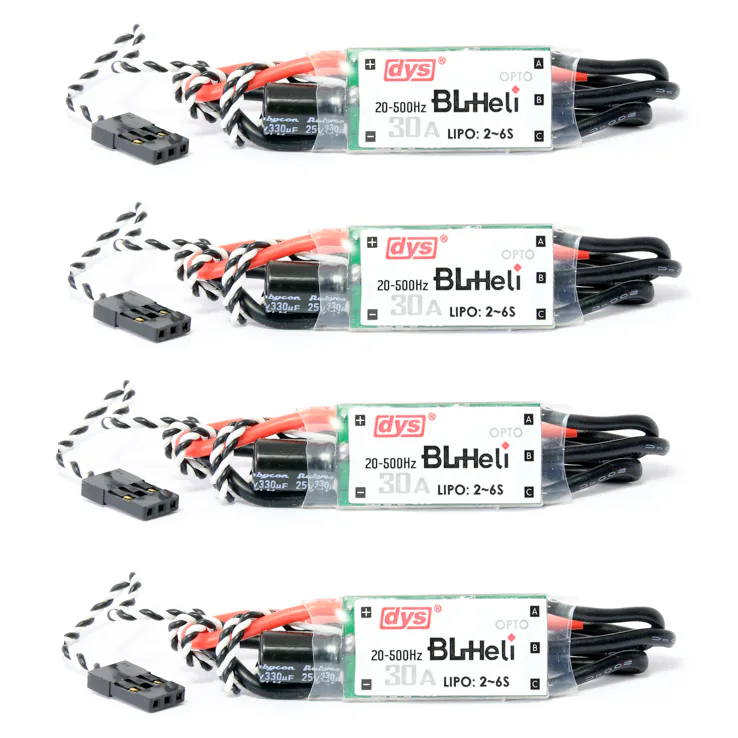

• Four BL30A BLHeli ESCs sized to the motors' current draw.

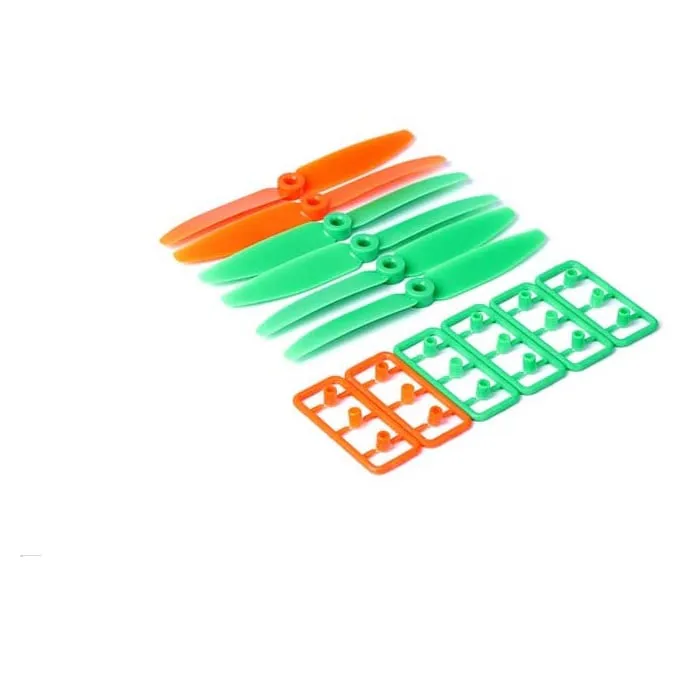

• Three pairs of 5030 propellers included (two green pairs and one orange pair) for immediate use or colour-coded orientation.
• The motors are rated for 3-4S LiPo and the ESCs accept 2-6S, matching the combo's 250-class racing target.

Specifications

• Motors: BE2204 2400KV, 12N14P, 22 x 4 mm stator, 3 mm shaft, 23 g
• Motor rating: 3-4S LiPo, 18.9A max continuous, 279.7W
• ESCs: BL30A, 30A continuous / 35A burst, 2-6S LiPo, BLHeli firmware (SimonK compatible), OneShot125 support
• ESC BEC: none (opto)
• ESC size and weight: 45 x 16.6 x 5.5 mm, 14.5 g
• Propellers: 5030 two-blade, M5 hub, 2.4 g each

Add a frame, flight controller and receiver to complete a 250-size quad; confirm your battery and frame clearance against the 5030 propeller size before final assembly, and run the set on a 3S or 4S pack. The ESCs have no BEC, so power the flight controller from a separate regulator or PDB.
