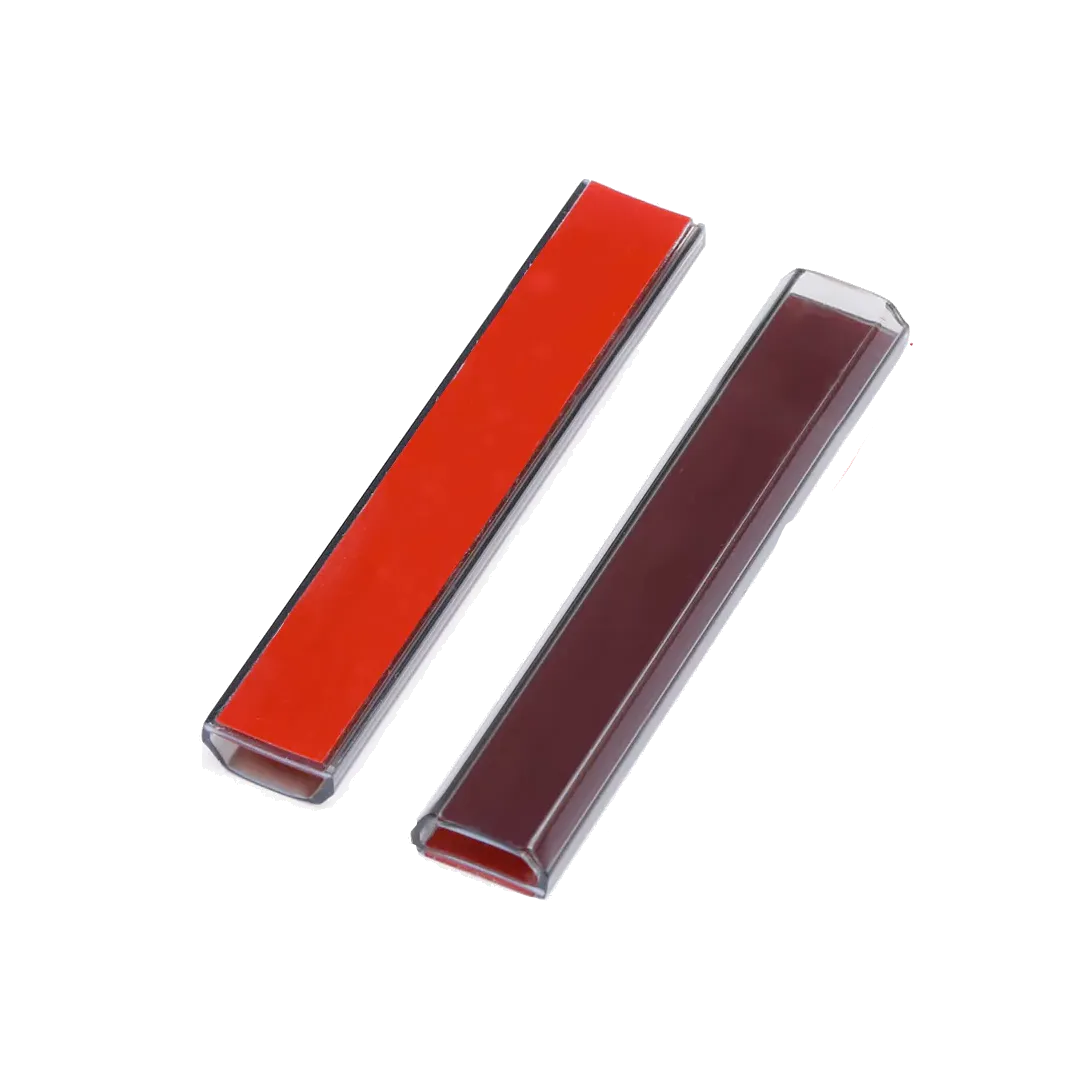

iFlight Motor Wire Shield Tube (Pack of 10)

The iFlight Motor Wire Shield Tube routes and protects your brushless motor phase wires along the carbon fibre arms of FPV drones. Encasing exposed lead wires in a tough protective channel prevents sliced insulation from bent propellers during crashes and stops continuous chafing against sharp carbon edges.

Key features

• Prevents electrical shorts and cut leads from direct propeller strikes on exposed ESC-to-motor wiring.
• Keeps wire runs flush and organised across carbon fibre arms without relying on tape or adhesive wraps alone.
• Supplied in six precise lengths — 20mm, 24.5mm, 43mm, 50mm, 65mm and 90mm — to match frame classes from compact micro builds up to long-range 7-inch arms.

Specifications

• Brand: iFlight
• Available lengths: 20mm, 24.5mm, 43mm, 50mm, 65mm, 90mm

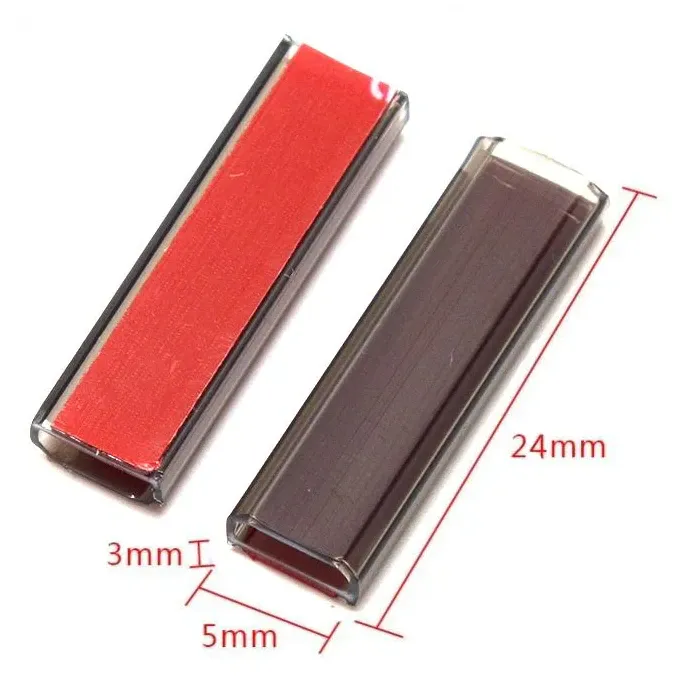

• Width: 10 mm on the 43 mm and longer sizes; narrower on the 20 mm and 24.5 mm sizes
• Colour: Grey
• Pack size: 10 tubes
• Application: brushless motor phase wire protection

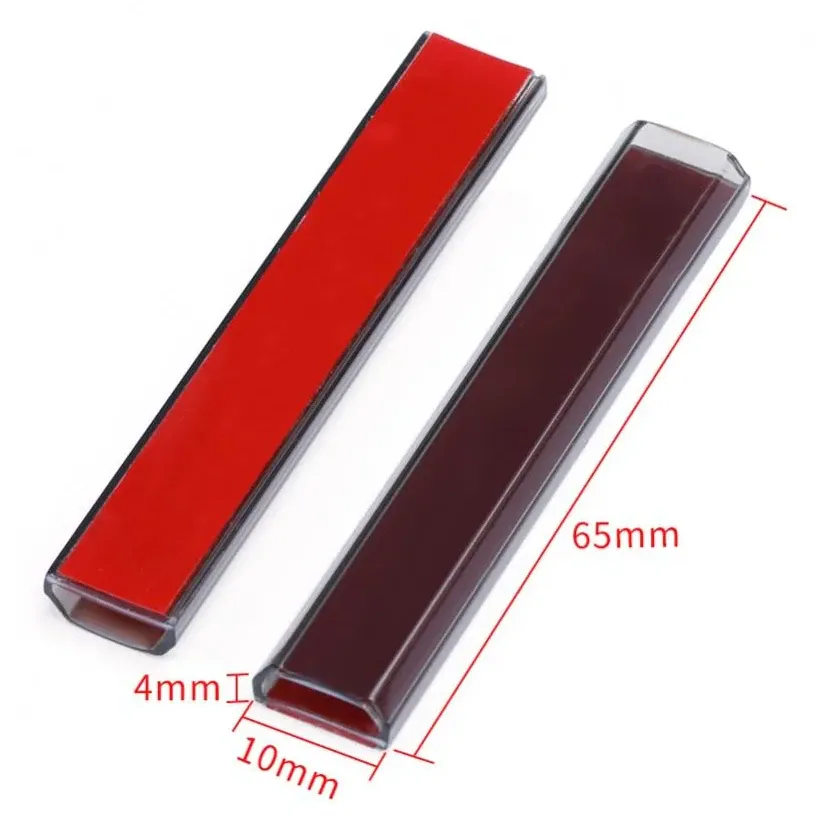

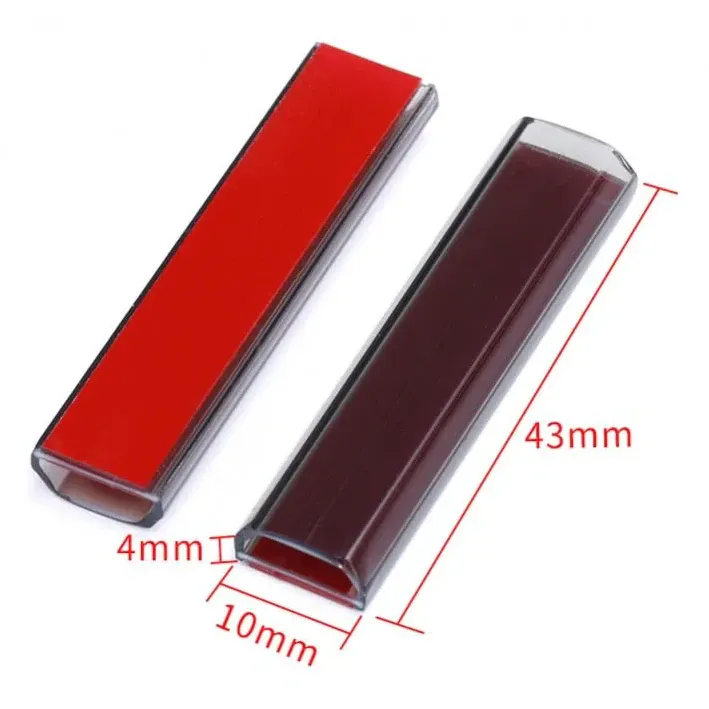

• iFlight frame fit: 43 mm for F5D/F6D front arms; 50 mm for F5X/F6X and BOB57 arms and Chimera7 Pro front arms; 65 mm for F5D/F6D rear arms and Chimera7 Pro V1 rear arms; 90 mm for Chimera7 Pro V2 rear arms

Select the tubing length that matches the exposed straight section of your frame's arm, slide it over the three motor wires before soldering to the ESC pads, then secure the assembly with cable ties or acetate tape.
