COB LED Strip (6S/24V, 4mm×1m)

This 4mm-wide, 1-metre COB (Chip-on-Board) LED strip delivers a seamless, high-intensity band of light without the dotted effect of traditional SMD strips. Designed to run directly from a 24V power source or 6S LiPo connection, it provides clean, continuous illumination for line-of-sight orientation on FPV racers, freestyle frames, and cinewhoops.

Key features

• Continuous illumination: High-density COB layout eliminates individual LED hotspots for uniform light distribution.
• Direct 6S power: Operates on 24V DC, removing the need for a step-down BEC or dedicated 5V/12V regulator on your flight controller.
• Low profile: The ultra-narrow 4mm width easily fits along carbon fibre arms, frame edges, or cinewhoop ducts where standard strips are too wide.
• Customisable fit: Supplied as a flexible 1-metre length that can be cut to size at designated copper solder pads.

Specifications

• Input voltage: 24V DC (6S LiPo)
• Lighting type: COB (Chip-on-Board)
• Dimensions: 4mm x 1000mm (W x L)

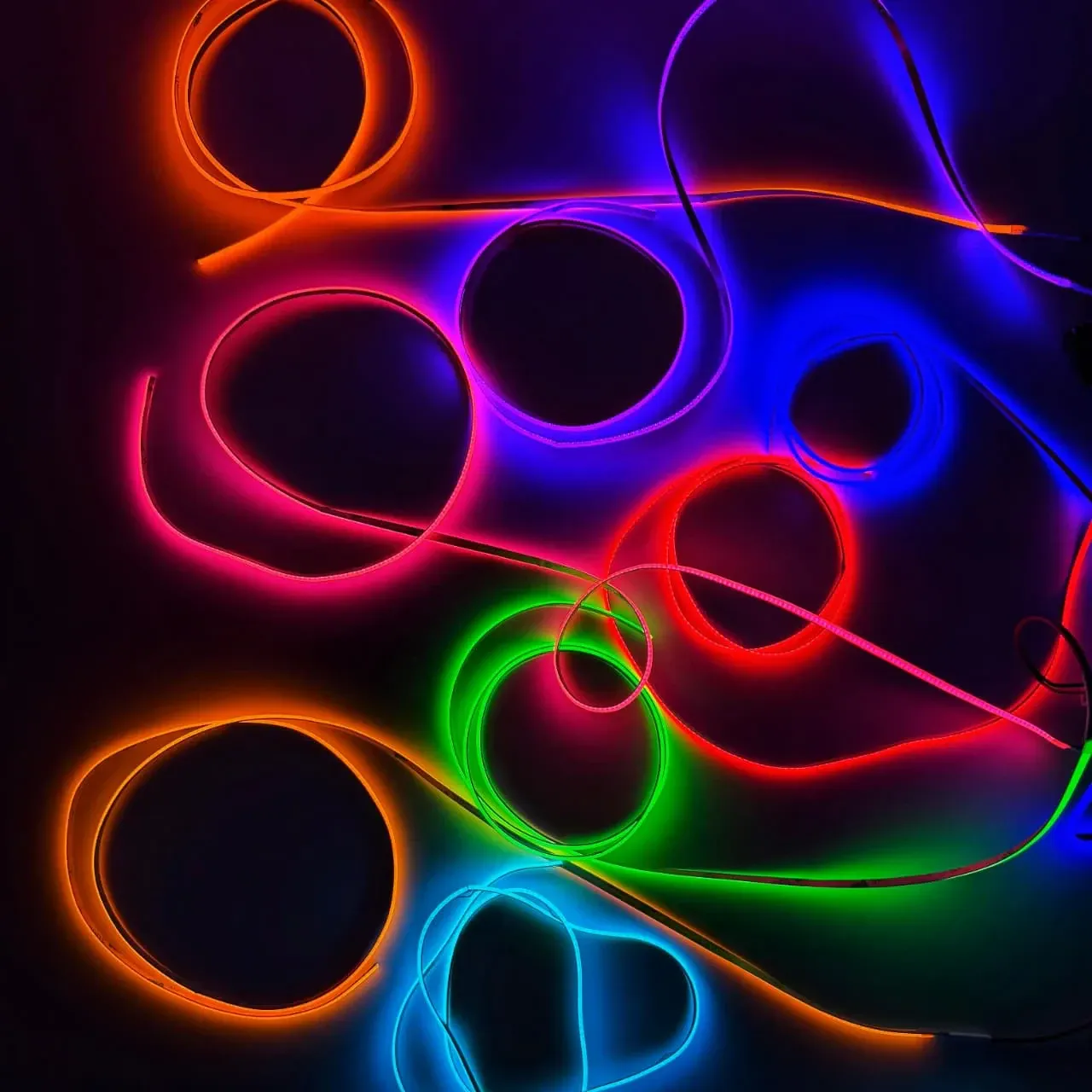

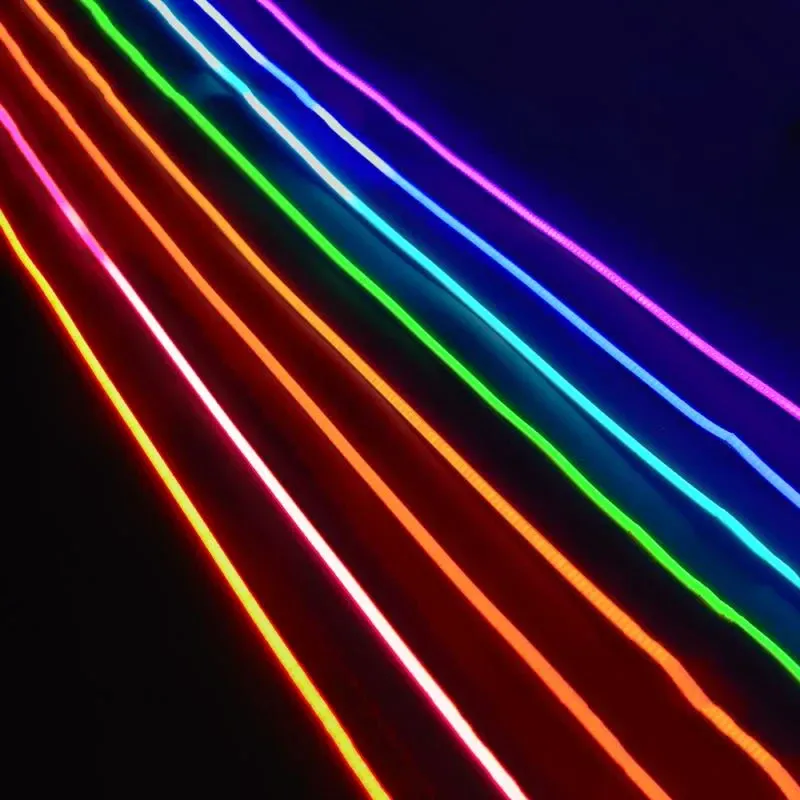

• Available colours: Green, Yellow, Orange, Pink, Red, Purple, Blue, Ice Blue

When installing, ensure the exposed solder pads at your cut marks are properly insulated with clear heat shrink or conformal coating to prevent short circuits against carbon fibre frames.
