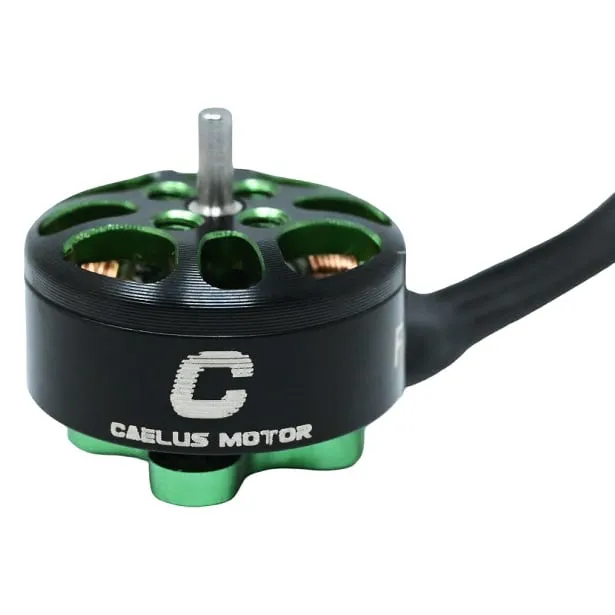

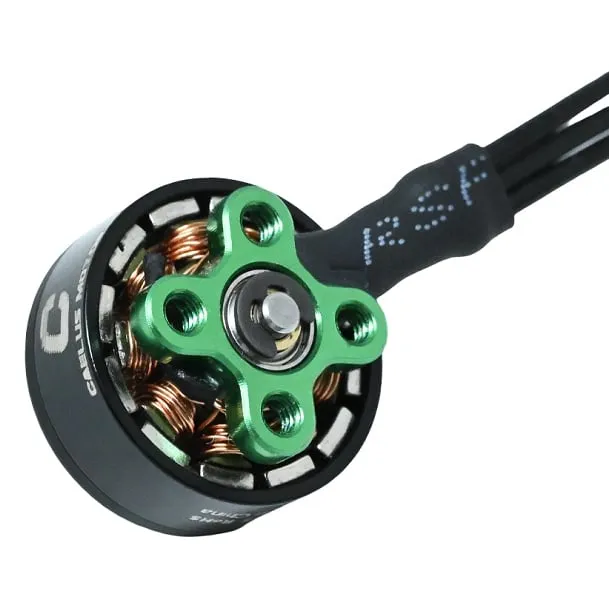

CAELUS FA1204 3100KV Brushless Motor
SKU CAELUS-FA1204-3100KV
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The CAELUS FA1204 3100KV is a brushless motor for micro FPV and lightweight cinewhoop builds running 2-4S power. It suits pilots prioritising quick throttle response over maximum efficiency. Its 1204 stator and 7075-T6 aluminium bell keep weight down while holding up to sustained punch-outs.
Key features

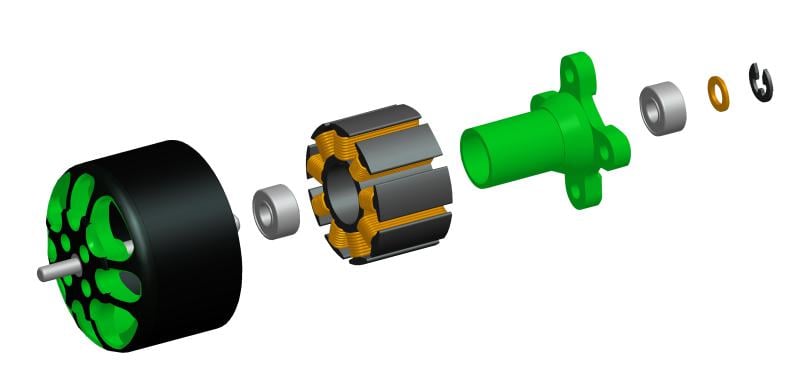

7075-T6 aluminium motor bell for durability with low added weight.
NSK bearings for smooth, quiet rotation over repeated flights.
Kawasaki silicon-steel stator improves torque and reduces heat build-up.
Delivers strong thrust for its size, suiting agile micro FPV builds.
Specifications
Stator size: 1204
KV: 3100KV
Input voltage: 2-4S
Recommended propellers: 2-3 inch
Brand: CAELUS

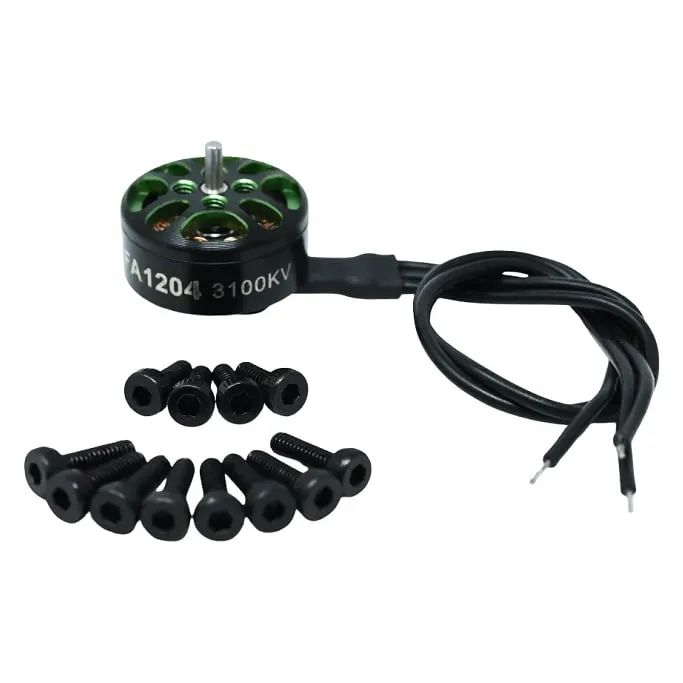

A screw pack is included; match the propeller and ESC current rating to the selected cell count and confirm the motor mount and shaft fit the frame before installing all four motors on the frame.

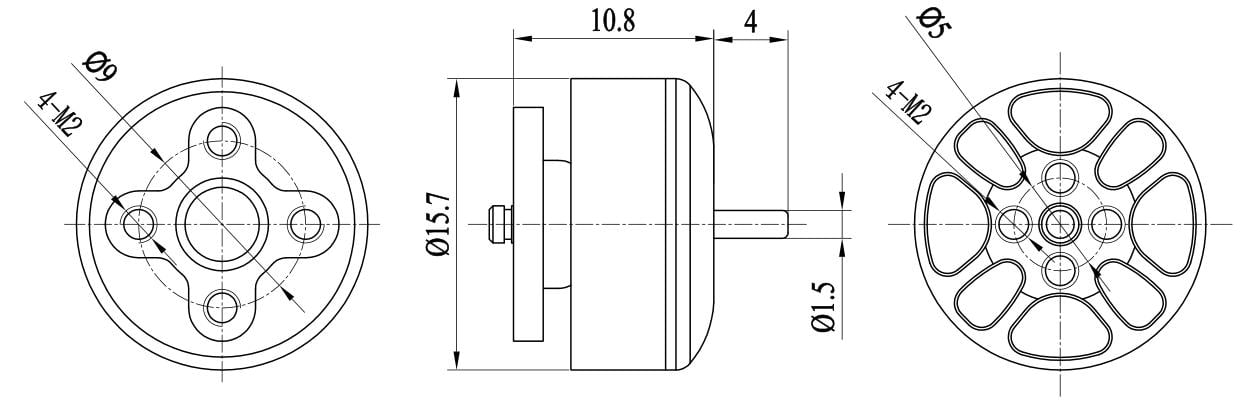

| Stator Size | 1204 |
|---|---|
| Stator Diameter | 12mm |
| Stator Height | 4mm |
| KV | 3100 KV |
| Input Voltage | 2–4S |
| Brand | CAELUS |
| Made in India | Yes |
