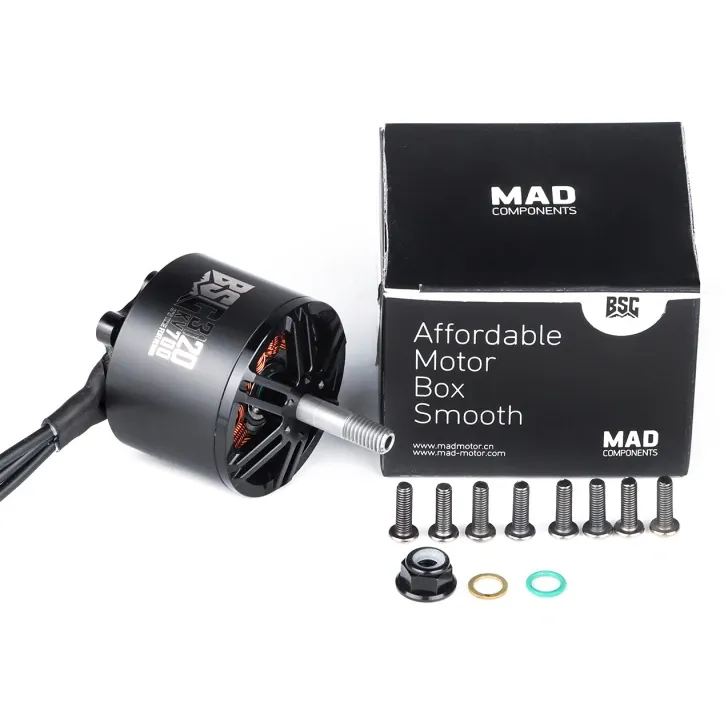

MAD BSC 3120 500KV FPV Drone Motor

The MAD BSC 3120 is a high-torque brushless motor engineered for macro-quads, heavy-lift cinelifters, and X-Class builds spinning 8-inch to 10-inch propellers. Built to carry large camera payloads without struggling, the massive 3120 stator provides the extreme low-end torque required to pull heavy rigs out of steep dives and maintain stable, vibration-free cinematic tracking.

Key features

• Massive 3120 stator generates superior torque for heavy camera payloads and larger propellers
• Optimised for 8-inch to 10-inch macro-quad and cinelifter builds running on 6S to 8S LiPo power
• Open-base bell design maximises cooling airflow across the stator coils during sustained flights
• Heavy-duty bearings and robust shaft construction to withstand high radial loads

Specifications

• Brand: MAD Components
• Series: BSC (entry-level series)
• Stator Size: 3120
• Stator Dimensions: 31mm diameter, 20mm height
• KV: 500KV
• Configuration: 12N14P
• Motor size: 37.1 x 56.5 mm
• Shaft: 5 mm
• Prop mounting: M5 nut
• Motor mounting holes: 19 mm, 4x M3
• Lead: 300 mm, 16AWG silicone

When installing these on a cinelifter frame, ensure your electronic speed controllers (ESCs) are rated for continuous high-current draws, as the large 3120 stator will demand significant amperage during heavy payload punches and rapid acceleration.
