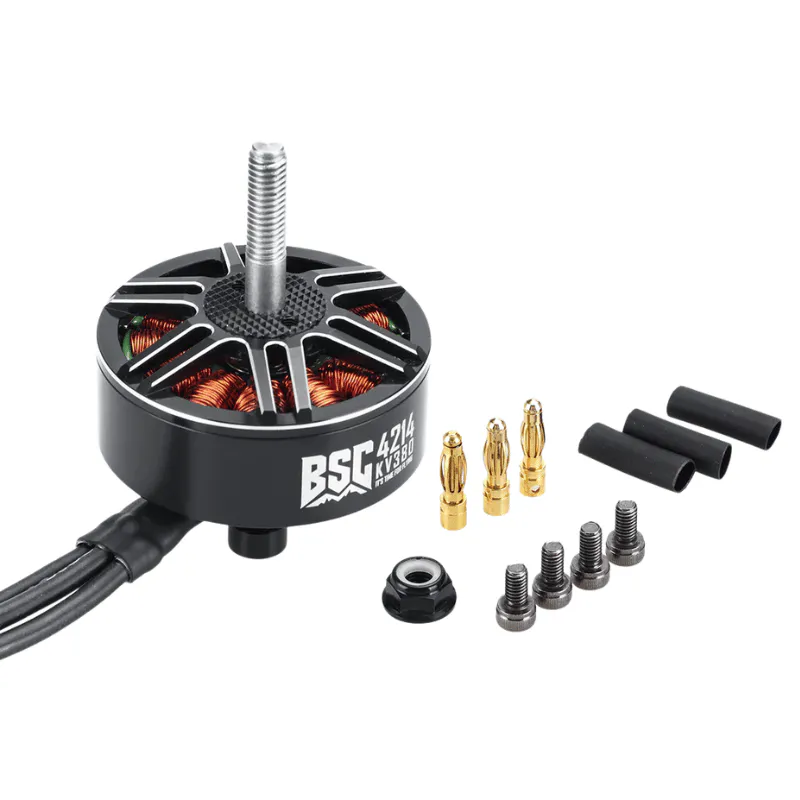

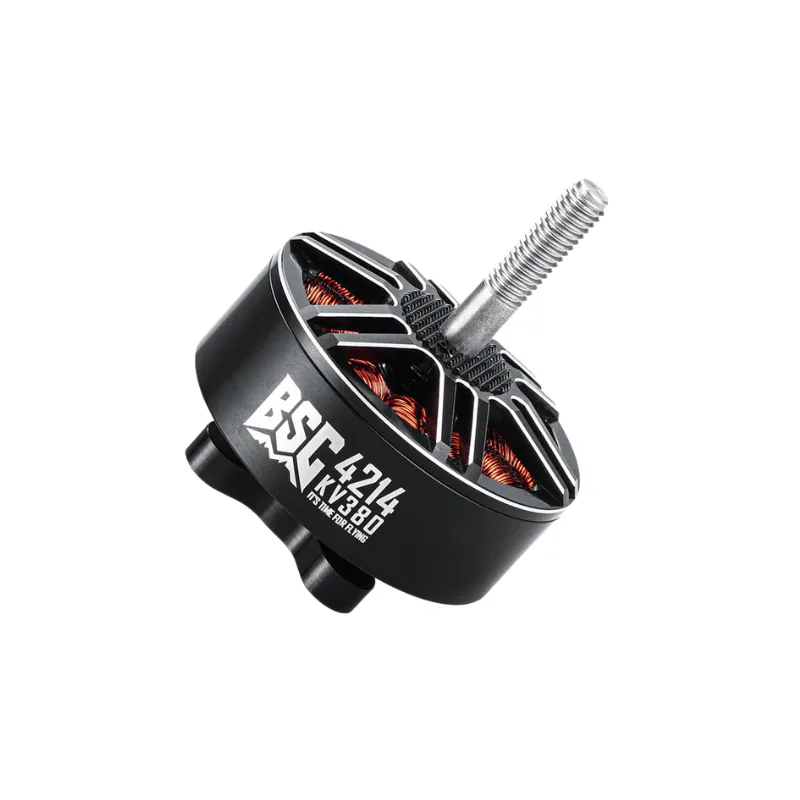

MAD BSC 4214 380KV Motor
₹7,199Incl. GST
SKU MAD-BSC-4214-380KV
Stator Size: 4214KV: 380 KVProp Mount: 6mmShaft: 6mm
Dispatched within 3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The MAD BSC 4214 380KV is a large-format brushless motor built for heavy-lift and X-Class multirotors that need a low-KV, high-torque winding to swing big props efficiently.
Key features
- 4214 stator size (50mm-diameter housing) is sized for the load of 13-inch-class propellers, not compact freestyle frames.
- 380KV winding suits high-voltage 8S power systems, giving efficient cruising and smoother throttle response than a higher-KV motor at this size.
- 12N14P pole configuration for a large-format multirotor motor.
- 30mm (M4) motor mount and a 6mm shaft with an M6 prop nut match typical heavy-lift and cinelifter frames.
- Ships with an 800mm, 14AWG silicone lead pre-attached for long, clean wiring runs to the ESC.
Specifications
- Stator size: 4214
- KV: 380KV
- Input voltage: 8S
- Poles: 12N14P
- Motor size: 50 x 59.7 mm
- Shaft: 6mm
- Motor mount: 30mm (M4)
Size the rest of the build — arms, props and ESC — for a large heavy-lift or X-Class frame; this is not a drop-in replacement for compact 22xx-class motors.
| Stator Size | 4214 |
|---|---|
| Stator Diameter | 42mm |
| Stator Height | 14mm |
| KV | 380 KV |
| Prop Mount | 6mm |
| Shaft | 6mm |
| Motor Mount | 30x30mm |
| Input Voltage | 8S |
| Brand | MAD Components |
| Made in India | No |
| Prop Size | 13" |
