BrotherHobby VY 1507 1550KV Motor

The BrotherHobby VY 1507 1550KV is an efficiency-focused micro brushless motor built for 6S 4-inch long-range cruisers, heavy 3-inch cinewhoops, and ultralight 5-inch toothpick drones. Tuned to an unusually low 1550KV, it is engineered for high-voltage setups where maximizing flight time and low-end throttle resolution take priority over raw top speed.

Key features

• Machined from aerospace-grade 7075 aluminium alloy, providing a resilient bell and base structure without adding unnecessary bulk.

• Constructed with 0.15mm Nippon Steel laminations and high-temperature N52H arc magnets for consistent, efficient torque delivery.

• Fitted with premium Japanese NSK bearings to minimize motor resonance and ensure cleaner flight controller gyro data.

• Features a lightweight, hollow 5mm titanium alloy prop shaft, allowing standard locknut compatibility with M5-hub 3-inch to 5-inch propellers.

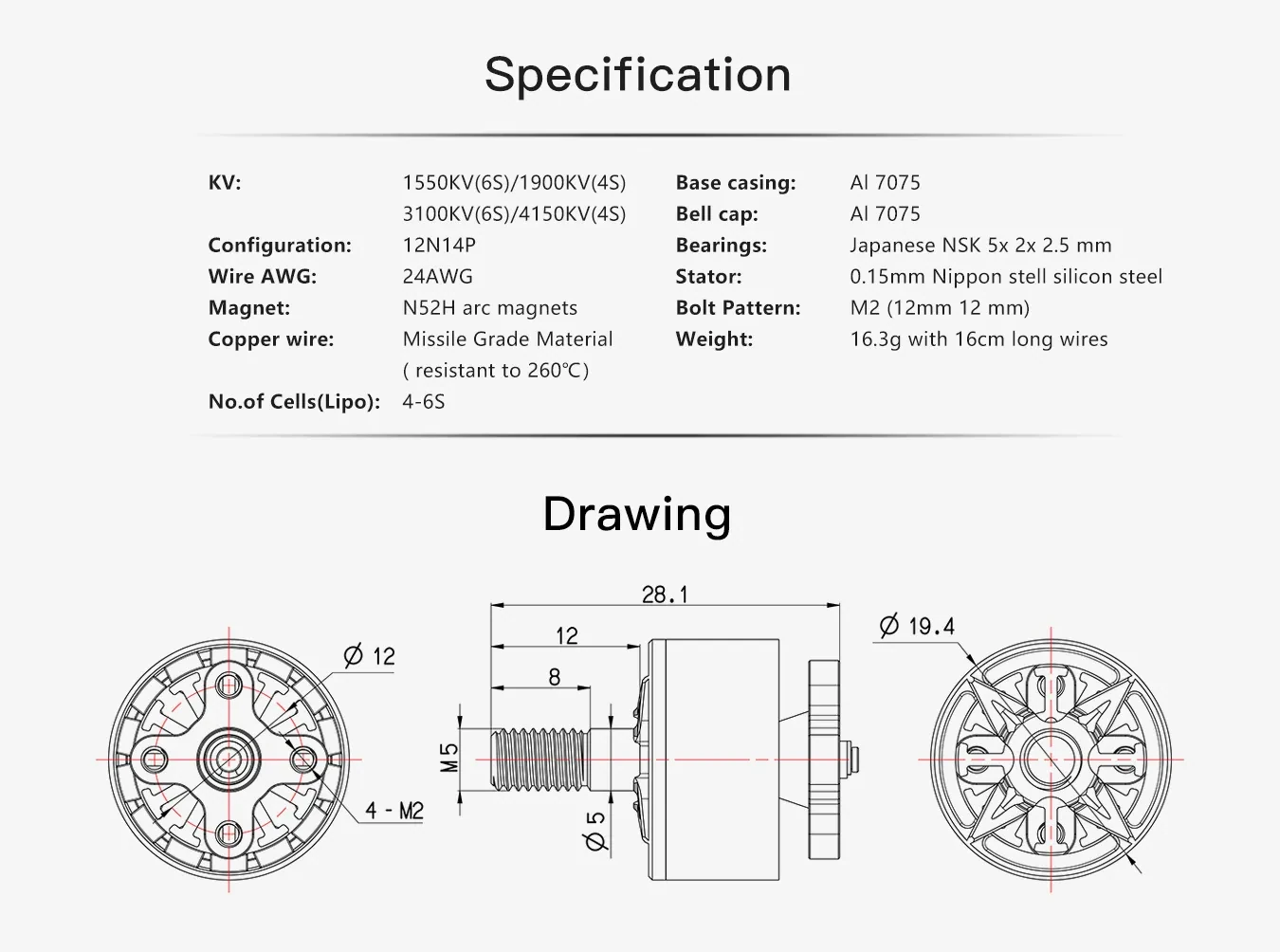

Specifications

• KV: 1550

• Configuration: 12N14P

• Stator Size: 1507

• Magnets: N52H Arc

• Casing Material: 7075 Aluminium

• Shaft Size: 5mm hollow titanium (M5 thread)

• Mounting Pattern: 12x12mm (M2)

• Motor Wire: 24AWG, 160mm length

• Weight: 16.3g (including wires)

This motor is highly recommended for endurance builds, pairing seamlessly with a 6S LiPo battery, lightweight 4-inch bi-blade props, and a 20A to 30A AIO flight controller for extended mid-range cruising.
