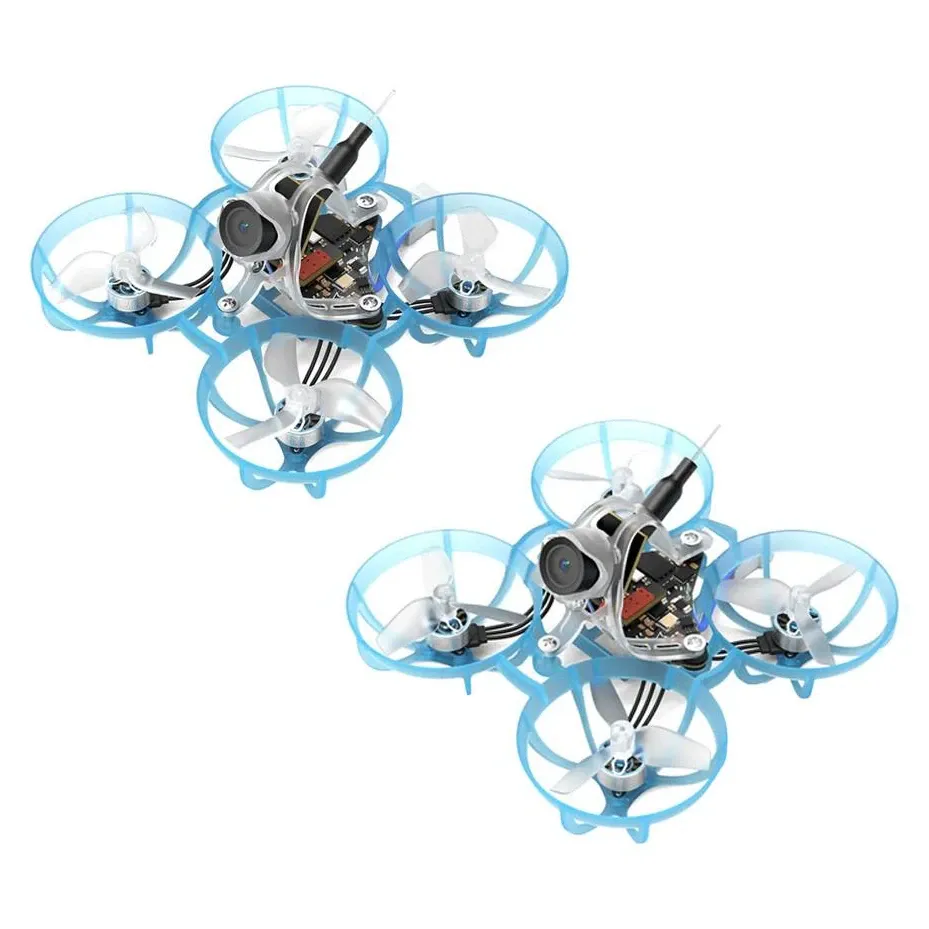

BetaFPV Air65 Brushless Analog Whoop BNF (ELRS)

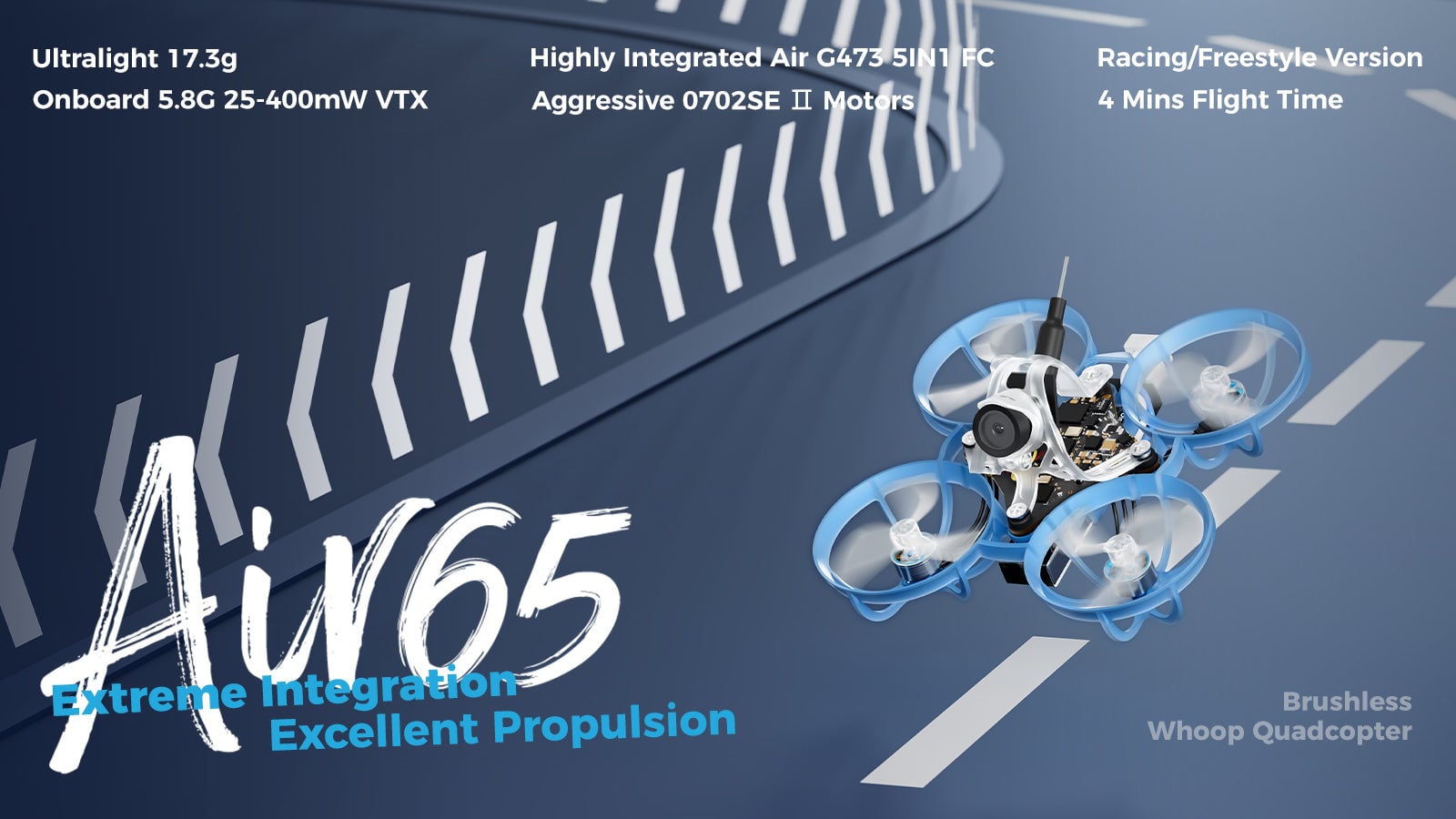

BetaFPV's Air65 is a 65 mm brushless tiny whoop that weighs 17.3 g without a battery and comes bind-and-fly with an onboard 2.4 GHz ELRS receiver and analog video.

Key features

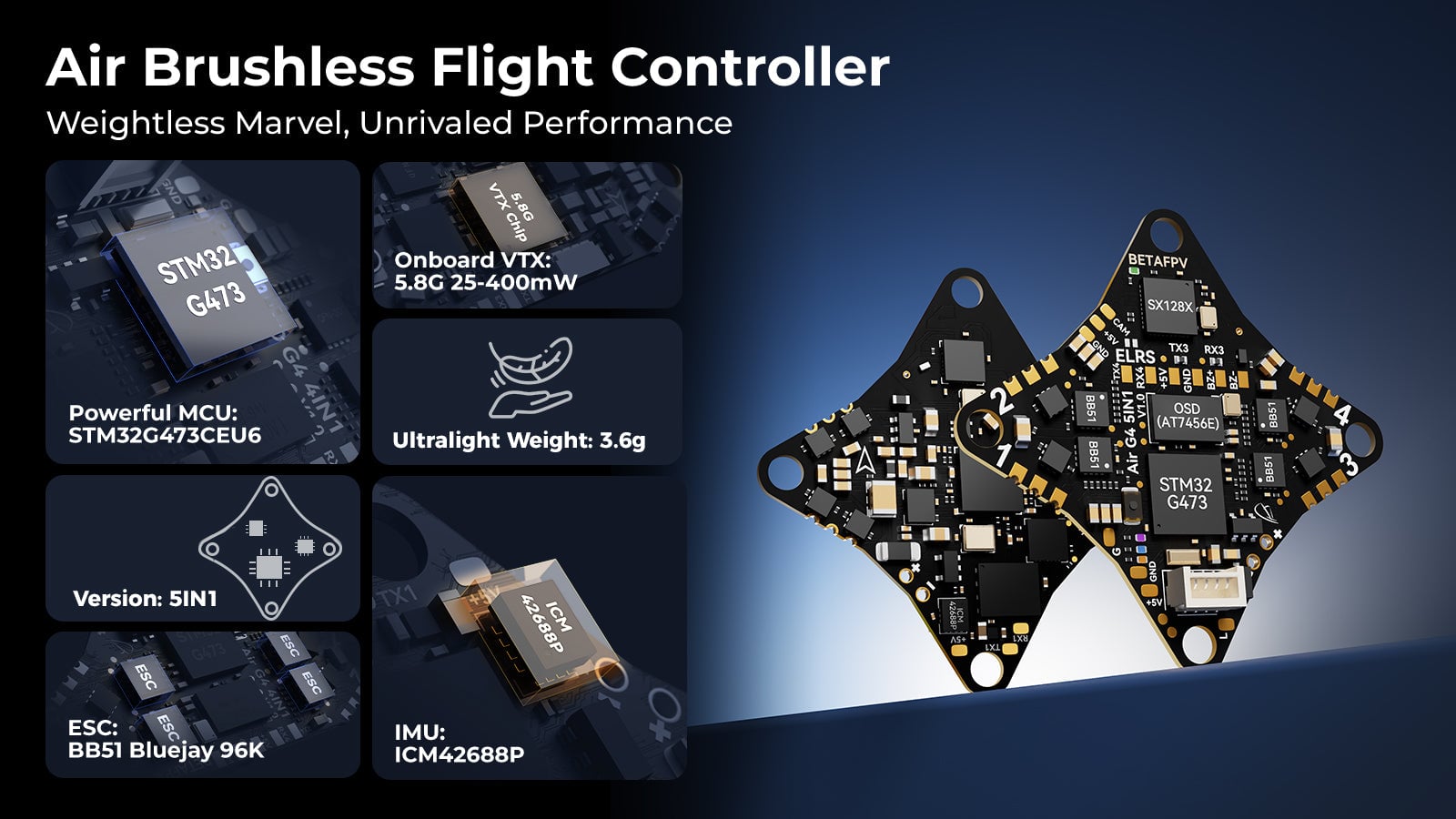

• Air Brushless FC (5IN1): flight controller, 5 A ESC, OSD, serial ELRS 2.4 GHz receiver and 5.8 GHz VTX on one 3.6 g board, with a G473 processor and ICM42688P gyro.

• 25–400 mW analog VTX: 25 mW for flying indoors or alongside other pilots, up to 400 mW for more penetration outdoors.

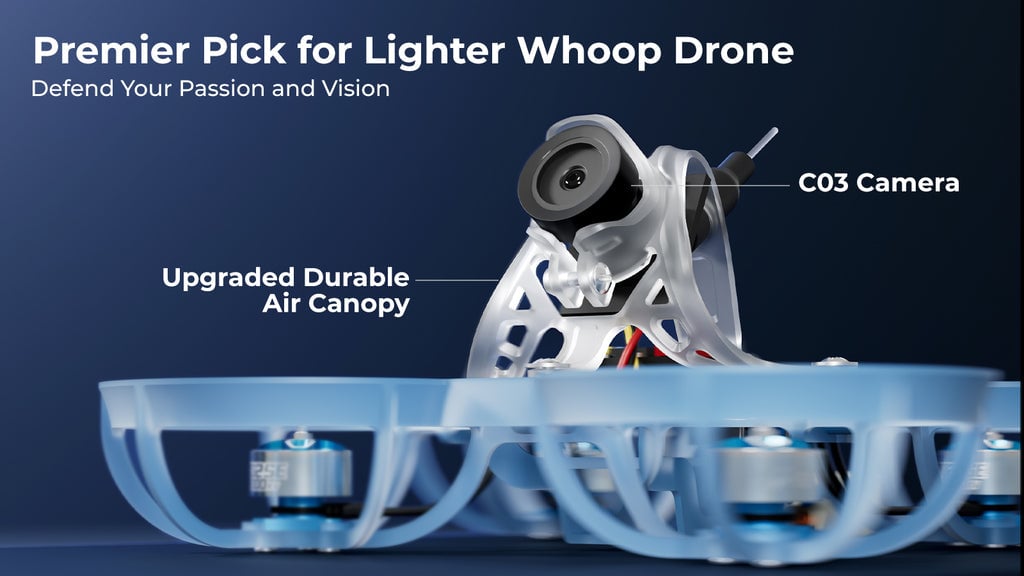

• C03 micro camera: a 1.45 g analog camera feeding the onboard VTX.

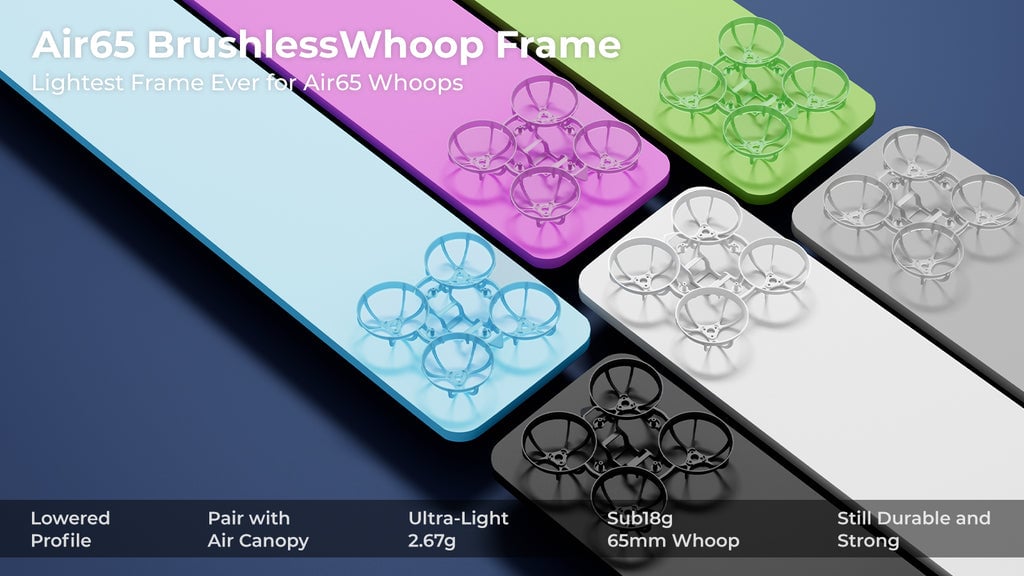

• Light frame: the Air65 frame weighs 2.67 g and carries the Air Canopy.

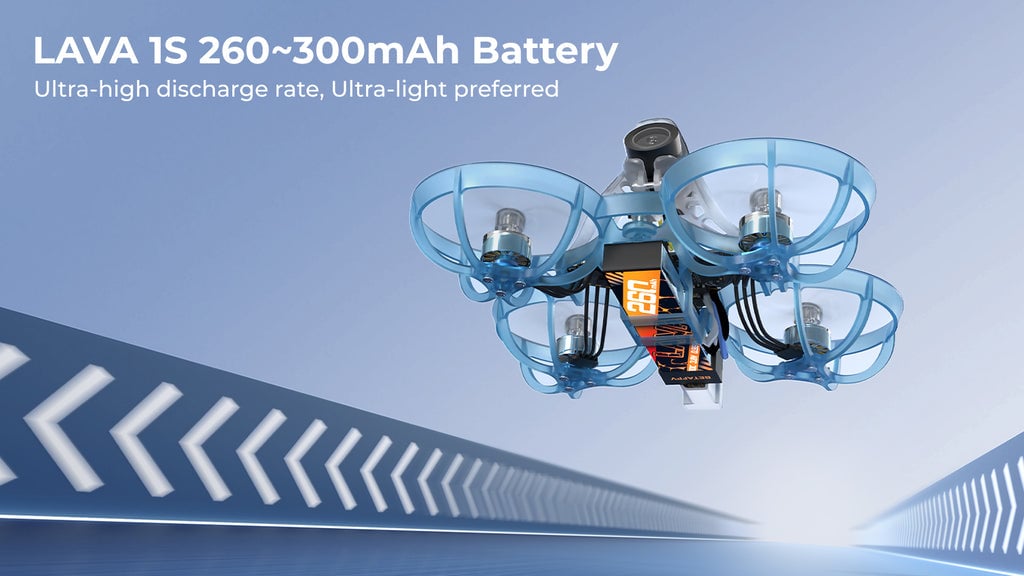

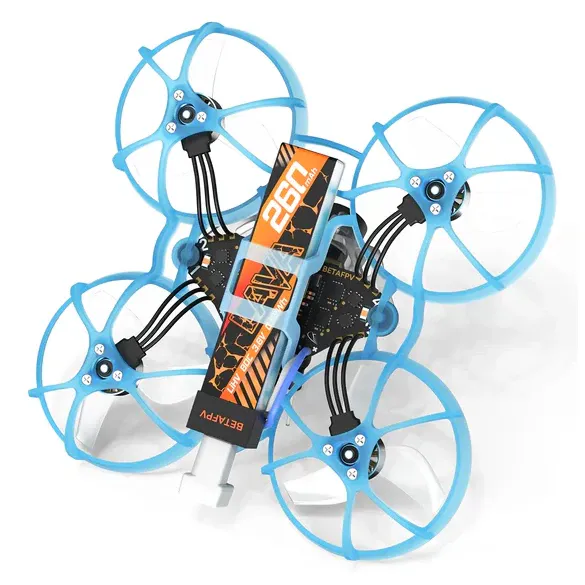

• 1S power: BT2.0 pigtail for 1S packs such as LAVA 260/300 mAh, with about 4 minutes of flight on a 260 mAh pack.

Specifications

• Wheelbase: 65 mm

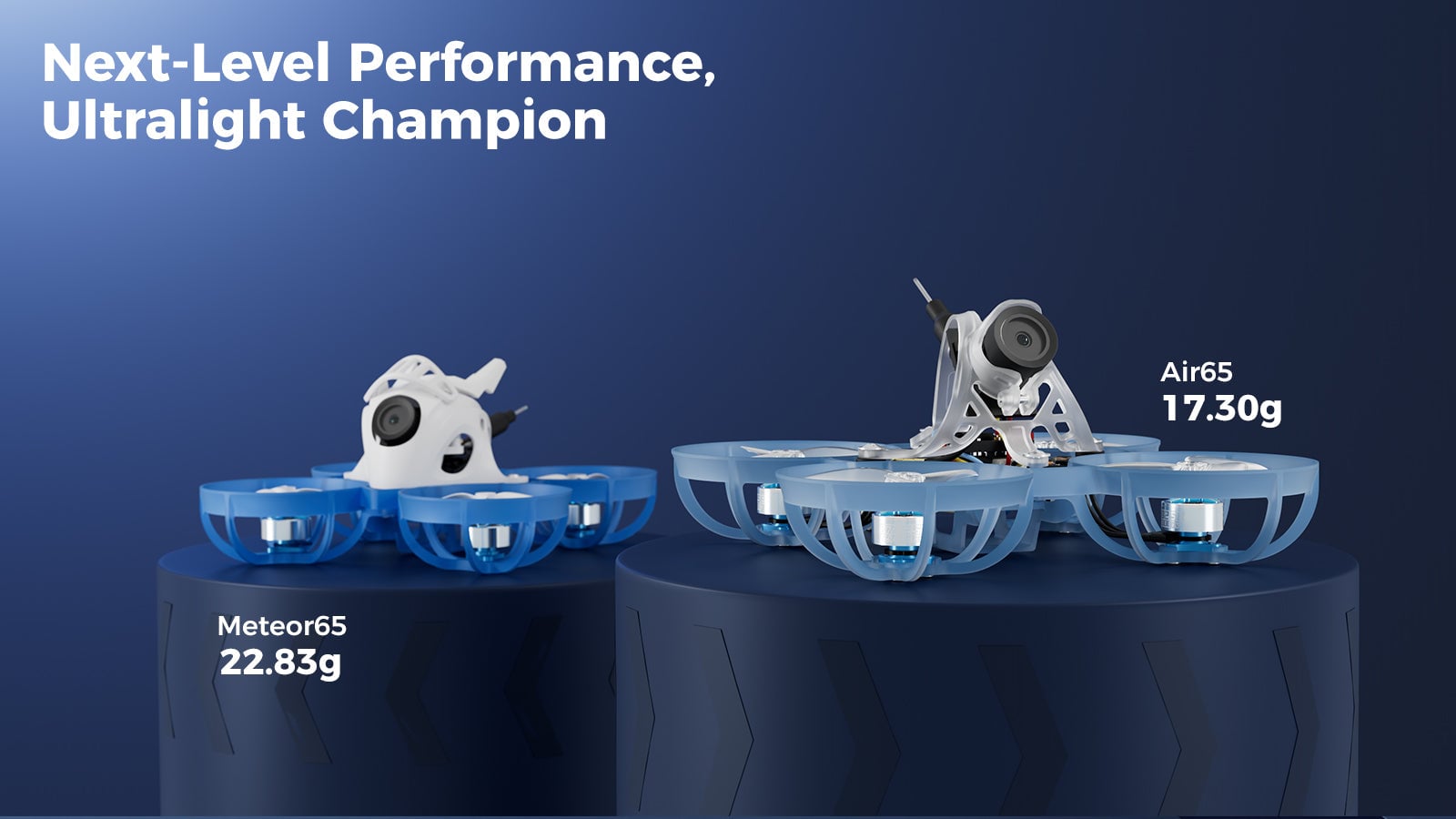

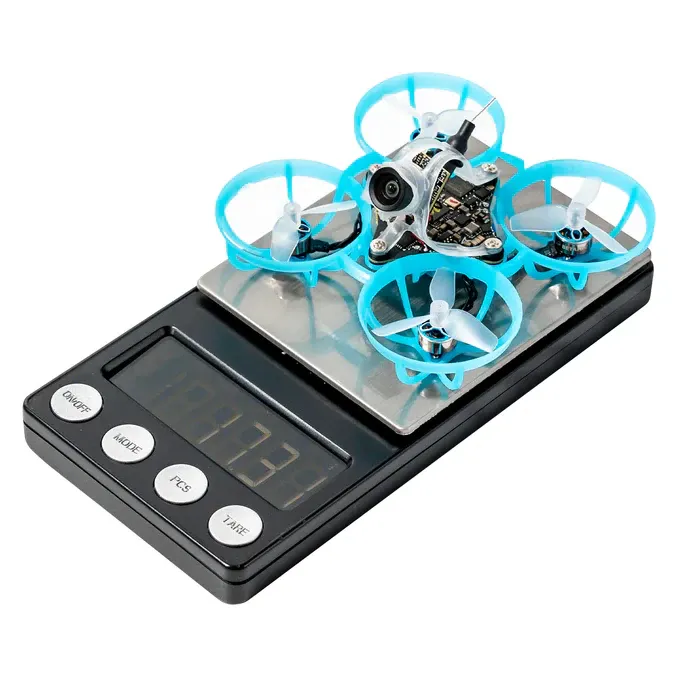

• Weight: 17.3 g (without battery)

• Frame: Air65 frame (2.67 g) with Air Canopy

• Flight controller: Air Brushless FC (5IN1), G473 MCU, ICM42688P gyro

• ESC: 5 A, integrated

• Receiver: onboard serial ELRS 2.4 GHz

• VTX: onboard 5.8 GHz, 25–400 mW

• Camera: C03 micro (1.45 g)

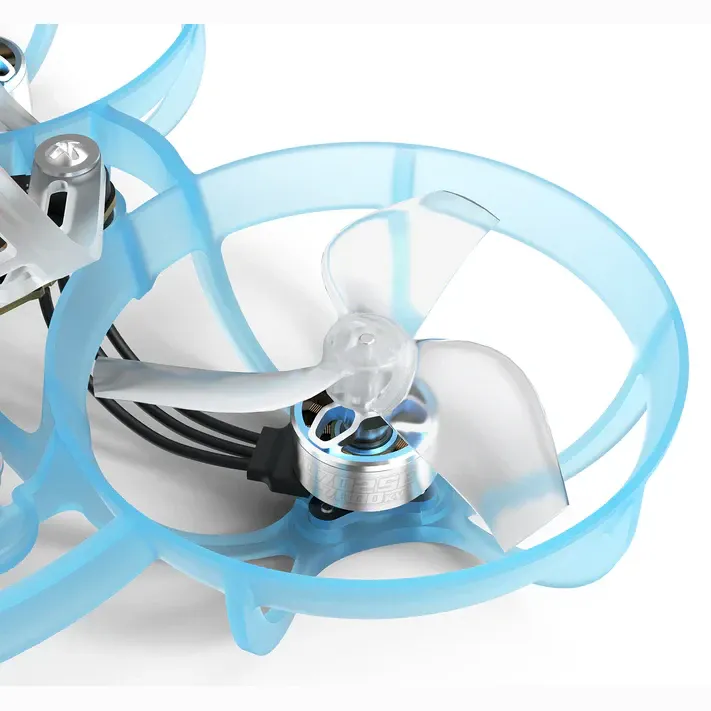

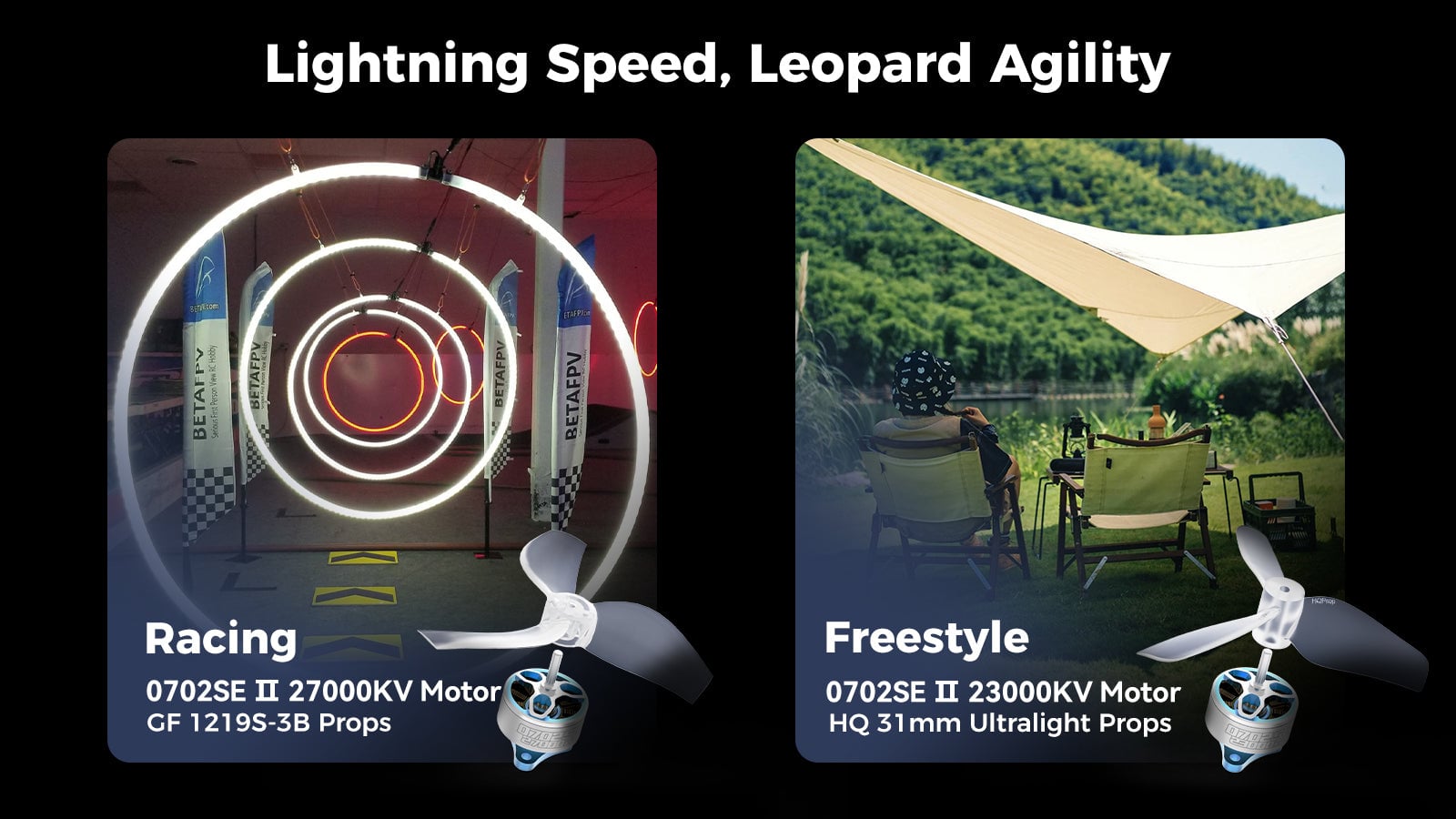

• Motors: 0702SE II 23000KV, brass bushings

• Props: HQ 31 mm Ultralight, 3-blade

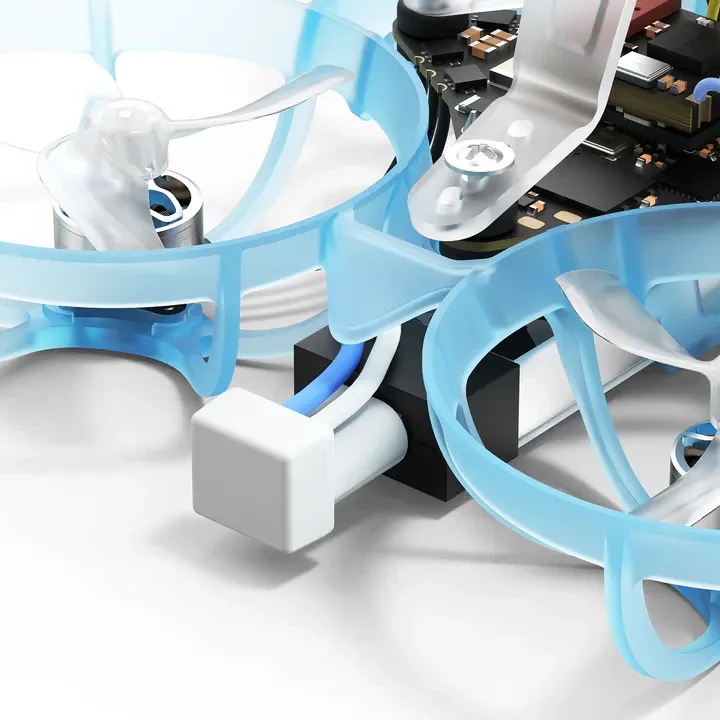

• Battery connector: BT2.0 (U-cable pigtail)

• Recommended battery: 1S LAVA 260/300 mAh (not included)

• Flight time: about 4 min (LAVA 260 mAh, 4.35–3.3 V)

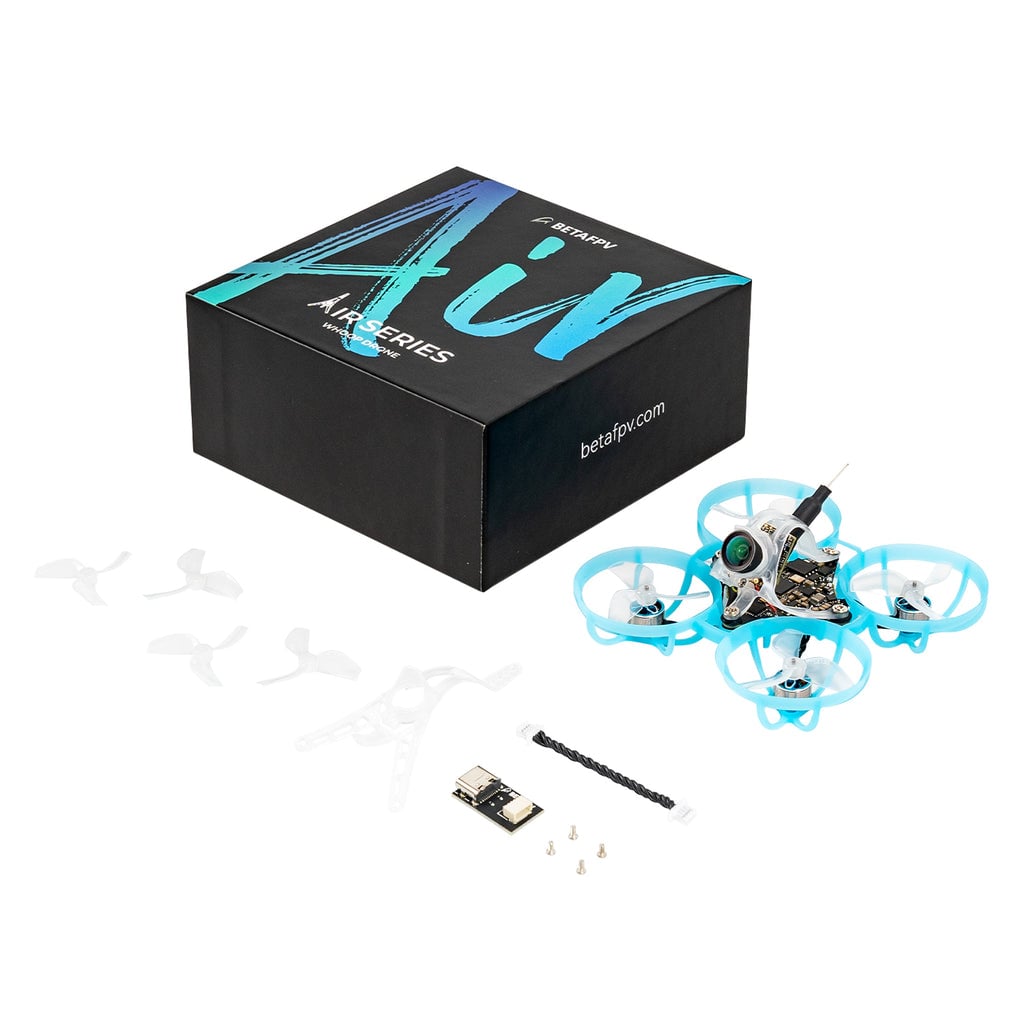

• In the box: Air65 quad, extra Air Canopy, 4 x HQ 31 mm props, screw pack, 4-pin adapter cable, USB-C adapter board

To fly it you need a 2.4 GHz ELRS radio running compatible ELRS firmware, 5.8 GHz analog goggles, 1S BT2.0 batteries and a 1S charger that takes BT2.0 packs; none of these are included.
