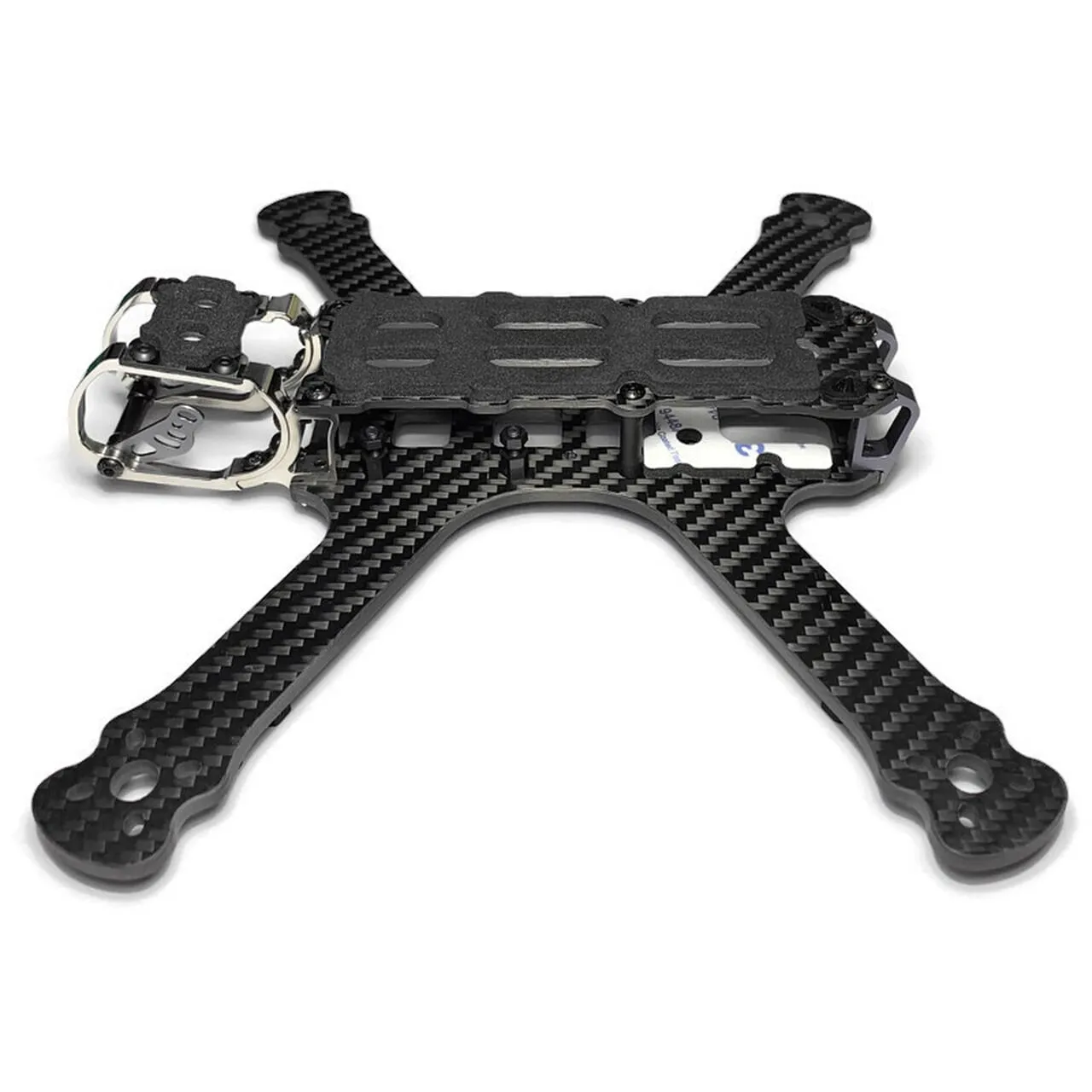

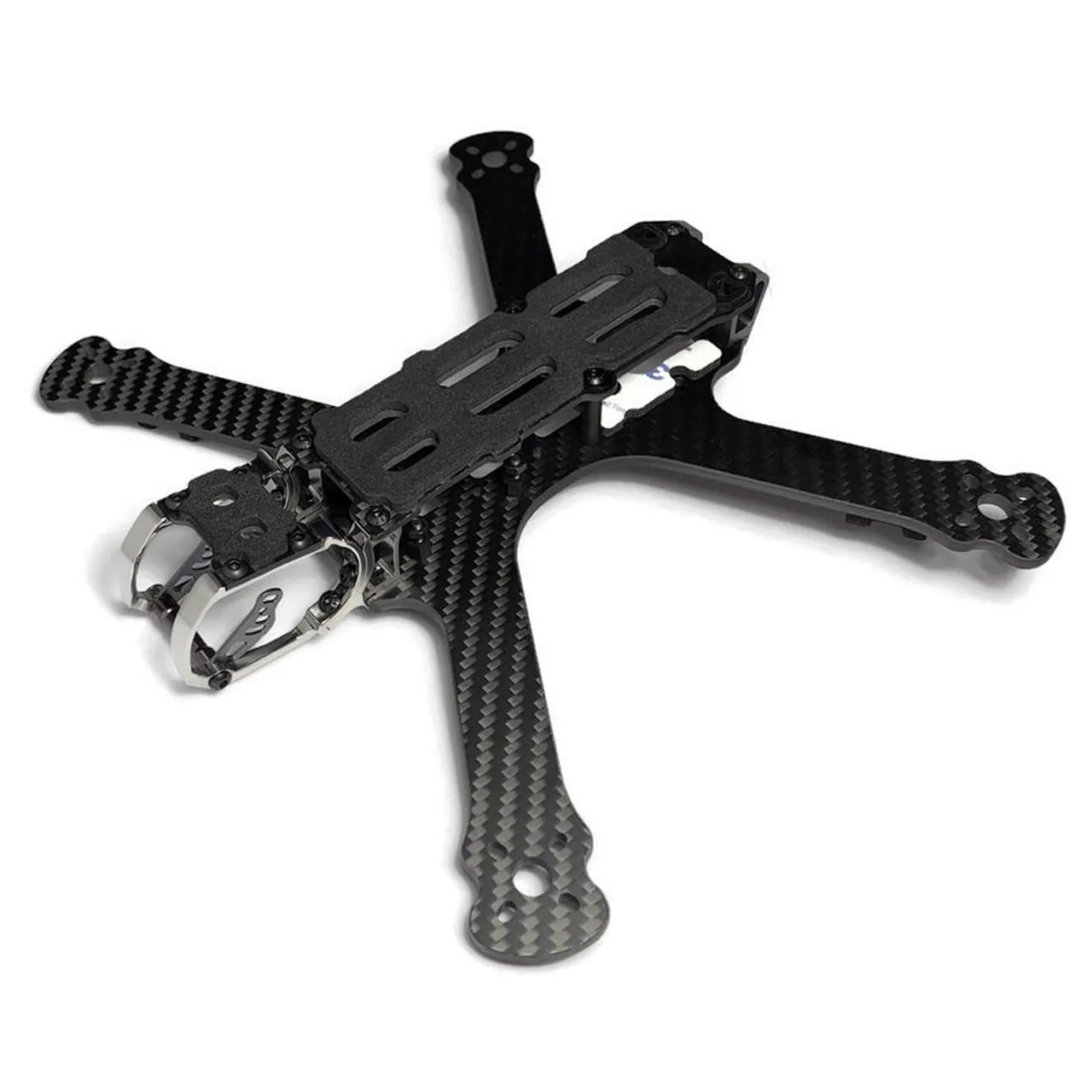

Armattan Marmotte DJI Edition Frame

The Armattan Marmotte DJI Edition is a premium 5-inch freestyle frame explicitly engineered to house and protect the original DJI FPV Air Unit. Built around a robust 4mm unibody main plate and Armattan's signature grade-5 titanium front cage, it balances heavy-duty crash resilience with clean HD video integration. The geometry is tuned for fluid freestyle flying, offering a locked-in feel without exposing delicate digital VTX components to prop strikes or rear-end collisions.

Key features

• Dedicated rear cut-outs and standoff spacing tailored for the secure mounting of the full-size DJI FPV Air Unit.
• Aerospace-grade titanium front cage completely shields the 20mm FPV camera from direct frontal impacts.
• 4mm 3K carbon fibre unibody main plate delivers excellent structural rigidity and simplifies PID tuning.
• Accommodates both standard and mini-sized flight controller stacks in the centre position.

Specifications

• Wheelbase: 236mm
• Propeller Size: 5-inch (fits props up to 5.5-inch)
• Main Plate Thickness: 4mm
• Top Plate Thickness: 2mm
• Stack Mounting: 30.5x30.5mm, 20x20mm
• Camera Fit: 20mm
• Camera tilt: independently adjustable HD camera angle, down to about 10 degrees
• Weight: 115g

This frame is ideal for freestyle pilots migrating to digital HD who want uncompromising durability. Note that its rear section is specifically dimensioned for the original dual-antenna DJI Air Unit; running a Caddx Vista, Walksnail Avatar or DJI O3 will require aftermarket mounting adapters.
