APC B11x8E Thin Electric Propeller (Black)

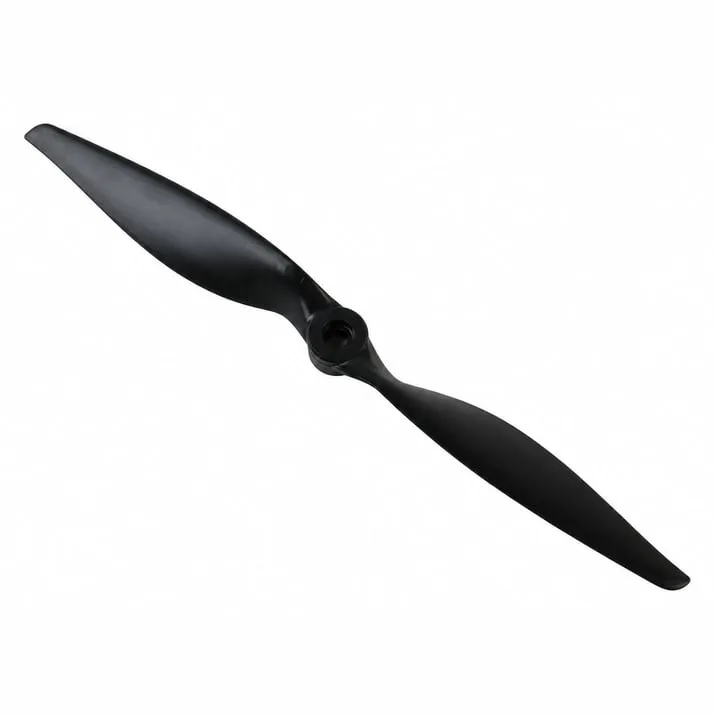

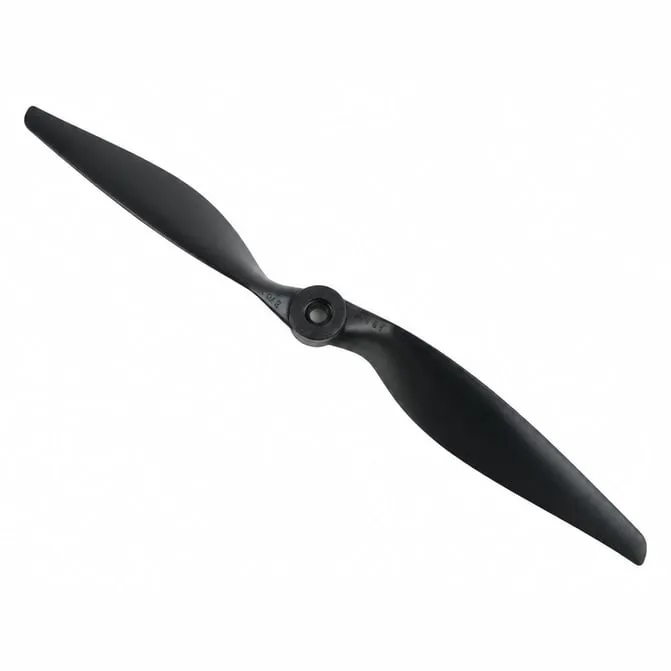

The APC B11x8E is an 11 × 8 in two-blade Thin Electric propeller in black fibreglass composite, made in the USA for electric-powered RC aircraft. Pick the standard-rotation version (B11x8E) for a conventional tractor setup, or the reverse-rotation pusher version (B11x8EP) for pusher layouts and the opposite-turning side of a twin. Each order is one propeller.

Key features

• Thin Electric profile designed for electric motors
• Same fibreglass composite as APC's grey propellers, moulded in black
• Pusher version is built for reverse (left-hand) rotation, so it gives forward thrust on a motor spinning the opposite way to a standard prop

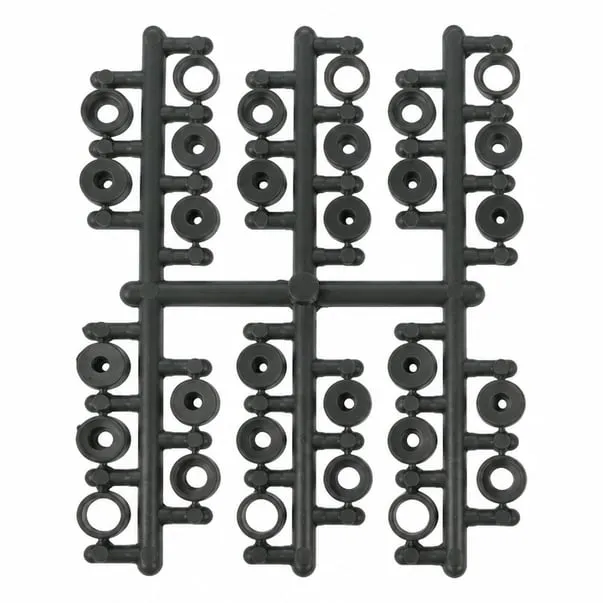

• Hub accepts APC LPAR06E adapter rings to centre the prop on your motor shaft

Specifications

• Diameter: 11 in (279.4 mm)
• Pitch: 8 in (203.2 mm)
• Blades: 2
• Rotation: standard (B11x8E) or reverse pusher (B11x8EP)
• Material: fibreglass composite, black
• Hub diameter: 0.80 in (20.32 mm)
• Hub thickness: 0.41 in (10.41 mm)
• Weight: approx. 23 g (0.81 oz)
• Manufacturer codes: LPB11080E (standard), LPB11080EP (pusher)
• In the box: 1 propeller

Confirm your motor's spin direction before choosing a rotation, and check your motor maker's prop chart to be sure it can swing an 11 × 8 prop within its current rating. Balance the prop before its first flight to keep vibration down.
