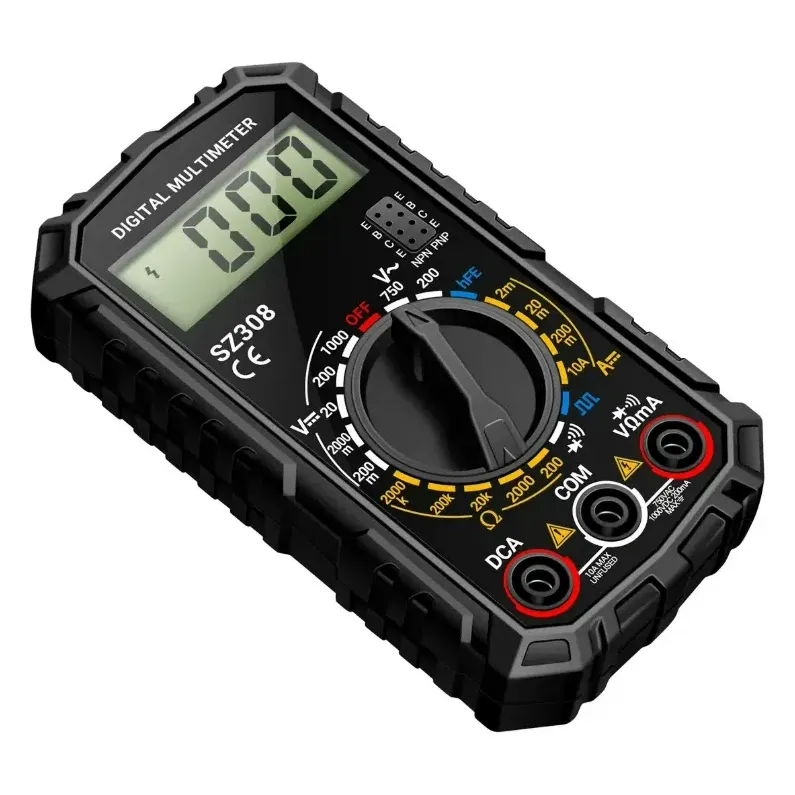

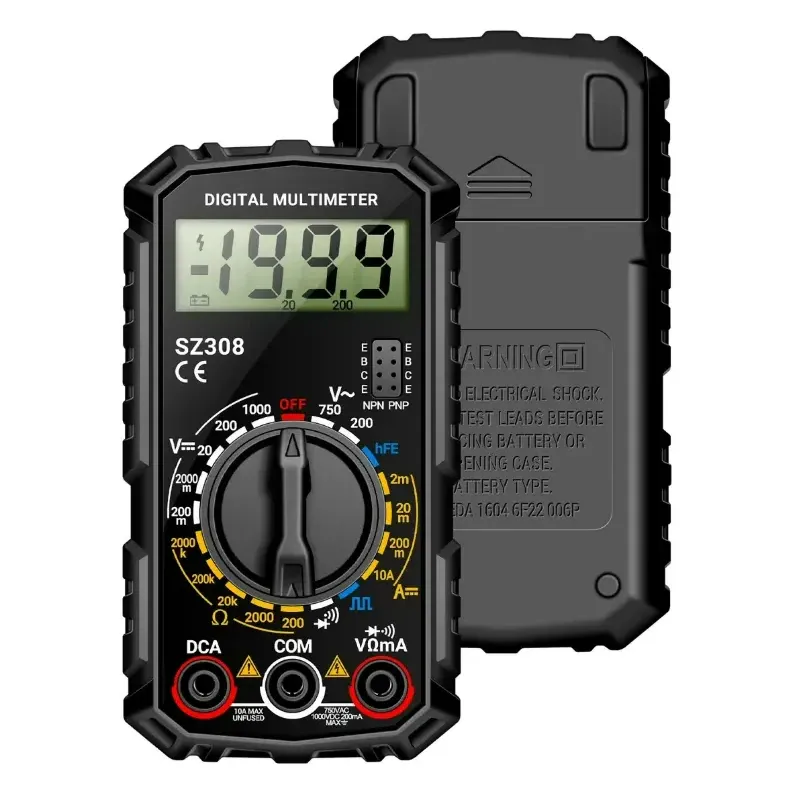

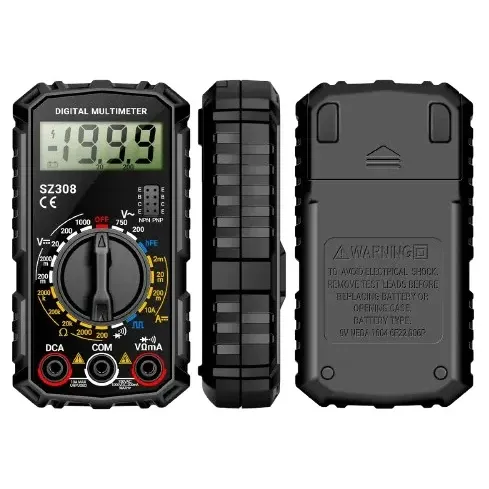

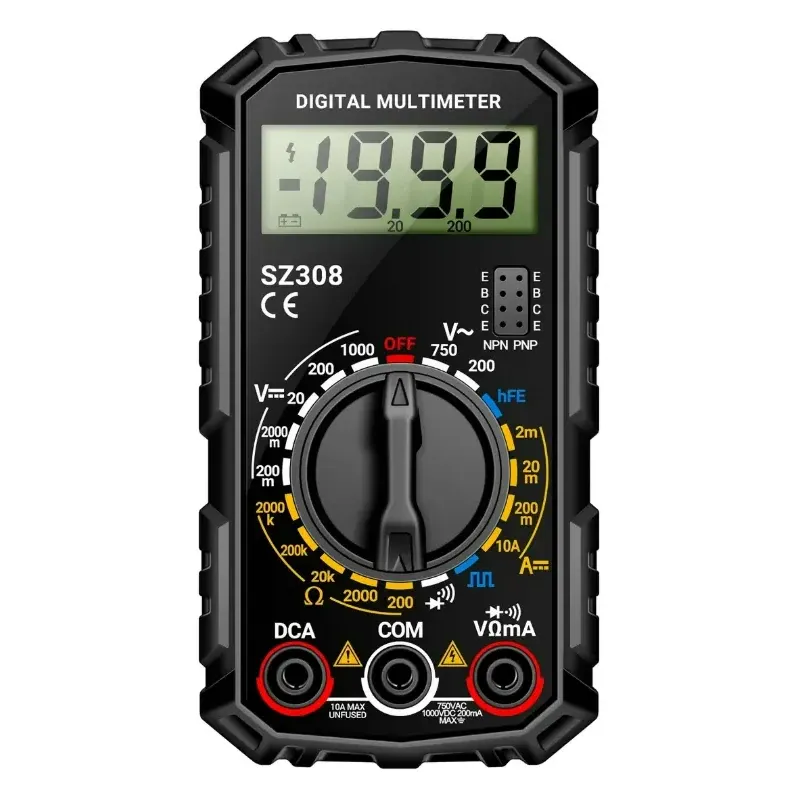

ANENG SZ308 Handheld AC/DC Digital Multimeter

The ANENG SZ308 is a handheld digital multimeter for bench and field checks, covering voltage, DC current, resistance, diodes and transistors. For drone builders it handles the everyday jobs: pack and cell voltages, BEC and regulator outputs, continuity on new wiring and the current draw of small loads.

Key features

• DC voltage from 200 mV up to 1000 V and AC voltage up to 750 V
• DC current from 2 mA up to 10 A for measuring LEDs, VTXs and other bench loads
• Continuity buzzer and diode test for checking joints and shorts before plugging in a battery
• hFE function for testing transistor gain
• Square-wave signal output for checking digital and PWM circuits
• Low-battery indication

Specifications

• DC voltage: 200 mV–1000 V, ±(1.0%+10)
• AC voltage: up to 750 V, ±(1.0%+15)
• DC current: 2 mA–10 A, ±(1.5%+5)
• Resistance: up to 2000 kΩ, ±(1.2%+5)
• Housing: ABS

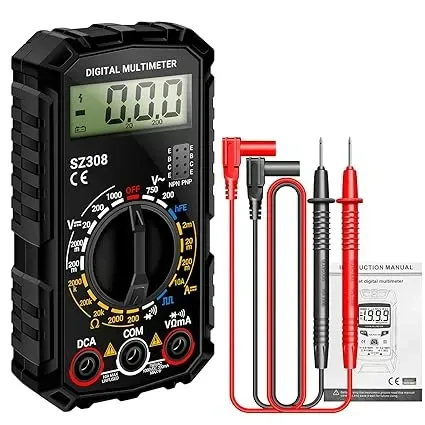

• In the box: multimeter, 2 test leads, user manual (battery not included)

Never put the meter in series with a flight pack under motor load; LiPo current far exceeds the 10 A range. After a current test, move the red lead back to the voltage socket before probing a battery, or the meter will short the pack.
