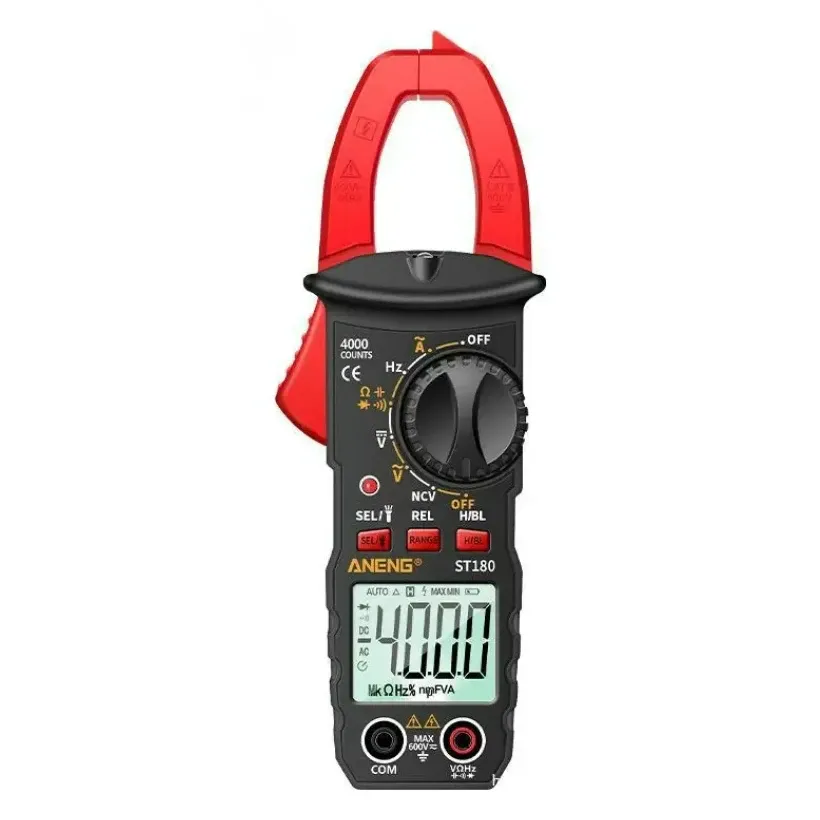

ANENG ST180 4000 Counts Digital Clamp Multimeter

The ANENG ST180 is a compact auto-ranging clamp multimeter with a 4000-count display. The clamp measures AC current without breaking the circuit, while the test leads cover voltage, resistance, capacitance, frequency and temperature, making it a single meter for workshop mains, chargers, power supplies and drone wiring checks.

Key features

• AC current clamp with 40 A and 400 A ranges, read without cutting into the cable
• DC voltage from 400 mV to 600 V for checking packs, BEC outputs and bench supplies
• Capacitance up to 4 mF and frequency up to 4 MHz
• Non-contact AC voltage (NCV) detection to find live mains wiring
• Continuity buzzer and diode test, plus temperature up to 750 °C
• Backlit screen and built-in flashlight for dark enclosures

Specifications

• Display: 4000 counts, auto ranging
• AC voltage: 4/40/400/600 V, ±(1.5%+3)
• DC voltage: 400 mV ±(1.5%+5); 4/40/400/600 V ±(1.0%+3)
• AC current (clamp): 40/400 A, ±(2.5%+3)
• Resistance: 400 Ω–40 MΩ
• Capacitance: 1 nF–4 mF
• Frequency: 10 Hz–4 MHz
• Temperature: 0–750 °C (32–1382 °F)
• In the box: clamp meter, 2 test probes, user manual (batteries not included)

The clamp reads AC current only, so it will not show the DC current a LiPo delivers to your quad; use an inline DC power meter for that. Temperature readings need a thermocouple probe, which is not in the box.
