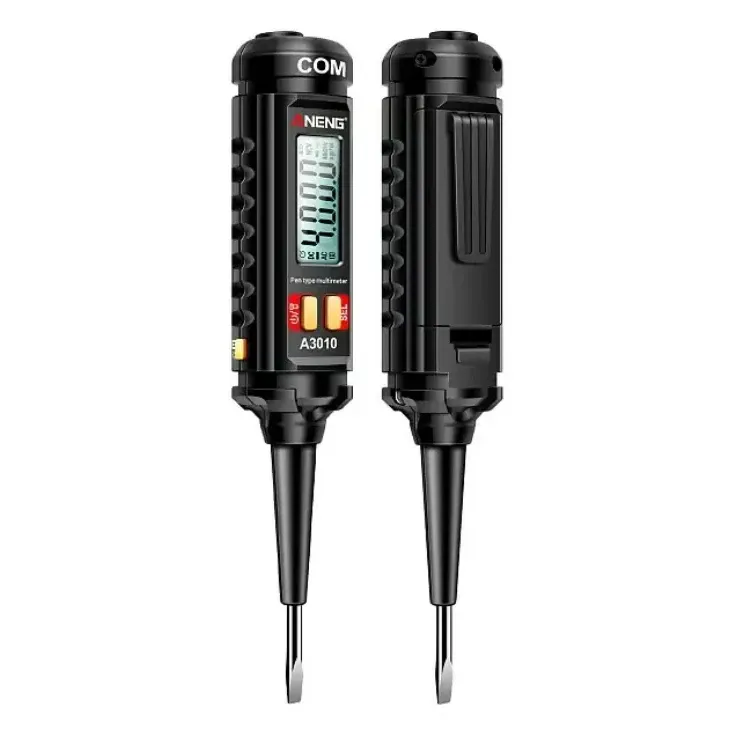

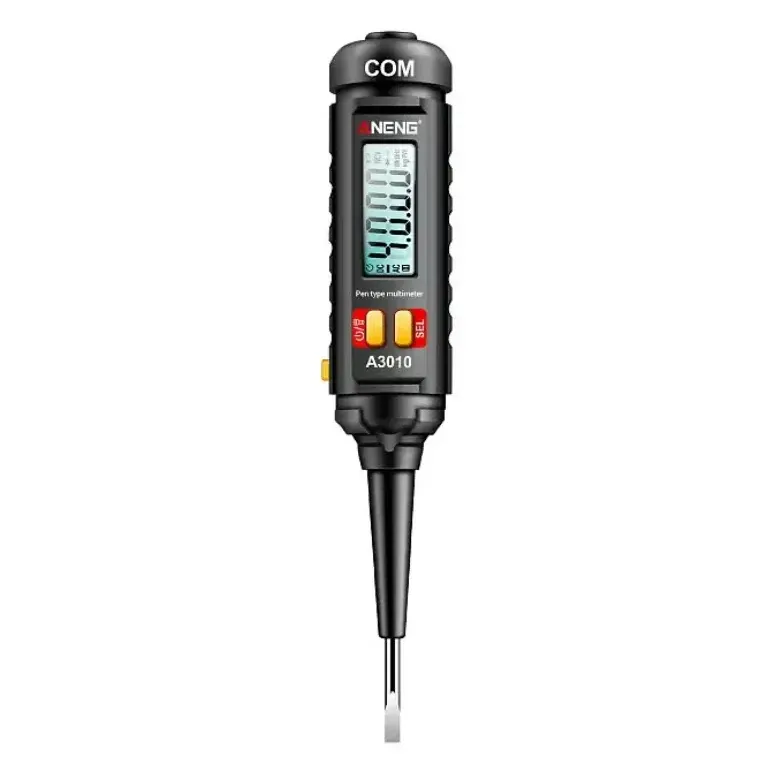

ANENG A3010 Pen-Type Digital Multimeter with Breakpoint Tester

The ANENG A3010 is a pen-type, auto-ranging digital multimeter with the probe built into the body, so you can test with one hand while the other holds a wire or board. It suits drone builders checking pack and BEC voltages, continuity on harnesses and broken conductors in servo or signal leads.

Key features

• 6000-count display with backlight for reading in dim workshops or under a frame
• Auto-ranging AC and DC voltage up to 600 V
• Resistance up to 60 MΩ and capacitance from 10 nF to 100 µF
• Continuity buzzer and diode test for checking solder joints and shorts before first power-up
• Breakpoint detection to locate open points along a cable, plus live-line (L) detection
• Data hold and auto power-off to save batteries

Specifications

• Display: 6000 counts, backlit LCD
• AC/DC voltage: 0.8–600 V
• Resistance: up to 60 MΩ
• Capacitance: 10 nF–100 µF
• Power: 2 × AAA batteries (not included)
• Housing: ABS
• Weight: 37 g

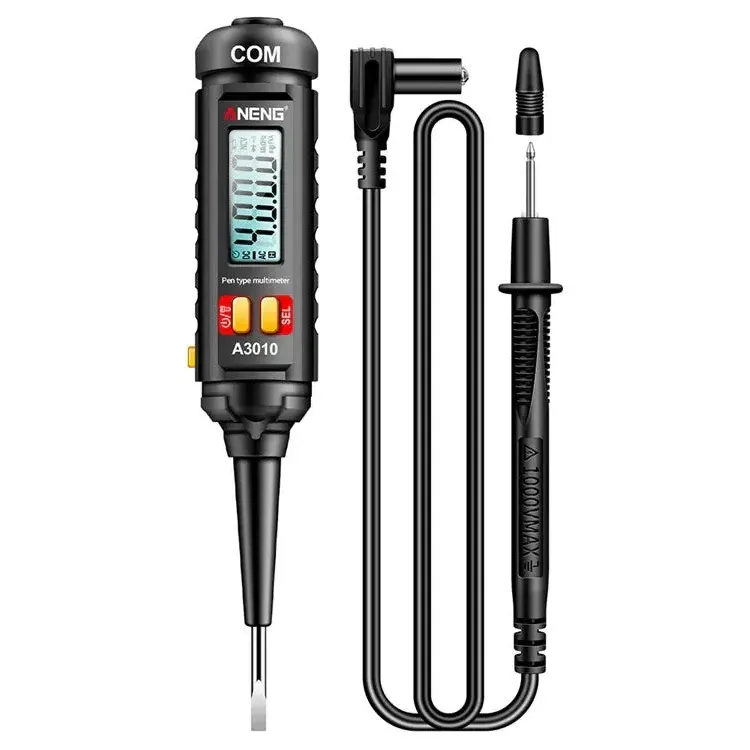

• In the box: multimeter, test probe, instruction manual

The A3010 does not measure current, so pair it with a clamp meter or an inline power meter when you need amp draw. Fit two AAA cells before first use.
