Amass EC5 Connector (Pair) – Blue

The Amass EC5 connector pair provides a secure, high-current power link for heavy-lift cinelifters, X-Class builds, and agricultural drones. Built around robust 5mm gold-plated bullet connectors housed in durable blue nylon, these plugs handle significant power draws while remaining easy to grip and disconnect in the field.

Key features

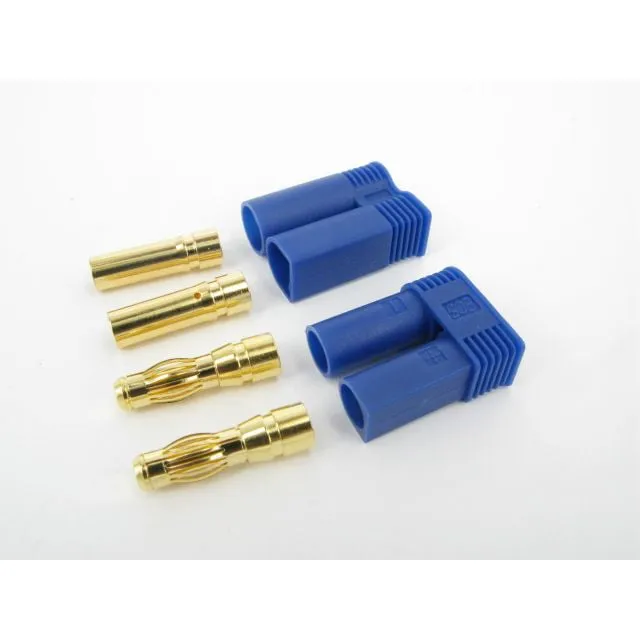

• Mating pair includes one male and one female plug with blue nylon housings.
• Keyed plastic shell eliminates the risk of accidental reverse polarity connections.
• Large solder cups comfortably accommodate heavy-duty silicone wire up to 10AWG.
• Tight-fitting snap-in design ensures bullets remain locked in the housing under high vibration.

Specifications

• Connector Type: EC5 (1x Male, 1x Female)
• Bullet Diameter: 5.0mm
• Housing Material: Nylon
• Contact Material: Gold-plated copper
• Supported Wire Gauge: 10AWG to 12AWG
• Rated Current: 40A continuous (90A peak)

Assembly tip: Always solder your wires to the bare gold bullets and allow them to cool completely before firmly snapping them into the rear of the plastic housing.
