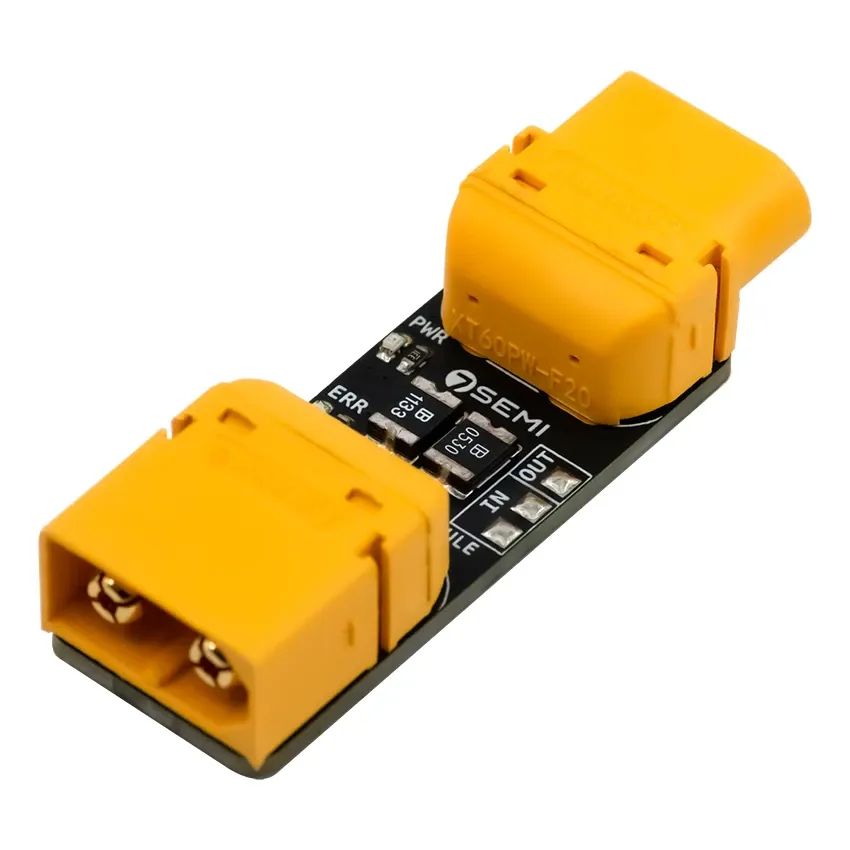

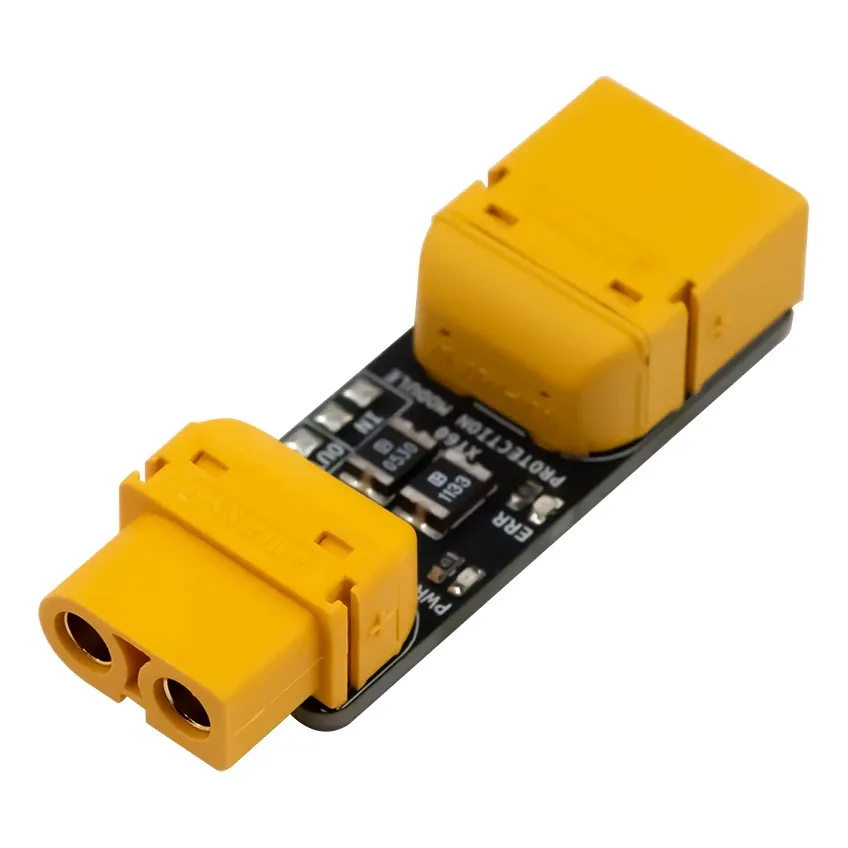

7Semi XT60 Smoke Stopper Short-Circuit Tester, 3-6S

The 7Semi XT60 smoke stopper sits between the battery and a freshly built quad, RC model or robot for its first power-up. If there is a short, a solder bridge or a reversed lead, it limits the fault current so the ESC, flight controller and receiver survive the mistake. It is specified for 3S to 6S LiPo packs and is an in-house 7Semi design from India.

Key features

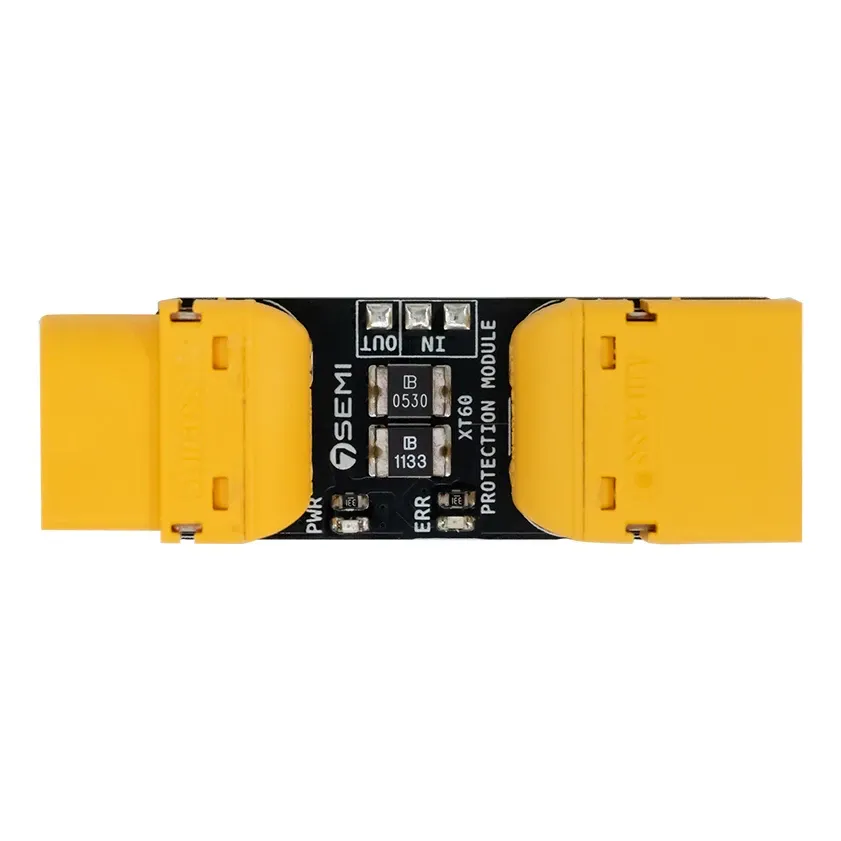

• Two resettable PPTC devices, rated 0.5A and 1.1A, limit current during a fault and recover on their own once it is cleared and they cool — no fuses to replace

• Reverse-polarity protection guards against a battery connected the wrong way round

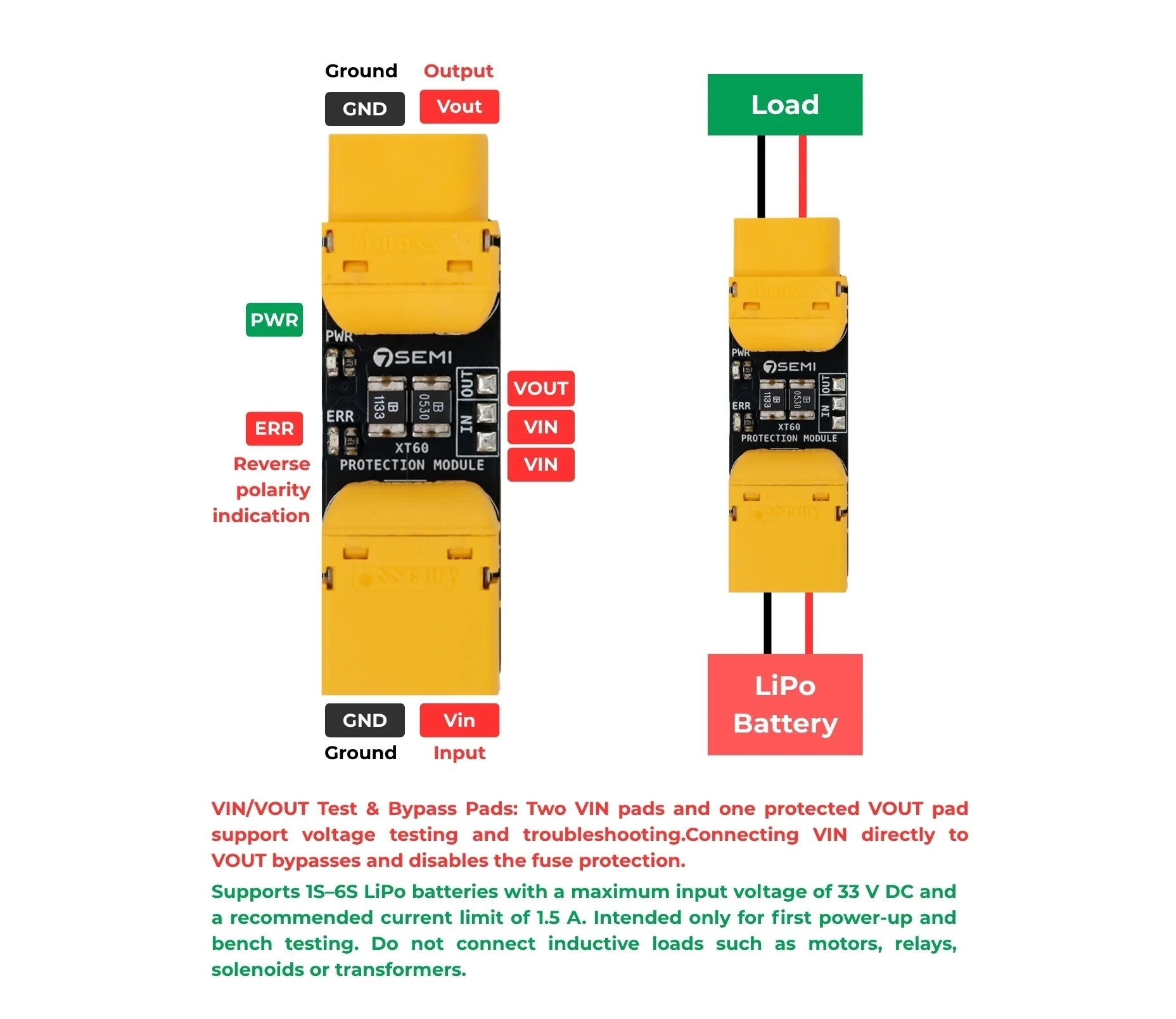

• PWR and ERR LEDs show at a glance whether the build powered up cleanly or a fault is present

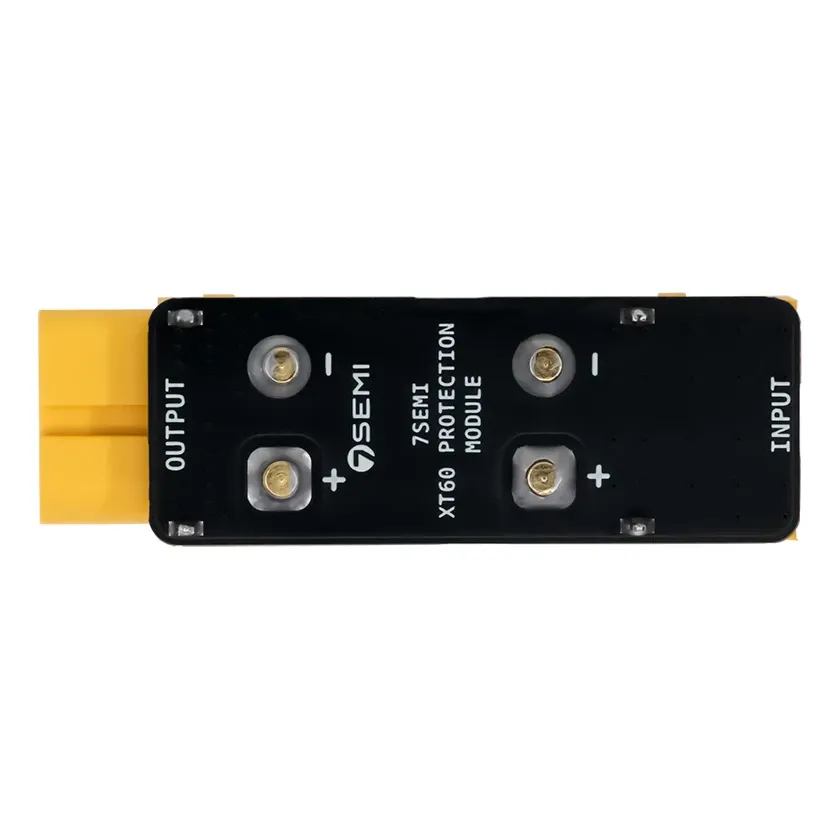

• XT60 male and female connectors fitted, so it plugs straight in-line with no soldering

• Wide 3–33V DC operating range and -40°C to 75°C temperature rating

Specifications

• Operating voltage: 3–33V DC

• Battery support: 3S–6S LiPo

• Protection: Resettable PPTC, 0.5A and 1.1A

• Indicators: PWR and ERR LEDs

• Connectors: XT60 male and XT60 female

• Operating temperature: -40°C to 75°C

• Dimensions: 48 x 14 x 23.56mm

Use it for the first plug-in, bench checks and configuration only: the protection deliberately restricts current, so it is not meant to stay in-line for motor tests or flight. Once the LEDs confirm a clean power-up, remove it and connect the battery directly.
