500 PCB Quadcopter Frame Kit, TBS Discovery Style
SKU GEN-500-PCB-FRAME-TBS
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

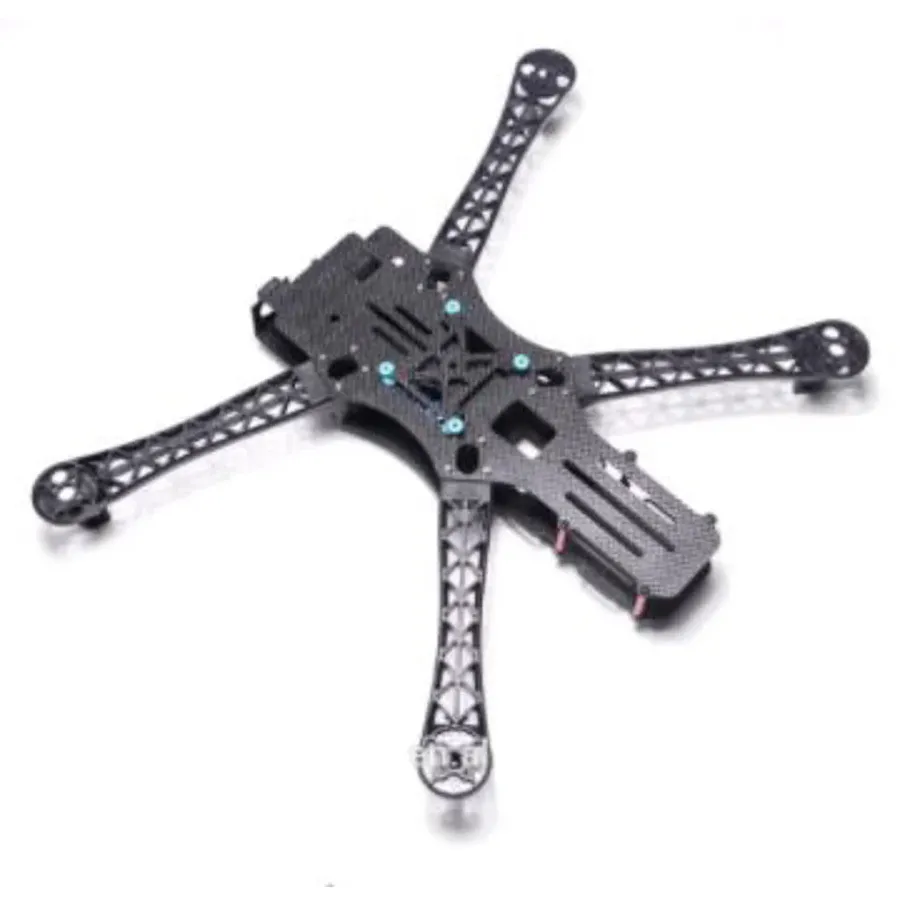

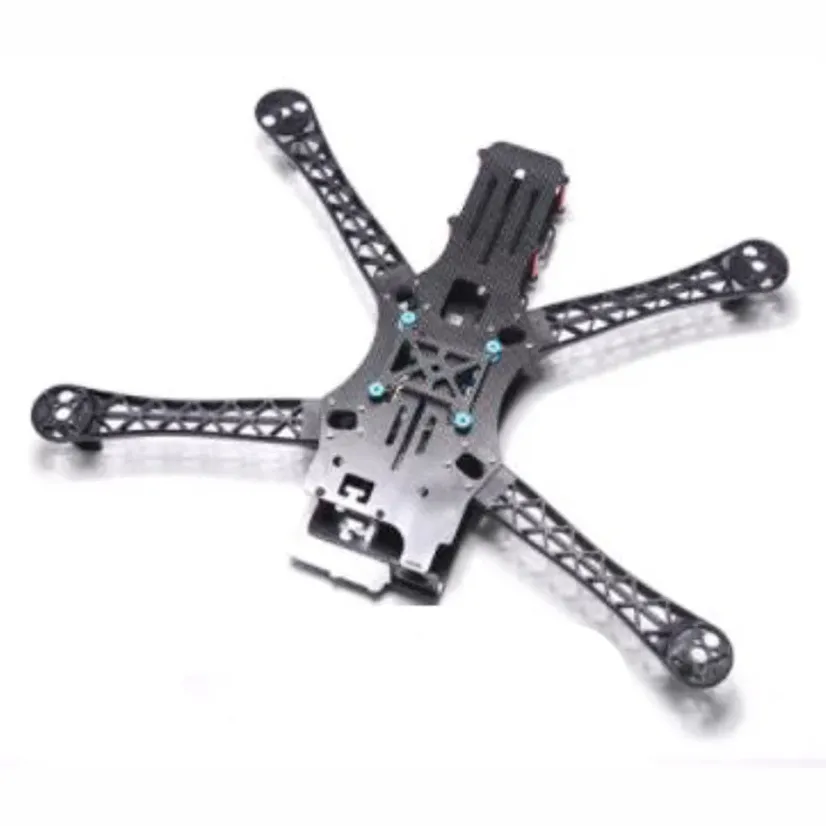

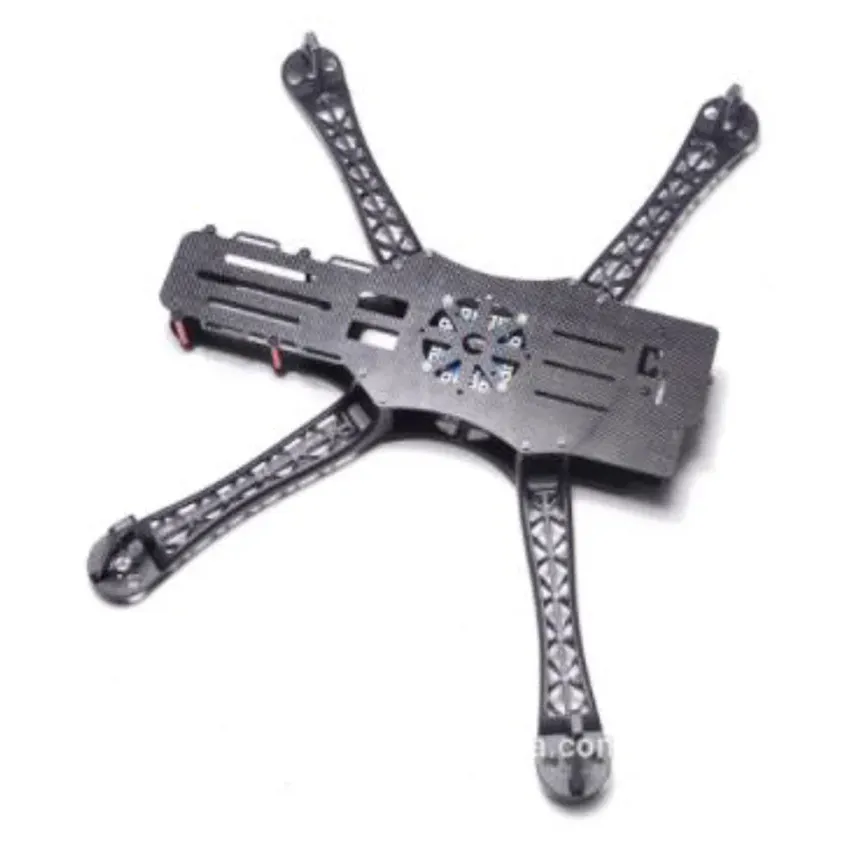

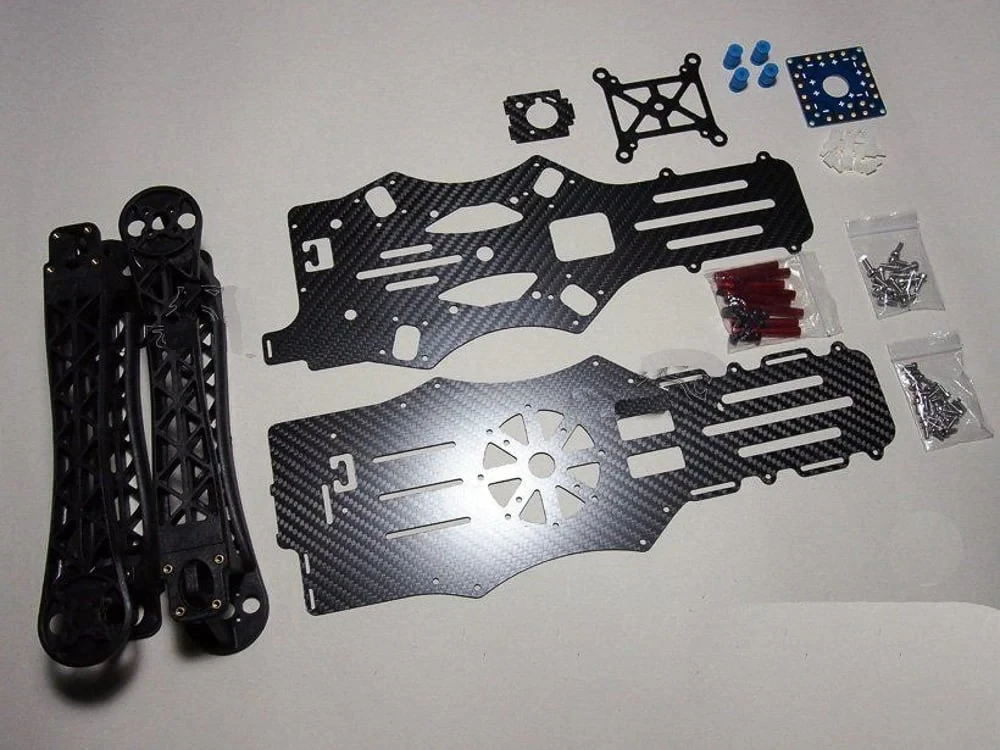

A 500 mm quadcopter frame kit in the TBS Discovery layout, with a PCB centre that carries the power distribution, space for a gimbal at the front and the battery plate at the tail. It has plenty of mounting space for aerial video and FPV builds that carry a camera gimbal.
Key features
PCB main plate with power distribution: wire ESCs and accessories to the frame itself instead of adding a separate PDB.
Front gimbal bay: room at the nose for a camera gimbal, with the battery mounted at the rear to balance it.
Glass fibre and polyamide-nylon build: 220 × 40 mm arms on a frame weighing about 400 g.
Pre-threaded brass inserts: one bolt size and one hex key assemble the whole frame.
Space for standard electronics: mounting room for a flight controller, FPV camera, video transmitter and antennas.
Specifications
Wheelbase: 500 mm
Arm size: 220 × 40 mm (L × W)
Material: Glass fibre + polyamide-nylon
Motor mounting holes: 3 mm diameter
Weight: 400 g
Motors, ESCs, flight controller and propellers are not included. Check your motors' base hole pattern against the arm mounts before ordering. Slide the battery along the tail plate to offset the gimbal so the centre of gravity sits at the frame centre.
| Brand | Generic |
|---|---|
| Weight | 400 g |
| Made in India | No |
| Wheelbase | 500 mm |
