Generic F550/Q550 Hexa-Copter Frame Kit with Integrated PCB & Landing Gear

The F550/Q550 Hexa-Copter Frame Kit — Made in India — is a glass-fiber reinforced hexacopter chassis built for payload drones and long-range aerial work. It includes ABS landing gear and a PCB for clean ESC mounting, catering to droners seeking a durable heavy-lift build with modular parts and open ESC wiring.

Key features

• 35% glass-fiber reinforced main plates and polyamide-nylon moulded arms (220 × 55 mm) to resist impact and reduce arm breakages.

• Integrated power distribution PCB enabling direct-solder ESC connections, eliminating need for separate PDB and keeping wiring tidy.

• Standard motor mount holes (3 mm) to accommodate a wide range of BM style brushless motors.

• ABS landing gear of 200 mm height included, enhancing ground clearance for large propellers and payloads.

• Supports take-off weight from 1,200 g to 2,400 g, suitable for 9-10" props, mid-size batteries and medium thrust motors.

• Colour-coded arms (2 red, 2 white, 2 black) assist in orientation; pre-threaded brass sleeves and uniform hardware sizes make assembly easier.

Specifications

• Model: F550 / Q550 Hexa-Copter Frame Kit

• Material: Glass-fiber reinforced main plates + polyamide-nylon arms

• Motor mount holes: Ø3 mm

• Arm size (L × W): 220 × 55 mm

• Landing gear length: 200 mm (ABS)

• Frame weight (with landing gear): ~ 550 g (± 5 %)

• Supported take-off weight: 1,200-2,400 g

• Wheelbase: 550 mm

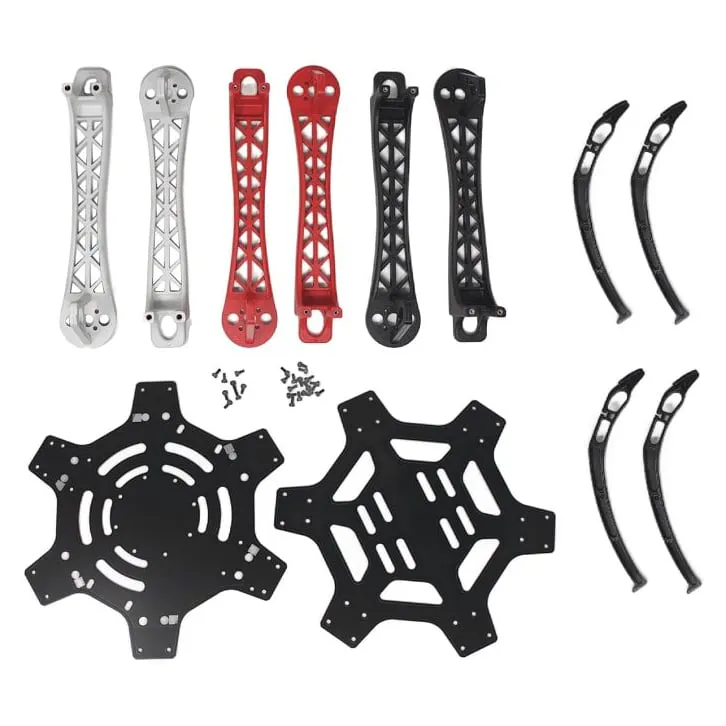

• Included hardware: 6 arms (2 red + 2 white + 2 black), top & bottom plates with integrated PCB, landing gear, set of M2.5×5 mm screws

Use this frame paired with ESCs in the 20-40A range and motors around 800-1,200 KV with 9-10" props for optimal performance. It’s ideal for mid-scale cinematography rigs, survey drones, or agricultural payloads in India where parts availability and repairability are critical. Double-check your centre-plate fits typical 50-mm FC layouts if using FPV/autopilot systems.
