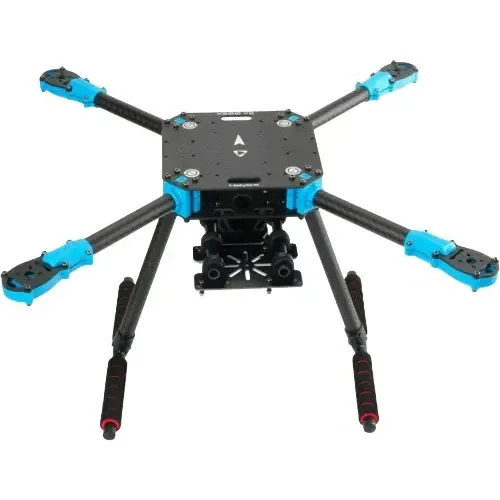

Holybro X500 V2 500mm Quadcopter Frame Kit, Carbon Fibre

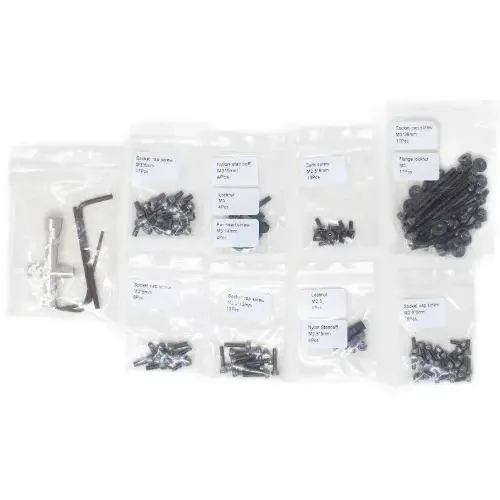

The Holybro X500 V2 is a 500 mm carbon-fibre quadcopter frame kit for PX4 and ArduPilot development, education and payload work, designed to go together in about 15 minutes. It takes Pixhawk-class autopilots and leaves room for a companion computer, and every tool needed for assembly comes in the box.

Key features

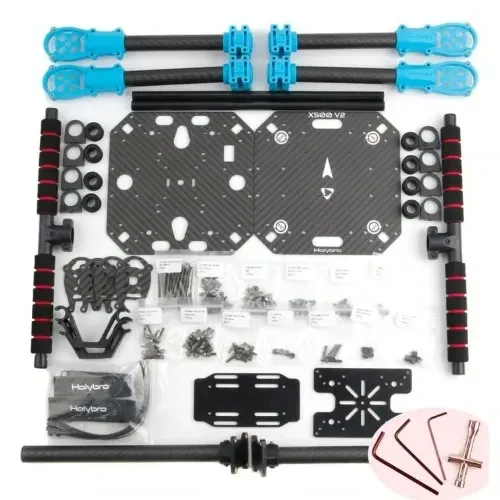

• Full carbon-fibre twill top and bottom plates with wider spacing between them for easier access to wiring

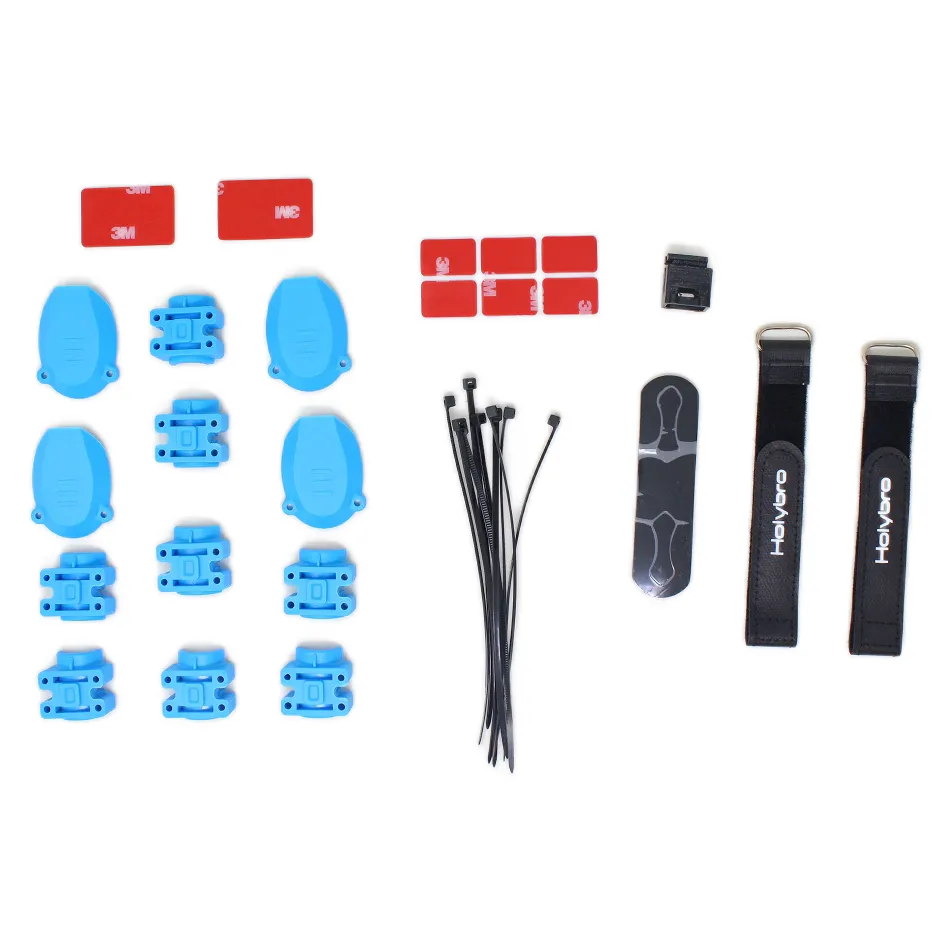

• 16 mm carbon-fibre tube arms held by fibre-reinforced nylon connectors, notched at the motor and body ends for straightforward fitting
• Landing gear of 16 mm and 10 mm carbon tubes with thickened, strengthened connectors
• Platform board drilled for GPS, Raspberry Pi 4 and Jetson Nano, with an optional depth-camera mount for Intel RealSense and Structure Core cameras
• Rail system of two 10 mm x 250 mm rods for camera mounts and gimbals, plus an enlarged, adjustable battery tray with two straps

Specifications

• Wheelbase: 500 mm
• Frame body: 144 x 144 mm
• Plate thickness: 2 mm
• Top-to-bottom plate spacing: 28 mm
• Arms: 16 mm carbon-fibre tube
• Motor mount: 16 x 16 mm
• Landing gear height: 215 mm
• Weight: 610 g
• Material: carbon fibre with fibre-reinforced nylon connectors

Motors, ESCs, propellers, autopilot and battery are not included. The 500 mm wheelbase is sized for 10-inch propellers, and the larger battery tray makes room for higher-capacity packs and longer flight times.
