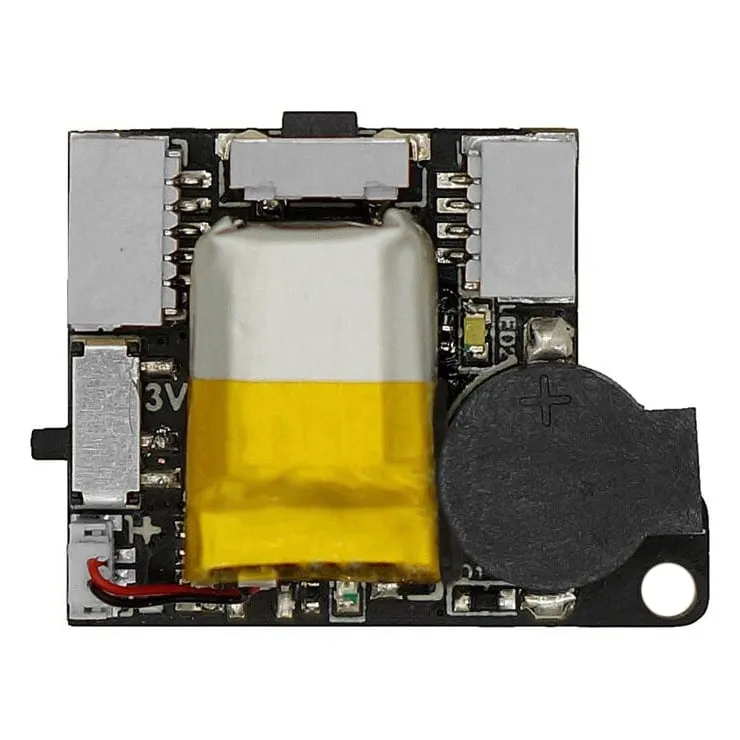

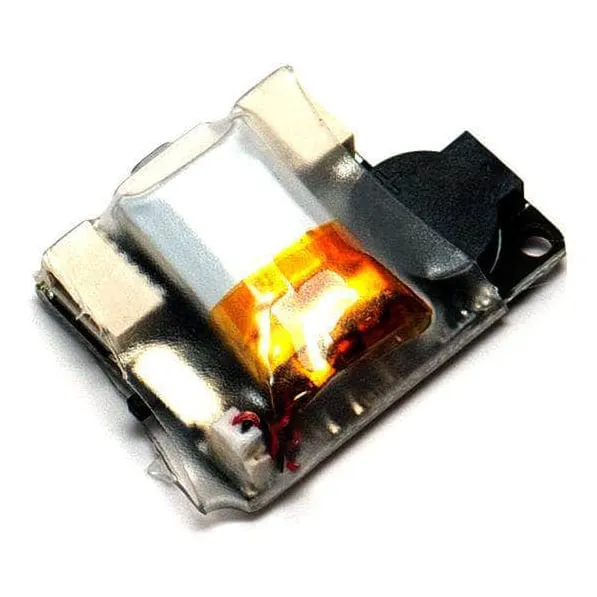

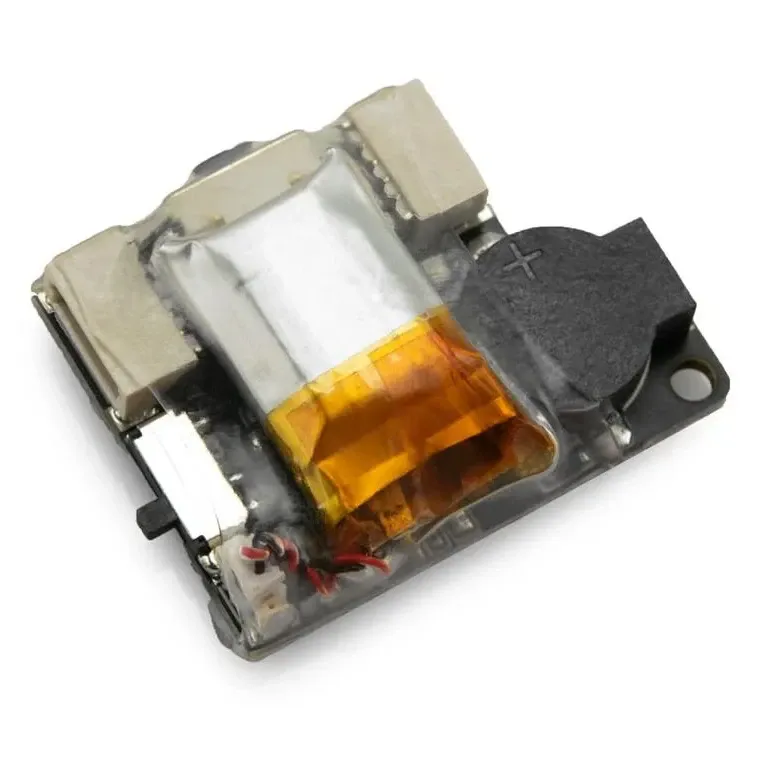

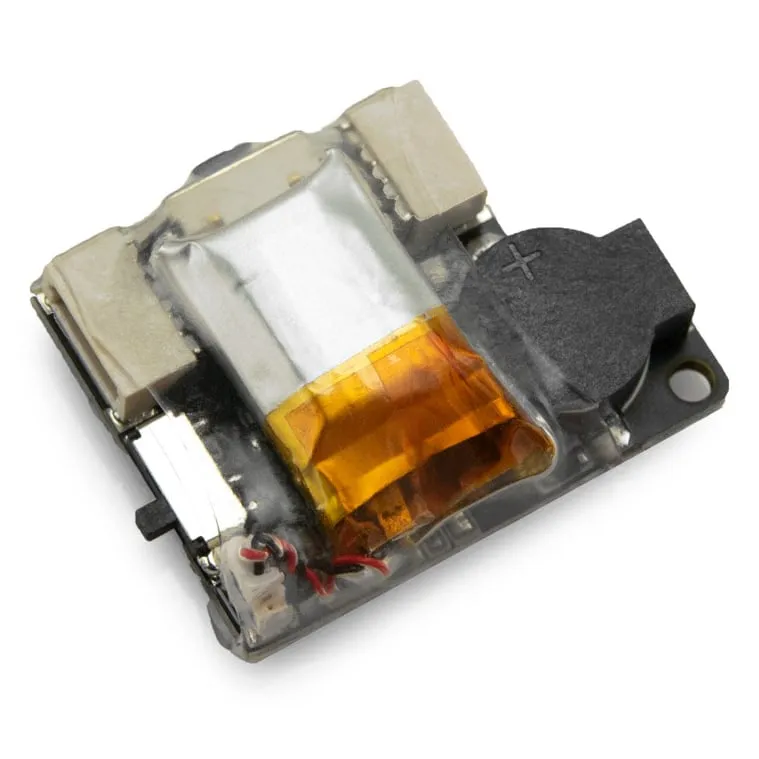

ViFly GPS Mate GPS Power Module with Buzzer

The ViFly GPS Mate is a dedicated external power module for your drone's GPS receiver, combined with a self-powered lost-model buzzer. Designed for long-range FPV and cinelifter pilots, it powers your GPS module from its internal battery to acquire a satellite lock before you plug in the main flight pack. This completely eliminates the issue of your video transmitter overheating while waiting for a cold-start 3D fix on the flight line.

Key features

• Pre-powers the GPS to secure a satellite lock without powering up the flight controller or VTX.
• Functions as a standalone Finder buzzer that triggers automatically if the main battery ejects during a crash.
• Selectable 3.3V or 5V output accommodates a wide range of standard GPS and compass modules.
• Recharges its internal battery automatically during normal flight via the flight controller's 5V pad.
• On/off switch keeps the GPS powered across battery swaps for the whole flying session.

Specifications

• Input Voltage: 4.5 - 5.5V
• Output Voltage: 3.3V / 5V (switchable)
• Output Current: up to 80 mA
• Internal Battery: 3.7V 50mAh LiPo
• Charge Time: 1.5 hours
• Buzzer Volume: Up to 90 dB
• Buzzer Working Time: up to 4 hours
• Dimensions: 26 x 20 x 8 mm
• Weight: 3.5 g

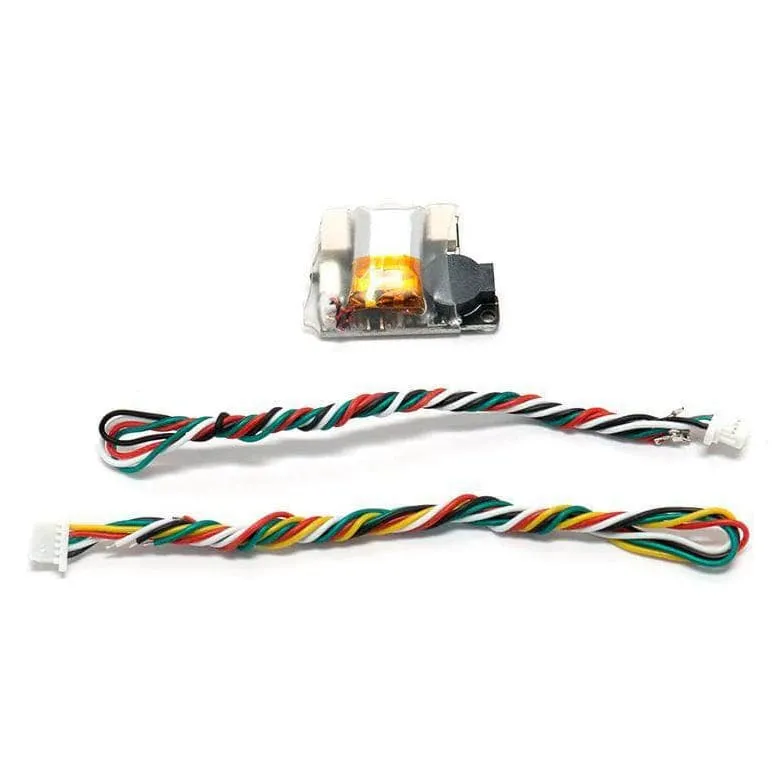

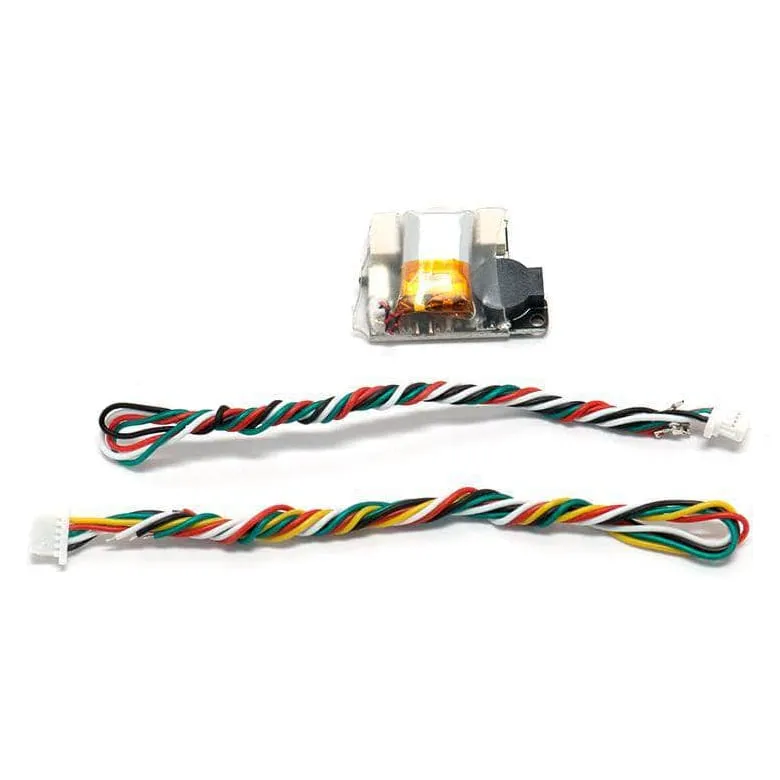

• In the box: GPS Mate, 4-pin cable, 5-pin cable, manual

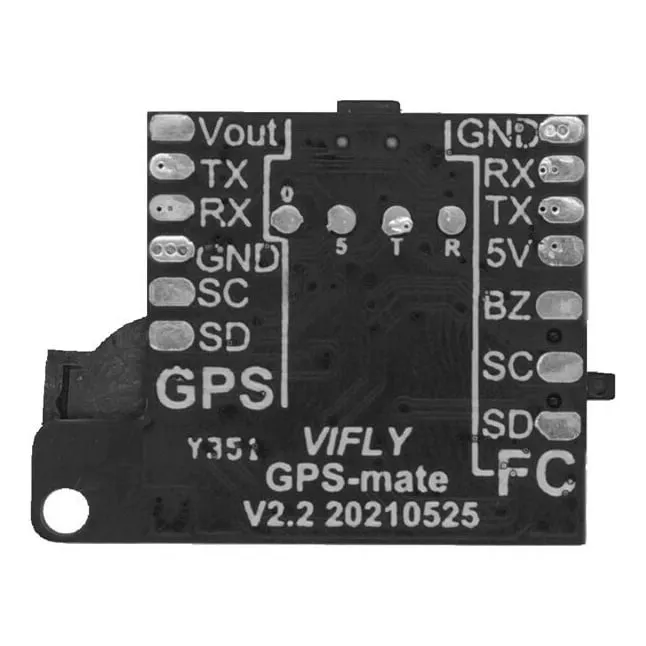

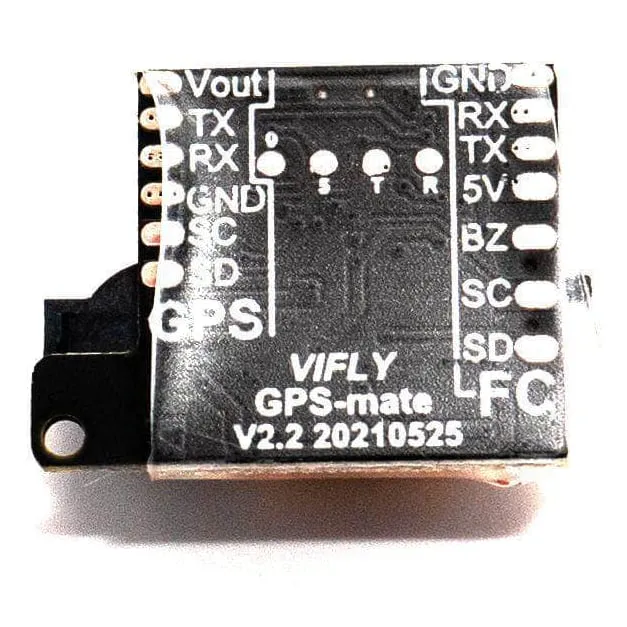

Wire the GPS Mate inline between your flight controller and GPS unit. A standard SH1.0 connector and included cables make integration highly straightforward for both new builds and retrofits.
