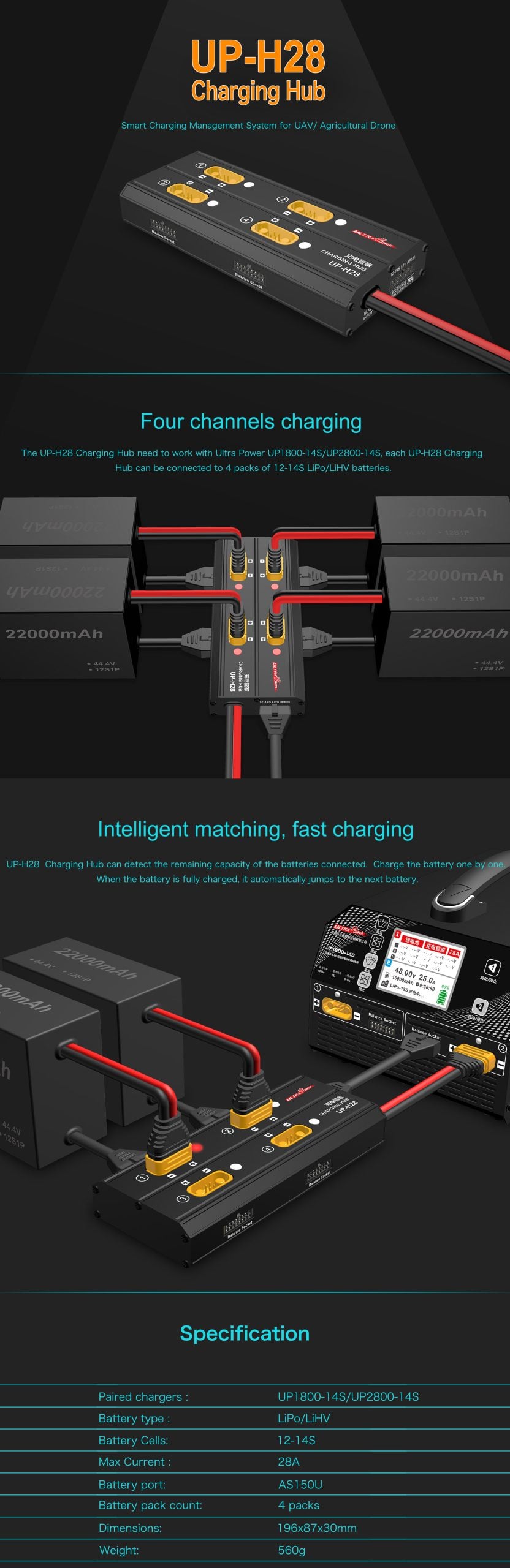

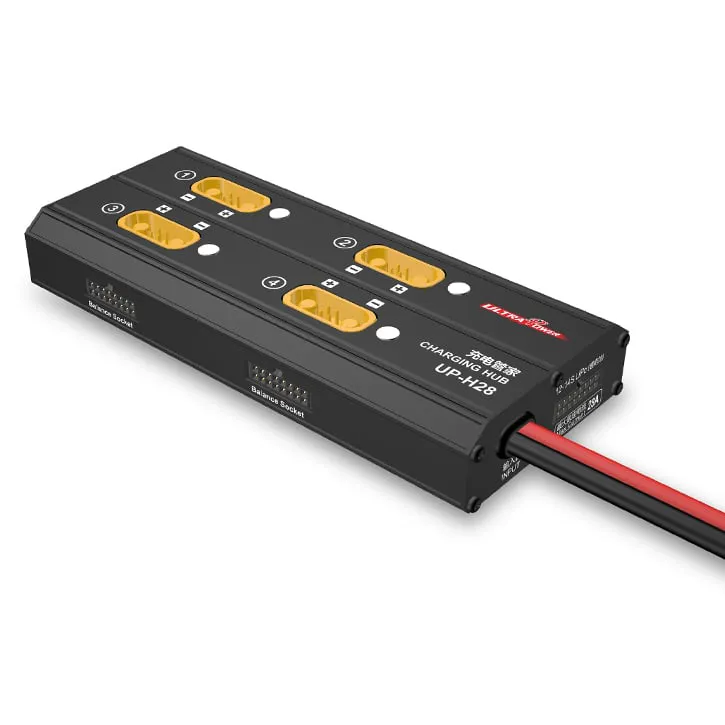

Ultra Power UP-H28 28A Charging Hub

The Ultra Power UP-H28 is a charging management hub for large UAV and agricultural drone batteries. It plugs into an Ultra Power UP1800-14S or UP2800-14S charger and lets one charger output serve up to four 12–14S LiPo or LiHV packs, so a full set of spray-drone batteries can be connected once and left to charge.

How it works

The hub reads the remaining charge of every connected pack and charges them one at a time. When the pack on charge is full, it switches to the next one automatically, at up to 28A.

Key features

• Four battery ports for 12–14S LiPo/LiHV packs.

• AS150U power ports and balance sockets.

• Detects each pack's remaining capacity and charges them in sequence, moving on automatically when one is full.

• Handles up to 28A charging current.

• Works with the Ultra Power UP1800-14S and UP2800-14S chargers.

Specifications

• Compatible chargers: Ultra Power UP1800-14S, UP2800-14S

• Battery type: LiPo / LiHV

• Cell count: 12–14S

• Battery packs: 4

• Max current: 28A

• Battery port: AS150U

• Dimensions: 196 × 87 × 30 mm

• Weight: 560 g

The UP-H28 is not a charger on its own; it needs one of the compatible Ultra Power chargers above.
