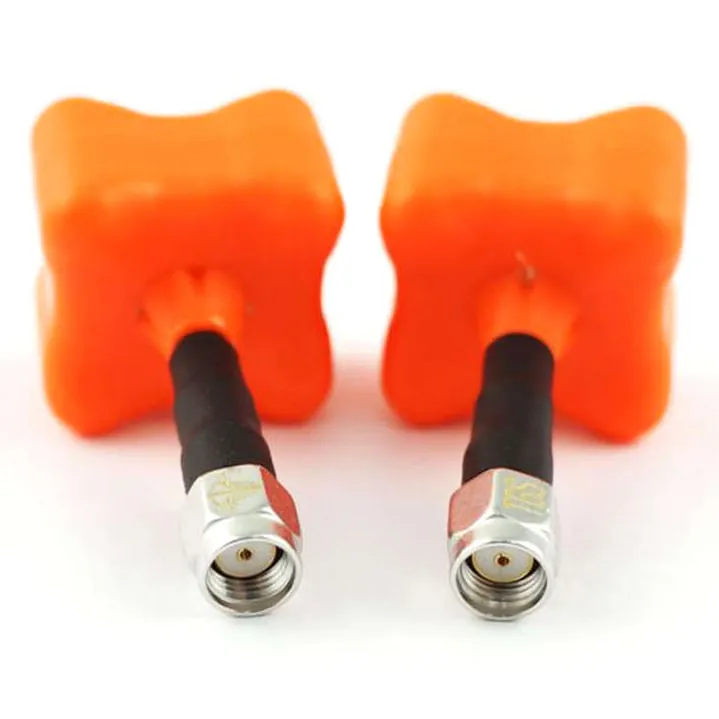

TBS Triumph Stub 5.8GHz RP-SMA Antenna
SKU TBS-TRIUMPH-STUB-RPSMA
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The TBS Triumph Stub is a low-profile 5.8GHz FPV antenna designed by Video Aerial Systems (IBCrazy) and built by Team BlackSheep. Its stub form factor removes the usual flexible coax lead entirely, making it a snag-free fit for tight VTX installs on freestyle miniquads or as a receiver antenna on your FPV goggles.
Key features
- Ultrasonically welded, foam-filled housing built to survive hard crashes.
- Double-jacket semi-rigid RG402 cable and tin-plated connector for extra impact resistance.
- Stub profile keeps the antenna low and out of the way of propellers.
- LHCP polarization — match it to LHCP-polarized VTX or VRX gear on the other end of the link.
Specifications
- Frequency range: 5500–6000 MHz
- Polarization: LHCP
- Gain: 1.26 dBic
- Axial ratio: 0.74
- Connector: RP-SMA
- Height: 50 mm
- Weight: 8.5–9.8 g
Confirm your VTX or receiver is RP-SMA and matched to LHCP polarization before ordering — a polarization mismatch will badly degrade the link even though the connector still screws on.
| Polarization | LHCP |
|---|---|
| Antenna Connector | RP-SMA |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | TBS |
| Gain | 1.26 dBi |
| Antenna Type | Omni |
