TBS Triumph RHCP (2 Pcs) — Connector: RP-SMA

TBS Triumph RHCP (2 Pcs) — Connector: SMA

FPV Antennas

TBS Triumph RHCP (2 Pcs)

Name: TBS Triumph RHCP (2 Pcs)
Brand: TBS
SKU: TBS-TRIUMPH-STUB-RPSMA-RHCP-2PK
Price: 4449 INR
Availability: InStock

₹4,449

SKU TBS-TRIUMPH-STUB-RPSMA-RHCP-2PK

Choose variant

Polarization: RHCPAntenna Connector: SMA, RP-SMAFrequency Band: 5.8GHzMade in India: No

Free shipping. Pan India delivery from Gurugram, Haryana.

Ships within 3–4 business days — quality-checked in Gurugram before dispatch

100% genuine parts
GST invoice with every order
Secure payments — cards, UPI & net banking via Razorpay
7-day returns on wrong or damaged items

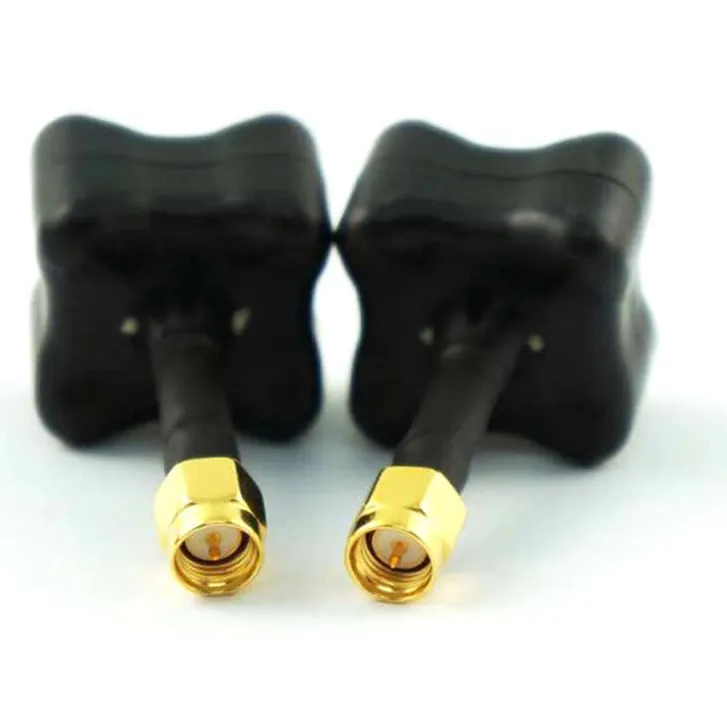

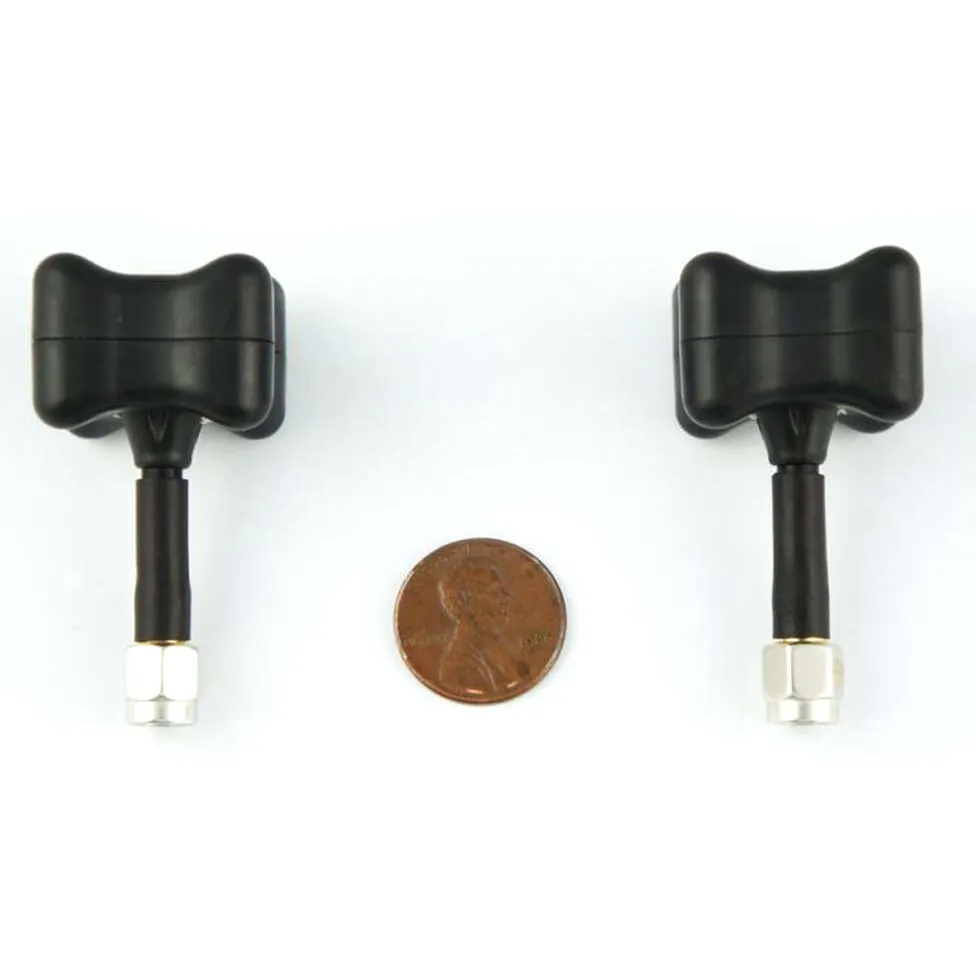

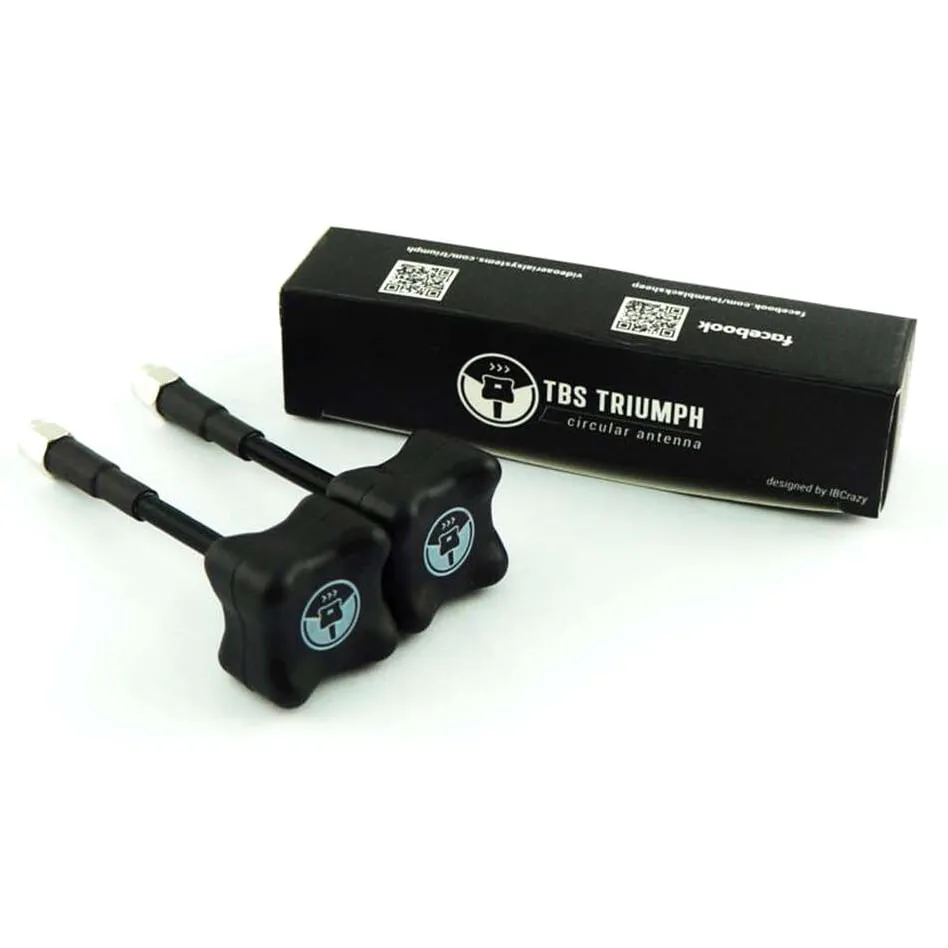

The TBS Triumph-Stub is a compact and highly durable 5.8GHz video antenna designed in collaboration with IBCrazy for FPV miniquads and racing builds. This dual-pack provides two crash-resistant RHCP antennas equipped with standard SMA connectors.

Key features

Engineered by Video Aerial Systems (IBCrazy) with excellent multipath rejection and a 0.74 axial ratio.
Foam-filled, ultrasonically welded housing protects the internal elements from severe impacts.
Stub form factor minimises leverage during crashes, making it ideal for direct top-plate mounting.
Includes two identical antennas for use on either your quadcopter or FPV goggles.

Specifications

Frequency range: 5500–6000MHz (5.8GHz)
Polarization: RHCP
Gain: 1.26 dBic
Axial ratio: 0.74
Connector: SMA
Height: 50mm
Weight: 8.5g

The low-profile stub design sits close to the airframe, reducing the risk of snagging on race gates or branches during aggressive freestyle flights. Ensure your video transmitter or goggle receiver uses a matching female SMA port and RHCP polarisation for optimal signal quality.
