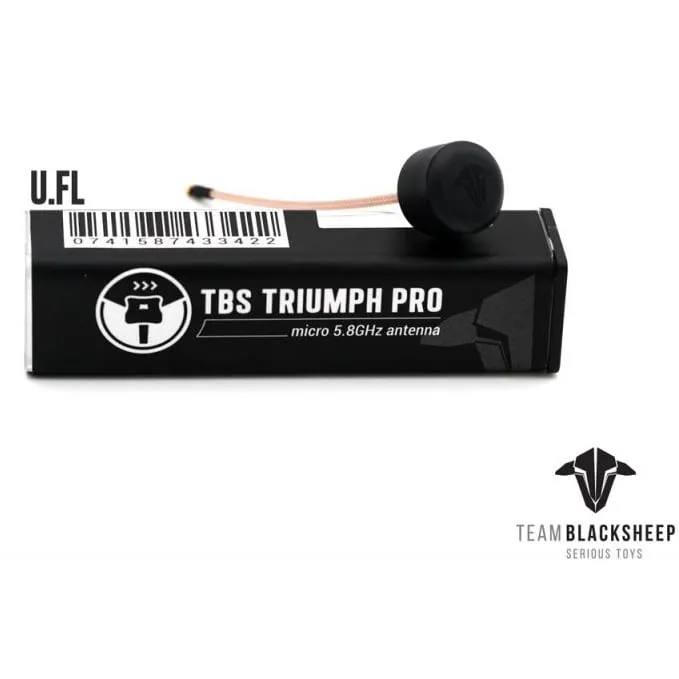

TBS Triumph PRO (U.FL)

Engineered by Video Aerial Systems (IBCrazy) and manufactured by Team BlackSheep, the TBS Triumph Pro is a micro-sized 5.8GHz FPV antenna built for maximum durability and signal clarity. This version features a U.FL (IPEX) connector, making it an exact fit for micro builds, lightweight racing drones, or any setup using a VTX with a direct U.FL socket, such as the TBS Unify Pro Nano. It shrinks the footprint of the original Triumph design without compromising range, providing consistent multipath rejection and a clean video feed in harsh RF environments.

Key features

• Direct U.FL (IPEX) connection for lightweight, adapter-free VTX mounting
• Ultrasonic welded and foam-infused radome built to survive heavy impacts and prop strikes
• Double-jacket heavy-duty cable offers high strain relief and routing flexibility
• Designed collaboratively by IBCrazy for high-performance 5.8GHz video systems

Specifications

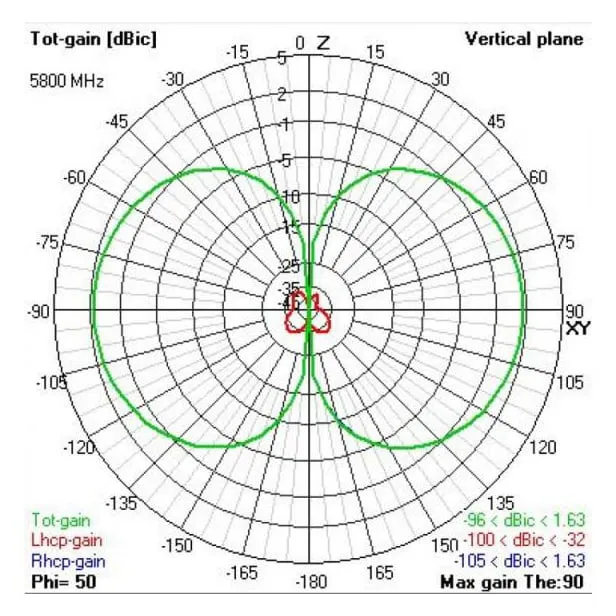

• Frequency range: 5500–6000MHz
• Gain: 1.26 dBic
• Axial ratio: 0.74
• Polarisation: RHCP
• Connector: U.FL (IPEX)
• Weight: 2g
• Total length: 87mm

Verify that your video transmitter uses a U.FL/IPEX socket rather than MMCX or SMA before purchasing this antenna variant.
