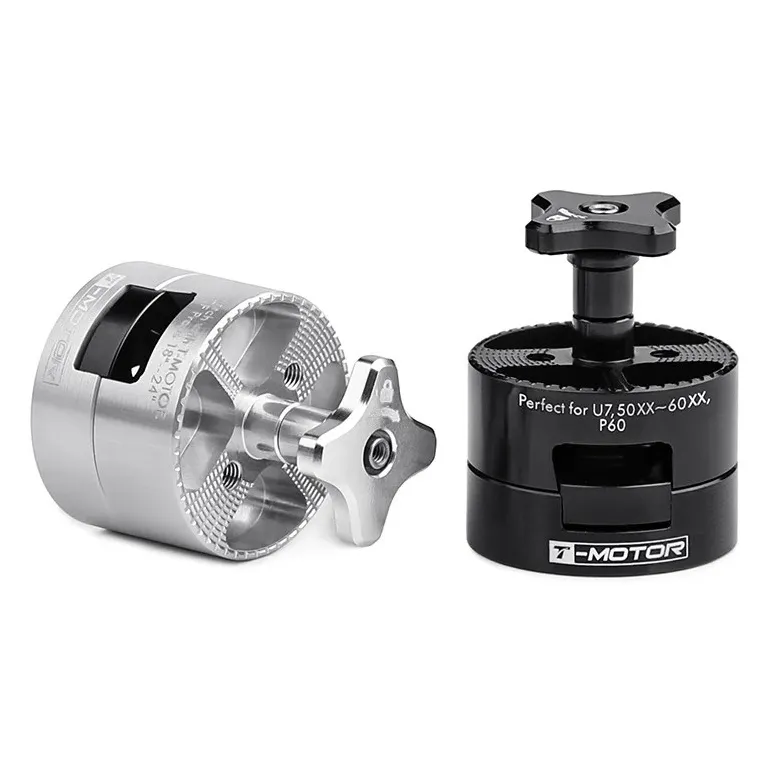

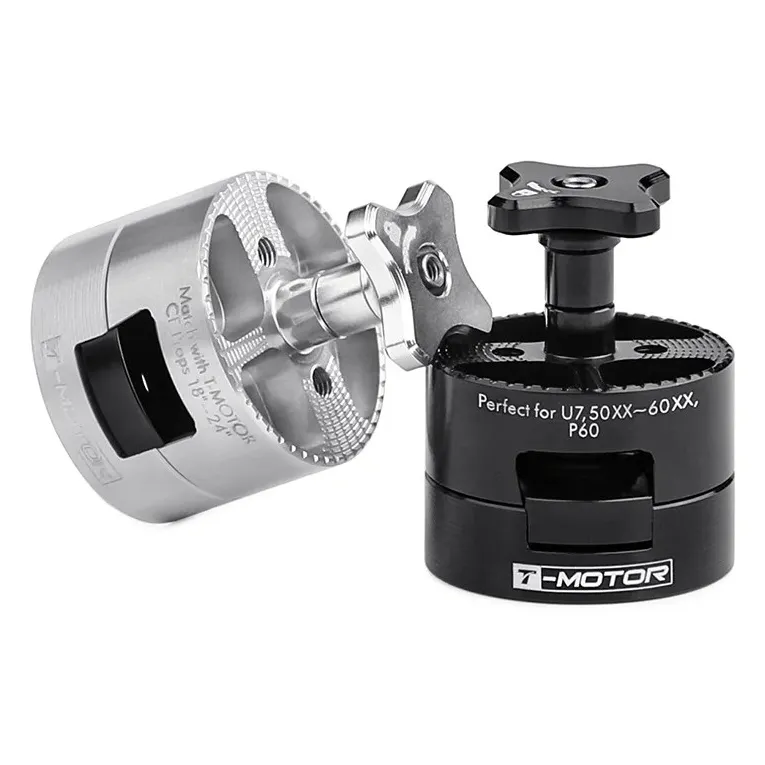

T-Motor Q1824 Quick-Attach-Detach Propeller Adapter (CW & CCW Pair)

T-Motor Q1824 quick-attach-detach adapters let you fit and remove 18–24 inch propellers by hand on large UAV motors, with no screws to tighten in the field. The pair contains one CW adapter in black and one CCW adapter in silver, so each prop goes on the correct motor first time.

Key features

• Tool-free prop changes: plug-and-play locking lets you keep spare props ready and swap them quickly between flights.

• Colour-coded rotation: black for CW, silver for CCW, to prevent mixed-up props.

• Built for big motors: designed for T-Motor 50xx–60xx motors such as the U7 and P60, on 4 mm or 6 mm shafts.

• Rated load: up to 13 kg of thrust per rotor, with a 500-hour MTBF.

• Aluminium construction for a light, rigid mount.

Specifications

• Prop range: 18–24 in

• Prop centre hole: 6 mm, mounting holes at 20 mm

• Motor shaft: 4 mm or 6 mm

• Motor class: 50xx–60xx (T-Motor U7, P60)

• Maximum thrust: under 13 kg

• MTBF: 500 h

• Material: Aluminium

• Pack: 1 CW (black) + 1 CCW (silver)

One pair covers two motors, so a quad needs two pairs. Check that your props have a 6 mm centre hole with 20 mm hole spacing before ordering; for 14–18 inch props on smaller motors, the Q1418 is the matching version.
