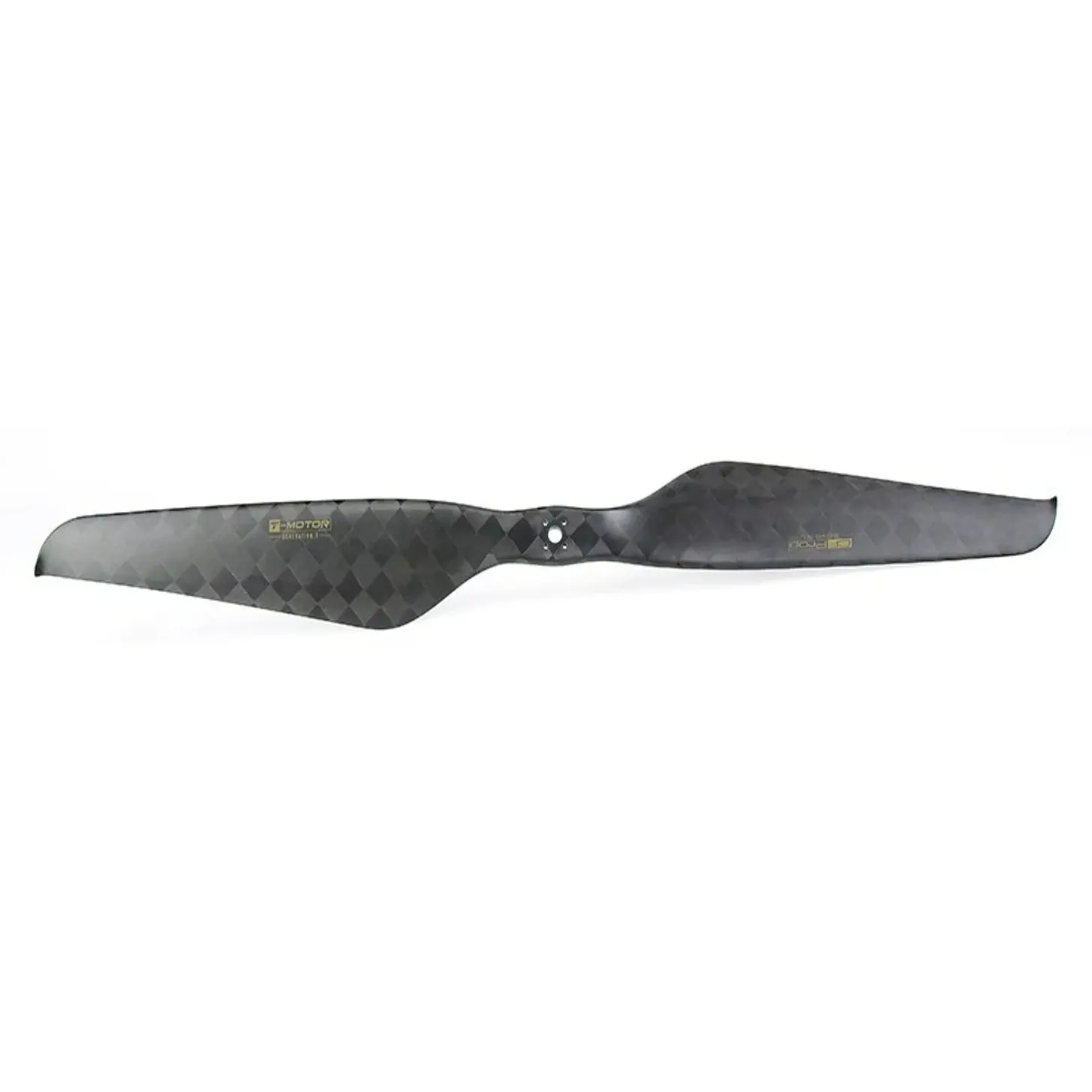

T-Motor NS30 x 10 Carbon Fiber Propeller (Pair)

The T-Motor NS30 x 10 is the largest propeller in T-Motor's NS series: a 30-inch, two-blade integrated carbon fibre prop supplied as a clockwise and counter-clockwise pair. It is built for heavy-lift industrial and agricultural multirotors working at 6–10.5 kg of thrust per motor.

Key features

• NS-series lightweight construction: 72 g per propeller across a 762.5 mm span, for lower moment of inertia and less motor vibration.

• Recommended working range of 6–10.5 kg thrust at 2580–3350 RPM.

• Maximum rated thrust of 22 kg at 4710 RPM leaves headroom for heavy take-offs and gusty conditions.

• Carbon fibre and epoxy construction with a scratch-resistant finish.

• Rated for -40 to 65 °C operation; L and R markings identify the clockwise and counter-clockwise props.

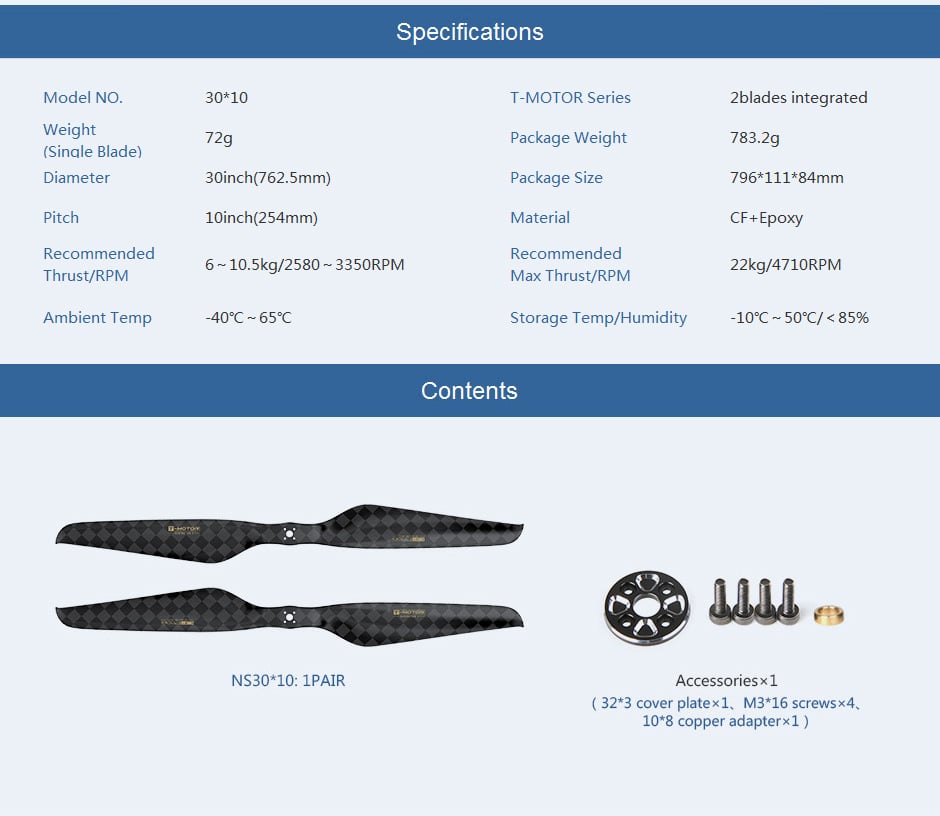

Specifications

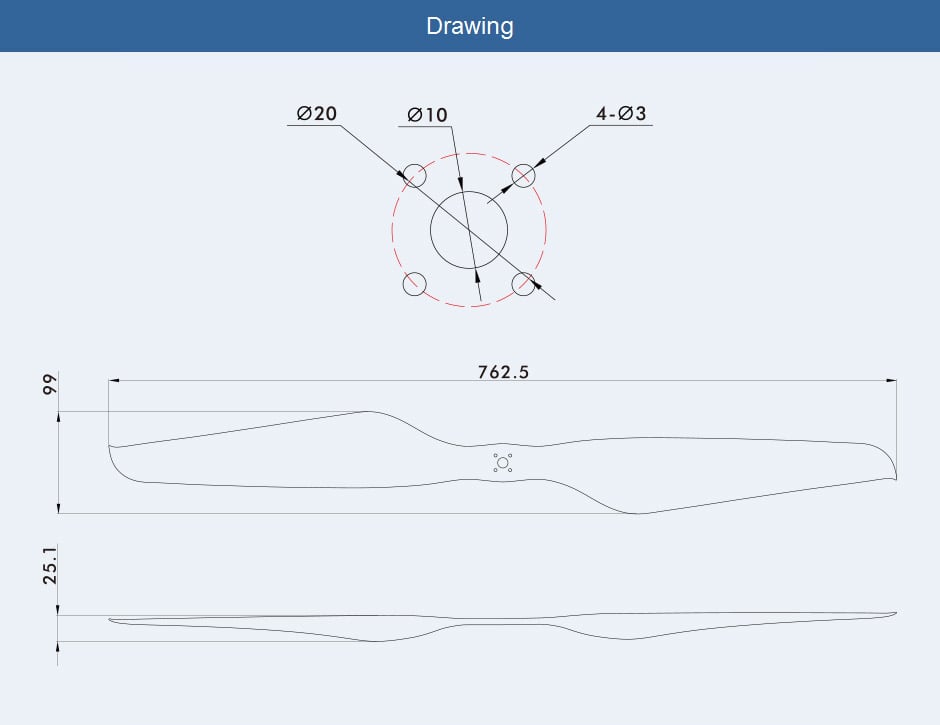

• Diameter: 30 in (762.5 mm)

• Pitch: 10 in (254 mm)

• Blades: 2, integrated

• Material: Carbon fibre + epoxy

• Weight: 72 g per propeller

• Recommended thrust: 6–10.5 kg at 2580–3350 RPM

• Maximum thrust: 22 kg at 4710 RPM

• Operating temperature: -40 to 65 °C

• Storage: -10 to 50 °C, under 85% humidity

• Pack: 2 propellers (1 CW + 1 CCW)

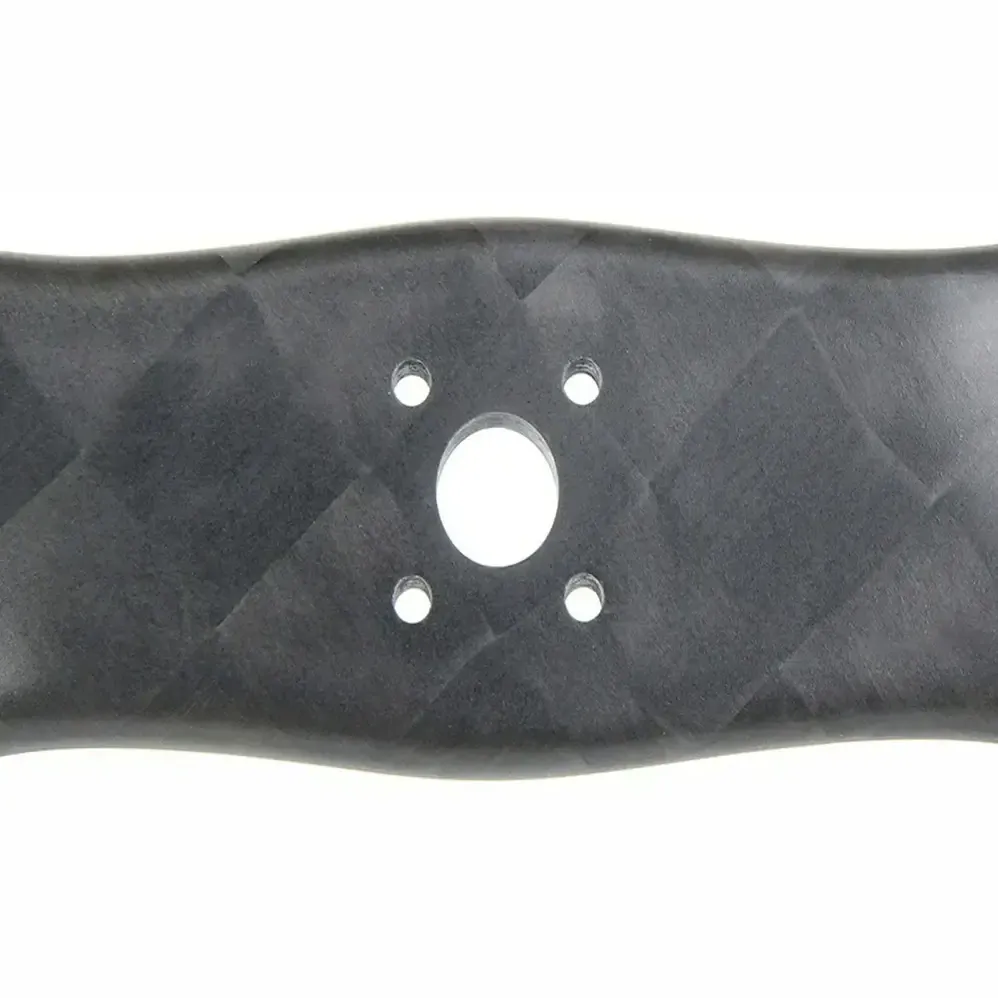

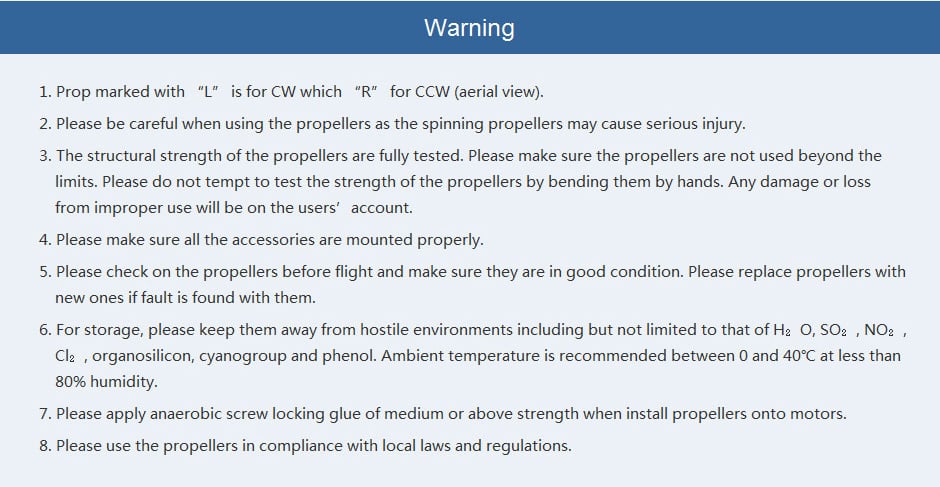

Pair it with a large-stator, low-KV motor rated for 30-inch props and check the hub's bolt pattern against the motor's prop holder. Apply medium-strength anaerobic threadlocker to the mounting screws and inspect both props for cracks or delamination before every flight.
