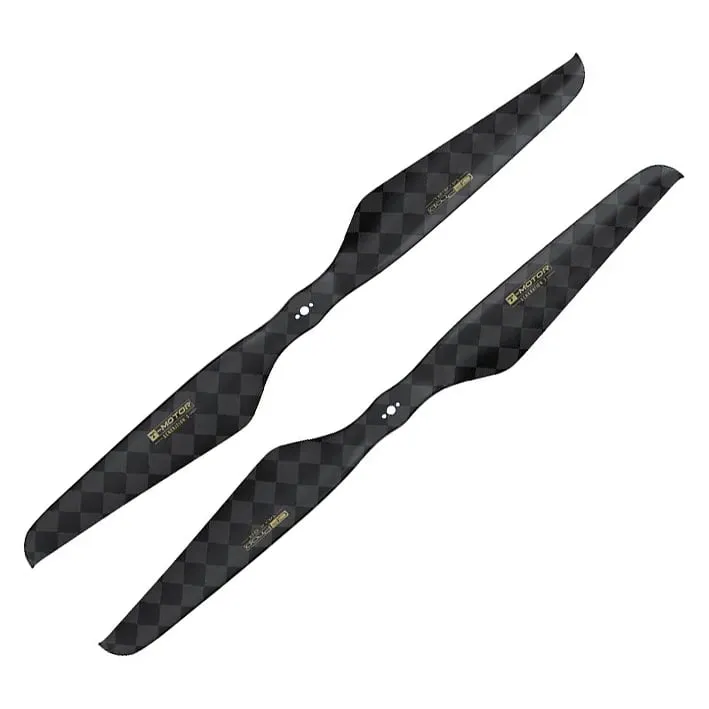

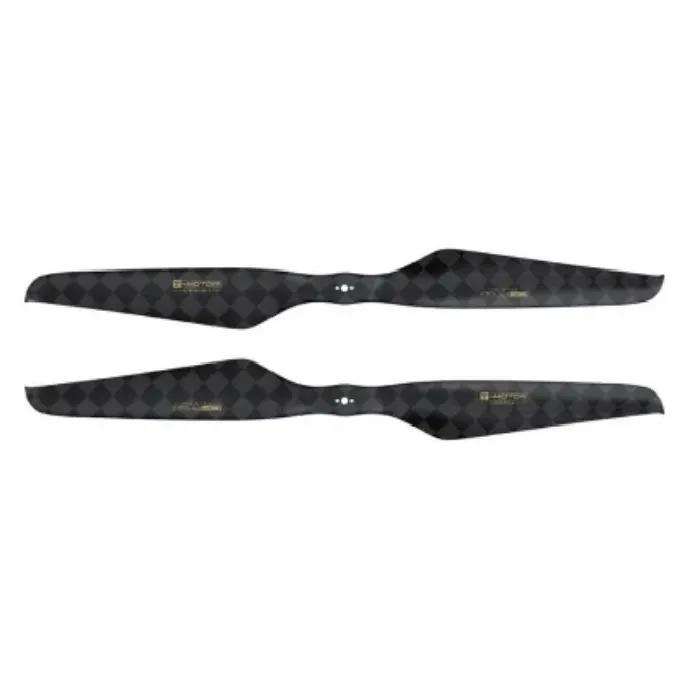

T-Motor NS20 x 6.2 Carbon Fiber Propeller (Pair)

T-Motor's NS20 x 6.2 is a 20-inch carbon fibre propeller from the ultra-light NS series, supplied as a matched CW/CCW pair for multirotor UAVs. At 23 g per propeller it keeps the moment of inertia low for efficient, long flights.

Key features

• Recommended thrust of 1.7–5 kg per propeller at 3350–5600 RPM; rated to 8.5 kg maximum thrust and 7250 RPM
• Carbon fibre and epoxy construction, with both blades moulded as one integrated piece
• Scratch-resistant finish
• Marked L for clockwise and R for counter-clockwise rotation, viewed from above

Specifications

• Diameter × pitch: 20 × 6.2 in (508.4 × 157.48 mm)
• Blades: 2, integrated
• Material: Carbon fibre + epoxy
• Recommended thrust: 1.7–5 kg
• Recommended speed: 3350–5600 RPM
• Maximum thrust: 8.5 kg
• Maximum speed: 7250 RPM
• Weight: 23 g per propeller
• Working temperature: −40 to 65 °C
• Storage temperature: −10 to 50 °C

Apply a medium-strength anaerobic threadlocker to the mounting screws, keep the props within their rated limits, and replace any propeller that shows damage during the pre-flight check.
