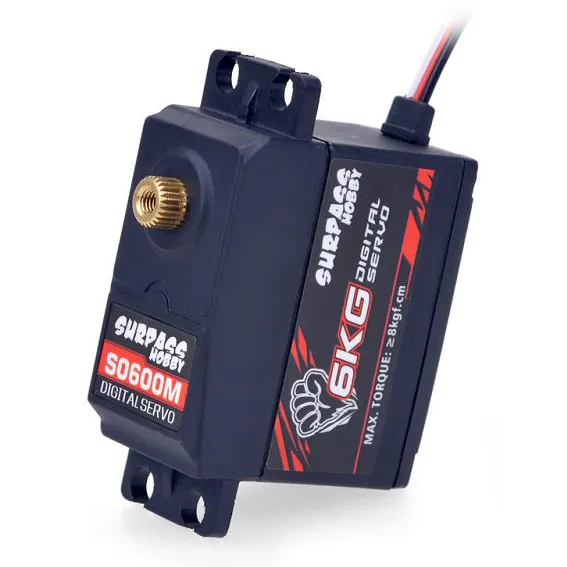

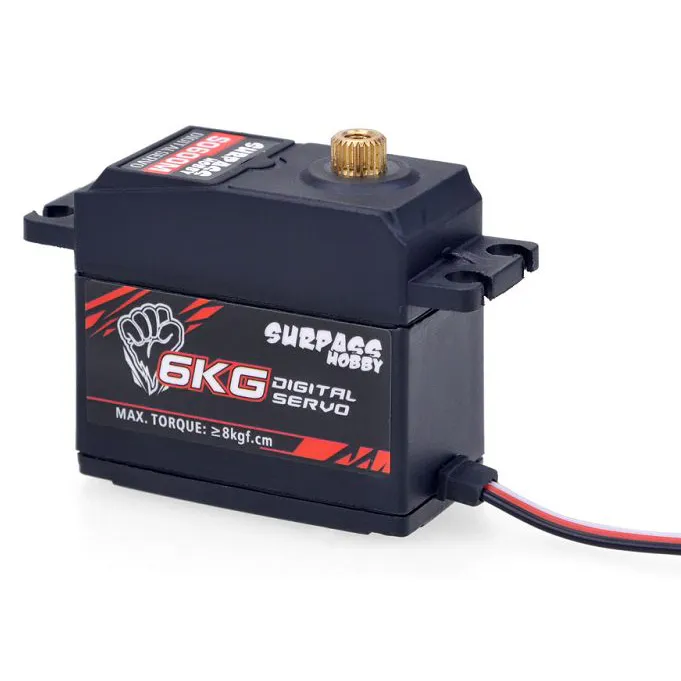

Surpass Hobby S0600M Servo – 6KG

The Surpass Hobby S0600M is a 6kg-class metal gear servo suited for fixed-wing aircraft, drone pan-and-tilt gimbals, and auxiliary payload release mechanisms. Built around a standard DC motor and a durable metal gear train, it outputs up to 6.0 kg·cm of torque, making it a robust actuator for utility builds where gear strength outranks high-end speed.

Key features

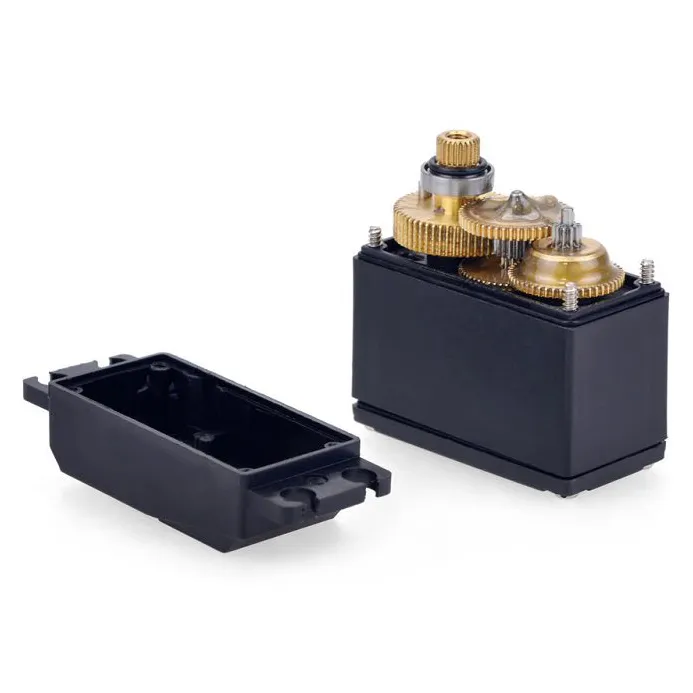

• Full metal gear train for high resistance against stripping during hard landings or heavy payload actuations
• Standard JR-style connector for direct compatibility with PWM receivers and flight controller servo pads
• Standard 40g footprint tailored for custom heavy-lift, RC plane, or robotics projects

Specifications

• Operating voltage: 4.8V - 6.0V DC
• Stall torque: 5.5 kg·cm (4.8V) / 6.0 kg·cm (6.0V)
• Operating speed: 0.18 sec/60° (4.8V) / 0.16 sec/60° (6.0V)
• Motor type: DC
• Gear material: Metal
• Working frequency: 1520μs / 333Hz
• Dimensions: 40.7 x 20.2 x 36.6 mm
• Weight: 40g

Operating efficiently on a standard 5V BEC, the S0600M supplies consistent pulling power and crash resilience for heavy-duty flight control surfaces or custom payload droppers.
