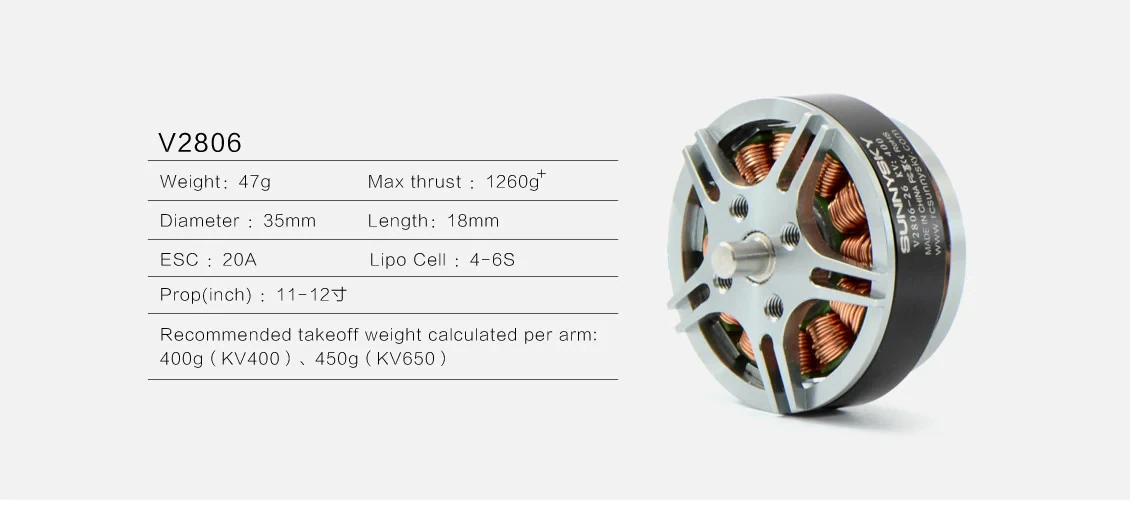

SunnySky V2806 650KV Multirotor Brushless Motor

The SunnySky V2806 650KV is a high-efficiency brushless motor engineered for long-flight-time multirotors and aerial photography platforms. Featuring a wide 28mm stator and slim 6mm height, this pancake-style outrunner produces high torque at low RPMs, allowing builders to spin large propellers efficiently without drawing excessive current on sustained flights.

Key features

• Wide 2806 stator layout provides the leverage to spin 11 to 12-inch propellers efficiently; SunnySky recommends 11x4.5 and 12x5 props.

• Ultra-low 650KV winding limits top-end RPM to minimize current draw during long cruising and loitering flights.

• Pancake-style low-profile geometry exposes more stator surface to airflow, preventing overheating on prolonged endurance missions.

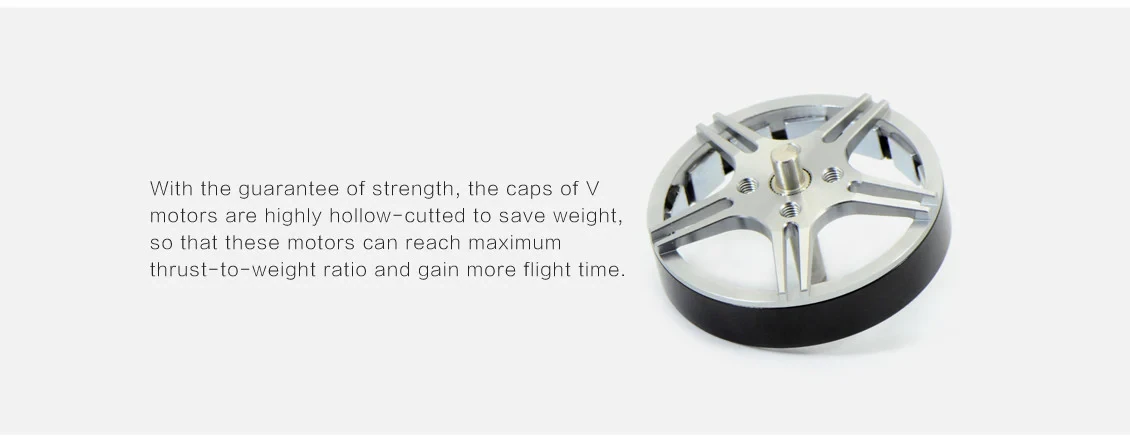

• Precision-machined bell and bearings ensure smooth, low-vibration rotation for jello-free camera footage.

Specifications

• Manufacturer: SunnySky

• Stator Size: 2806

• KV Rating: 650KV

• Motor Type: Brushless Outrunner

• Configuration: 12N14P

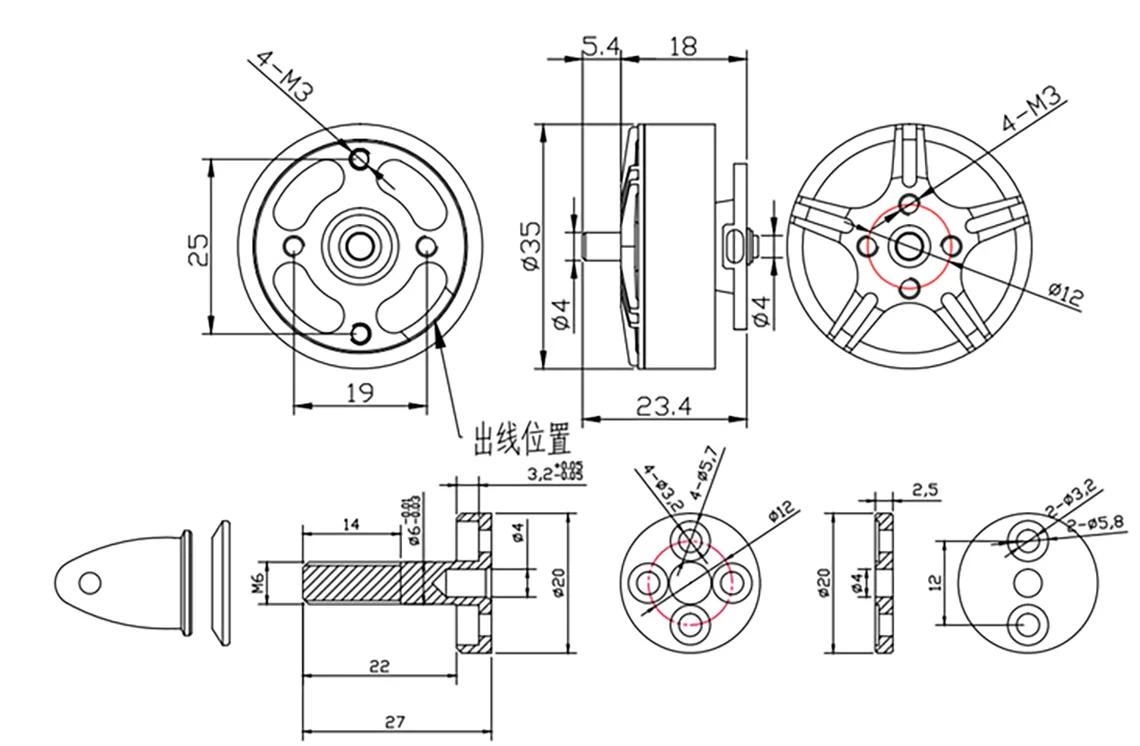

• Motor Dimensions: 35 x 18 mm (rotor diameter x body length)

• Recommended Voltage: 4-6S LiPo

Because of its ultra-low KV rating, this motor requires larger propellers to generate adequate thrust. Pair it with 11 to 12-inch props on a 4-6S endurance or aerial photography multirotor, sizing the pack for the flight time you need.
