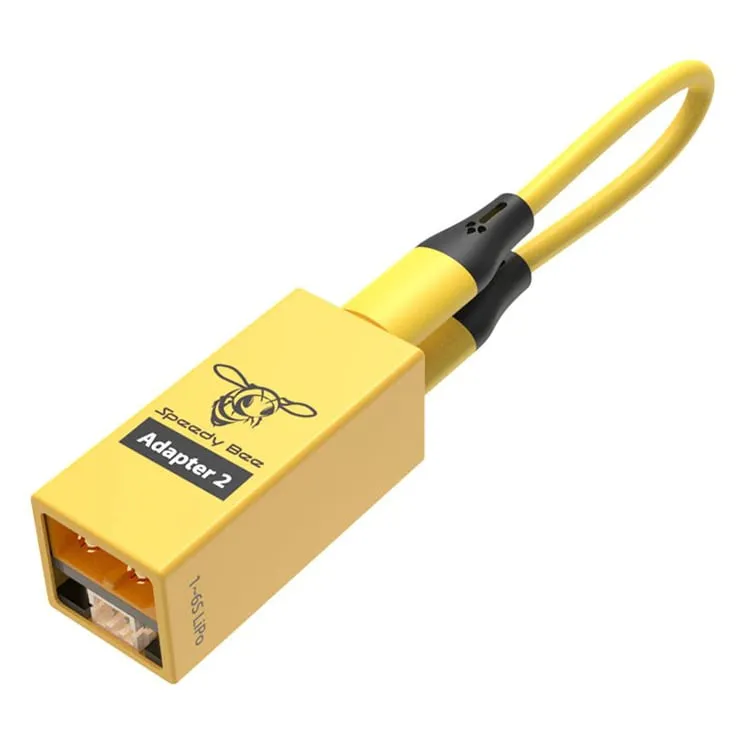

SpeedyBee Adapter 2 Micro USB with WiFi

The SpeedyBee Adapter 2 is a compact, field-ready Wi-Fi module designed to wirelessly configure Micro USB flight controllers via your smartphone. By plugging directly into your flight controller and broadcasting a local Wi-Fi network, it eliminates the need to carry a laptop to the flight line for Betaflight or INAV tuning.

Key features

• Enables full wireless FC configuration and CLI access via the SpeedyBee mobile app.

• Direct Micro USB interface tailored for older flight controller architectures.

• Accepts direct power from your flight battery, booting up the flight controller without requiring an external USB power bank.

• High-speed Wi-Fi transmission ensures smooth parameter adjustments and firmware updates on the go.

Specifications

• FC connection: Micro USB

• Wireless protocol: Wi-Fi

• Supported firmware: Betaflight, INAV, Butterflight

• App compatibility: SpeedyBee (iOS / Android)

• Firmware flashing over Wi-Fi: Betaflight, Emuflight

• Power input: 1-6S LiPo (3.8 V or above on 1S)

• Power input connectors: XT60 male, PH2.0 male

• Maximum output current: 200 mA at 5 V

• Wi-Fi range: about 3 m

• Cable: 10 cm liquid silicone, Micro USB at both ends

• Main body dimensions: 18 x 18.5 x 42 mm

• Weight: 21.8 g

This adapter is ideal for pilots maintaining older analog or digital builds equipped with Micro USB ports, allowing you to modify rates, tune PIDs, or check motor mapping directly from the field.
