AirPixel ADTi Surveyor Camera Connection Set for ENTIRE

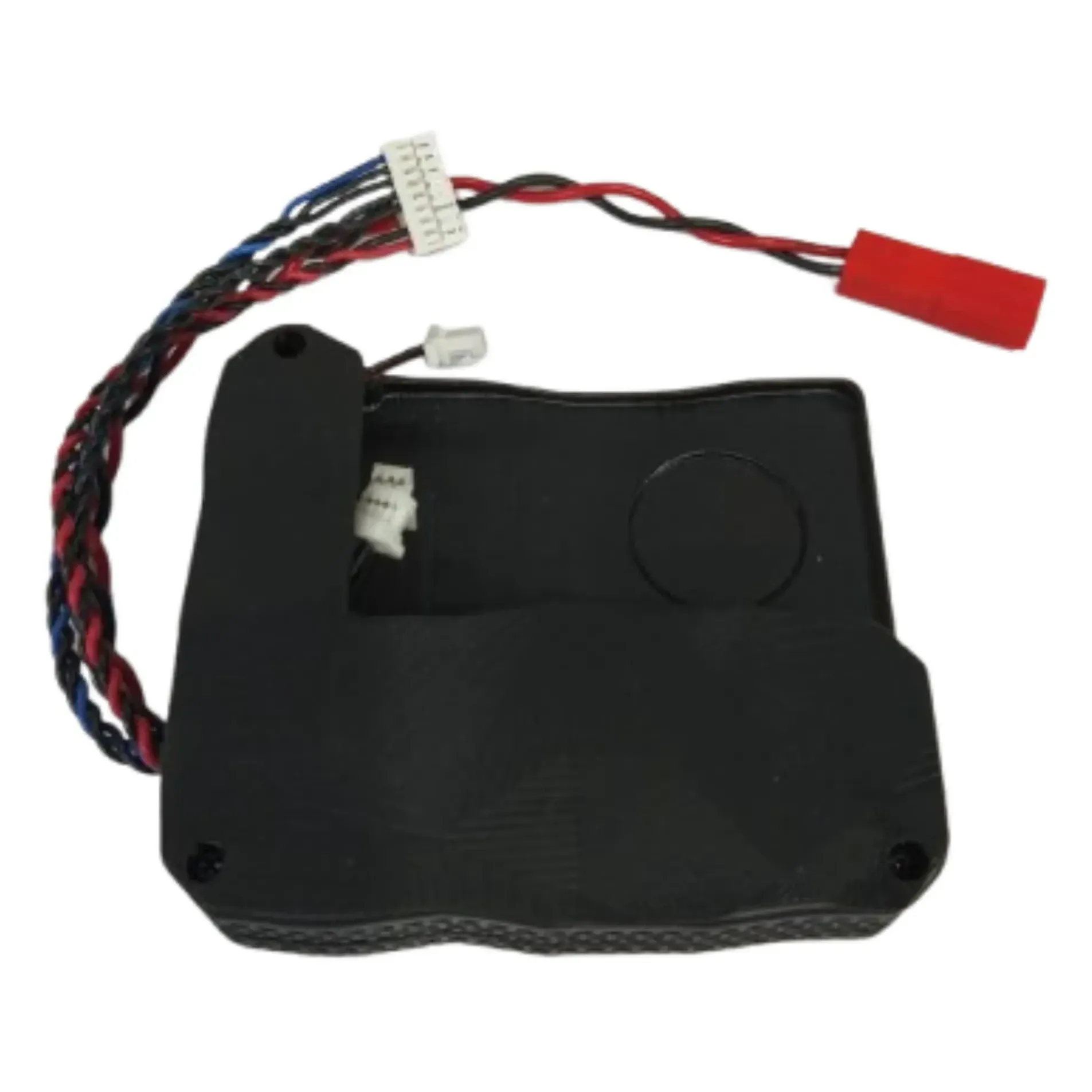

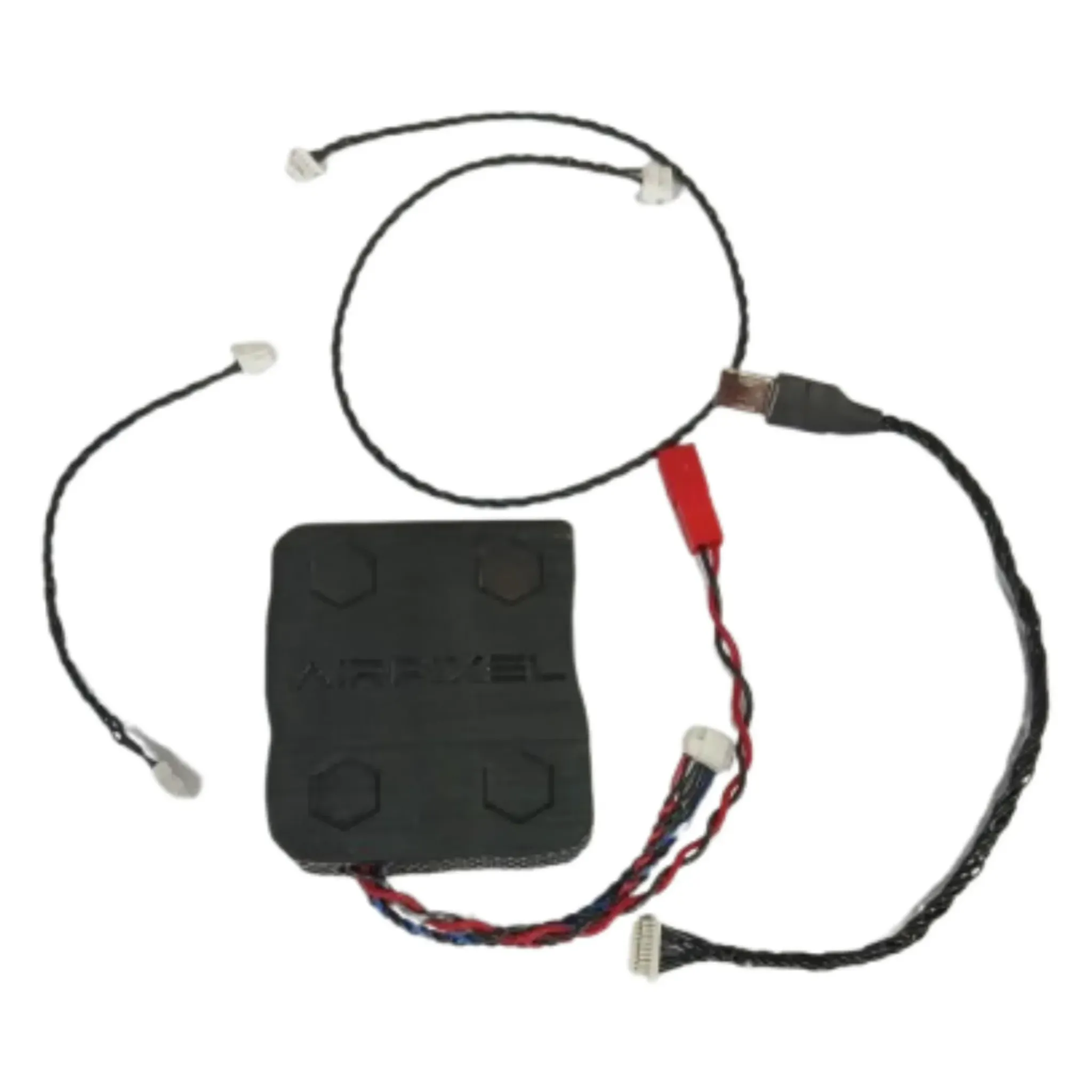

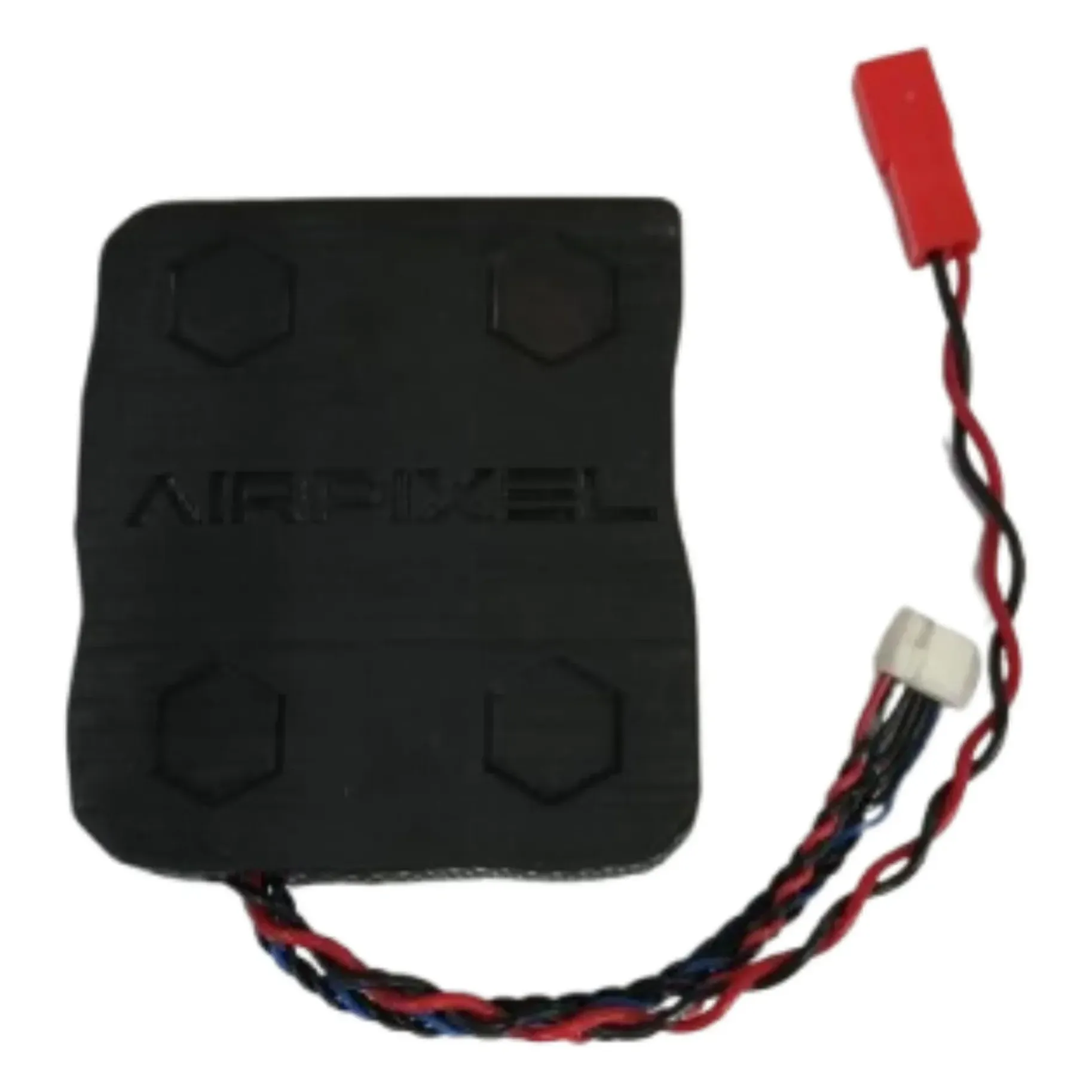

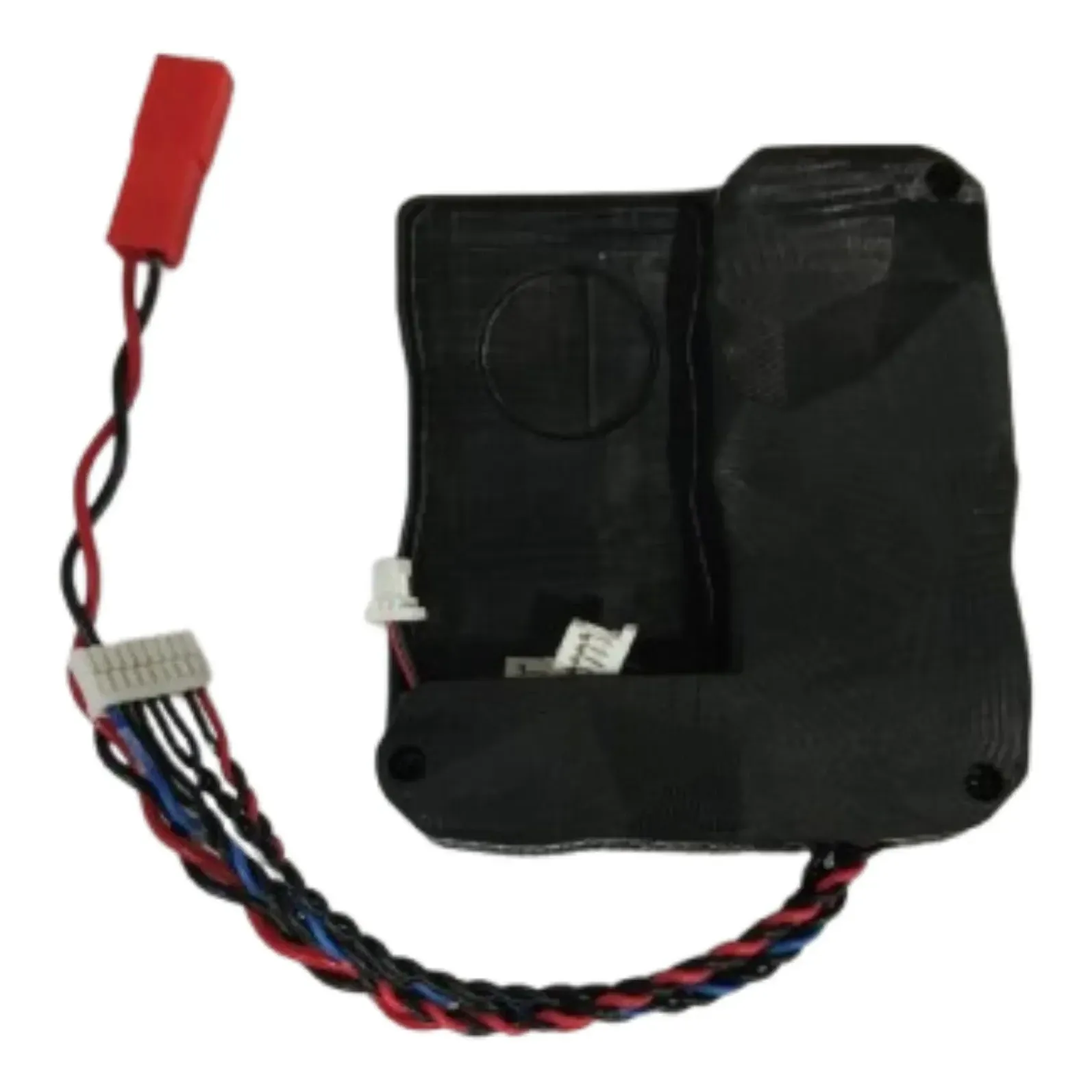

Connection set that links an AirPixel ENTIRE camera-control and geotagging unit to an ADTi Surveyor mapping camera, for survey and photogrammetry drones. Once fitted, the ENTIRE controls the camera and geotags every image, with commands passed via MAVLink or AIR Commander Link v2.

Key features

• Cable carries serial communication, capture detection and camera power between the ENTIRE and the ADTi camera
• Includes the AirPixel PowerAdaptor (uBEC), housed in the MountBOX together with the cables
• The whole system runs from one power cable, with input limited to 12–23 V
• Camera control covers shutter speed, aperture, ISO, exposure correction, menu navigation, photo trigger and video start/stop
• Writes accurate GPS position and attitude into each image's EXIF data

Specifications

• Controller: AirPixel ENTIRE
• Camera: ADTi Surveyor series
• Control link: MAVLink or AIR Commander Link v2
• Power input: 12–23 V, single cable
• Included: Connection cable, PowerAdaptor (uBEC)

To mount the ADTi and ENTIRE on a Gremsy v3-series gimbal and read the gimbal angles for geotagging, the separate Gremsy set is also required; in that setup the camera's power input is shared with the PowerAdaptor.
