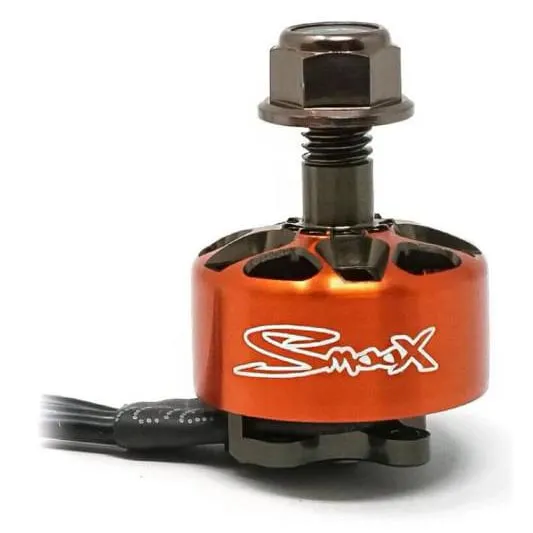

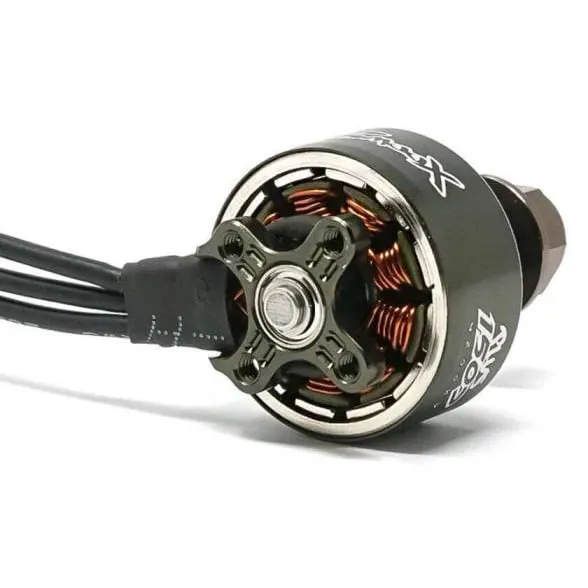

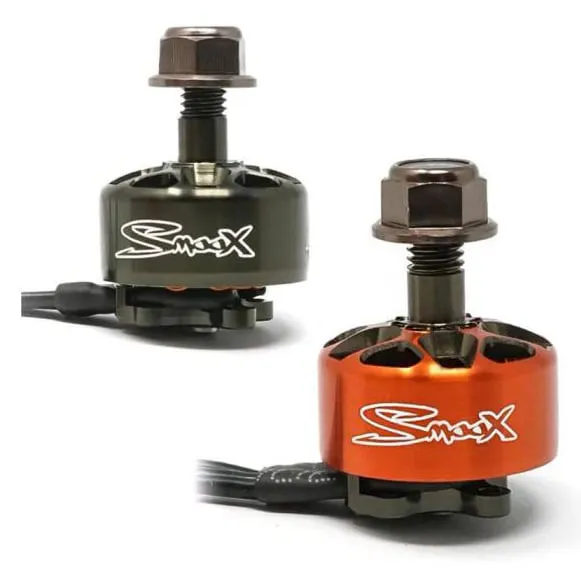

RCINPower SmooX 1507 Plus Motor – 3800KV (Orange Gun Metal)

The RCINPOWER SmooX 1507 Plus 3800KV motor delivers high-torque performance for 3-inch to 4-inch heavy cinewhoops and micro freestyle builds. Finished in a dual-tone orange and gun-metal housing, this motor is designed for 3S to 4S LiPo setups, generating the low-end thrust required to push heavier frames carrying HD action cameras.

Key features

• 9N12P configuration paired with a 1507 stator for smooth, consistent power delivery.
• Standard M5 threaded prop shaft accommodates standard 3-inch and 4-inch hub propellers without requiring T-mount adapters.
• Unibell design minimises vibration and improves bell cooling during aggressive flights.
• Pre-tinned 24AWG silicone wires allow easy routing and direct soldering to AIO flight controllers or 4-in-1 ESCs.

Specifications

• KV: 3800
• Configuration: 9N12P
• Stator Size: 1507 (15 mm diameter x 7 mm length)
• Motor Dimensions: 20.7 x 28.2 mm
• Propeller Shaft: 2mm inner shaft with M5 threaded prop adapter
• Mounting Pattern: 12x12mm (M2)
• Input Voltage: 3-4S LiPo
• Wire: 24AWG
• Weight: 16.8g (including wires)
• In the box: 1 x motor, 1 x prop nut

With its 12x12mm M2 mounting base, the SmooX 1507 Plus is a direct drop-in fit for popular 3-inch ducted frames like the ProTek35 or Squirt, as well as heavier micro freestyle chassis demanding extra stator volume.
